CCD Camera Fiber Laser Marking Machine

CCD Camera Fiber Laser Marking Machine aims at tackling the problems of difficult feeding, poor positioning, and slow speed caused by the difficulty of fixture design and manufacturing in batch irregular marking.

Send Inquiry

Product Introduction

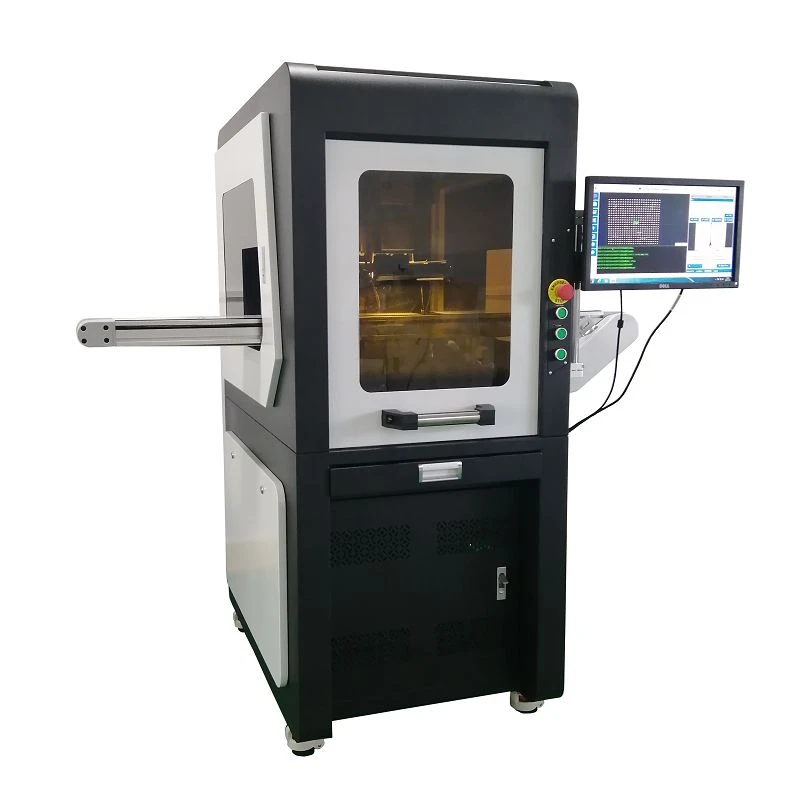

CCD Camera Fiber Laser Marking Machine

Products Description

A CCD Camera Fiber Laser Marking Machine is a type of fiber laser marking equipment with an integrated CCD (Charge-Coupled Device) camera. This camera provides real-time visual guidance and positioning to improve accuracy and efficiency while marking or engraving various materials, such as metals, ceramics, and certain plastics.

product advantages

01/

Vision-assisted positioning: The CCD camera captures live images of the material and work area, allowing for easier positioning and alignment of the marking or engraving design. This improves accuracy and helps prevent mistakes due to misalignment.

02/

Real-time feedback: Users can monitor the marking process through the camera feed in real-time, giving them a clear view of the progress and allowing them to make adjustments on the fly if necessary.

03/

Optical recognition: Some CCD Camera Fiber Laser Marking Machines come with an optical character recognition (OCR) feature, enabling them to read pre-existing text, barcodes, or QR codes on the material and add additional markings accordingly.

04/

Marking on irregular surfaces: The CCD camera can accurately map objects with complex surfaces, allowing the user to engrave text or designs that follow the curvature or irregularities of the material, ensuring consistent marking depth.

05/

Enhanced software compatibility: These machines typically use software that allows for integration with the CCD camera, offering greater control and customization over the marking process.

06/

Applications: A CCD Camera Fiber Laser Marking Machine is suitable for industries that require high accuracy and precision markings, such as electronics, automotive, aerospace, and medical device manufacturing.

cheap fiber laser engraver

Main Features

CCD Camera Fiber Laser Marking Machine has a long laser life and can work continuously for 24 hours with long maintenance-free cycles, effectively reducing maintenance costs. This laser marking machine has high beam quality, high output laser stability, easy to debug marking effect, high electro-optical conversion efficiency and long service life. Its table is accurately fixed, durable, flexible and adjustable in processing direction.

Parameters

Model	DS-LM20	DS-LM30	DS-LM50	DS-LM80
Laser power output	20W	30W	50W	80W
Engraving depth	≤0.2mm(depends on material)	≤0.3mm(depends on material)	≤0.5mm(depends on material)	≤0.8mm(depends on material)
laser wavelength	1064±10 nm
Marking area	100x100mm(standard)/175x175mm/200x200mm
Pulse frequency	20~80KHZ/1~600KHZ/1~2000KHZ/1~4000
Max marking speed	9000mm/s
Repeat accuracy	±0.001mm
Min.line width	0.01mm
Min.character size	0.2mm
CCD configuration	dongle; industrial Camera, lens; light source controller; light sources; standard module bracket filter; motion control card; one set of vision control system
Cooling	Air cooled
Working temp	10~35 ℃
Humidity range	< 70% No condensation
Power supply	AC220V±10%,50Hz or AC110V±10%,60Hz

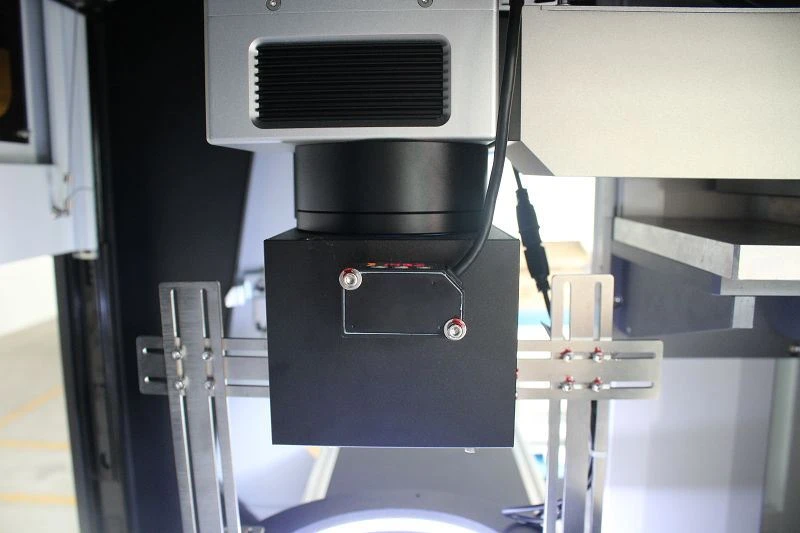

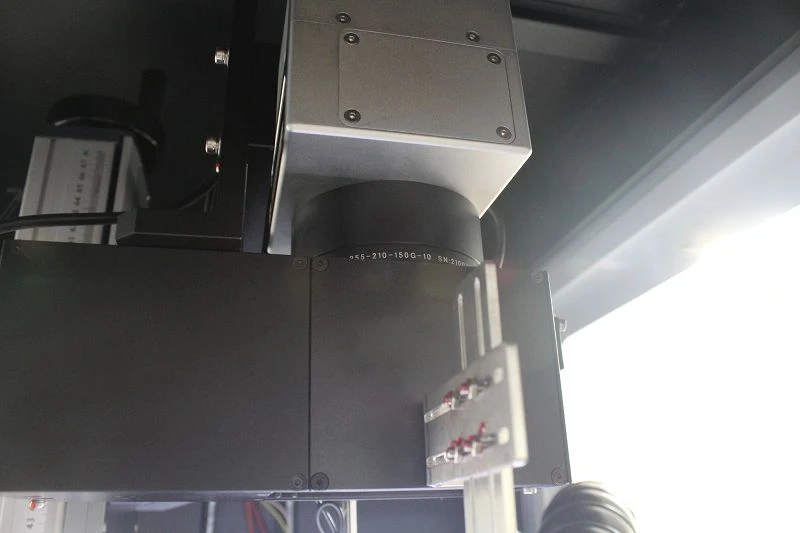

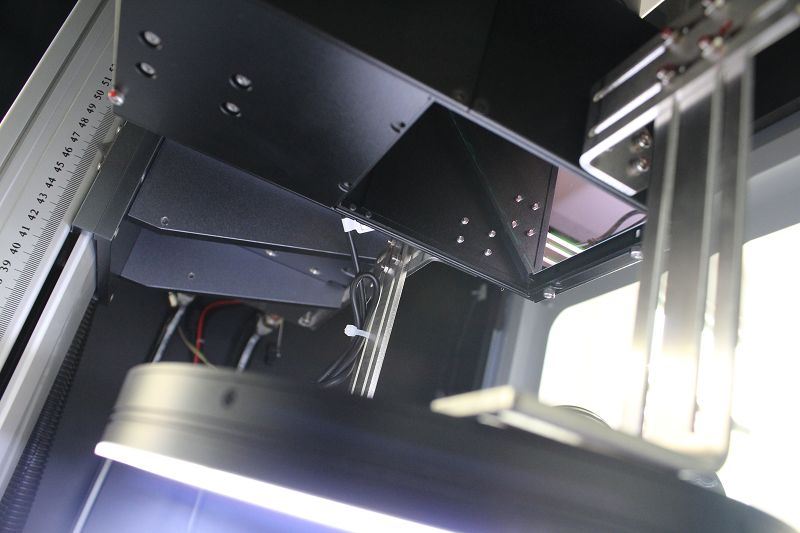

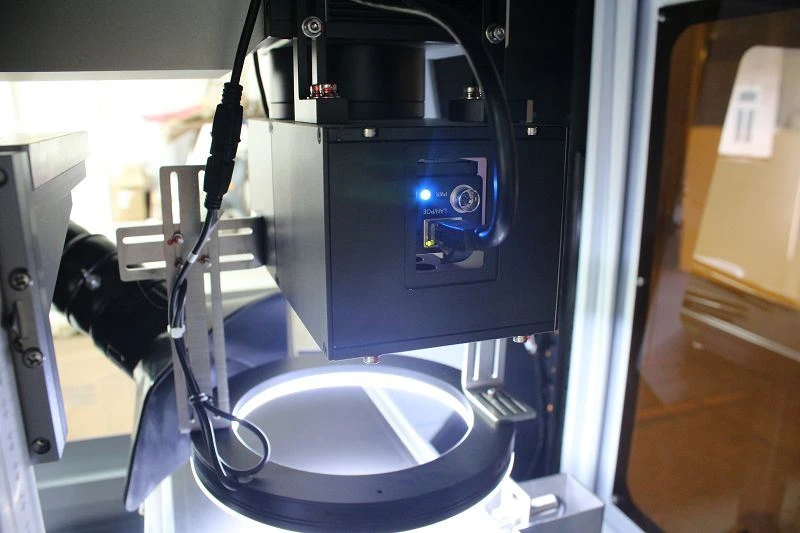

Detail show

FAQ

Q1: I do not know about laser, will you guide me ?

A: We are laser manufacture, we will offer the full solutions for customer, give us sample or material for testing we will offer you which lasers will be suitable for you job.

Q2: I have no idea about how to use the lasers?

A: We have the full video about lasers, and manual for user as well ;If you contact us our after service guy will support you online to teach you how to use the lasers.

Q3: What is the working area of laser ?

A: For the laser working area we need to know how big is your logo, or how much area do you want to engrave, such as if your biggest logo size is 150mmx150mm, so we suggest you use lens area with 180mmx180mm is ok. If you need do deep engrave we suggest use 100mmx100mm, and for standard working area our fiber laser is 100mmx100mm;

Q4: What's package, will it protect the products?

A: We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.

Q5: What's delivery time?

A: Commonly, the lead time is within 5 working days after receiving the payment.

Q6: How is the shipping method?

A: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your office as per your requirement.
