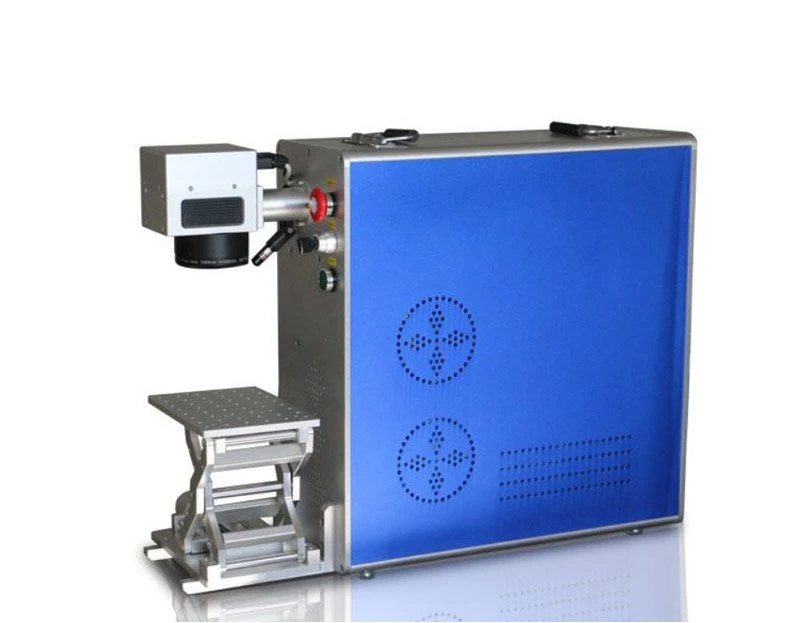

Portable Fiber Laser Marking Machine

Portable Fiber Laser Marking Machine is widely applied in electronic components, the spare parts of automobiles and motorcycles, instruments and meter, aerospace, military products, hardware and machinery.

Send Inquiry

Product Introduction

Portable Fiber Laser Marking Tool

Products Description

The Portable Fiber Laser Marking Tool uses a beam to make permanent marks on the surface of various materials. The effect of marking is to expose the deep material through the evaporation of the surface material, or to "carve" traces through the chemical and physical changes of the surface material caused by light energy, or to burn off part of the material through light energy to show the required etching patterns, texts, barcodes, and other graphics.

Features

Smart source

Portable fiber marking tool adopts fiber source and fast galvanometer scanning system.

Stable beam

The beam has high quality and long service life. Its equipment has stable performance and is maintenance-free.

Flexible to Move

Dots's machine is small and lightweight, easy to carry and move. It can be easily transferred between different workplaces.

Reliable design

Machine's light path system has a simple structure and is not easily affected by external shock or vibration, ensuring long-term stable operation and consistent marking effects.

Application:

Electronic components

The spare parts of automobiles and motorcycles

Instruments and meter

Aerospace

Military products

Hardware and machinery

Measuring and cutting tools

Sanitary equipment

Medication

Food and beverage

Cosmetics

Drugs packing

Medical appliance

Solar energy

Handicraft and so on.

It is suitable to mark on all kinds of metals and partial nonmetallic materials.

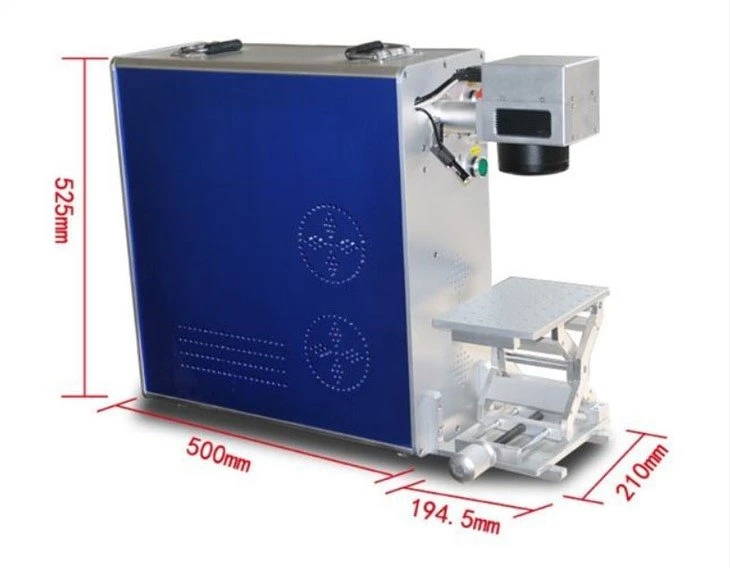

portable laser engraving machine for metal

Parameter:

Laser power	20W/30W/50W/60W/100W
Laser lifespan	100,000 hours
Laser beam	1064nm
Optical quality	㎡ ≤ 1.5
Repeat frequency	30khz-60KHZ
Marking speed	≤8000mm/s
Marking range	100mm100mm(standard), Optional(180mm180mm)
Min. Line	0.01mm
Repeat precision	±0.001mm
Power consumption	≤900W
Voltage	Ac220v 50Hz 5A
Cooling mode	Air cooling
Supported characters	Any fonts downloaded on computer
Supported format	PLT, DXF,BMP,JPG,PNG,TIF,PCX,GIF, etc.
Supported Bar code	CODE39, EAN, CODE128, DataMatrix, PDF417 etc.

How to Choose a Portable Fiber Laser Marking tool?

Weight and Size

This kind of fiber marking tool is lightweight and compact, easy to carry and move. The smaller size also facilitates operation in tight work areas.

Power and Speed

According to your marking requirements, choose the appropriate power and marking speed; higher power typically results in faster marking speeds and deeper marks.

User Interface

The portable fiber marking tool should provide a simple and intuitive control panel or software interface to easily set parameters, import images, and start the marking process.

Reliability and Durability

Reliable, durable equipment and frequent movement but no damage machine ensure that the equipment maintains stability and consistent marking quality over long periods of use.

Samples

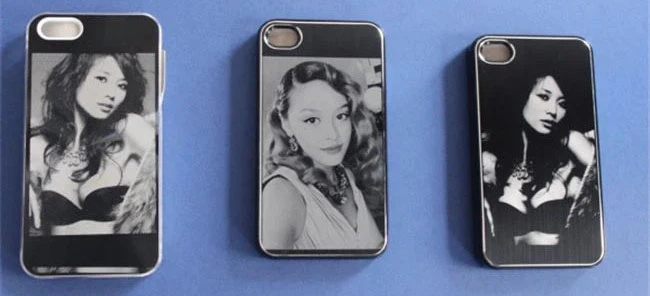

Portrait marking

Aluminum tube text marking

Packaging

portable 20w fiber laser marking machine

FAQ

Q1: What is the principle behind markers?

A: Laser light is amplified by reciprocating motion between reflection mirrors in the oscillator.

The amplified light is emitted from the output mirror, and focused on a target surface through the fiber lens.

The marker works by moving the focal point on the X-Axis, Y-axis with individual scanners.

Q2: When I got this machine, but I don't know how to use it. What should I do?

A: Do not worry, we are the manufacturer, We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.

Q3: What is the payment condition?

A: 30%-50% deposit, balance paid before shipping.

Q4: What is the working area of portable fiber marking tool?

A: Portable fiber marking machine has one working area, the standard 100mmx100mm, if customer need larger one, this is optional, we can make 180mmx180mm.

Q5: Which parts are easy to broken?

A: Portable fiber marking machine which base on the fiber source, is very stable and long life time. So this machine almost none maintenance. It only need power electricity for s.

Q6: Is light visible?

A: In theory, it is invisible to the naked eye. The design of high-power weapons needs to consider its monochromaticity and diffusion angle. If the diffusion angle is too large, it will inevitably cause energy loss. If it can be seen, it is also due to the heat radiation caused by the impurities on the path of the propagating in the air.
