On The Fly Fiber Machine

On the fly fiber laser marking machine is no longer comparable to the previous laser marking machine, because its operating area is no longer set on a single plane surface to engrave characters, but is moving towards the development of pictures and characters required by the public.

Send Inquiry

Product Introduction

On The Fly Fiber tool

Products Description

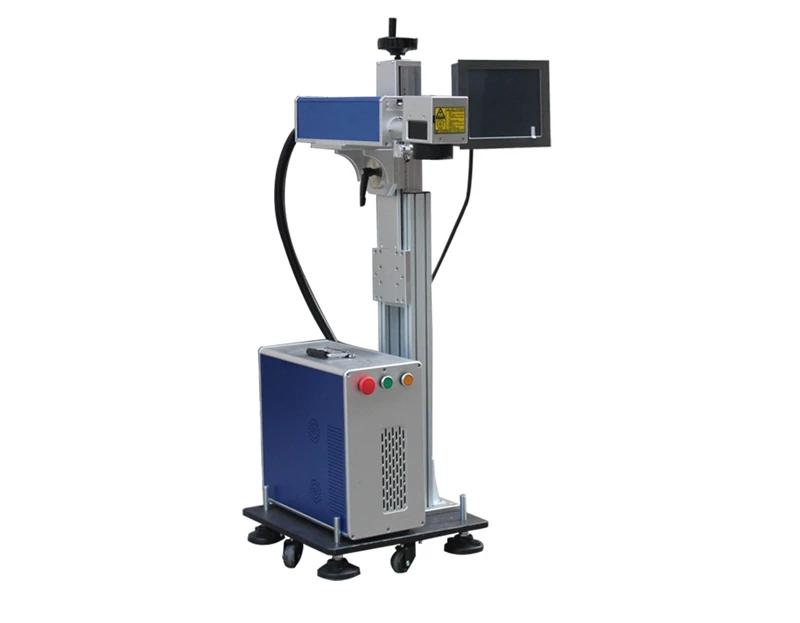

On The Fly Fiber Laser Marking tool is a new form of marking relative to static laser marking. As the name implies, it is a form of laser marking on the surface of the product when the product is moving next to the production line, which means it place the product on the conveyor belt, let it pass through the laser tool and then automatically mark it by induction. The static marking is to first fix the product on the marking table and then use the laser tool to achieve the product marking.

Flying marking tool features:

The Fly Fiber Laser Marking tool is the prospect of industrial efficiency, and it has the functional nature of saving people's time and energy. During the marking process, the product is constantly on the production line. The flow, thereby greatly improving the efficiency of production.

On The Fly Fiber Laser Marker VS the Static Laser Marker In Terms Of Functions

1. On The Fly Fiber Laser Marking tool has strong text layout and graphics processing capabilities, and can automatically generate the batch number and serial number of the dynamic laser marker online.

2. The intelligent control interface can be flexibly plugged into various automation equipment and sensors, and the software functions can be flexibly modified according to the specific conditions, which will develop more functions and reduce labor.

Application:

Medical health products, lifestyle food and beverages, tobacco, alcohol, and electronic industries.

Industrialized And Heavy Industrial Products: auto parts, Craft products and clothing accessories, etc. The application in biopharmaceuticals and building materials also has a wide range of fields. With the development of regional trends, the development prospects of flying laser marking tools will enlarge their horizons and will no longer be fixed in these single fields. The trend will be More aspects are involved.

Parameters

Item Type Item Model		Fly laser marking tool
tool general tool	tool material	Aluminum structures
	Generator laser	Fiber laser source
	Output power	30W
	Laser wave length	1064nm
	Lens	High precision 2 dimensional scanning system
	Marking speed	≤18000mm/s
	Main control system	Highly integrated motherboard, embedded 7 inch screen
	Operating system	DOTSLASER
	Cooling system	AIR
Laser marking parameter	Focus zoom lens	focal length 110mm
	Marking line type	Raster font, vector font for choosing
	Min.line width	0.01mm
	Repeatability accuracy	0.003mm
	Working area	100mmx100mm/180mm×180mm
	Positioning	Red light positioning and focusing
	Lines of marking	No limited in working area
	Speed	0~200m/min (depends on the material)
Supporting language	Fonts	Chinese and English, Numbers, such as traditional Chinese standard repertoire
	File	BMP/DXF/HPGL/JPEG/PLT
	Code	CODE39,CODE128,CODE126,QR
Other	Power	220V /50HZ
	Power Consumption	800W
	Net weight	35kg
	Size	730mmX137mmX192mm
Working environment		The external temperature 0 ℃ - 45 ℃; Humidity of 95% or less; The condensation; No vibration

Product's details

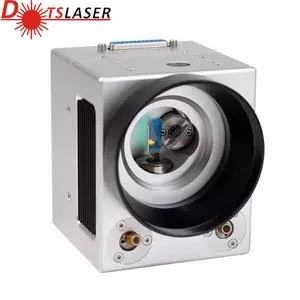

10mm Aperture Scan Head

1. Aperture Scan Head

Using computer graphics software in the handing of graphics,drawing with high
efficiency,no distortion,etc.greatly improve the quality of a laser mark and speed.

2. Rotary device [optional]

Using step motor to realize numerical control,the speed can be controled by the computer liberalisation.

6GT Barrel Chambering, Polishing, Laser Engraving (In-Depth) – Ultimate ...

Raycus Fiber Laser Power 1000w,1500w,2000w,3000w,4000w 6000w 8000w 12kw ...

3. Raycus or IPG laser souree

Using the most advanced laser source inChina,the life time can up 100.000 hours

4. X,Y adjustable table (optional)

X axis adiustable range160mm.Y axis adjustable range 90mm, Flexibility, mesa have multiple screw holes,convenient and custom installaton, special fixture
industry platform

X/Y adjustable table - Laser marking, welding and cutting machine ...

Optical Field Lens

5. Good quality F-theta lens

lmprove the ability of edge beam incident to the detector makes the probe on the
surface of the photosensitive non-uniforn illuminaton uniformity

6. Control panel

Humanized control system, the new USBdustproof plug is set, the control system
easy to learn, can be used offline

product-474-323

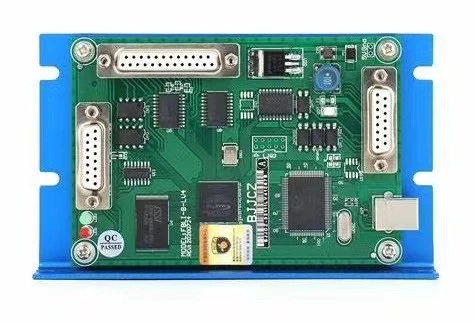

7. control card

Mainly used in the galvanometer laser marking system, the hardware processing data,speed,high precision, support high speed flying the functio

30w fiber laser engraver

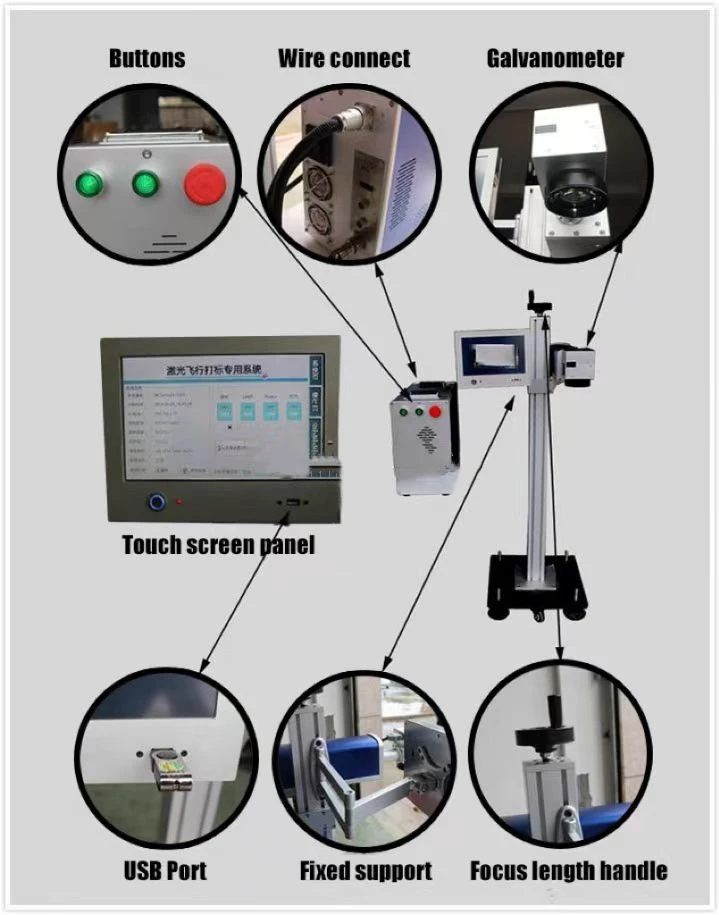

product-719-915

Samples

Laser Marking Machine For Mirror | Mactron Tech

FAQ

Q1: I know nothing about this tool, which type of laser tool should I take?

A: We are the laser equipments manufacture, we will help you choose the suitable tool and make the solution for you; you can show us what material will you marking / engraving and the depth of marking/ engraving.

Q2: What is the payment condition?

A: 50% deposit balance paid before shipment, other payment can be consulted.

Q3: What's consumables of laser marking tool?

A: It does not have consumable. It's very economical and cost effective.

Q4: What's package, will it protect the products effectively?

A: We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the tool is covered by foam, to protect the tool from shaking. For the inside layer, the tool is covered by waterproof plastic film.
