CO2 Speed Laser Cutting Machine
CO2 Speed Laser Cutting Machine

CO2 Speed Laser Cutting Machine

The CO2 Speed Laser Cutting Machine is a kind of equipment that uses infrared laser with a wavelength of 10.6μm as the energy source. Through the focusing mirror, the laser beam is focused into a spot with high energy density for precise thermal processing of metal/non-metal materials.

Send Inquiry

Product Introduction

Products Description

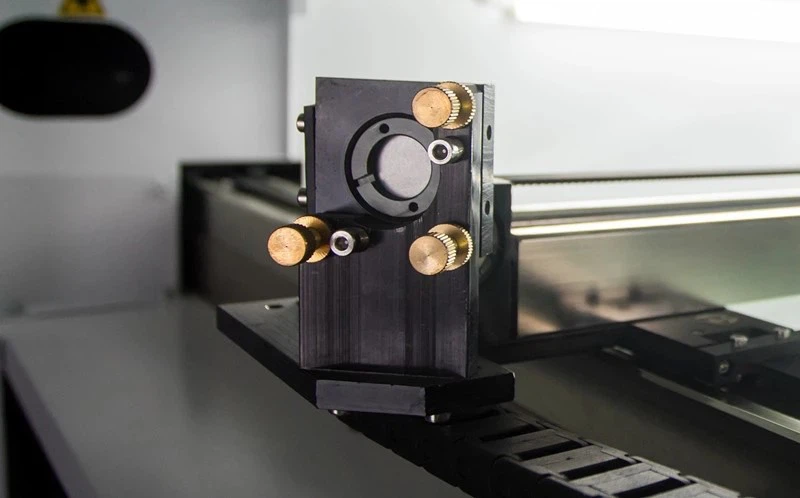

The core of the CO2 Speed Laser Cutting Machine is composed of a CO₂ gas laser, an optical system, a numerical control platform and an auxiliary gas system. It has three major advantages: high cutting accuracy (±0.1mm), efficient processing (speed up to 30m/min) and adaptability to multiple materials. It is widely applied in fields such as industrial manufacturing, process processing, and scientific research experiments.

product features

Ultra-precision processing capability

Dynamic focusing technology is adopted to adapt to the cutting of curved surfaces and irregular-shaped parts. The perforation and slag reverse control technology reduces the adhesion of metal slag.

High-efficiency and energy-saving design

The photoelectric conversion efficiency is ≥15% (higher than the industry average of 12%), and the intelligent sleep mode reduces standby energy consumption by 40%.

Multi-material adaptability

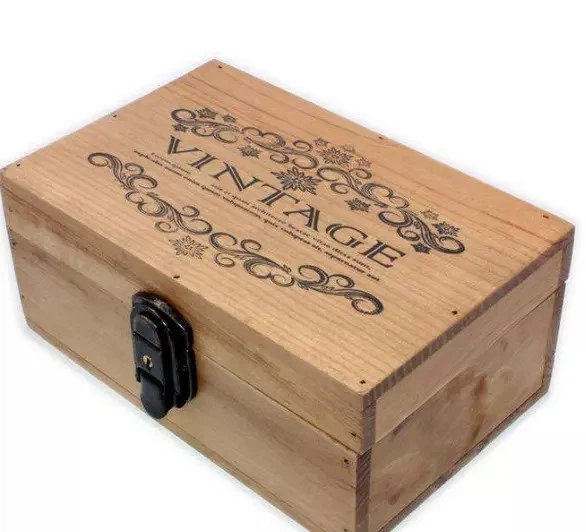

Metals such as stainless steel nameplates and aluminum alloy heat sinks. Non-metallic materials such as acrylic decorative panels and leather carvings. Composite materials such as carbon fiber automotive parts and PCB boards.

intelligent operation

One-click automatic focusing, and the remote monitoring system supports real-time viewing of processing progress on mobile phones.

Products Parameters

After-sales Service Provided	Online support, Video technical support
Applicable Material	Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Laser Type	CO2
Cutting Area	1080x800mm
Cutting Speed	Depend on the materials
Graphic Format Supported	AI, PLT, DXF, BMP, DST, DWG, LAS, DXP
Application	Laser Cutting, Laser Cutting
Condition	New
Cutting Thickness	Depend on the materials
CNC or Not	Yes
Cooling Mode	Water Cooling
Control Software	CNC control panel
Place of Origin	China (Mainland)
Brand Name	Dotlaser
Certification	CE, ISO, GS, SGS
Warranty	1 Year
Laser power	100W

Working Environment Requirements

Temperature and humidity control

The CO2 Speed Laser Cutting Machine temperature should be maintained between 15 and 30℃ (by the chiller). If it exceeds 35℃, the overheat protection of the laser will be triggered. Humidity ≤70% RH. High humidity can cause condensation and failure of the lenses.

Power requirement

380V±5% three-phase five-wire system. Voltage fluctuation greater than 10% will damage the RF power supply.

Ground load-bearing capacity and exhaust

The ground load-bearing capacity is ≥500kg/m², and vibration affects the accuracy of beam calibration.

The exhaust air volume should be ≥2000m³/h, and the accumulation of smoke and dust will contaminate the optical components.
