CO₂ Galvo Laser 30W

Name: China CO₂ Galvo Laser 30W Manufacturers Suppliers Factory - Customized CO₂ Galvo Laser 30W - Dotslaser
Brand: DOTSLASER
SKU: 191241925

CO2 Galvo Laser 30W is one of DOTSLASER Co2 galvo laser machine , designed by dotslaser ,using air cooling or water cooling system , laser power 30W ,working area from 100mmx100mm up to 300mmx300mm ;

Send Inquiry

Product Introduction

CO₂Galvo Laser 30W

Products Description

CO₂ Galvo Laser 30W is a medium-powered and versatile laser system that delivers precise and accurate laser processing for a wide range of industrial and manufacturing applications. With its advanced galvanometric scanning technology and innovative laser control features, this CO₂ laser system can easily meet the demands of various laser processing requirements, including marking, cutting, engraving, and more.

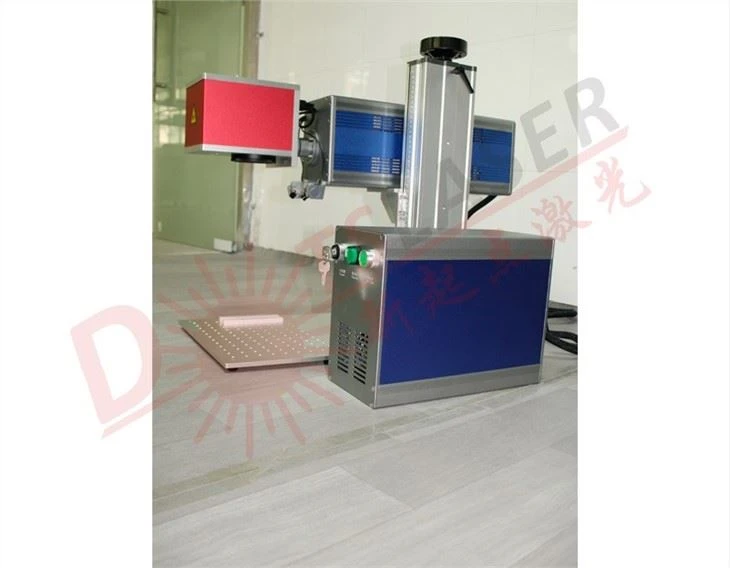

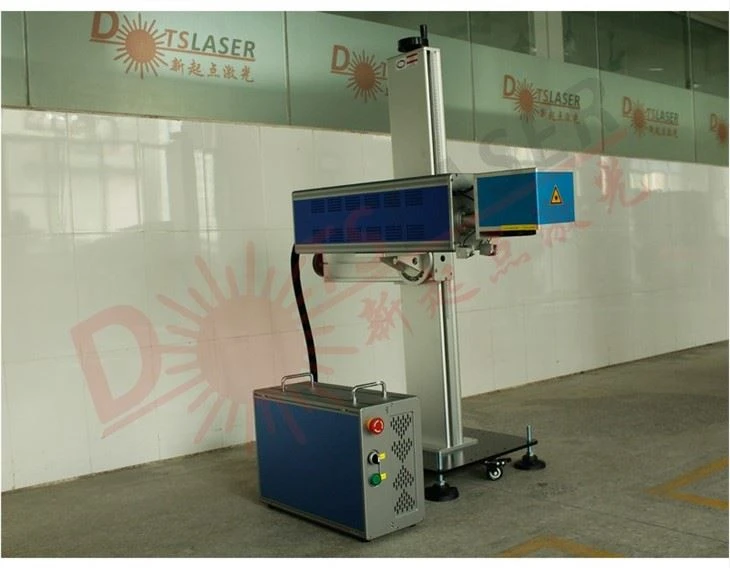

CO₂Galvo Laser 30W machine

This laser system boasts a power output of 30W and operates on a CO2 laser, which produces a wavelength of 10.6 microns. It is perfectly suitable for wood, plastics, leather, fabric, acrylics, and other non-metals. Its high-speed galvo scanner head allows for quick and efficient marking and engraving, while its powerful laser beam is highly effective for cutting through thick materials.

CO₂ Galvo Laser 30W is equipped with advanced digital control technology that allows for precise control of the laser power, speed, and intensity. The system also comes with an intuitive software interface that enables users to easily program and customize laser process parameters according to their specific needs.

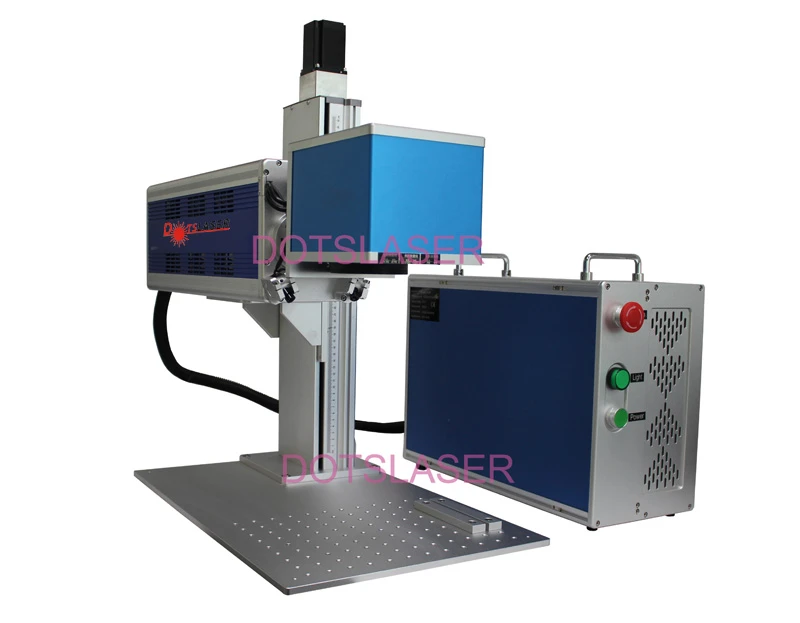

This laser system is designed with an ergonomic and compact design, making it highly portable and easy to operate. The CO₂ Galvo Laser 30W is a powerful and versatile laser system that delivers outstanding laser processing capabilities for a range of industrial and manufacturing applications.

Applications of CO₂ Galvo laser 30W

Wood	Bamboo
Leather, Cloth	Paper,Coated metallic products
Color cardboard	PU, Plastic

Parameters of CO₂ galvo laser 30W

Model	DS-LMC30
Laser power	30W
Laser wavelength	10640nm
Working size	100mmx100mm/200x200mm
Engraving thickness	PU paper,leather ,Pu ,wood etc
Engraving max speed	8000mm/s
Engraving accuracy	±0.003mm
Machine weight	45kg
Size	140X118X175 cm

Cooling mode	Cooling mode
Power consumption	≤2KW
Rated power voltage	220V 50-60Hz
Supported format	PLT.DXF.DWG.AI
Warranty	One year

composition of CO₂Galvo laser 30W

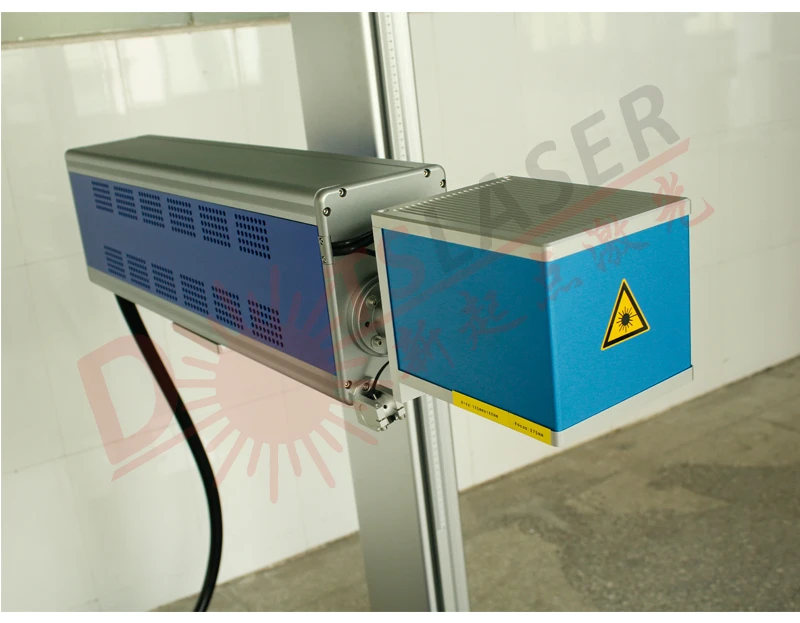

Galvo head:

The CO2 Galvo Laser 30W comes equipped with a high-quality galvo head and digital scanner head, offering optic beam options of 10mm and 20mm. For smaller working areas, the 10mm beam scanner head can be utilized, producing a beam size of 0.25mm-0.3mm. Alternatively, the 20mm beam scanner head can be used to achieve a finer beam spot size of 0.15-0.25mm. This versatile equipment allows for precision and efficiency in a variety of applications.

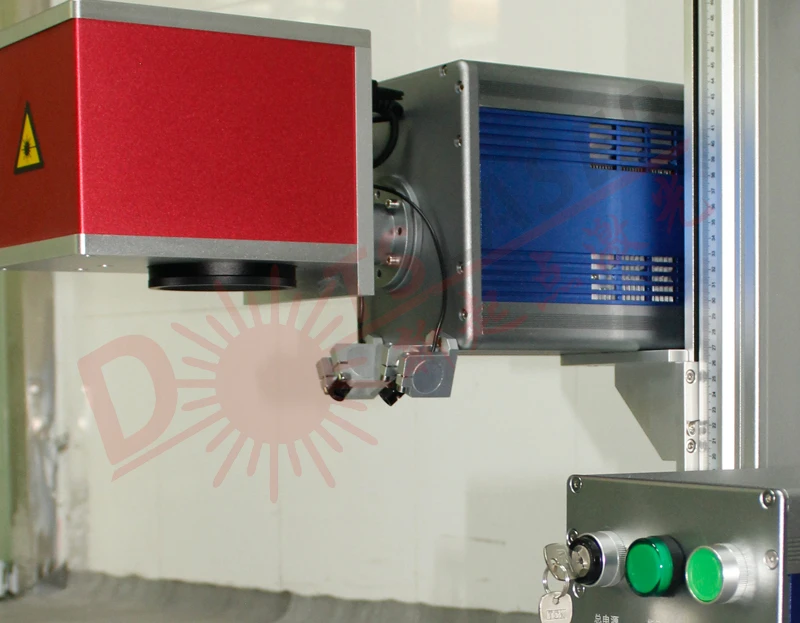

Red light pointers:

The CO2 Galvo Laser 30W features dual focus red light pointers with adjustable angles for easy focus length identification. A lower safe power red beam ensures precision and accuracy during operation. Customers can easily adjust the two red beams to converge at one point, simplifying the focus distance adjustment process.

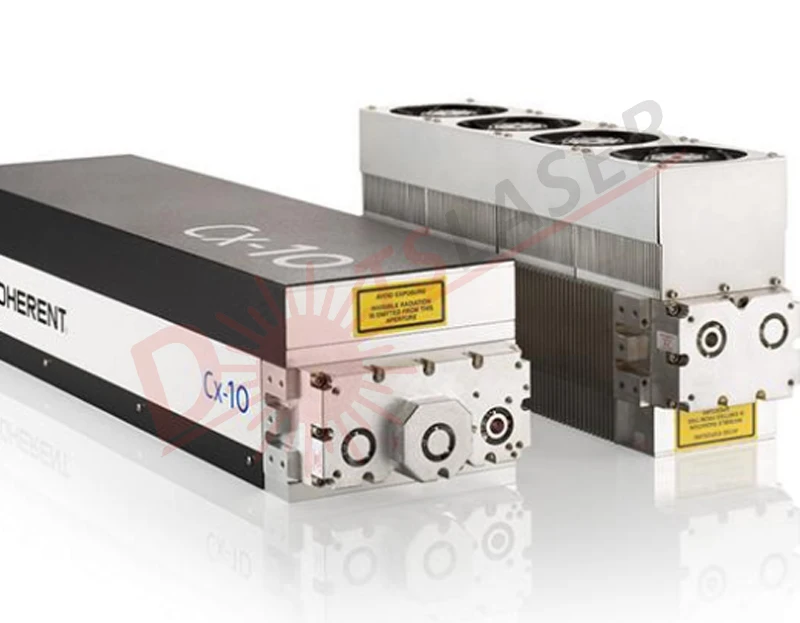

Laser source:

The laser source at the heart of the device is sourced from top suppliers in either the United States or China, renowned for their quality products. With a sleek design, outstanding performance, reliable stability, and a durable lifespan, this core component ensures optimal functionality and longevity.

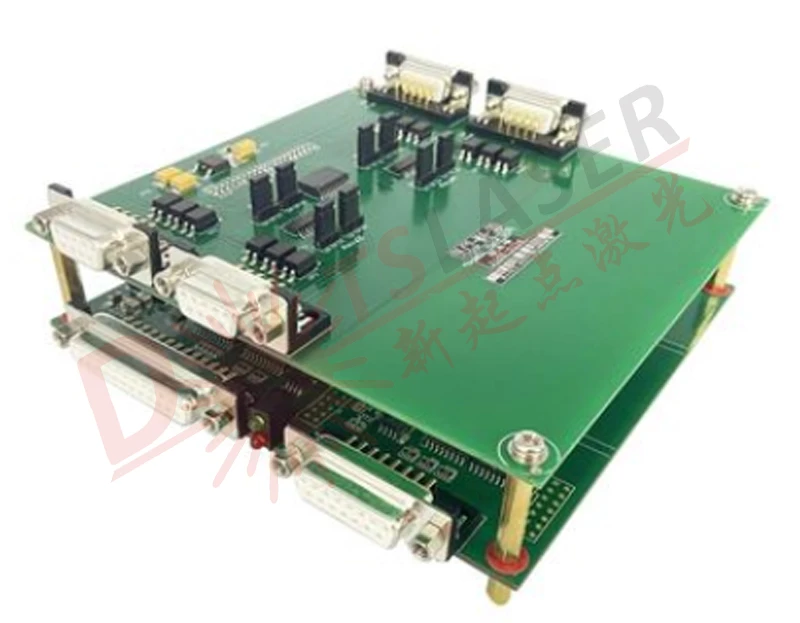

Controller and software:

The software is developed by a reputable domestic software company, known for its high stability, practicality, and user-friendly interface. It can be easily upgraded to support various Windows systems, including Windows 8 64-bit and Windows 1064-bit.

Beam path design:

The integrated design of the beam path simplifies the installation of the laser source. With a user-friendly structure and adaptable optical path, it is perfect for internal adjustments. The dual-hole cooling plate ensures efficient cooling, while the option of manual or motorized lifters enhances convenience.

packaging and shipping

Professional personnel packaging, make products more secure and stable, professional export wooden crate packaging, can be applied to different transportation methods, can be shipped by sea or air.

Shipping - Different choices of shipping services, air, express DHL, FedEx, Sinotrans express, UPS, etc., by sea .

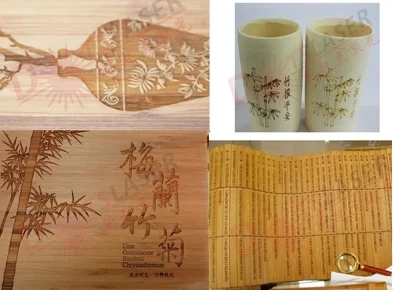

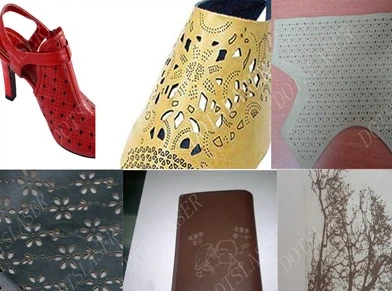

processed samples

Samples of CO₂ galvo laser 30W which can be applicable for different nonmetal such as wood ,paper ,leather ,PU ,bamboo ,stone ,etc .

Our Service

DOTSLASER offers 24 hours online service , if customer wants our engrineer come to factory service , we can arrange ,Our mission is to provide customers with the best service, customer first .
