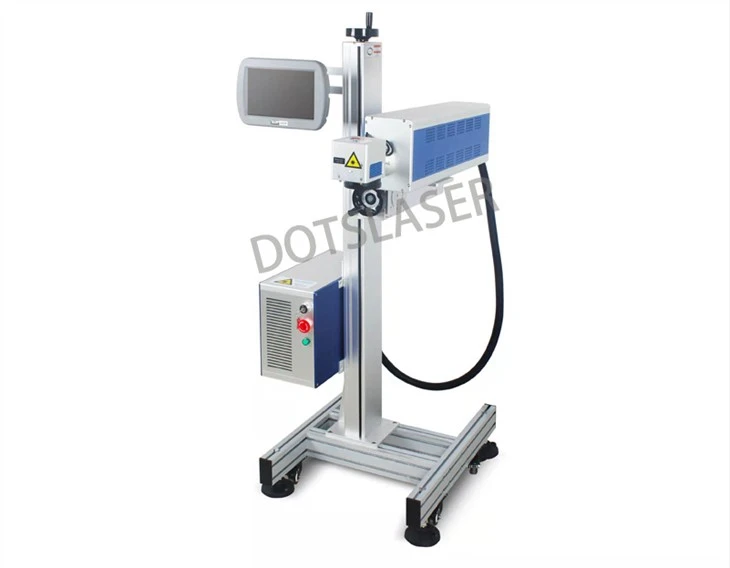

Fly Marking On Glass Bottles
Fly Marking On Glass Bottles
Products Description
Fly marking on glass bottles refers to the high-speed process of marking or engraving information, such as logos, batch numbers, expiration dates, or barcodes, onto glass bottles as they move along a production line. The process employs a laser marking or engraving system, also known as a "Flying Laser Marking Machine" specifically designed for this application. This technology is particularly suitable for industries such as beverage, pharmaceutical, cosmetics, and personal care.
Key Features of Flying Laser Marking
High Speed: These machines can perform marking operations at high speeds, keeping up with the pace of a fast-moving production line, which is especially crucial for mass-produced items.
Precision: Using laser technology, these systems can produce clear, high-resolution marks, ensuring that information remains legible and easily identifiable throughout the product's life cycle.
No Contact: Laser-based marking is a non-contact process, which eliminates the risk of physical damage or material deformation.
Flexible Design Integration:The system can be customized and integrated into existing production lines without causing significant disruptions.
Low Maintenance: Flying laser marking machines generally require minimal maintenance and do not need consumables like ink or chemicals.
Versatility: Such machines can create a wide variety of markings, including text, images, logos, or barcodes, on glass bottles of various shapes or sizes.
Applications of Fly Marking on Glass Bottles:
- Beverage Industry: Marking beer, wine, or liquor bottles with brand logos, batch numbers, or expiration dates for traceability and tracking purposes.
- Pharmaceutical Industry: Engraving medicine bottles with batch information, expiration dates, and dosage information to ensure proper handling and usage.
- Cosmetics Industry: Adding elegant and attractive designs or logos onto perfume or cosmetics bottles to enhance a product's aesthetic appeal.
- Personal Care Products: Marking various glass containers, such as those for essential oils or skincare items, with vital information like contents, usage instructions, or branding elements.
The fly marking process on glass bottles ensures a high level of efficiency and accuracy while operating on fast-paced production lines. Employing a flying laser marking machine in your production facility can significantly improve your product identification, traceability, and branding efforts, contributing further to the overall success and growth of your business.
Main parameters of fly marking on glass bottles
| Types of laser source | CO2 | |||
| Wavelength | 10.6μm | |||
| Laser power | 30W | 60W | 100W | |
| Marking area | 70x70mm,110x110mm,150x150mm,200x200mm | |||
| Line speed | 0~200m/min(depends on material) | |||
| Controller | Self-developed built-in fly marking controller | |||
| Working environment | Temperature 0-45℃, humidity 10-90% | |||
| Power consumption | ≤800W | |||
| Focusing | support red light focusing distance | |||
| Opration interface | 10.1 inch HD touch screen | |||
| Cooling mode | Water-cooled | |||
| Supported format | PLT.DXF.DWG.AI | |||
| Laser wavelength | 10640nm | |||
| Warranty | 1 year | |||

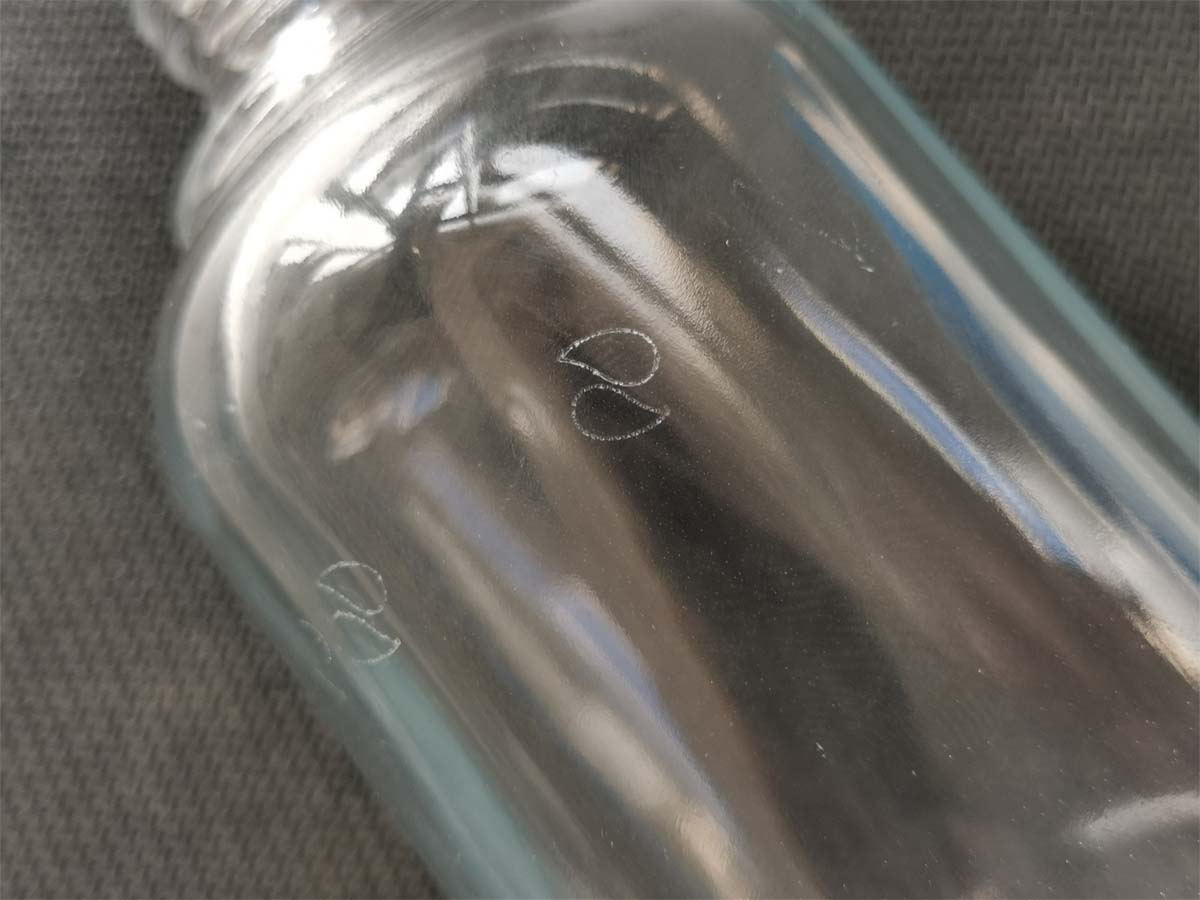

The laser can form a very fine beam and achieve fine marking on glass materials. Any complex text, graphics, images, trademarks, LOGOs, barcodes, QR codes, production batch numbers, autographs, etc. can be marked by laser. machine to complete.
As a leader in the laser industry, DOTSLASER has been committed to providing users with the most professional and mature laser marking solutions. It is deeply loved by industry users.
DOTSLASER`S Advantages of fly marking on glass bottles
Fine marking lines , and DOTSLASER uses the imported metal-sealed RF-excited CO2 laser generator, machine works with stable and reliable, higher repeatability and positioning accuracy.
Long service life, the laser generator used by DOTSLASER has a service life of more than 40,000 hours, and can run at full load for 24 hours, which can well meet the needs of enterprises for mass production and processing.
Environmentally friendly and harmless, does not produce any chemical substances that are harmful to the environment and human body, it is an environmentally friendly marking method;
The operation is simple, the special marking software is powerful, the man-machine dialogue interface is friendly, and the ordinary skilled workers can also operate independently quickly.
