Portable 3D CO2 Laser Engraver
CO2 laser engraver

Portable 3D CO2 Laser Engraver

Portable 3D CO2 Laser Engraver is widely used for engraving on wood, real leather,artificial leather, PU, PVC, ABS, PCB board, various plastic products, textile, cardboard, greeting board, bamboo, rubber, glass, ceramics, gifts, electronics, and so on.

Send Inquiry

Product Introduction

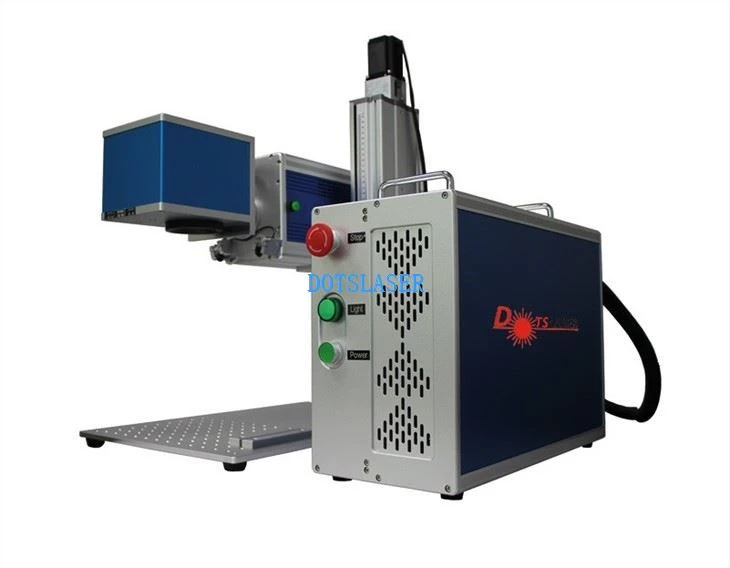

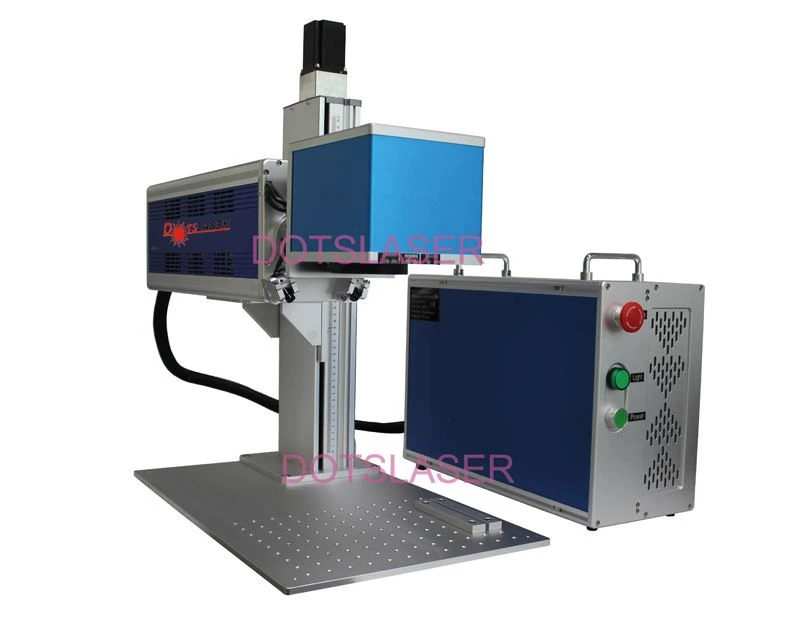

Portable 3D CO₂ Laser Engraver

Products Description

Portable 3D CO₂ Laser Engraver is widely used for engraving on wood, real leather,artificial leather, PU, PVC, ABS, PCB board, various plastic products, textile, cardboard, greeting board, bamboo, rubber, glass, ceramics, gifts, electronics, and so on. It uses a focusing mirror to focus the CO₂ laser beam on the material surface to melt the material, while blowing away the melted material with a compressed gas coaxial to the laser beam, and making the laser beam and the material move relative to each other along a certain trajectory, thus forming a certain shape of the cut.

Features and performance

1. Portable 3D laser engraver adopts imported or China top brand metal sealed-off RF CO₂ laser, with stable and reliable performance, high repeatability and positioning accuracy, fine marking lines.

2. With 3-axis dynamic focus, which makes the laser beam evenly distributed onto working area, the power difference only 5% between center area and edge area.

3. Environmentally friendly and harmless: does not produce any chemical substances harmful to the environment and the human body, and is an environmentally friendly marking method.

4. Extra features are available, such as auto focus to find engraving distance, focus finder, rotary index,flying marking.

5. More wide working area is available, traditional 2D CO₂ laser engraver normally just has 300mm*300mm working area maximum and line width is thick, but portable 3D CO₂ laser engraver can set the maximum working area as 400mm*400mm and with a thin line width. and the engraved text is not deformed.

Parameters

Model	DS-LMC30;DS-LMC60;DS-LMC100
Laser power	>30W,>60W,>100W
Laser wavelength	10640nm,9300nm
Beam quality	㎡<5
Repeat frequency	0-25KHZ
Working area	100mm100mm~400mm400mm
Laser source	Imported RF tube or China top brand RF tube
Cooling	Water/air cooling
Engraving depth	≦3mm
Marking line width	7000mm/s
Minimum line width	0.1mm
Minimum character	0.35mm
Power supply	220V±10%,50/60HZ,10A

Sample show

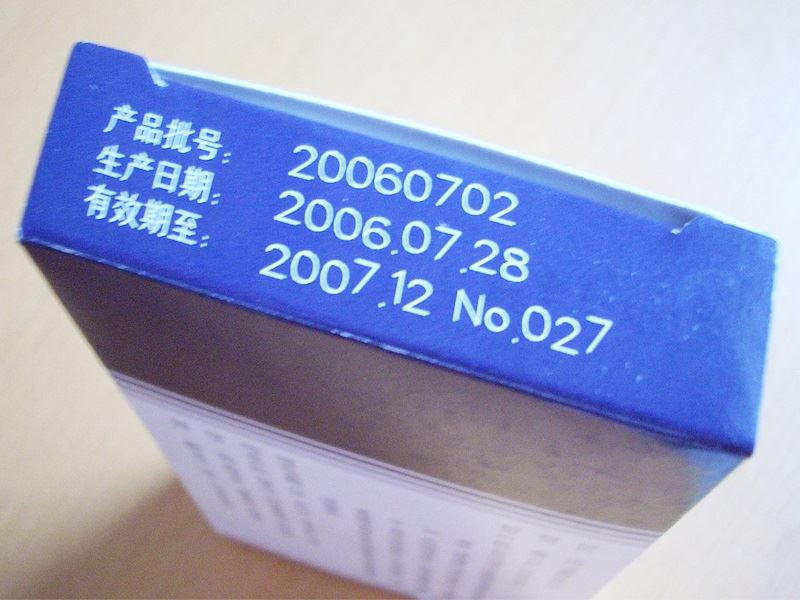

paper box marking

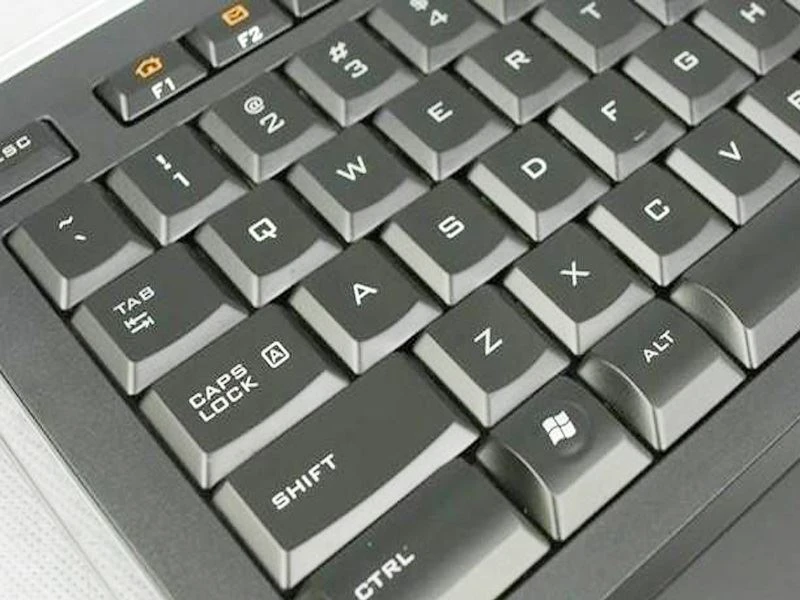

keyboard engraving

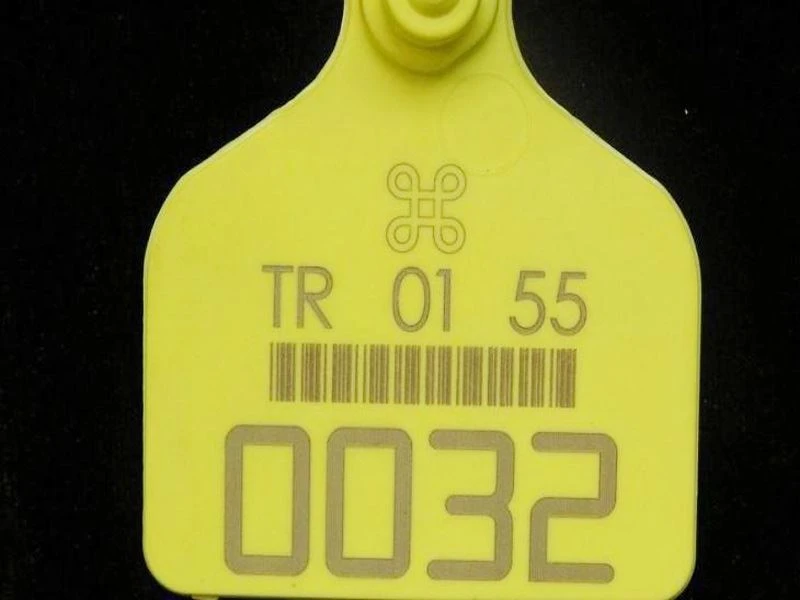

Animal ear tag 2D code laser marking

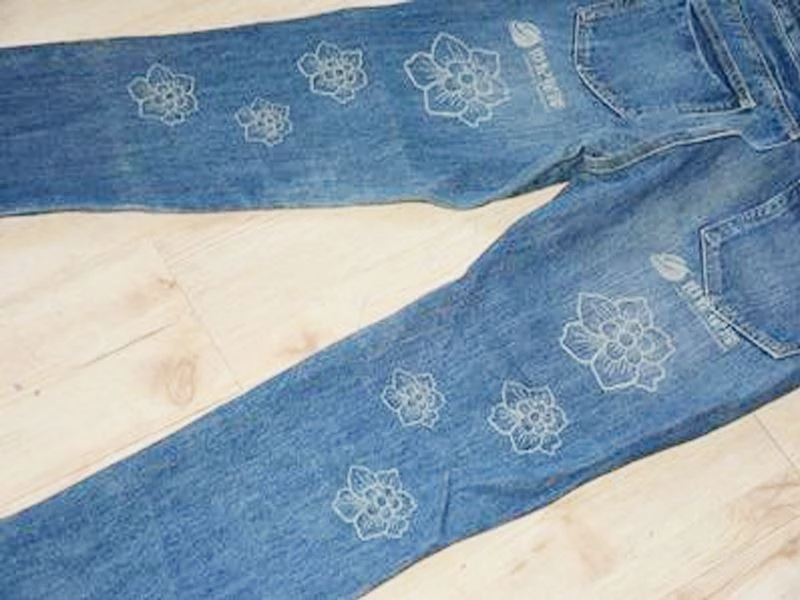

Jeans laser engraving

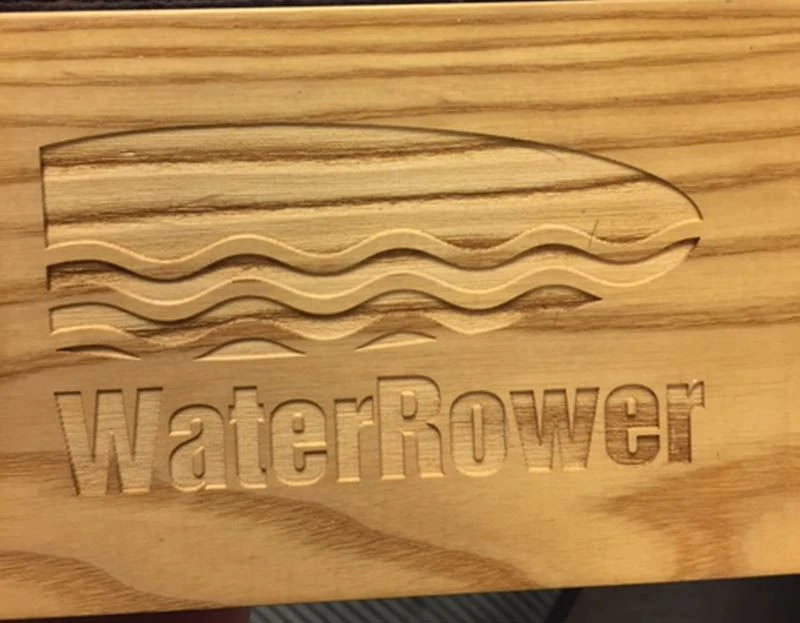

Wood engraving

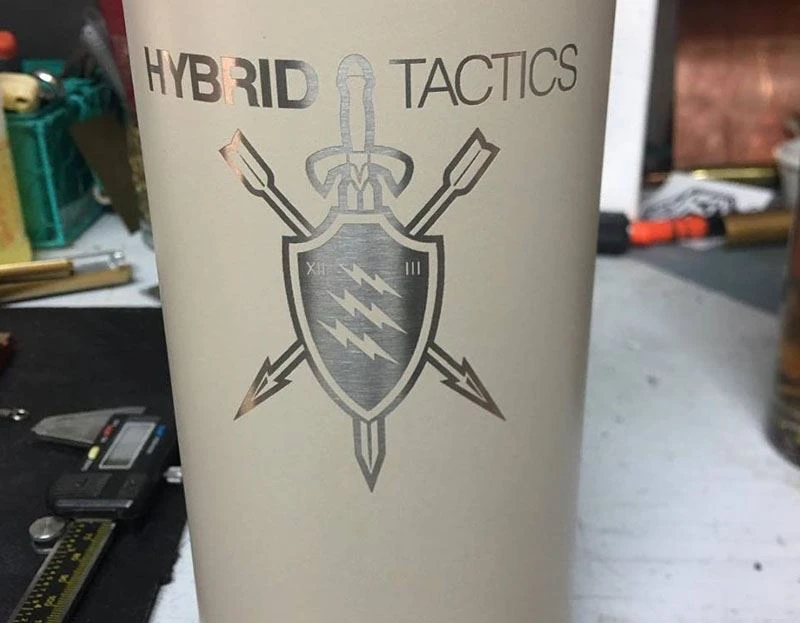

Tumbler engraving

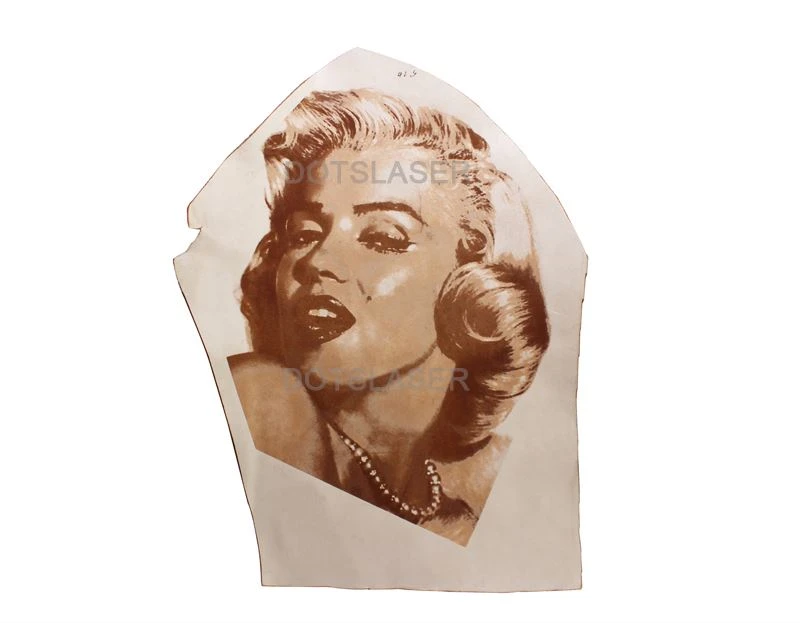

Leather engraving

Shipping and Package

FAQ

Q1: What product can you supply?

A1: We are manufacturer of fiber laser marking machine, CO₂ laser marking machine, UV laser marking machine, fiber laser welding machine, fiber laser cleaning machine, fiber laser cutting machines.

Q2:Will you charge or not for testing samples?

A2: You can send samples to us for testing, all the testing work is free.

Q3: What delivery term can we get the machine?

A3: Normally the delivery term is 3~7 working days after prepayment, during busy season, the delivery time is 7~10 working days.

Q4: If the machine has error or damaged, how should we do?

A4: Our professional after-sales team will help you find and solve the error or damage.
