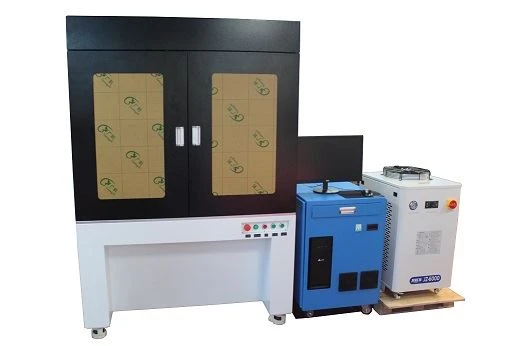

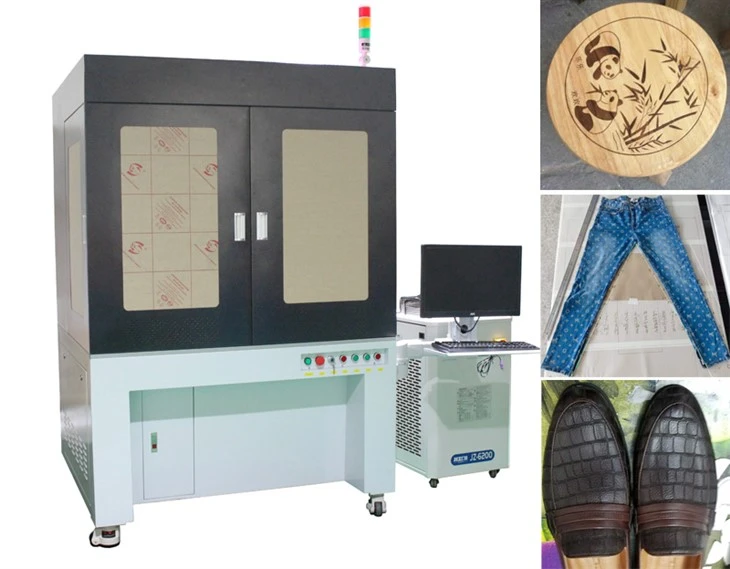

Enclosure Frame CO₂ Galvo engraver
Enclosure frame CO2 galvo engraver
Products Description
The Enclosure Frame CO2 Galvo Laser Machine is a high-performance laser cutting and engraving machine that is designed for precision and speed. This machine is built to handle a wide range of materials, including wood, acrylic, leather, and more. With its superior laser technology and advanced software, this system delivers high-quality results every time.
Parameters
|
NO. |
Name |
DS-LMC series Galvo laser system |
|
1 |
Machine model |
DS-LMC150/DS-LMC250/DS-LMC350 |
|
2 |
Max laser power |
150W/250W/350W |
|
3 |
laser wavelength |
10.6μm |
|
4 |
Beam quality |
＜1.2㎡ |
|
5 |
Duty cycle limit |
≤60% |
|
6 |
Min.line width |
0.17mm(depend on the material) |
|
7 |
Min.character size |
0.4mm |
|
8 |
Max marking speed |
≤8,000mm/s |
|
9 |
Working area |
400x400mm/500x500mm/600x600mm/800x800mm |
|
10 |
Cooling |
Water cooled |
|
11 |
Working environment temperature range |
5~35 ℃ |
|
12 |
Humidity range of working environment |
< 70% No condensation |
|
13 |
Power supply |
220V,50/60Hz |
|
14 |
Power consumption |
＜6KW |
DOTSLASER' s strengths

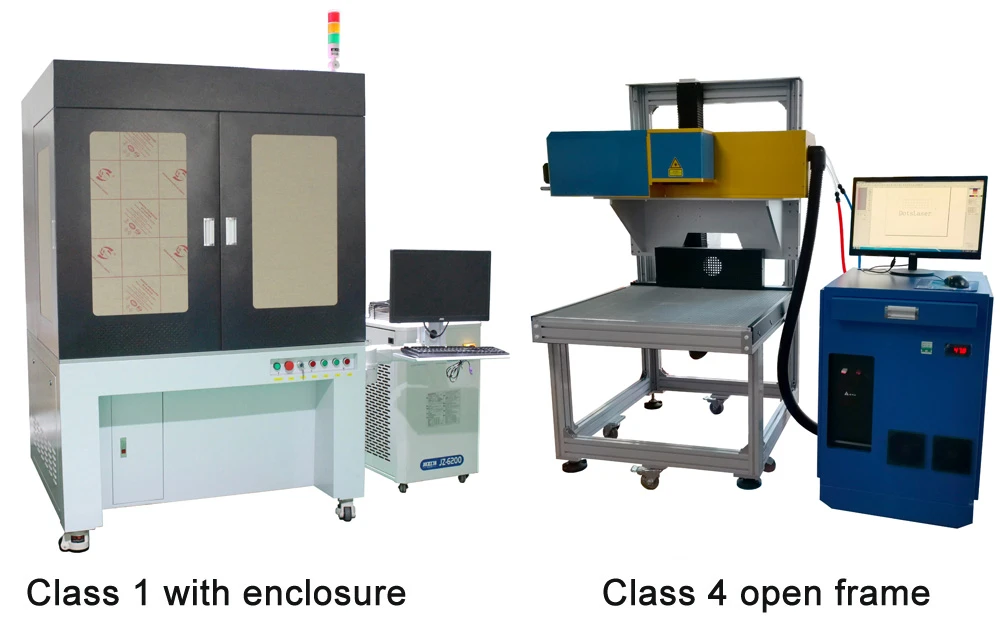

1.

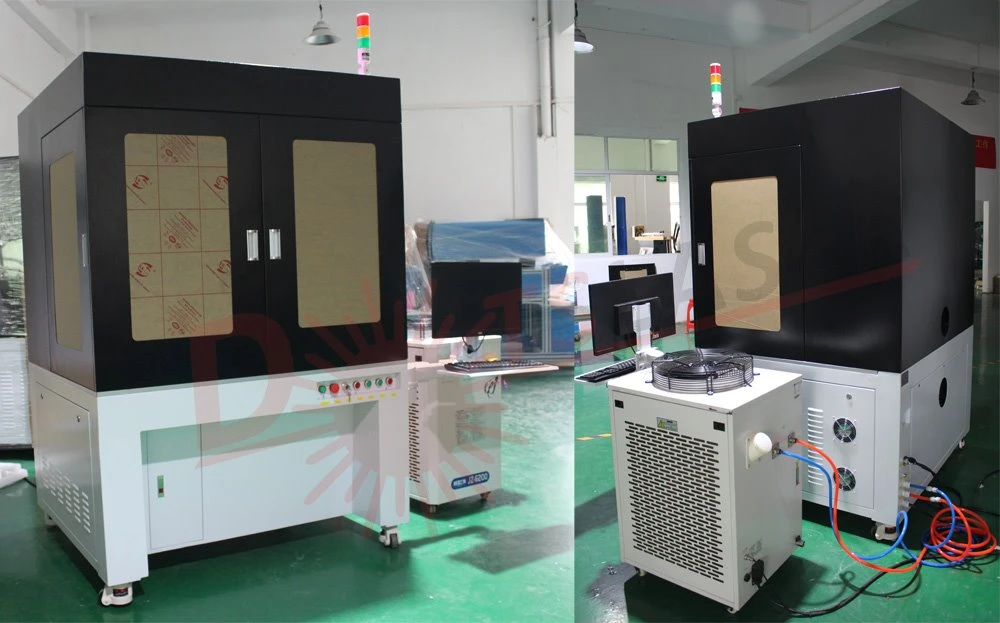

Class 1 level enclosed frame for safety
VS
Class 4 level dangerous open frame
Laser is harmful to human body, if you stay close to laser beam in a long time work without any protection, you gonna hurted by strong radiation. So a good enclosed frame is quite important to users.

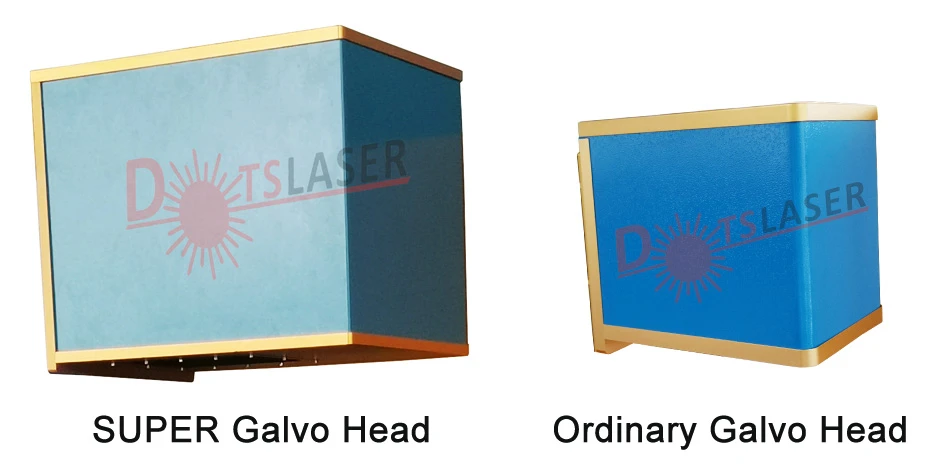

2. SUPER Galvo Head Laser
More wide working area.
More precise and more fine line.
More fast.

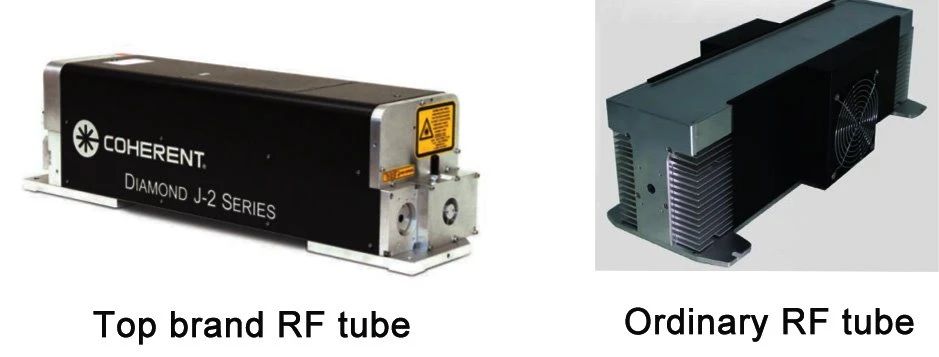

3. Top brand RF tube
Laser source/generator is key component in whole laser machine, so a stable and good beam quality laser source/generator is very important, we assemble machines with one of best metal RF tube as "heart" .which keeps machine in a very low failure rate and have a better processing result.

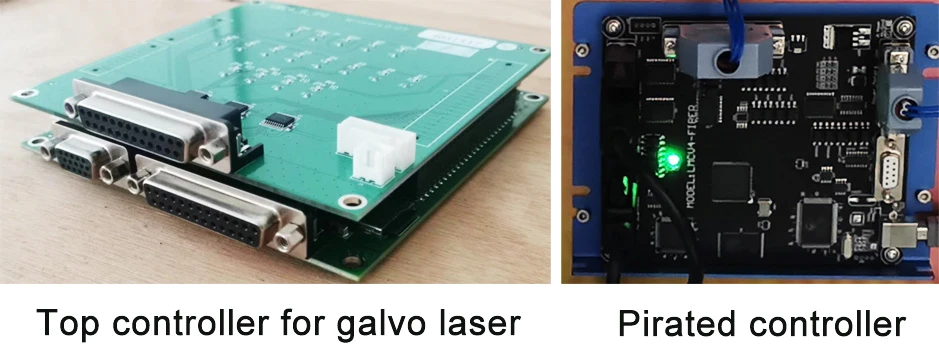

4. Controller
Controller is the brain of the system, a mature and reliable controller is very important, too, it can perform command or program to computer, then connect to machines to do the work perfectly as you want. Correspondingly, if the controller is unreliable, it can't perform correct or perfect program to machines to do great work. In order to save cost, some competitors adopt bad controller or even pirated controller, which lead to lots of trouble for users.
The Enclosure Frame CO2 Galvo Laser Machine features a compact and durable frame that is constructed from high-quality materials to ensure long-term reliability and stability. The fully enclosed design of this machine ensures that it is safe to use in any environment. The enclosed space also includes exhaust fans that eliminate fumes and dust during the cutting and engraving process, keeping the workspace clean and free from harmful particles.
The machine is equipped with a high-speed CO2 laser that boasts a wavelength of 10.64 micrometers, ensuring precision cutting and engraving. The laser beam is directed by a high-speed galvanometer scanner that is able to move as fast as 50,000mm/s. This allows the machine to cut and engrave materials at a fast rate while maintaining a high level of accuracy.
The Enclosure Frame CO2 Galvo Laser Machine is also equipped with advanced software that allows the user to upload designs directly to the machine. The software is able to read a wide range of formats, including DXF, BMP, AI, PLT, and more.

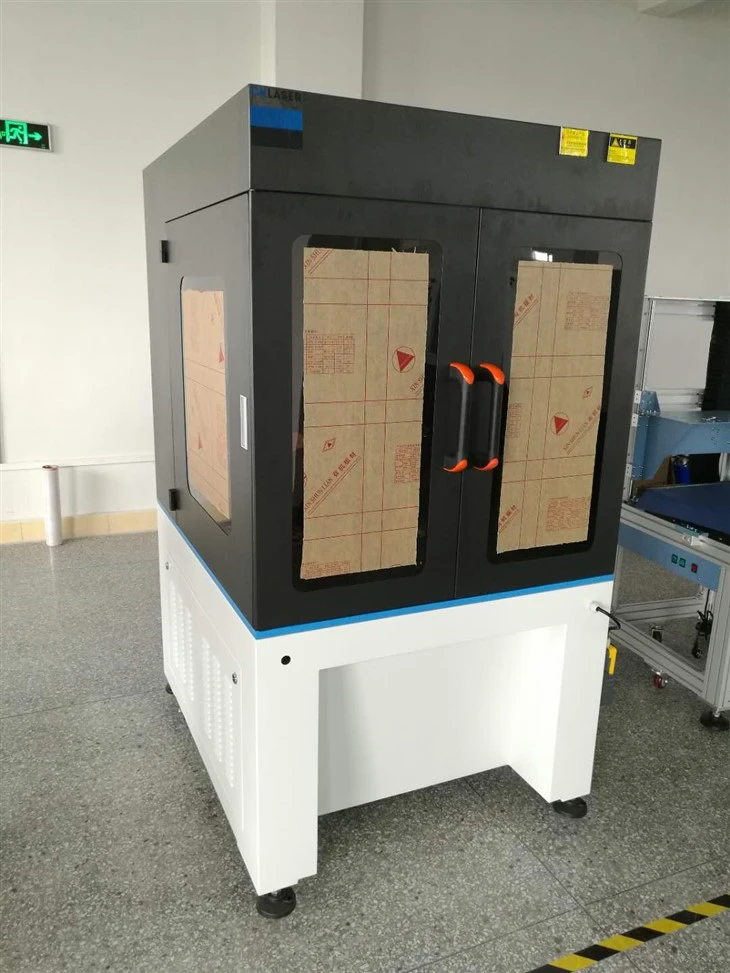

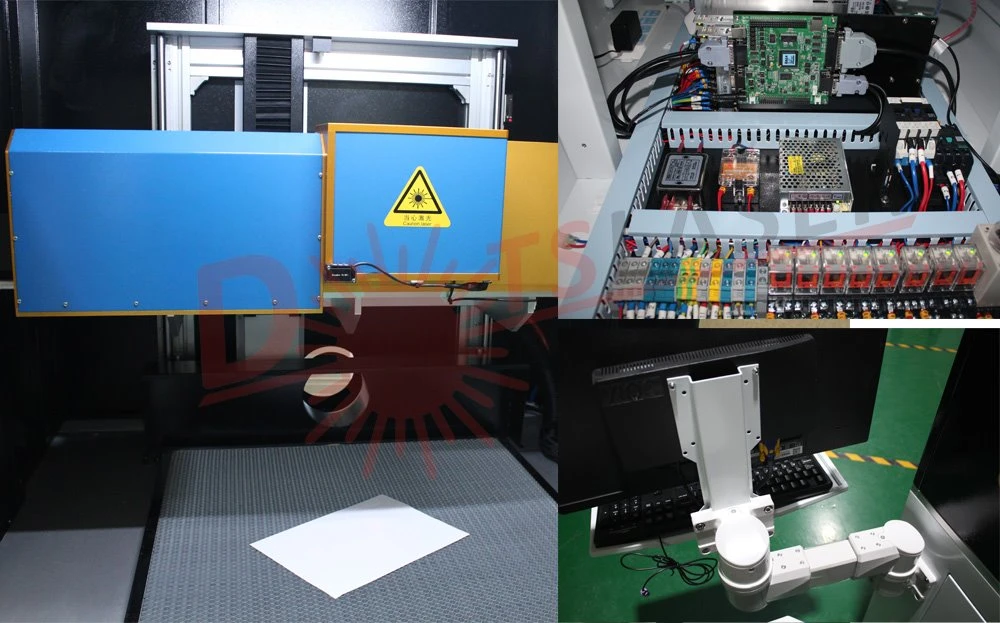

Details of enclosure frame CO2 galvo laser machine
Samples show
Packaging and shipping.
Unpacking Caution:
Every marking machine has been rigorously tested at the factory, only qualified product for shipment. When you receive the freight, please check as follows. If you have any questions, please contact the agent or staff at DOTSLASER.
● Whether there is damage or deformation during transport.
● Confirm that all of the items on the packing list are correct.
● Confirm that the model of the product matches the nameplate(Operating voltage and KVA number).
● Make sure that all clamps are tight and that there are no foreign objects in the device.
● Confirm the operation buttons, switches are normal.
