Name: China Cardboard Cutting Machine Manufacturers, Suppliers and Factory - Customized Service - Dotslaser
Brand: DOTSLASER
SKU: 160753579

Send Inquiry

Product Introduction

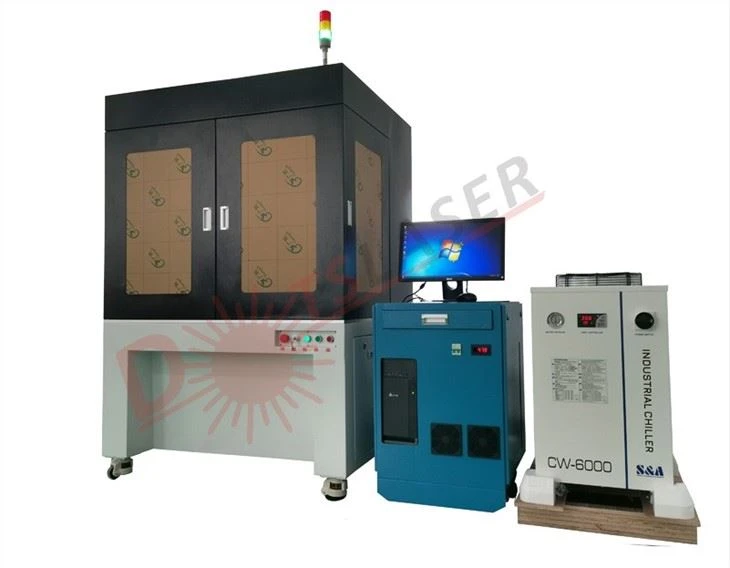

Cardboard Cutting Machine

Products Description

Cardboard Cutting Machine is used in greeting cards, cardboard, decals, New Year pictures, invitation cards, invitations, customized shells, boxes, etc. Its imported laser source enables long life time, and water-cooled laser scanning head and large-format dynamic control system are used, which can get very fine marking beam quality. This machine is also very easy to operate, install and maintain, so you can rest assured to purchase.

Features and Advantages

01/

Class 1 standard housing for safety. New control system,more stable German digital card,The hole uniformity reaches 96%.

02/

Large working area: can be 400x400mm~800x800mm, suit for processing on large area.

03/

Bigger and faster galvo,to get smaller beam size,with fine lines and higher cutting ability. 25~35% faster compared with similar model.

04/

Cutting seam is clean, no yellowish, no blacken.no jagged. Compact structure, small space occupied.

Technical parameters

Model	DS-LMC150	DS-LMC250	DS-LMC350
Laser power output	150W	250W	350W
laser wavelength	10.6μm
Marking area	400x400mm,500x500mm,600x600mm,800x800mm
Pulse frequency	1~130KHZ
Max line marking speed	8,000mm/s
Control method	xyz 3axis dynamic focus
Min.line width	0.22mm(depend on material)
Cooling	Water cooled
Working temp	10~30 ℃
Gross weight	480KG
Size of machine	1200x800x1580mm
Power supply	AC220V±10%/20A,50Hz or AC110V±10%,60Hz

Detail show

Products Details

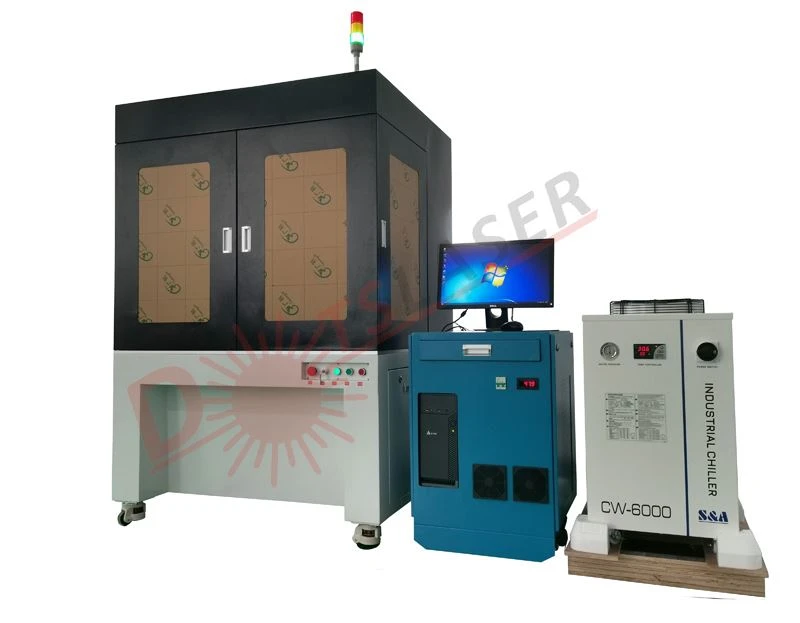

CO<sub>2</sub> laser engraving cutting machine

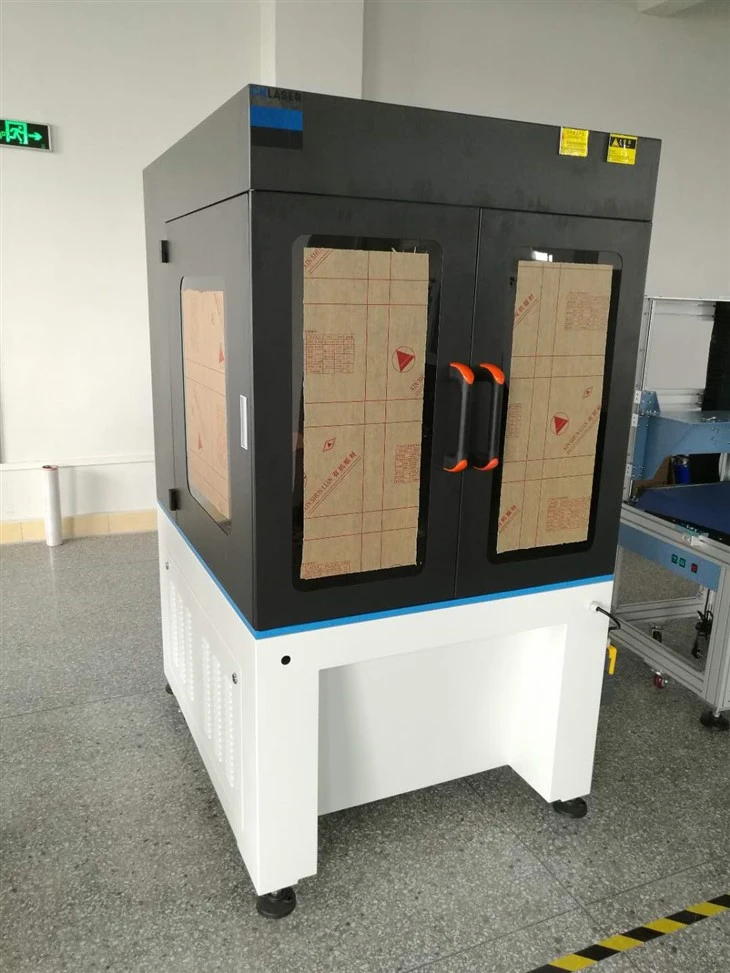

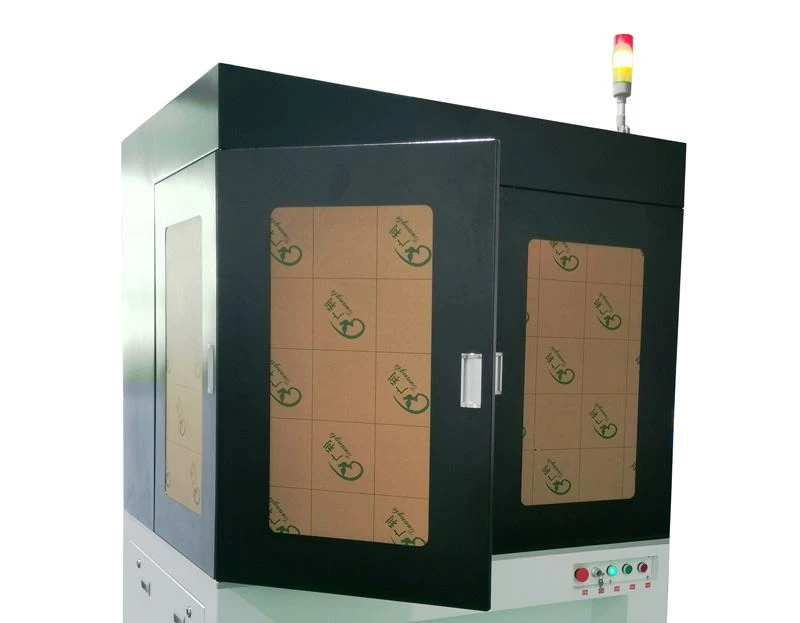

1. Class 1 safe enclosure

This door is designed to prevent accidental exposure to the laser beam, which can cause serious injury or damage to sensitive components. It is made from high-quality materials that can withstand exposure to intense laser radiation and other hazards.

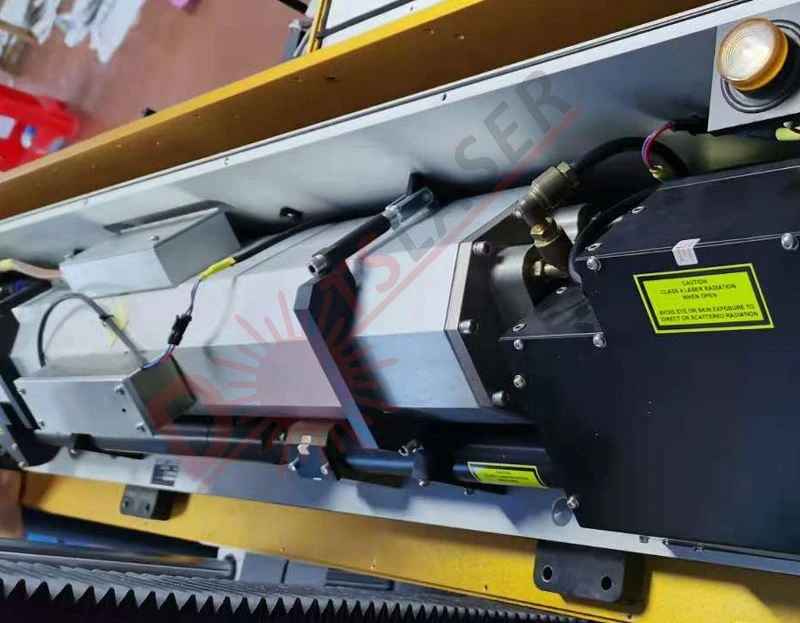

2. Stable RF laser tube, imported one, with longer using life.

The radio frequency tube is a fully sealed metal tube and uses a 48 volt low-voltage power supply. This directly avoids some of the disadvantages caused by the use of high-voltage power supplies. The coordination of various systems is also very high, and basically there will be no too much problem. The domestic glass tube laser cutting machine uses a high-voltage power supply of 10,000 volts or higher, which is not only unstable, but also dangerous.

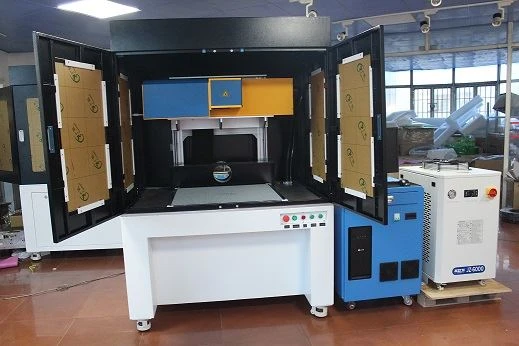

3. Easy to use working table, good for worker opreating.

The humanized design of Cardboard Cutting Machine allows the operator to use the laser more safely and conveniently to process production materials. It uses the operating software independently developed by DOTSLASER company which is simple and easy to learn, and people who have not used it, will use it after half a day of study.s.

Samples show

Packing and shipping

FAQ

Q1: Which kind of laser source should i choose ?

A2: For laser source we have RF metal tube and glass tube , RF metal tube we have the imported one and the chinese one ,the laser power we have 100W ,150W,250W ,300W ,350W ;Base on customer different application needs you may choose your suitabe laser power ,such as if you just need engraving ,you can use 100W is ok ,on the other hand if you need to cut leather , we suggest you use more than 180W will be perfect ;

Q2: How do we do the setup of the focus ?

A2: Base on different focus needs we offer ,motor raise up down z axis for focusing ,and also we have the autofocus system if customer needs to add ,so it will be very easy to customer .

Q3 :Why CO₂ laser needs a chiller ?

A3 : As a high power laser , the tube inside will be very high temperature while laser is working ,so in order to cool down the temperature , we need use a water chiller ,and the galvo board needs a water cooling as well.
