Jeans Laser Etching Machines
Jeans Laser Etching Machines
Products Description
our innovative Jeans Laser Etching Machines, designed specifically for the fashion and textile industry. These cutting-edge machines allow you to create unique and eye-catching designs on denim and other fabric materials with unparalleled precision and quality. Ideal for businesses focused on apparel manufacturing, customization, and fashion design, our Jeans Laser Etching Machines provide an efficient and cost-effective solution to elevate your products to the next level.
Key Features
Advanced Laser Technology
Our Jeans Laser Etching Machines utilize state-of-the-art laser technology to produce detailed and intricate designs on denim and other fabric materials. The non-contact etching process ensures fabric integrity while delivering high-resolution images, patterns, and branding elements.
Fast and Efficient Performance
Equipped with high-speed laser systems, our machines significantly reduce project completion times, enabling rapid turnaround and improved productivity.
User-friendly Interface
An intuitive touch screen interface ensures seamless operation, allowing operators to easily input settings, monitor progress, and manage the entire etching process. This user-friendly system minimizes downtime and maximizes productivity.
Customizable Settings
With adjustable etching depth, speed, and power settings, you can achieve optimal results tailored to your specific materials and requirements.
Robust Safety Features
Our Jeans Laser Etching Machines are designed with necessary safety features such as protective enclosures, ventilation systems, and automatic shutoff mechanisms.
Durable and Reliable Construction
Built with high-quality materials and components, the Jeans Laser Etching Machines offer long-lasting performance .
Parameters
|
NO. |
Name |

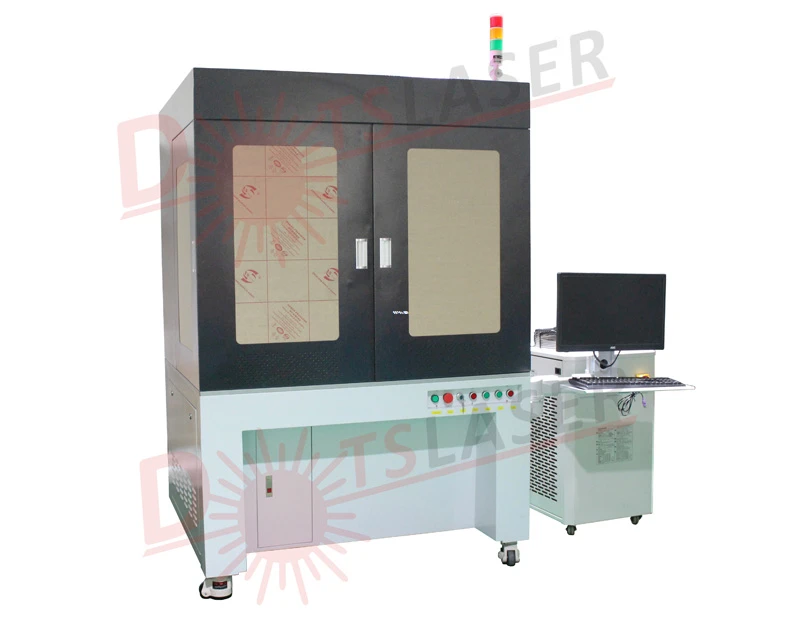

DS-LMC series Galvo laser system |
|
1 |
Machine model |
DS-LMC250/DS-LMC350 |
|
2 |
Max laser power |
250W/350W |
|
3 |
laser wavelength |
10.6μm |
|
4 |
Beam quality |
＜1.2㎡ |
|
5 |
Duty cycle limit |
≤60% |
|
6 |
Min.line width |
0.22mm(depend on the material) |
|
7 |
Min.character size |
0.4mm |
|
8 |
Max marking speed |
≤8,000mm/s |
|
9 |
Working area |
1200x1200mm |
|
10 |
Cooling |
Water cooled |
|
11 |
Working environment temperature range |
5~35 ℃ |
|
12 |
Humidity range of working environment |
< 70% No condensation |
|
13 |
Power supply |
220V,50/60Hz |
|
14 |
Power consumption |
＜6KW |
The Jeans Laser Etching Machines are perfect for a variety of applications in the fashion and textile industries, including, but not limited to:
Denim and fabric garment customization
Branding elements and logo application
Artistic design collaborations
Personalization and monogramming services
Enhance our product offering and stay ahead of the competition with our Jeans Laser Etching Machines.
If you have any inquiries or would like to schedule a demonstration, please do not hesitate to contact us. Let our cutting-edge solutions help you unleash your creativity and transform the way you create fashion.
Advantages of laser etching technology
| 1.Ecological environmental protection | No chemicals or water are needed. General cleaning can be carried out after processing, which shortens the traditional redundant cleaning process and greatly reduces the pollutant emission, which is in line with the current trend of green economic development, clean energy and no chemical reagent. |

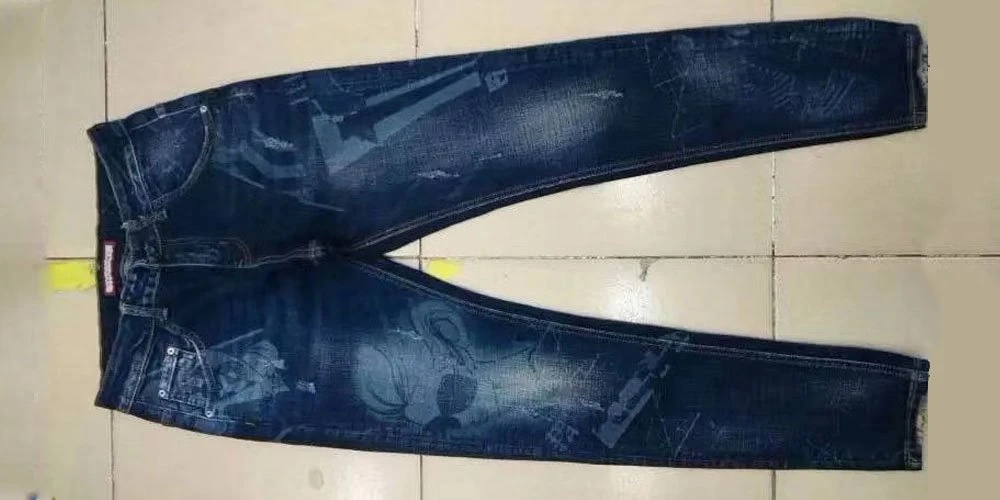

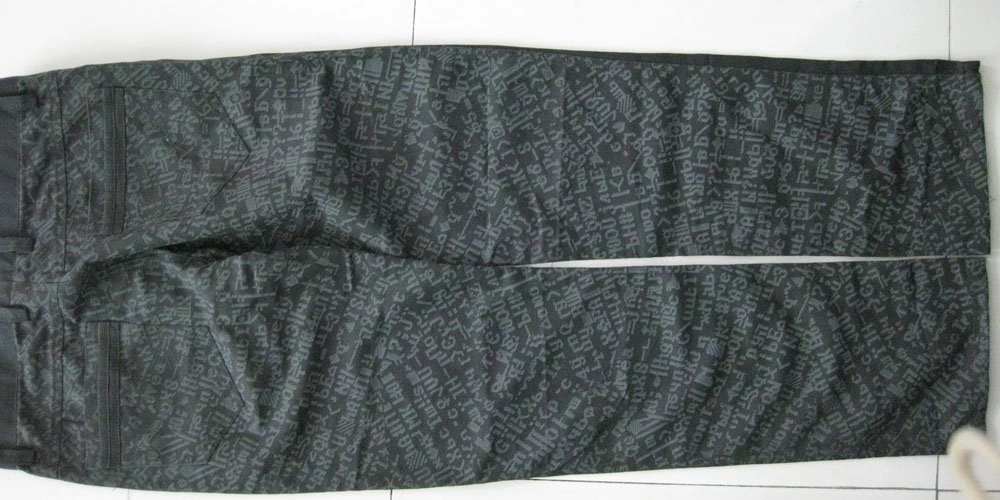

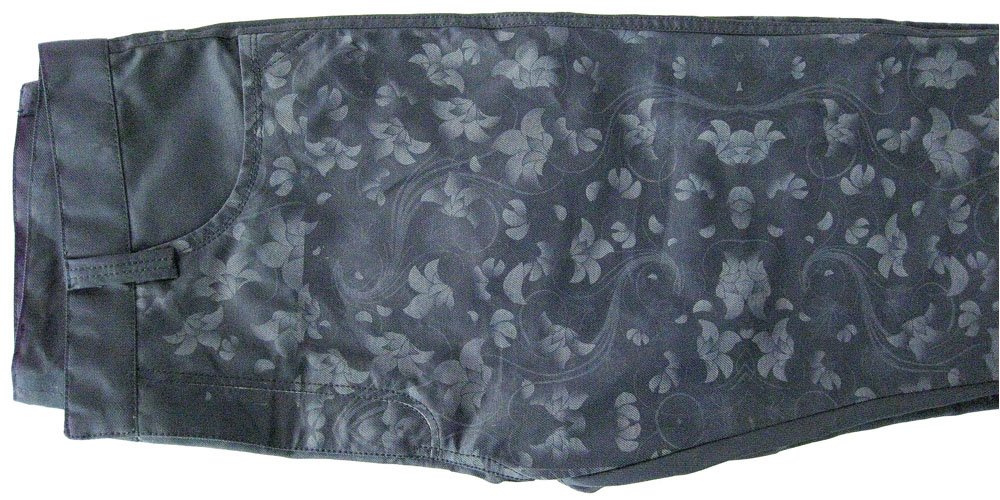

| 2. Rich processing technology | Can be adjusted in a variety of jeans fabric cat whiskers, folds, ragged, worn, snowflake and other effects and a variety of personalized patterns carved, texture clear, never fade. |
| 3. Personalization | Except engraving folds. Whiskers. Rags. Fried snowflake and other traditional processes, it can also process figures, signs, patterns, any personalized rubbing patterns, such as figures, are can be processed by laser. |
| 4. Economical and high efficiency | According to different patterns of processing a pair of jeans only 30 seconds, power in 0.01-0.05 kwh, a single machine can replace 6 hand cleaners, 7 yuan per hour electricity only. |
| 5. Easy and simple to operate | For a new operator, just take 1 or 3 days training is ok. |
The general process of making jeans probably needs to go through fabric dyeing, weaving, cutting, sewing and some details of the process, and the key process to determine the effect of jeans can be said to be laser etching process, the technology of laser etching can solve the problem in the process of making all kinds of denim fabric.
Laser is used in the process of denim laser etching or damaging. Digital processing can avoid the disadvantages of the traditional process, the efficiency is 10 times the traditional process, water saving and emission reduction of more than 50% , the processing effect is not inferior to the traditional process.
product key technologies
Use the computer to design patterns, typesetting, making documents, and then use the CO2 laser engraving machine to make the laser beam in accordance with the computer typesetting instructions on the surface of clothing fabrics for high-temperature etching, the yarn in the hot etched section is ablated.
Fuel gasification, forming different depths and shallow etch, produce patterns or other washing effect. Embroidery can also be used in these drawings, such as beads, irons, re-decorated metal accessories and other materials, enhance the artistic effect.
