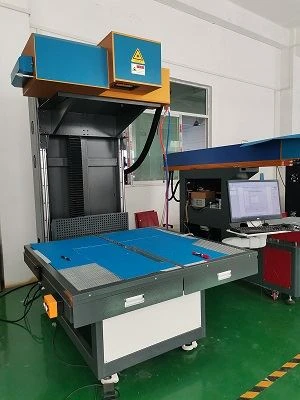

Dynamic Focus CO₂ Laser Making Machine
Dynamic Focus CO₂ Laser Making Machine
Dynamic Focus CO₂ Laser Making Machine
Dynamic Focus CO₂ Laser Making Machine
Dynamic Focus CO₂ Laser Making Machine

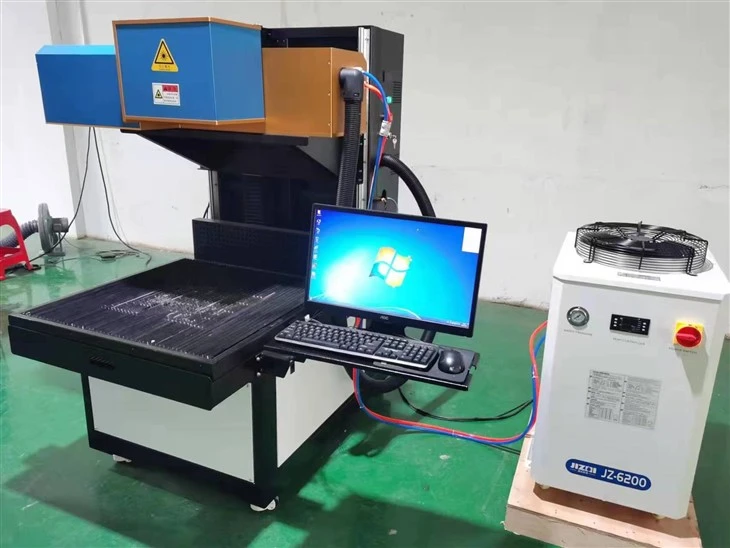

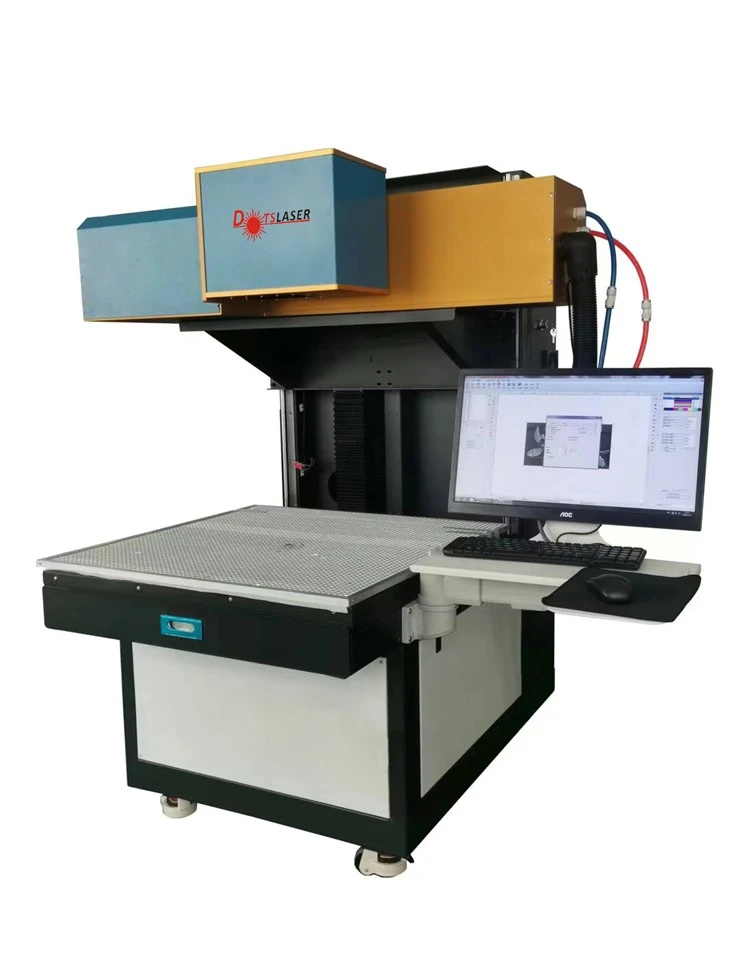

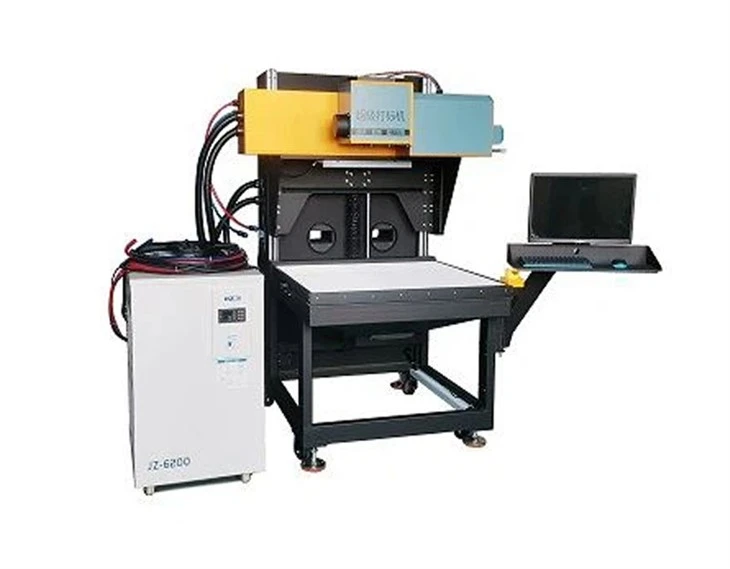

Dynamic Focus CO₂ Laser Marking Machine

Name: China Customized Dynamic Focus CO₂ Laser Making Machine Manufacturers Suppliers Factory - Dotslaser
Brand: DOTSLASER
SKU: 249987770

The Dynamic Focus CO₂ laser marking machine is not only efficient and precise, but it is also user-friendly. Its intuitive interface makes it easy for anyone to operate, and its safety features and built-in cooling system make it a safe and reliable choice.

Send Inquiry

Product Introduction

Dynamic focus CO₂ Laser Marking Machine

Products Description

The advanced dynamic focus CO₂ laser marking machine has transformed the way laser cutting and sculpturing are done. With its good dynamic focus system, this machine guarantees precise and accurate cuts and sculpturings on various surfaces. What makes this machine unique is its capability to adapt the focal distance of the laser beam in real-time, guaranteeing precise outcomes regardless of any surface imperfections or fluctuations in thickness.

Equipment advantages

01/

The dynamic focus CO2 laser marking machine has bigger working area and finer optical spot diameter.The large marking area helps to process more products.

02/

It has smaller focusing spot and higher energy density which are suitable for finer cutting, and marking.

03/

The system is equipped with external double-circulation industrial water-cooling system, which is convenient for users to choose according to the place of use and conducive to the protection of work environment.

04/

Keep setting configuration on average, without higher or lower energy injected in projects. The whole machine runs more stable and has lower power consumption.

Configuration

Parameters	Max Output Capacity	250W
	Nominal Peak Powe	≥450W
	Mode Quality	M²≤1.2
	Duty Cycle Limit	≤70%
	Laser Type	CO₂
	Laser Wavelength	10.6μm
Performance	Marking Format	Pattern,Word,Bar code,QRcode,Date,Serial Number
	Marking Character Types	Pattern and words of vectordiagram & bitmap
	Marking Area	400X400-700X700(mmXmm) Adjustable
	Marking Depth	0-5mm (According to the materials)
	Marking Speed	<7000mm/s
	Min Line Width	0.3mm(According to the materials)
	Min Character	0.4mm
	Repeat Positioning Accuracy	0.01mm
Information	Total Power	＜6KW
	Power Supply	AC220V/50Hz/30A
	Cooling Way	Constant temperature water cooling unit
	Working Temperature	15-30℃
	Working Humidity	<75 No condensation

Marker's Size Sketch

product-1386-759

Samples Showcase

Laser engraving on stainless steel cups and bottles

Machine's delivery

FAQ

Q1: How does the package?

A: Dotslaser provides 3 layers package. For the outside, we adopt wood craft case. In the middle.the machine is covered by foam, to protect the machine from shaking. For the insidelaver, the machine is covered by thickening plastic bag for waterproof.

Q2: Will the package damaged during transportation?

A: Our package is considerate all the damage factors and make it to be safe, and ourshipping agent have full experienced in safe transportation. We have exported to 100 countries worldwide. So please don't worry, you will receive the parcel in good condition.

Q3: How to install and run the machine?

A:Our worker will install all the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine 95% customers can learn by themselves.

Q4: How can i do if the machine goes wrong?

A: lf confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
