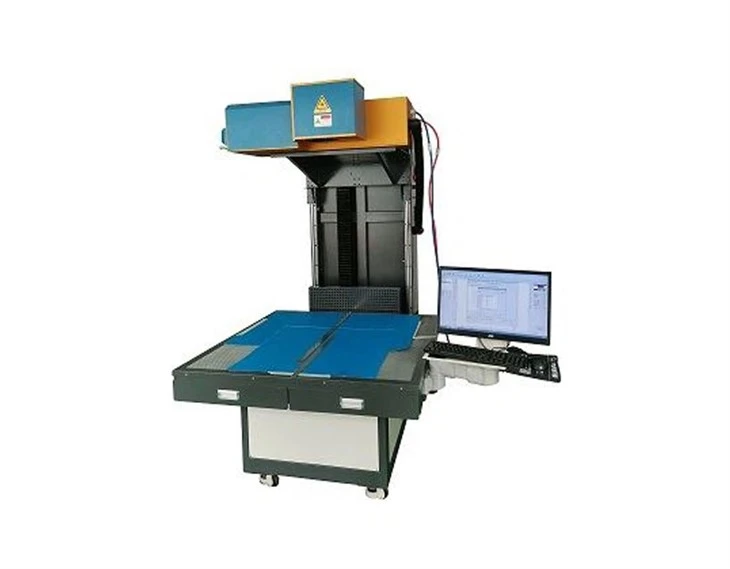

CO2 Marking Burn Clothes Crafts
CO2 marking burn clothes crafts
Description
CO2 Laser marking equipment is a high-tech tool that can precisely engrave and cut various materials. When it comes to burning clothes crafts, CO2 laser marking machines are the perfect choice as they can easily create customized patterns and designs on fabrics. The laser beam is extremely precise and does not cause any damage to the cloth. Additionally, the process is fast and efficient, making it perfect for mass production.
key Product features
Reasonable design

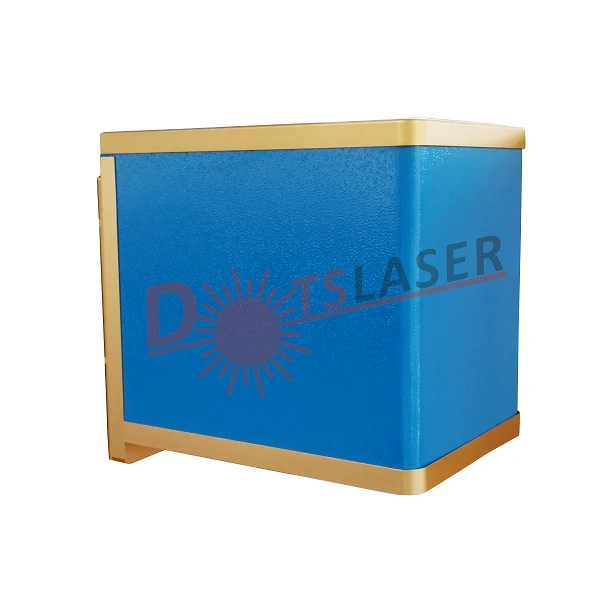

The CO2 marker has 3D focus system,equipment has bigger working area and finer optical spot diameter.This means that you can create intricate designs and patterns with excellent accuracy and detail.
Multiple usages
The CO2 equipment with smaller focusing spot and higher energy density which are suitable forfiner cutting, punching and engraving.It can mark textiles, leather, wood, glass, and plastics.
Longlasting effect
This is an efficient tool for producing everlasting marks on clothing and crafts. It offers exceptional durability, making the designs and patterns last longer and thereby increasing the life of the clothing.
High speed marking/cutting
Marking performance ensure smooth sharp cutting edge. The processing result is more average, without too high or too low energy injected in partial area.
Parameter
|

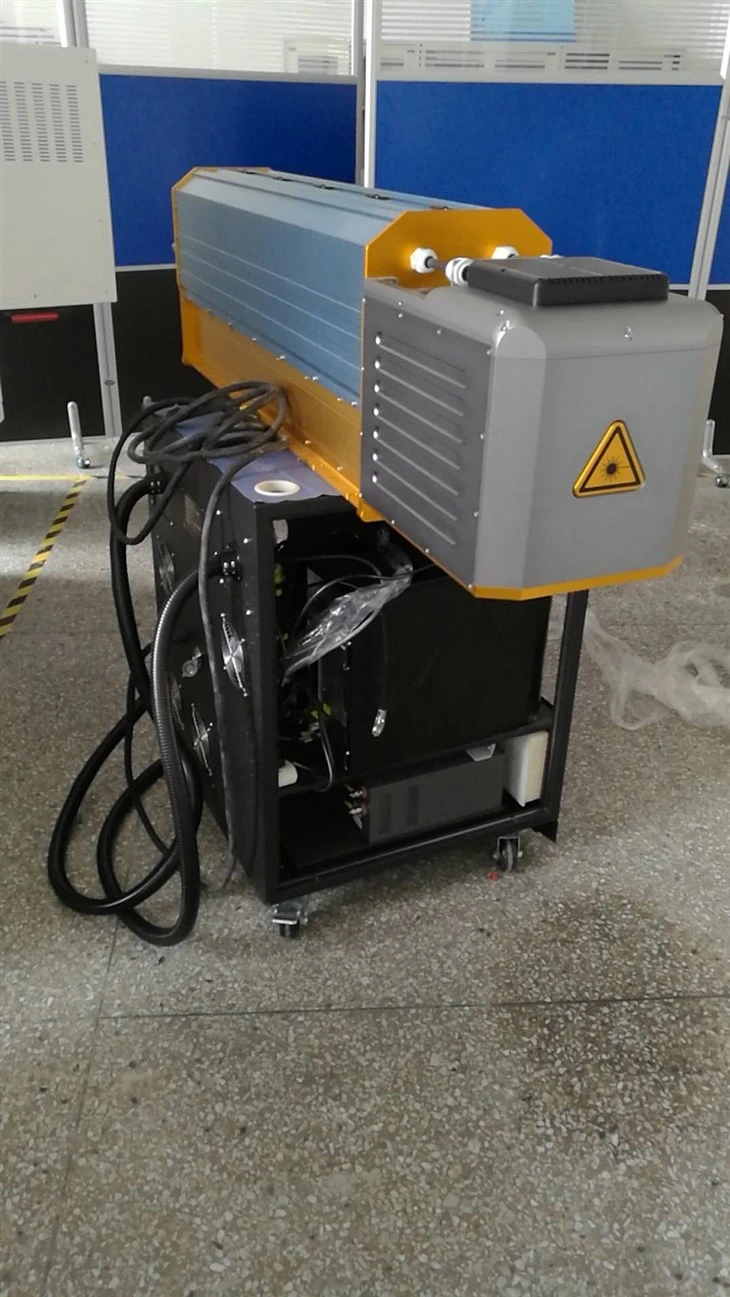

Laser tube parameters |
Max Output Capacity | 250W |
| Nominal Peak Powe | ≥450W | |
| Mode Quality | M2≤1.2 | |
| Duty Cycle Limit | ≤70% | |
| Type | CO2 | |
| Wavelength | 10.6μm | |
|
Marking performance |
Support Format |
Pattern,Word,Bar code,QRcode,Date,Serial Number |
| Character Types | Pattern and words of vectordiagram & bitmap | |
| Processing Area | 400X400-700X700(mmXmm) Adjustable | |
| Marking Depth | 0-5mm (According to the materials) | |
| Marking Speed | <7000mm/s | |
| Min Line Width | 0.3mm(According to the materials) | |
| Min Character | 0.4mm | |
| Repeat Positioning Accuracy | 0.01mm | |
| Machine information | Total Power | ＜6KW |
| Power Supply | AC220V/50Hz/30A | |
| Cooling Way | Constant temperature water cooling unit | |
| Working Temperature | 15-30℃ | |
| Working Humidity | <75 No condensation | |
| Working Environment | Without dust, without vibration |

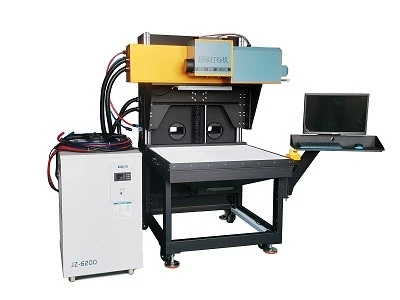

Three Axis Dynamic CO2 laser marking equipment is widely suitable for the industries, such as Heat Transfer film (Paillette, TPU materials, Reflective transfer film, etc.), leather, wooden box, paper card, clothes denim, illuminator,Mobile communications, mould, precision machinery, IT Digital shell, Military aviation components, handicrafts, Advertisement decoration, etc.
As an all-new process, there are several applications of laser in apparel industry. Laser engraving and cutting technologies now being widely applied in many garment industries, fabric production units, other textile and leather industries. In synthetic fabrics, laser cutting produces well-finished edges as the laser melts and fuses the edge, which avoids the problem of fraying produced by conventional knife cutters. Furthermore, use of laser cutting is increasingly used for leather due to the precision of cut components. In fashion accessories, laser cutting can be used to produce new and unusual designs.
In laser cutting, a laser is used to cut the fabric into the desired pattern shapes. A very fine laser is focused on to the fabric surface, which increases the temperature substantially and cutting takes place due to vaporization. Normally CO2 lasers are used for cutting of fabric. Unlike traditional knife cutting, the laser beam does not become blunt and does not require sharpening.
Choosing the right laser engraver for fabric:
When it comes to choosing the right equipment for fabric, there are various factors that should be taken into consideration. Laser machines are essential tools for textile and garment production, as they enable precise cutting and engraving of various materials, including cotton, silk, synthetic fibers, and leather. With the right laser machine, fabric processing can be highly efficient, precise, and cost-effective.
One important factor to consider when choosing a equipment for fabric is the wavelength of the laser. Different fabrics require different wavelengths, and this will depend on the type of fabric you are working with. For instance, fabrics made from natural fibers like cotton or silk require a CO2 laser machine, while synthetic materials such as polyester or nylon require a fiber laser machine.
Another key factor to consider when selecting a equipment for fabric is the size of the machine. The size of the machine will depend on the size of the fabric you need to cut or engrave. If you work with large fabrics, you need a laser machine that can handle larger pieces of fabric, while smaller fabrics can be processed with smaller machines.
The laser tube's wattage is also an important factor to consider when choosing a laser machine for fabric. A higher wattage laser tube will be able to cut or engrave the fabric faster and more accurately, making it ideal for businesses with high demand for fabric processing.
Finally, it is important to consider the ease of use and maintenance of the machine. A user-friendly machine with tools and accessories that are easy to replace and maintain will significantly reduce downtime and increase productivity.
Samples Of Laser burning garments
Suitable fabric for laser engraving/cutting?
Cotton: The beauty of using natural cotton fiber for engraving is the clean and crisp design it produces, minimizing burning and discoloration of the material.
Linen: Engraving on linen is a great option, especially with a lower power setting, as it can produce highly effective results.
Denim: The durability and unique texture of denim make it a fantastic material for laser engraving, allowing for the creation of impressive effects such as faded or distressed looks.
Polyester: Laser engraving synthetic fabrics, such as polyester, results in a remarkable and elevated design due to the slight melting of the material.
Felt: Laser engraving on felt is an excellent choice for producing visually appealing and eye-catching designs. It is commonly used in crafts, badges, and decorations, and works exceptionally well under the laser.

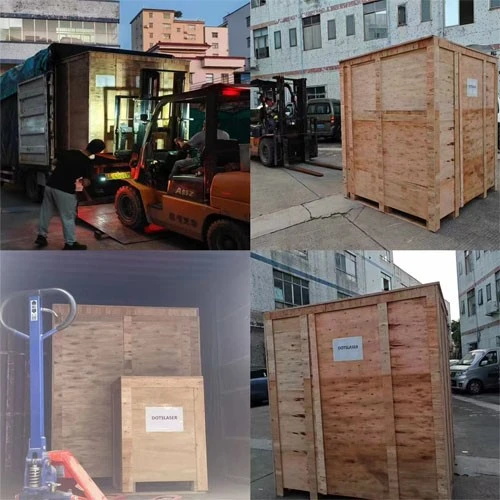

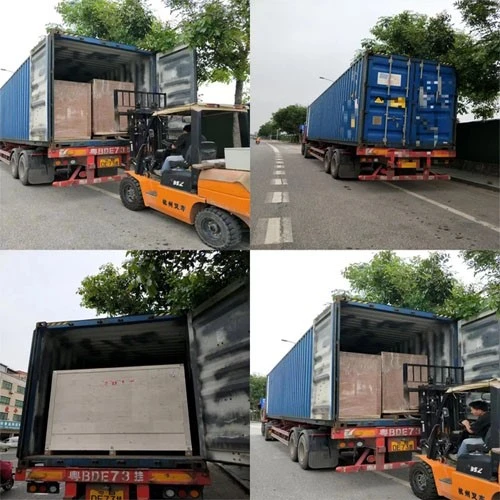

Shipping and package
The Advantages Of Laser Applications Include:
 Laser cutting, laser engraving and laser perforation combined in one step |
| No mechanical wear, hence good quality |
| No fixation of material is required due to force-free processing |
| No fabric fraying in synthetic fibres due to formation of fused edges |
| Clean and lint-free cutting edges |
| Simple process due to integrated computer design |
| Extremely high precision in cutting contours |
| High working speed |
| Contactless, wear-free technique |
| No chips, less waste and significant cost saving |
FAQ
Q1: How does the package?
Q2: Will the package damaged during transportation?
Q3: How to install and run the machine?
Q4: How can i do if the machine goes wrong?
