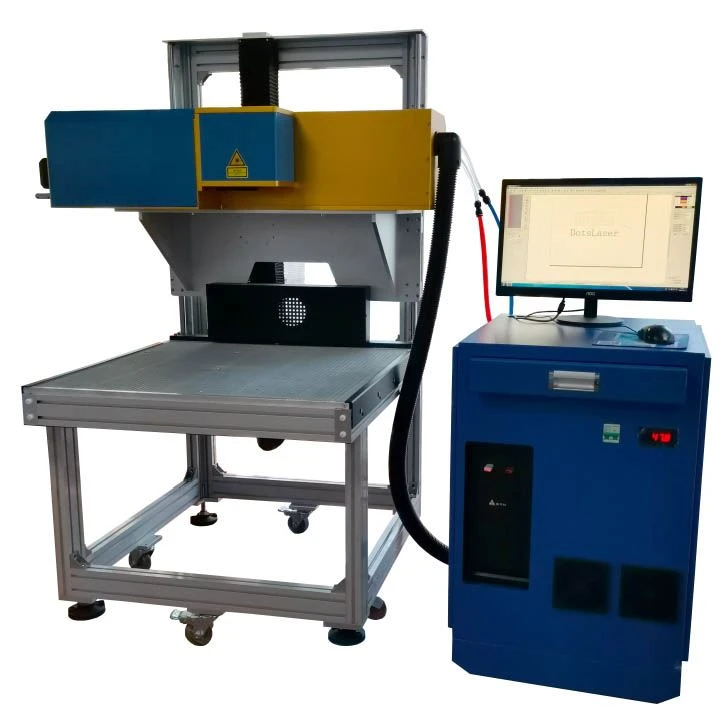

Paper Products Laser Cutting Machine
Applicable for:Paper greeting card,invitations,paper jam,glitter paper,coated paper,gray cardboard,window grilles,books and other paper products.
Paper Products Laser Cutting Machine
Products Description
The Paper Products cutter adopts a highly intelligent control system, fully automated control, high-precision positioning, one-time molding, and smooth edges. This laser cutting machine is mainly used for carving bamboo and wood products, plastic carving, engraving, crafts and gifts, musical instrument carving, greeting card cutting, jewelry carving, button cutting and engraving, etc. It is suitable for professional users with higher precision requirements.
1. Find focused spot and smooth cut surface,easy for you to operate, you don't need to replace parts for long-term use.Higher marking accuracy and faster engraving and cutting speed, and the engraving depth is controllable.
2. Good beam quality; high photoelectric conversion efficiency; good performance, capable of fine processing.
3. It is a portable all-in-one machine, saving space.It occupies a small area and can be placed at will, suitable for batch processing.The service life can reach 20000 hours.
4. Multiple marking forms: flying marking, line marking, rotary marking, multi-segment marking.
Parameter
|
NO. |
Name |
Paper Products Laser Cutting Machine |
|
1 |
Machine model |
DS-PLUS180/DS-PLUS250/DS-PLUS350 |
|
2 |
Laser wavelength |
10640 nm |
|
3 |
Nominal Peak Power |
350W/450W/650W |
|
4 |
Maximum laser power |
180W/250W/350W |
|
5 |
Cooling |
Mode quality |
|
6 |
Duty cycle limit |
≤60% |
|
7 |
Min.line width |
0.17mm(depend on the material) |
|
8 |
Min.character size |
0.4mm |
|
9 |
Max marking speed |
8,000mm/s |
|
10 |
Working area |
800x800mm(Standard,more wide is optional) |
|
11 |
Mode quality |
＜1.2㎡ |
|
12 |
Working environment temperature range |
5~35 ℃ |
|
13 |
Humidity range of working environment |
< 70% No condensation |
|
14 |
Power supply |
220V,50/60Hz |
|
15 |
Power consumption |
＜6KW |
| 16 | Graphic Format Supported |
PLT, AL, DXF, BMP, JPG, etc. (We can accept OEM customization) |
| 17 | Machinery Test Report | Provided |
| 18 | Video outgoing-inspection | Provided |
| 19 | Warranty | 1 year |
| 20 | Control Software | Ez-card |

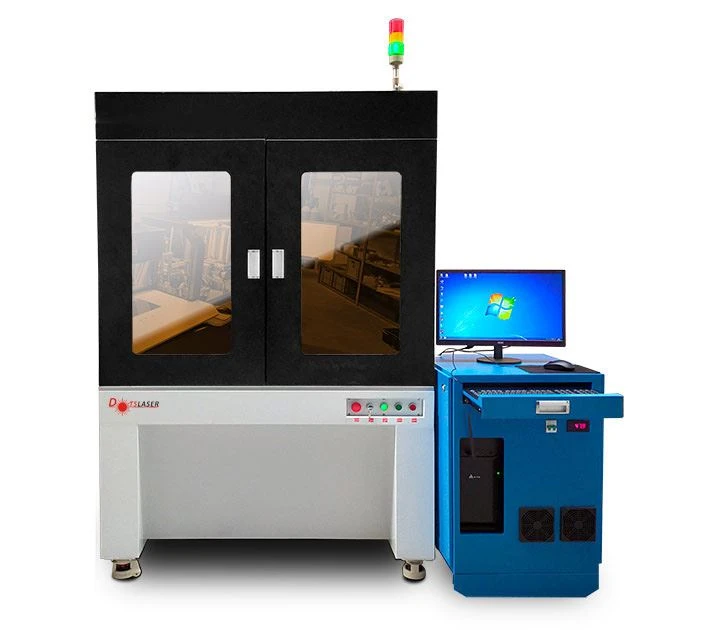

Details show

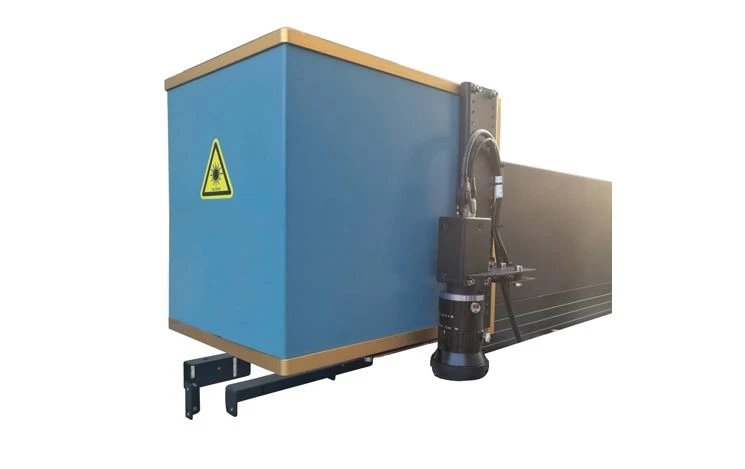

Extra functions

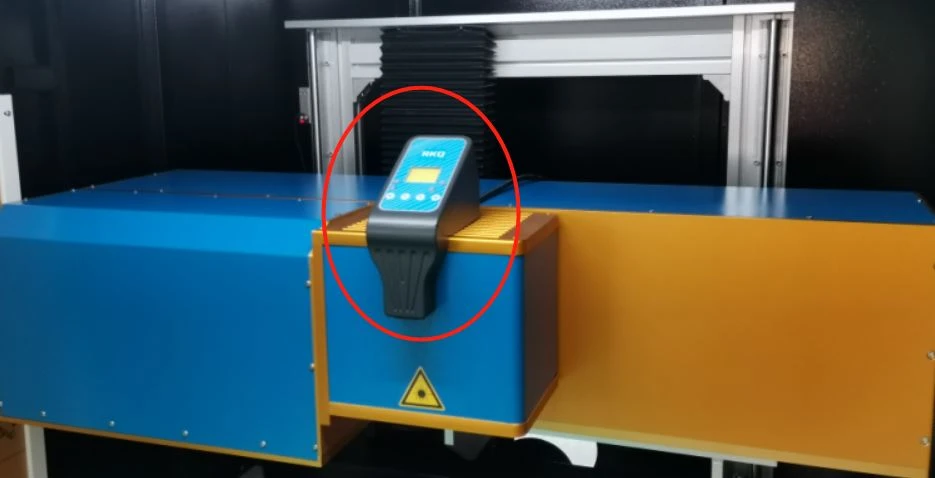

Auto focus, it can rise up/down the galvo head automatically to find the correct focus distance by pressing buttons, which makes work more convenient and funny.

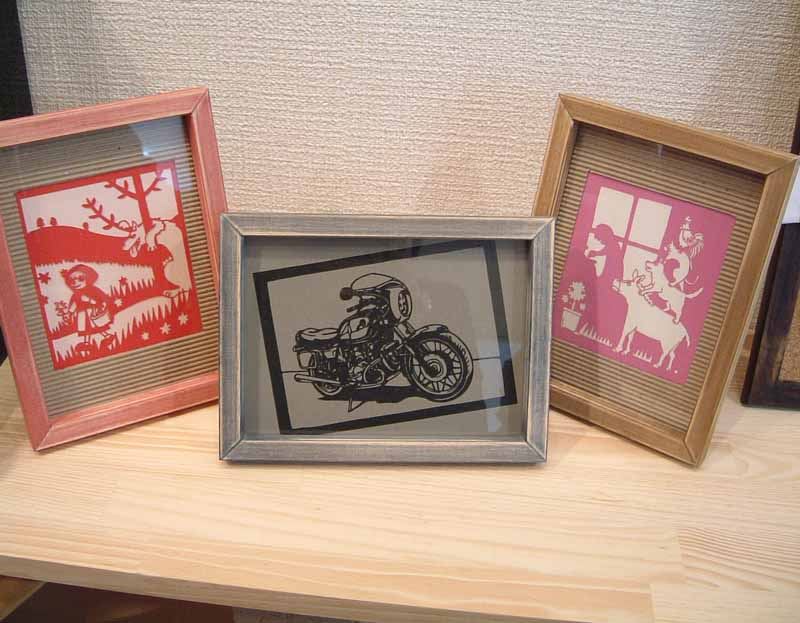

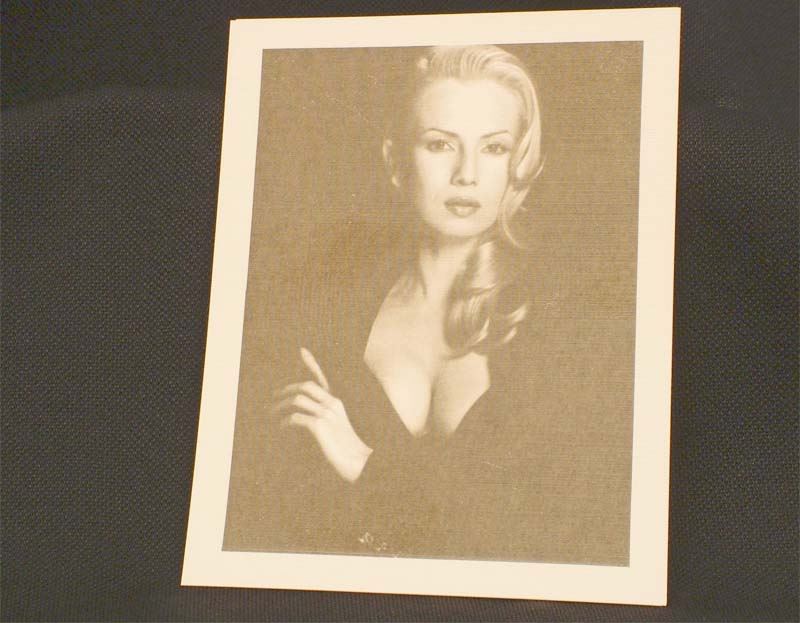

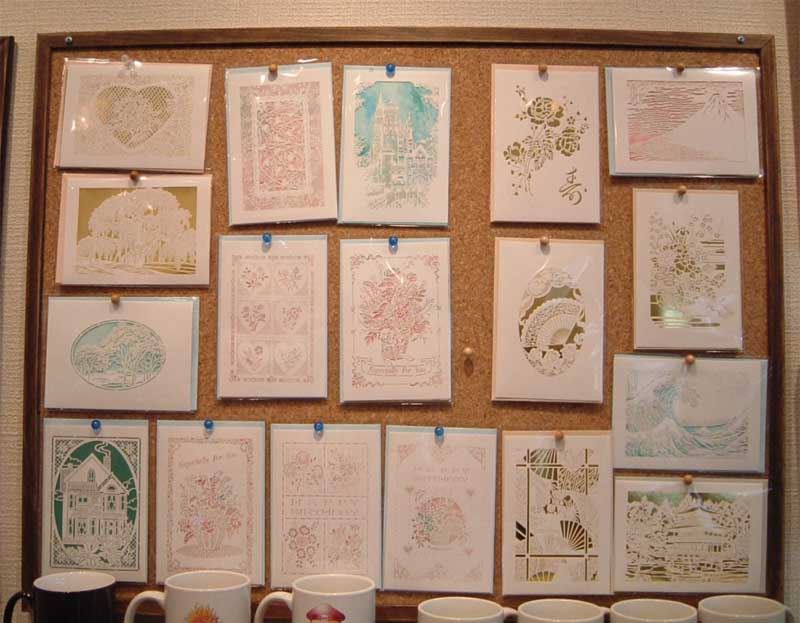

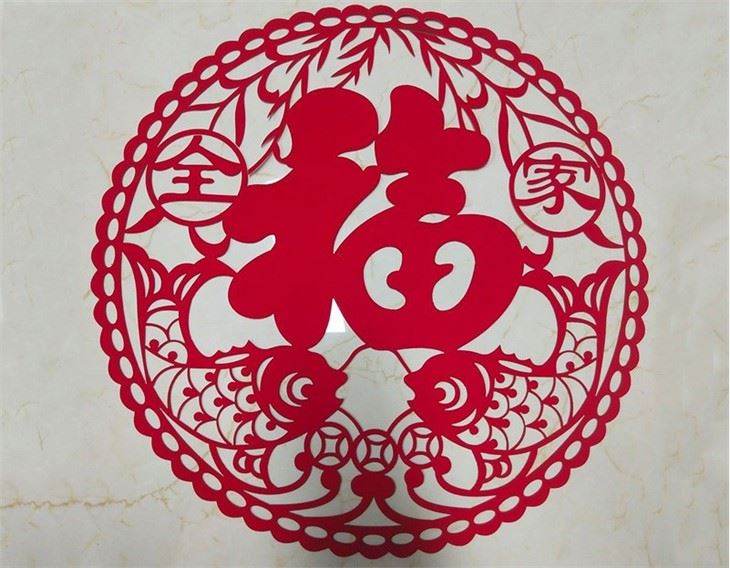

Applicable samples of paper products laser cutting machine
Package
Dotslaser's Warranty & After-Sale
a. Warranty
1 year for laser source,and other accessories,such as motors inside galvo head,control board,power supply,consumable parts are not in warranty,such as lens, keyboard and mouse.
DOTSLASER promises to maintain products which are produced and sent according to a formal contract,and guarantees every repaired machine will function good if used properly.
DOTSLASER has the rights to repair or replace a product in warranty period if it has a material or technical problem. We will charge for the maintenance under normal circumstances. It will be free if the machine has special problems.
c. Technical Support and Product Maintenance
Contact with DOTSLASER's engineer whatever problems occur when using,and make a troubleshooting under engineer's direction.
All products waiting for repair or replacement should be placed in cases DOTSLASER provides,otherwise DOTSLASER will charge for the damage it may cause.
When customers receive DOTSLASER`s products, please check if the product is damaged and whether accessories is complete or not.
DOTSLASER keeps on developing new products, information and parameters in this file may change. All technical parameters are subject to the contract.Warranty and after-sale clauses above are for reference only ,and are subject to the formal contrast.
Delivery time:10~30 working days.
Shipping Term: EXW.
Payment Term:50% T/T prepaid,50% T/T before shipping.
