Products Description
Galvo Laser Welding System is a machine mainly used for material processing and laser welding, with the characteristics of high beam quality and high energy. Compared with YAG lasers of the same power, our products have the characteristics of deep welding depth and good continuous welding strength, which can be applied to most laser welding fields.
Galvo Laser Welding System has a very wide range of uses, and is suitable for precision welding of some parts in industries such as photoelectric communication equipment, medical treatment, electronics, and batteries. Our product is made of high-quality raw materials, have good corrosion resistance and high temperature resistance, have a long service life, and are durable.
laser welding system Features

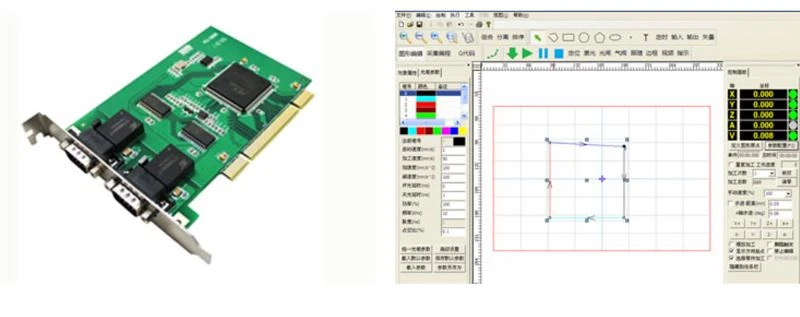

1. This equipment adopts a mature industrial motion control solution, integrates the laser welding machine and motion control into the PC operation interface, making the operation more convenient.
2. It adopts powerful PC control, easy to program, debug and maintain, and can meet all kinds of welding requirements.
3. The system adopts IDE integrated working environment mode, which integrates graphics editing, operation monitoring, acquisition and programming, which is convenient and also makes work more efficient.
4. It adopts 4-axis high-performance motion control, no other PC plug-in is needed.
5. It provides multi-language control and supports people from different countries.
Parameters
|
Parameter item |
Typical value |
|
Laser wavelength |
1080nm |
|
rated power |
1000W , 1500W ,2000W |
|
Beam quality (M2) |
2.2 |
|
optical fiber |
100um, 15m |
|
|
1000Hz |
|
Energy stability |
<3% |
|
Beam output |
1 beam |
|
Cooling medium |
Distilled or deionized water |
|
Continuous working time |
24 hours |
|
Power demand |
220V ±10%/380V ±10%, 50Hz, Rated power 5Kw Rated current 40A |
|
Environmental requirements |
Temperature 5-45℃ Humidity 10-90% |
Modulation requency
Machine Component

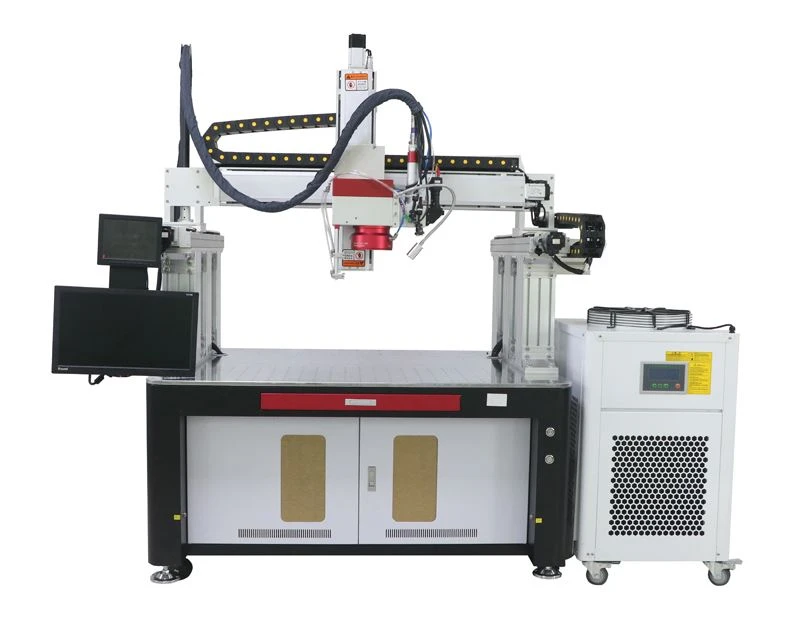

Machine look
Top quality CW fiber laser source

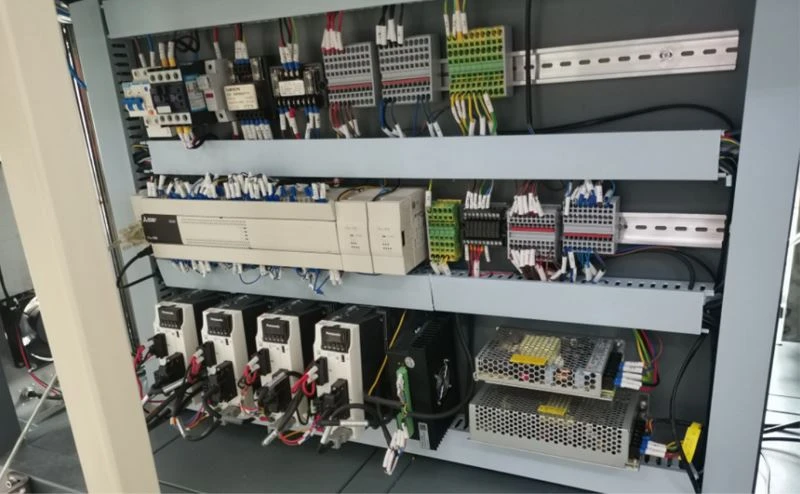

High standard wire connection

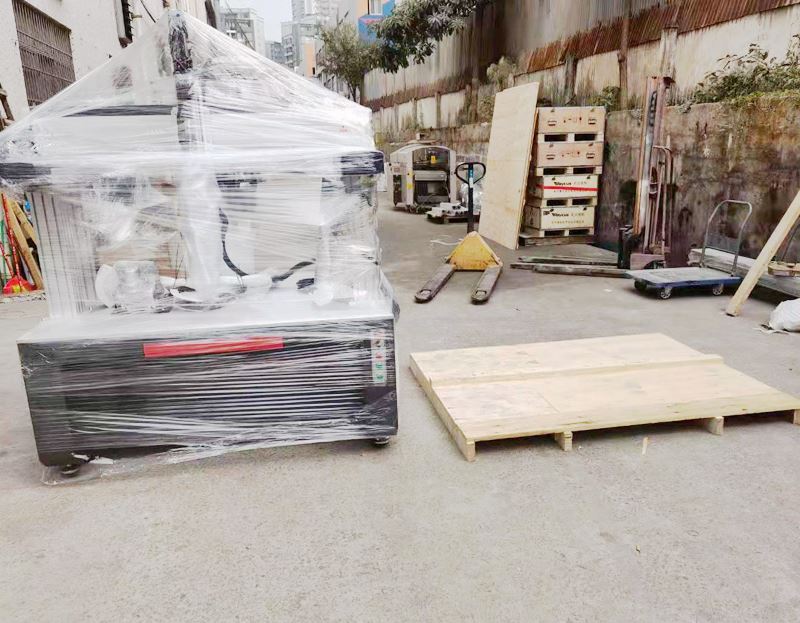

Packing laser welding system

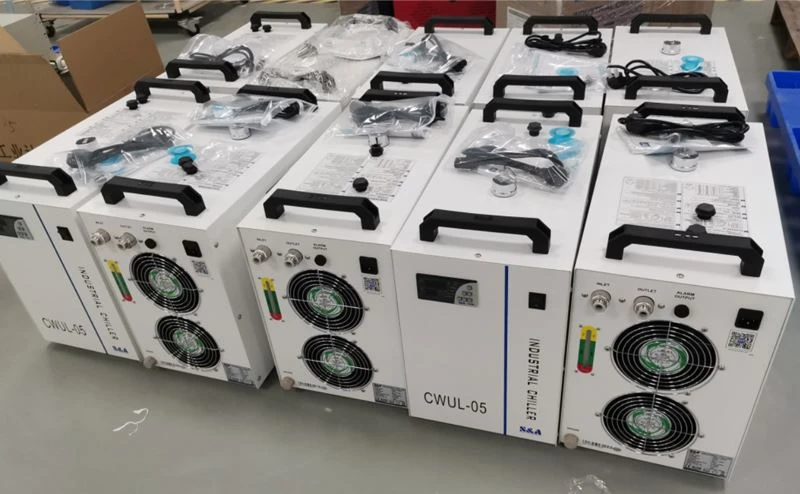

Water chiller
Control panel
1. No consumables, maintenance-free,the average power consumption is less
2.The range of melting wire is wider (effective wire melting: stainless steel 0.1-1.2mm), the laser is more stable and does not run out of light.
3. Equipped with a special water machine with dual temperature and dual control, which can meet the long-term work, and the welding stability of high-power is better.
4. The objective lens is equipped with a water cooling system, which can better protect the objective lens when working with high power for a long time.
5. The welding depth is large, the welding is more firm, the welding part can be fully melted, there are no pores and trachoma, and the repair marks are more beautiful.
6. The laser head can be easily rotated 90 degrees and can be slid back and forth to facilitate repair welding on any side.
Features of galvo laser welding system:
★ High efficiency
★ High precision
★ High performance
★ For parts that are difficult to be welded, flexible transmission non-contact welding is applied, which has greater flexibility.
DOTSLASER' s galvo laser welding system has 6 advantages:
1.Strong welding, not easy to deform.
2.Fully automated mass production.
3.High speed and high efficiency.
4.High precision.
5.Stable performance.
6.Customizable servo workbench.

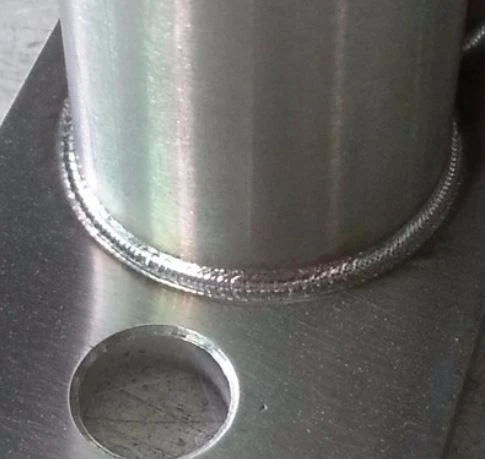

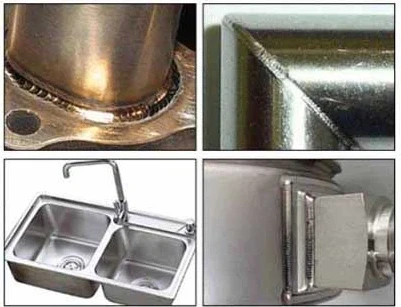

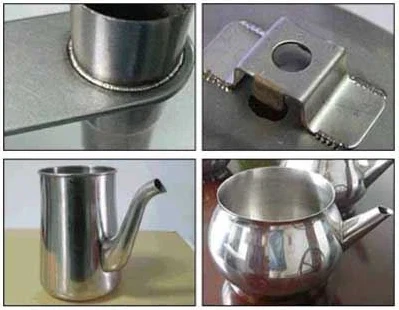

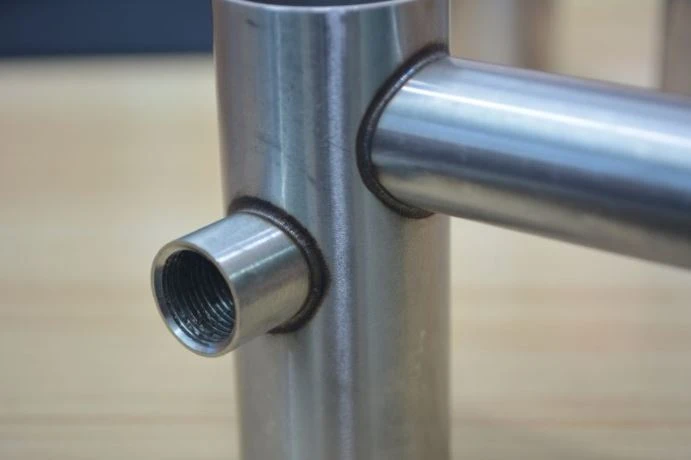

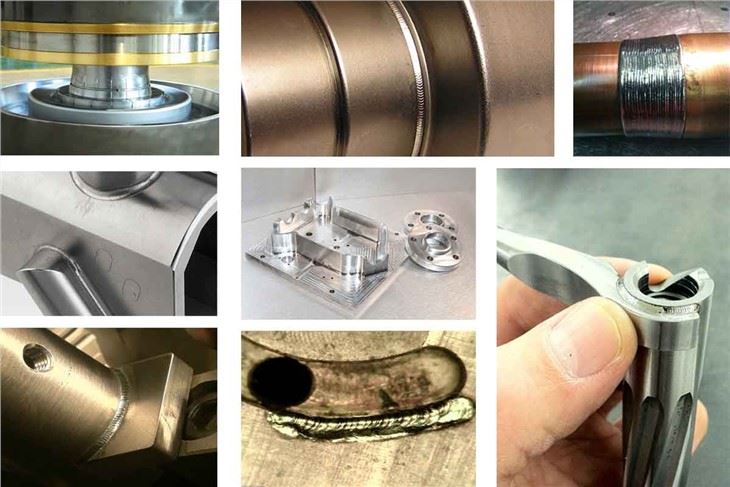

Samples processed by galvo laser welding system
Package
FAQ
Q1: How does the package?
Q2: Will the package damaged during transportation?
Q3: How to install and run the machine?
Q4: How can i do if the machine goes wrong?
