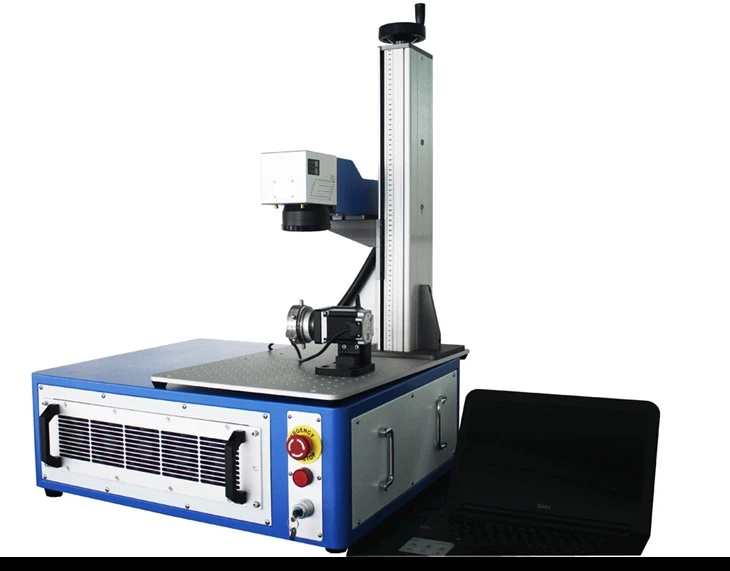

Fiber Laser 200W
Fiber Laser 200W
Products Description
The 200W Fiber Laser is a powerful and efficient tool for precision cutting and welding. It utilizes a fiber optic delivery system to produce a high-intensity laser beam, making it capable of cutting through a wide range of materials including metals, plastics, and composite materials. It offers a combination of speed, accuracy, and reliability that is unmatched by traditional cutting and welding methods.
product Advantages
Portability:exquisite in design, lightweight and easy to carry, moved and carried around easily.portable battery power is more suitable for various working scenarios.
High-quality Marks: The marks produced by lasers are high-contrast, durable, and resistant to wear, ensuring their longevity even in harsh environments.
High precision:laser beams for marking with high precision and detailed marking effects. They can achieve high-resolution, high-definition marking and are suitable for applications that require precise marking and patterning.
High Efficiency: marking speeds and high working efficiency enables the fast marking process with a long service life and stable performance.
Low maintence cost : Fibre laser marking machines usually use solid-state lasers, which have a long service life and stable performance. Saving maintence cost.
Customized designs:The device features a touch screen for easy operation and can be connected to a computer via USB for added convenience.The USB connection also allows for easy firmware updates and the ability to upload customized designs.
|
NO. |
Name |
200W Fiber laser marker |
|
1 |
Machine model |
DS-LM200 |
|
2 |
Laser power |
200W |
|
3 |
Laser wavelength |
1064 nm |
|
4 |
Pulse energy(µJ) |
2.0mj |
|
5 |
Repetition rate |
10~1000KHz |
|
6 |
Pulse width |
Adjustable |
|
7 |
Beam quality |
＜1.2㎡ |
|
8 |
Marking Beam diameter |
0.055~0.065mm |
|
9 |
Laser level |
Class 4 |
|
10 |
Repeat accuracy |
±0.003mm |
|
11 |
Min.line width |
0.05mm |
|
13 |
Max marking speed |
8000mm/s |
|
14 |
Working area |
110mmx110mm/200mmx200mm(optional) |
|
15 |
Cooling |
Air |
|
16 |
Working environment temperature range |
15~35 ℃ |
|
17 |
Humidity range of working environment |
20~80% non-condensing |
|
18 |
Working voltage |
220V,50/60Hz |
|
19 |
Power consumption |
≤1500W |
Our projects
Precision and Efficiency with the 200W Fiber Laser Marking Machine
Unlock the full potential of industrial marking with the cutting-edge 200W Fiber Laser Marking Machine. Engineered for precision, this machine offers unparalleled speed and accuracy in etching and marking a wide range of materials. With its 200W power output, this robust fiber laser can make deep, permanent marks with ease, making it perfect for heavy-duty industrial applications.
The laser's fine quality beam ensures high-resolution markings for detailed graphics, crisp text, and intricate designs. Its versatility shines across sectors like aerospace, automotive, medical, and electronics, where precision is crucial. Additionally, the machine's fiber laser technology boasts a longer operational life and requires minimal maintenance, ensuring cost-effectiveness and long-term reliability.
The technical prowess of this marking machine is further enhanced by advanced features such as programmable marking area, integrated cooling systems, and user-friendly software that allows for effortless operation. This machine supports various file formats and has an adjustable power range to cater to different material sensitivities and marking depths.
Experience swifter production turnarounds and flawless markings with the 200W Fiber Laser Marking Machine, a stellar testament to technological innovation in the field of industrial manufacturing and product customization.
The samples of 200W laser machine
