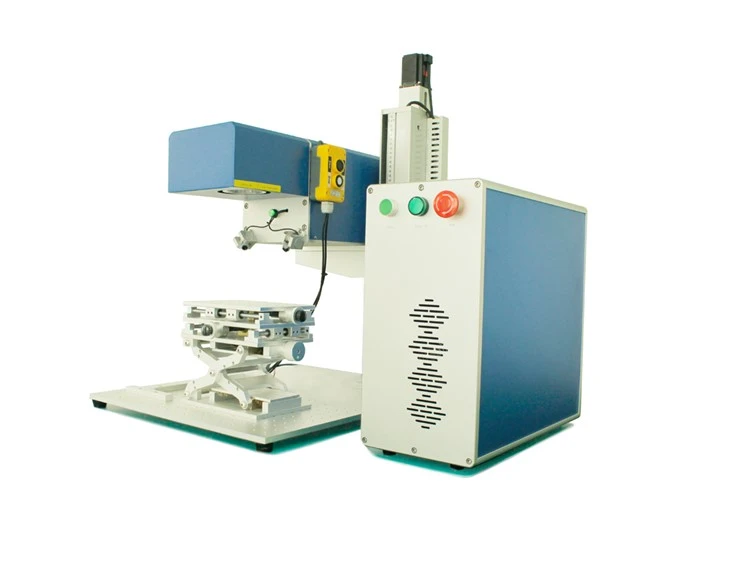

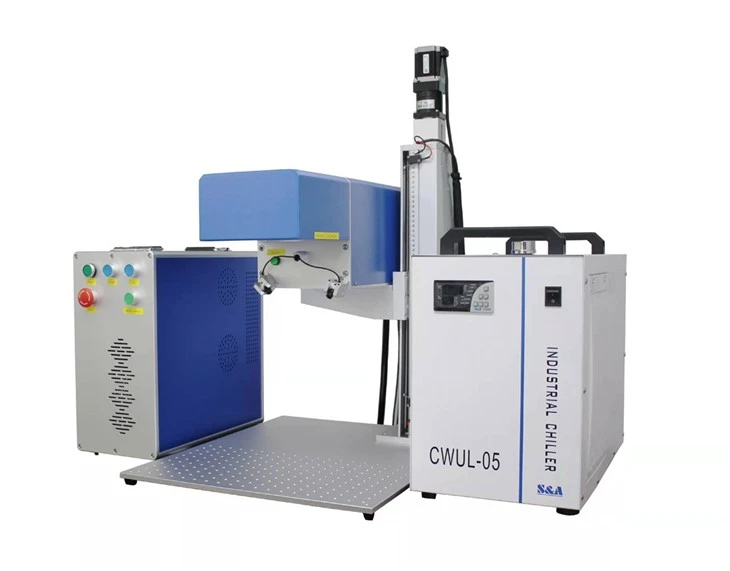

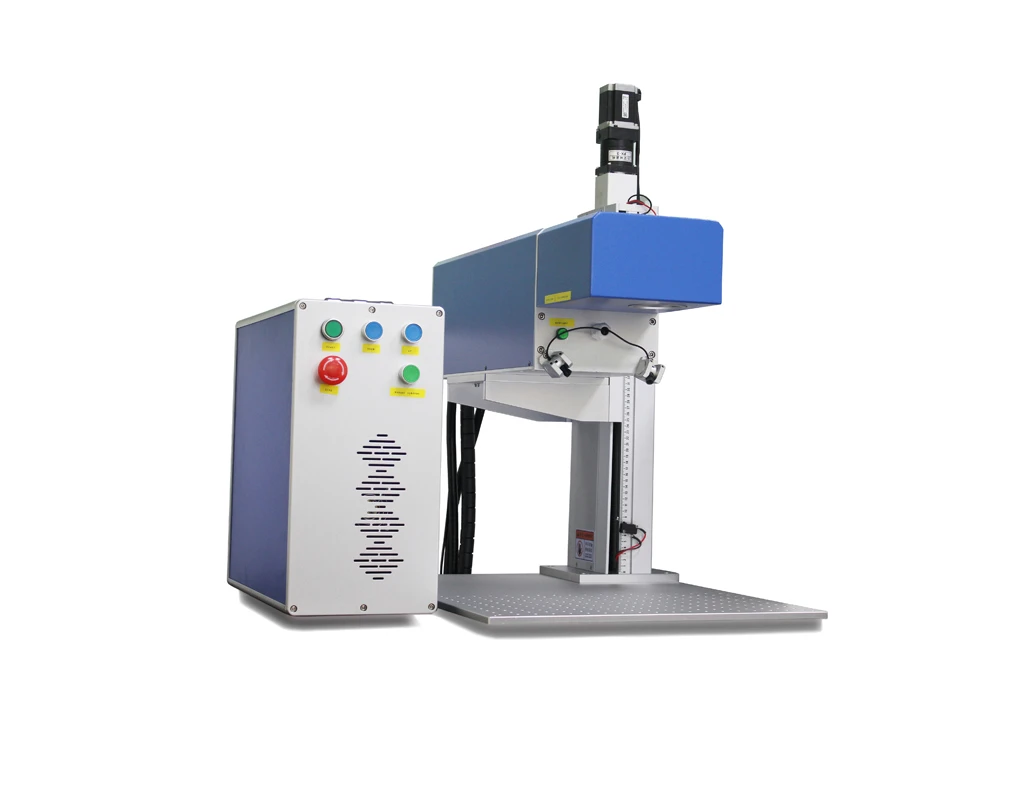

3D UV Laser Marking Machines
3D UV Laser Marking Machines
Products Description
3D UV equipment are leading a transformation in the world of engraving and marking thanks to their unparalleled precision, speed, and adaptability. By utilizing ultraviolet (UV) lasers, these machines are capable of producing detailed and durable markings on a wide range of materials, making them an essential asset for industries such as manufacturing, packaging, electronics, and beyond. This article gives an in-depth look at 3D UV equipment, exploring their technology, advantages, capabilities, and potential applications.
machine advantages
Precision
UV lasers have significantly smaller laser spots and reduced heat-affected zones (HAZ). This allows for ultra-fine marking of details and complex patterns without damaging the substrate.
Versatility
3D UV equipment can mark, engrave, and etch various materials, including metals, plastics, ceramics, glass, silicon wafers, and even sensitive materials like LED films.
Non-Contact Marking
These machines employ a non-contact method of marking, eliminating mechanical stress, wear-and-tear, and reducing maintenance requirements.
Rapid Processing
With their high-speed galvanometer scanners and powerful laser sources, 3D UV equipment boast fast engraving and marking speeds, improving efficiency and productivity,saving labor cost
3D UV laser marking machines' parameter
|
Model |
DS-3DUV3 |
DS-3DUV5 |
DS-3DUV10 |
DS-3DUV15 |
|
Laser power output |
>3W |
>5W |
>10W |
>15W |
|
Laser wavelength |
355nm |
|||
|
Optional method |
Disk rotary ,rotary function ,relief function |
|||
|
Marking area |
100x100mm/150x150mm/180mmx180mm/200mmx200mm |
|||
|
Pulse energy |
＞200µJ |
＞300µJ | ||
|
Repetition rate |
20~150KHz |
|||
|
Max marking speed |
10,000mm/s |
|||
|
Beam quality |
＜1.2 ㎡ |
|||
|
Min.line width |
0.01mm |
|||
|
Repeat accuracy |
±0.003mm |
|||
|
Cooling |
Air/Water cooled |
|||
|
Working temperature |
15~35 ℃ |
|||
|
Gross weight |
110KG |
|||
|
Size |
670x735x780mm |
|||
|
Power supply |
AC220V±10%,50Hz or AC110V±10%,60Hz |
|||
Technology: UV Lasers in 3D Marking
The key to the exceptional performance of a 3D UV equipment is its ultraviolet laser source. Operating at wavelengths around 355 nm, UV lasers have shorter wavelengths compared to traditional infrared or green lasers. This exceptional quality enables them to produce incredibly precise markings on surfaces without causing any thermal damage or deformation.
The advanced technology of 3D marking machines allows for precise and dynamic adjustments to the laser's focus. This sophisticated combination of software algorithms and scanning systems allows the UV laser to create intricate patterns, textures, and images on surfaces, even those that are curved or uneven, with exceptional precision and consistency.
3D UV laser markers offer numerous capabilities like:
Nano-Marking: Finding engraving and marking at micro and nano scales is a perfect fit for the intricate needs of electronics, semiconductors, and other high-precision components.
High-Resolution 3D Marking: The engraving effect is incredibly realistic, showcasing intricate 3D patterns, textures, and images that pop off the surface with depth and curvature variations.
Serialization and Traceability: Precise and long-lasting labeling of serial numbers, barcodes, QR codes, and Data Matrix codes to enhance inventory management, ensure quality control, and facilitate traceability.
Applications of 3D uv laser engraver
Electronics: Marking components, circuit boards, sensors, MEMS devices, and electronic devices with high-definition codes, logos, symbols, and texts.
Medical Devices: Engraving traceability codes, part numbers, and identification information on surgical tools, implants, and other medical devices.
Semiconductors: Marking silicon wafers, IC chips, and other sensitive components without causing damage or compromising performance.
Automotive: Thoroughly documenting engine components, interior panels, and identifying information to guarantee high product quality and easy tracking.
Packaging and good after-service: Top-notch, lightning-fast labeling on packaging, cosmetics, jewelry, and beyond, enhancing brand identity and amplifying product visibility.
Useful engraving tool
3D UV laser markers are a great tool in the world of material processing, offering impressive precision, versatility, and speed. Their ability to mark a wide range of materials without damage, while maintaining high resolution and detail, makes them a must-have tool for a multitude of industries. As technology advances, these machines will continue to innovate and redefine engraving, marking, and etching processes around the globe.

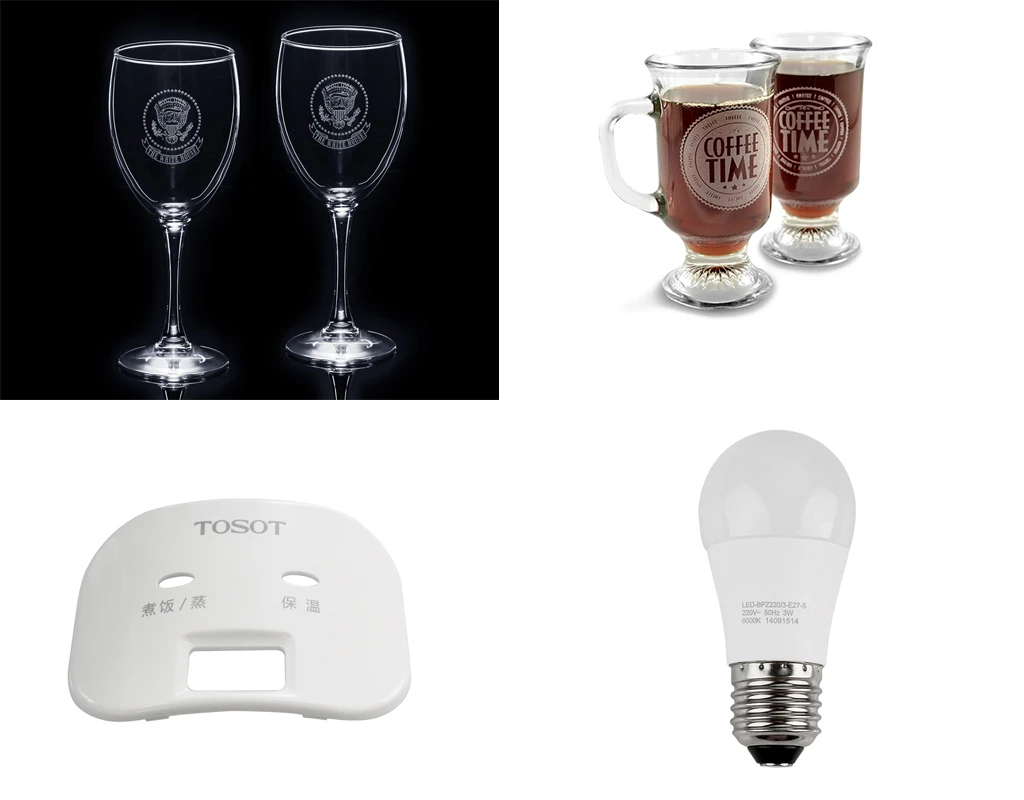

Marking Samples of 3D UV Laser Marking Machines
3D UV laser marking machine delivery
Certificate
