Name: China 3D Fiber Engraving Machine Manufacturers, Suppliers and Factory - Customized Service - Dotslaser
Brand: DOTSLASER
SKU: 253456245

The 3D fiber laser marking machine uses a fiber laser source to output laser beam, and then realizes the marking function through a high-speed galvo system. It has features with high electro-optical conversion efficiency, air-cooled cooling, small size, good beam quality, high reliability, high efficiency, long life and less maintenance, etc., It is favored by users all the time.

Send Inquiry

Product Introduction

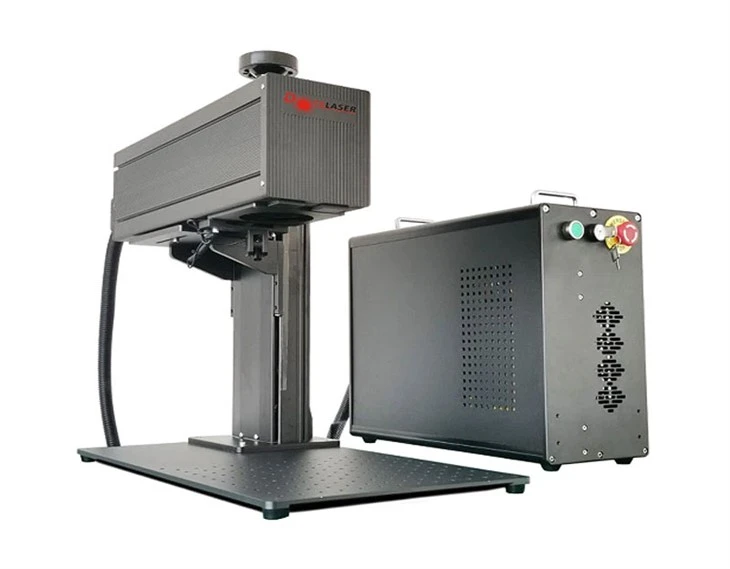

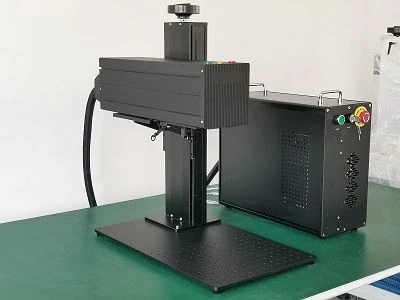

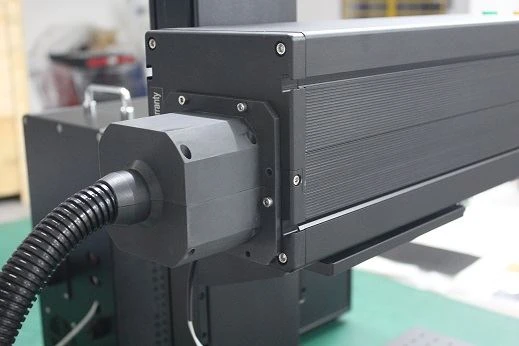

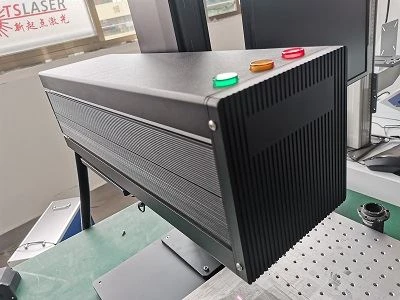

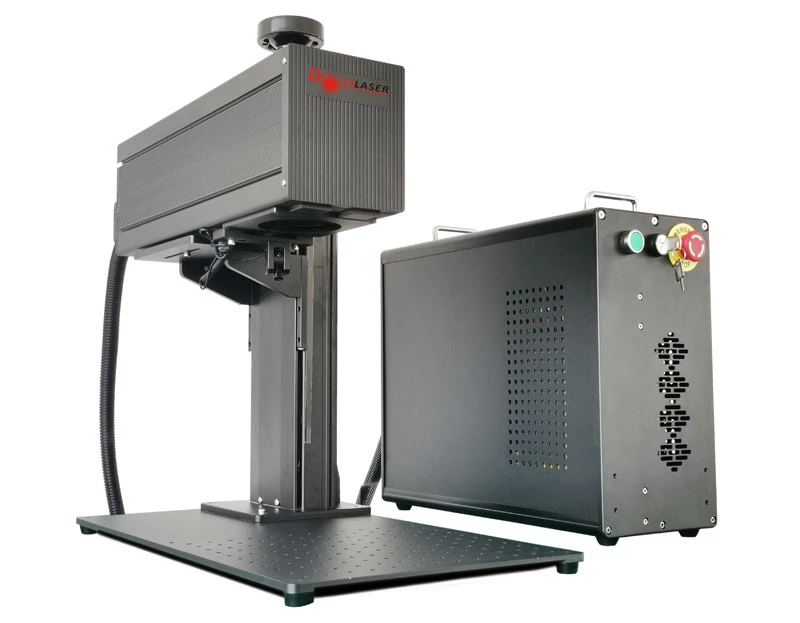

3D fiber engraving machine

Products Description

machine features

01/

3D dynamic (planar/curved surface)marking

Wider application range,including steel,stainless steel,iron,copper,brass,aluminum,magnesium, zinc and other metals.

02/

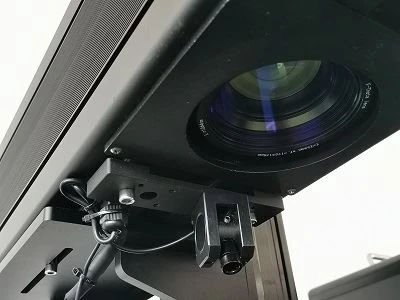

Auto focusing

Make the work more easy and simple.

Integrated circuit design makes after-sales maintenance easier.

03/

Competitive laser source

Compatible with various laser source and power.

Rotary,disk rotation,conveyor are optional.

04/

Unique appearance design

Compact size, less space occupied. German technology and quality, first-class assembly standards.

Parameter

Model	DS-LM20	DS-LM30	DS-LM50	DS-LM80
Laser power output	20W	30W	50W	80W
Engraving depth	≤0.2mm(depends on material)	≤0.3mm(depends on material)	≤0.5mm(depends on material)	≤0.8mm(depends on material)
laser wavelength	1064±10 nm
Marking area(3D)	150mm×150mm×40mm;200mm×200mm×40mm
Pulse frequency	20~80KHZ/1~600KHZ/1~4000
Max marking speed	8,000mm/s
Repeat accuracy	±0.001mm
Min.line width	0.01mm
Min.character size	0.2mm
Cooling	Air cooled
Working temp	10~35 ℃
Humidity range	< 70% No condensation
Power supply	AC220V±10%,50Hz or AC110V±10%,60Hz

Applicable industries：

Hardware products, tool accessories, precision equipment,glasses and watches, jewelry, auto parts, plastic buttons, building materials, food, medicine, electronic components, integrated circuits (IC), electrical appliances, mobile phone communications, PVC pipes, sanitary ware, etc.

Applicable materials:

1. Common metals and alloys: steel,stainless steel,iron,copper,brass,aluminum,magnesium, zinc and other metals.

2. Rare metals and alloys: gold, silver, titanium. Metal oxide,special surface treatment (phosphating, aluminum anodizing, electroplating surface)

3. Common non-metals: plastic(ABS,PVC,PE,PET,etc),hard board.

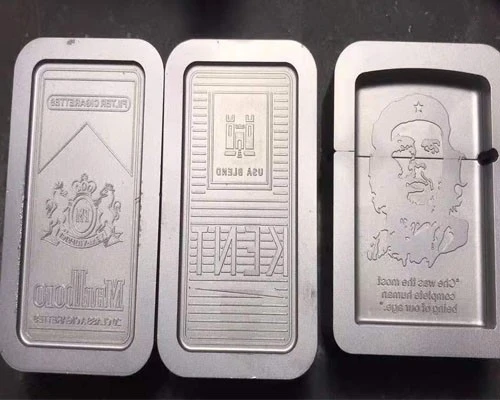

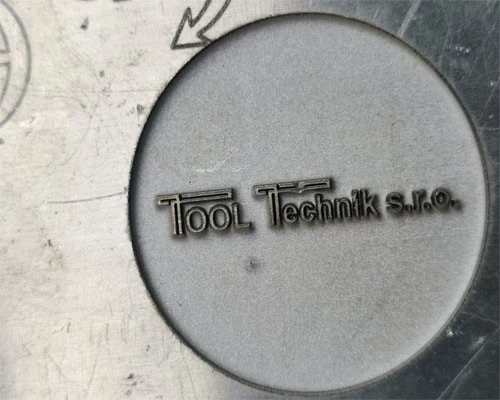

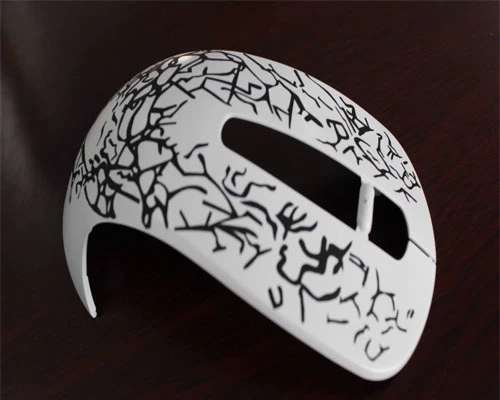

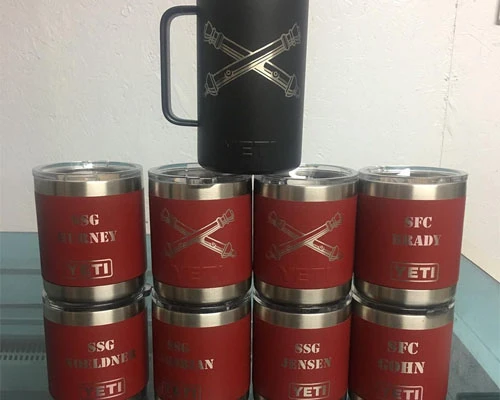

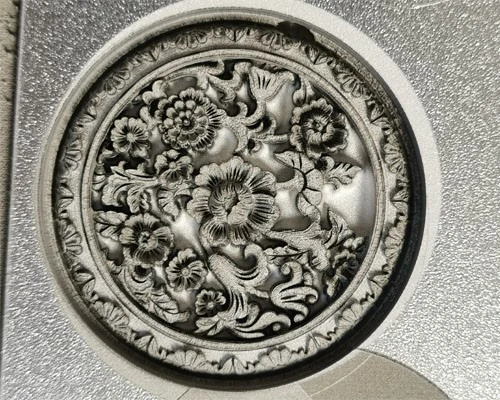

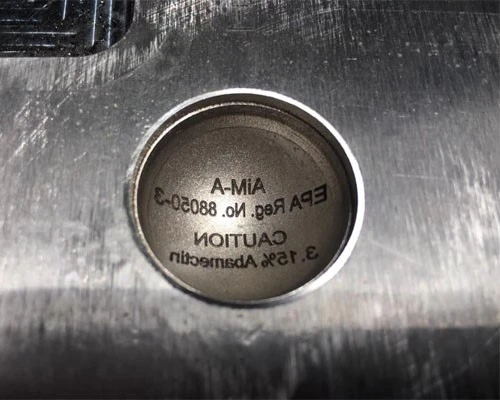

Samples Of Laser Marking Machine

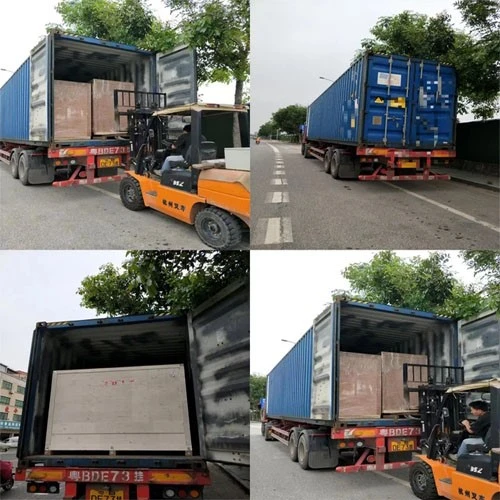

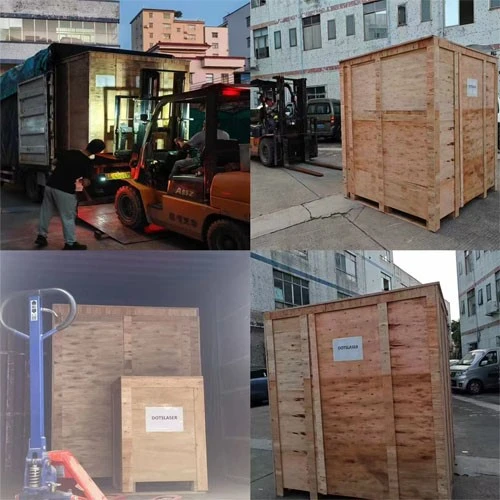

Shipping and package

Certificate

product-1598-433

FAQ

Q1: How does the package?

A: Dotslaser provides 3 layers package. For the outside, we adopt wood craft case. In the middle.the machine is covered by foam, to protect the machine from shaking. For the insidelaver, the machine is covered by thickening plastic bag for waterproof.

Q2: Will the package damaged during transportation?

A: Our package is considerate all the damage factors and make it to be safe, and ourshipping agent have full experienced in safe transportation. We have exported to 100 countries worldwide. So please don't worry, you will receive the parcel in good condition.

Q3: How to install and run the machine?

A:Our worker will install all the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine 95% customers can learn by themselves.

Q4: How can i do if the machine goes wrong?

A: lf confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
