Laser Engraved Cup
Laser Engraved Cup
Products Description
There are different types of laser engraved cups for you to choose from, such as Couple cups, baby cups, children cups, adult cups, portable cups, sports cups, mugs, coffee cups, ceramic cups, glass cups, crystal cups, wooden crafts cups, plastic cups, goblet cups, tooth brushing cups, space cups , Energy cups, tea cups, health cups, lemon cups, gift cups, etc. And engraved materials are also optical. It can be PVC, melamine, stainless steel, steel, aluminum, copper, crystal, glass, acrylic, Ceramic, silica gel, aluminum alloy, purple sand and other non-metallic.
Laser engraved cups are more accurate and more efficient than hand-engraved. The main reason is that laser engraving is based on numerical control technology and uses laser as the processing medium.
The processing material is physically melted and vaporized under the laser irradiation to achieve the processing purpose. It is not in contact with the surface of the material, which will not be affected by movement. The surface will not be deformed, and generally it does not need to be fixed. Not affected by the elasticity and flexibility of the material, it is convenient for soft materials. The processing precision is high, the speed is fast, and the application field is wide.
Application
Laser marking machine engraving machine produces a variety of creative and exquisite patterns or objects, which greatly improves the grade and added value of gifts. Because the marking adopts advanced laser technology, there is no need to touch the gift with the drill bit. The gift laser marking can be applied to various materials, bringing more business opportunities to the gift industry. It is also possible to tailor gifts with humanistic feelings according to the customer's corporate cultural background, especially in the jewelry, wine and other industries. It can not only to maintain high profits, but also to attract customers.

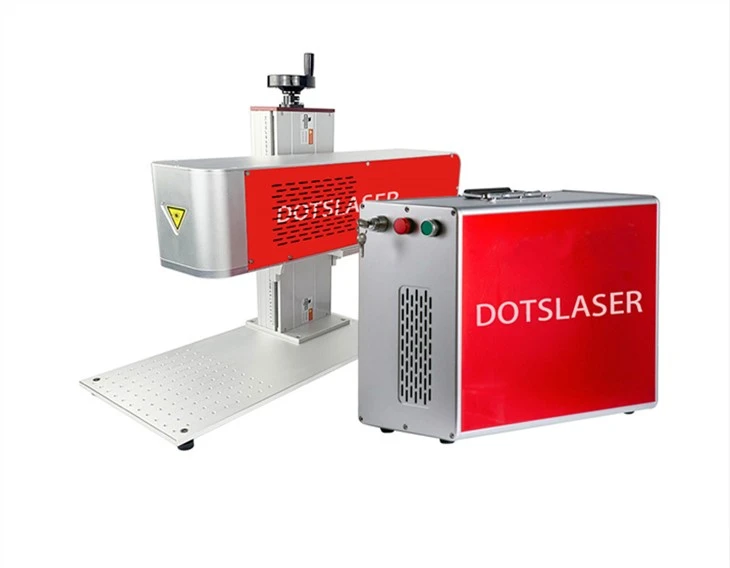

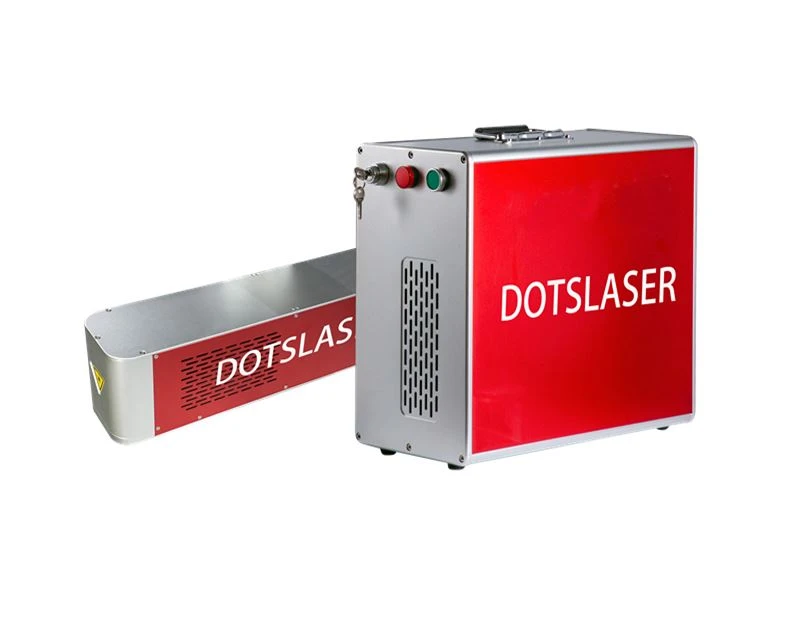

Parameters
|
Model |
DS-LM30-3D/DS-LM60-3D/DS-LM80-3D |
|
Laser power |
30W/60W/80W |
|
Pulse Repetition Frequency |
1-1000kHz |
|
Beam quality(㎡ |
<1.6 |
|
Depth of engraving(depend on material) |
<5mm |
|
Power consumption |
≤1000W |
|
Operating voltage |
Single phase AC 220V/110V 50/60HZ 5A |
|
Laser wavelength |
1064nm |
|
Working area |
100×100×60mm,150×150×60mm,200×200×60mm |
|
Repetition precision |
±0.003mm |
|
Max engraving speed |
≤8000mm/s |
|
Minimum line width |
0.01mm |
|
Marking method |
Stationary Marking , Flying Marking , Rotary Marking |
|
Character size |
0.5-110mm |
|
Cooling System |
Air Cooling |
|
Direction of Installing equipment |
Any |
|
Cable of Length |
3m (5m optional) |
|
Working Temperature Range |
5-38℃ |
|
Working Humidity |
20%-80% |
|
Net Weight of machine |
46kg |
|
Dimension of Main Body(L×W×H) |
480mm×215mm×450mm700mm×320mm×700mm |

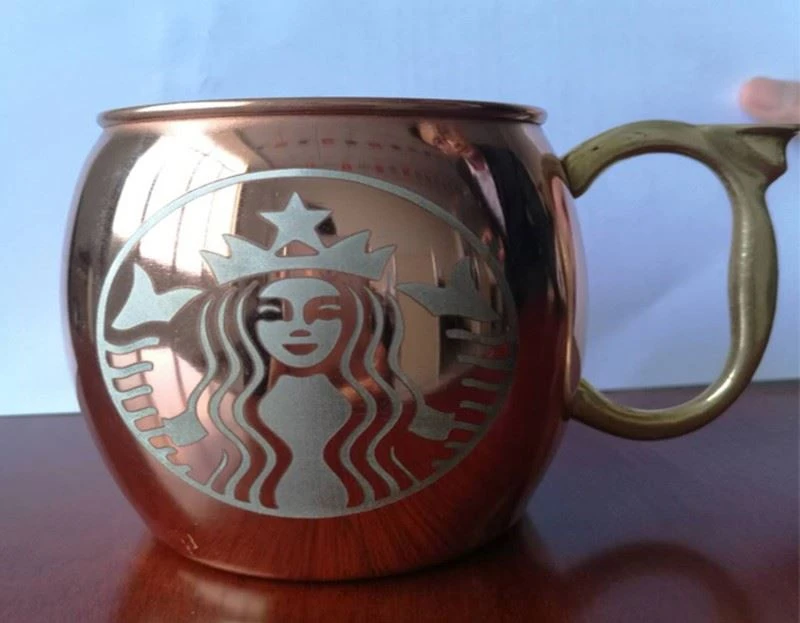

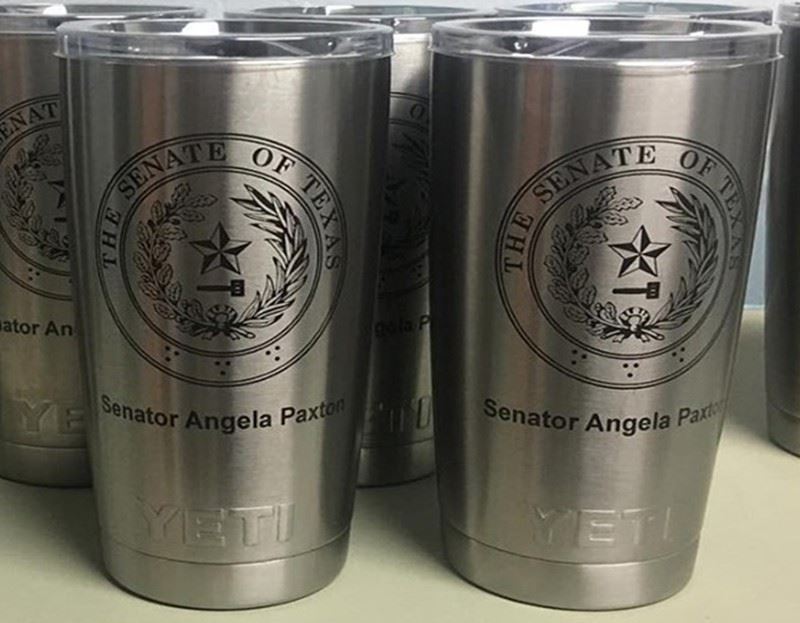

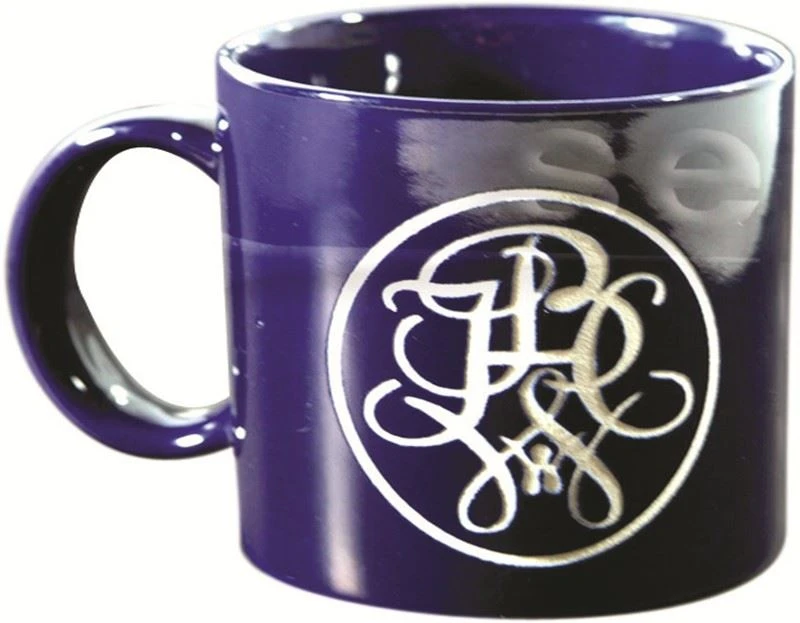

Samples
Shipping & Package
Certificate
