3D Fiber Laser Marker is a product manufactured by us. The marking trajectory is automatically captured, with high accuracy and fast speed.

Send Inquiry

Product Introduction

3D Fiber Laser Marker

Products Description

Our 3D Fiber Laser Marker captures the marking trajectory with exceptional precision and speed. This superior product boasts several advantages, including user-friendly operation, no need for plate making or consumables, energy efficiency, and continuous 24-hour performance with exceptional output. Furthermore, it is widely utilized for engraving metal parts, notably on varied surfaces such as cones, cylinders, and other metal surfaces. Overall, our 3D Fiber Laser Marker serves as a highly efficient and reliable solution for your metal engraving needs.

What are the advantages of 3D fiber laser marker ?

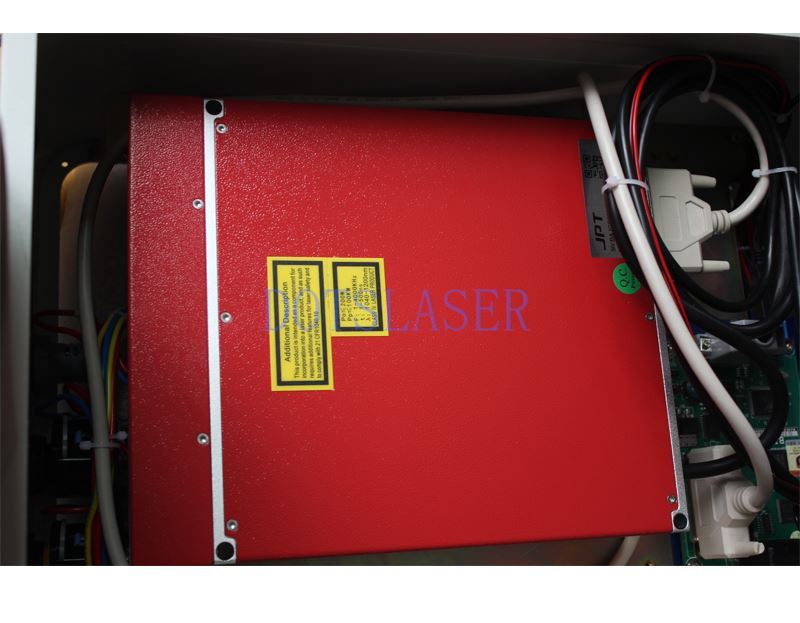

1. Use fiber laser source ,long life time

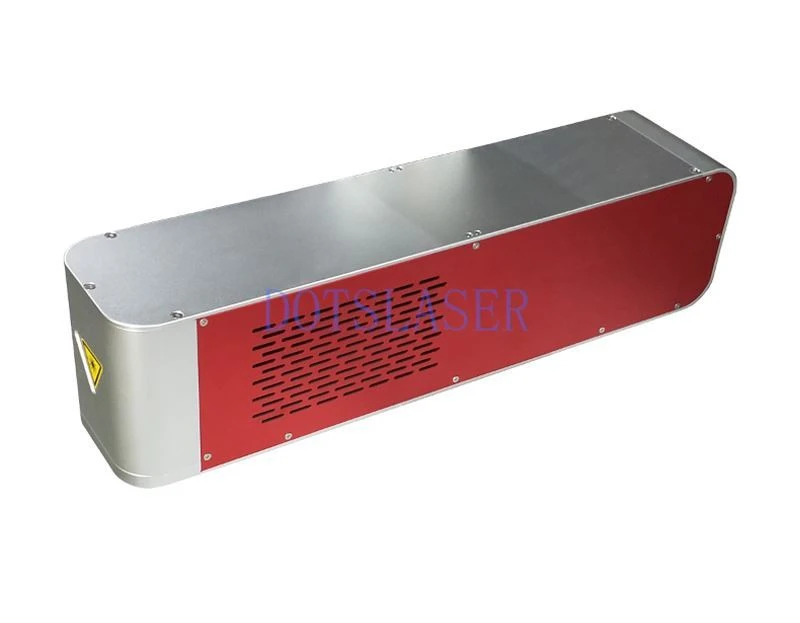

2. Digital 3D scanner head which adapt for high speed marking and deep engraving

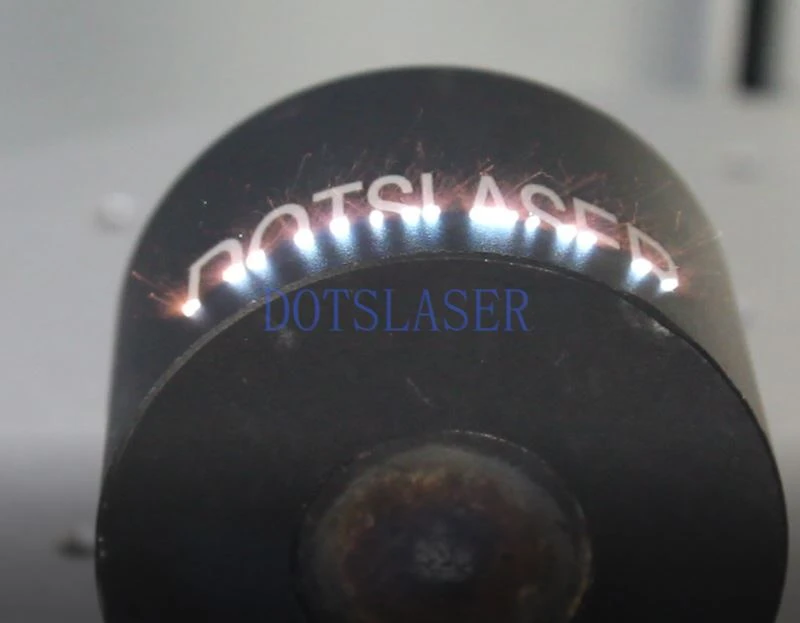

3. 3D system which make peope can work on different surface parts ,and any surface

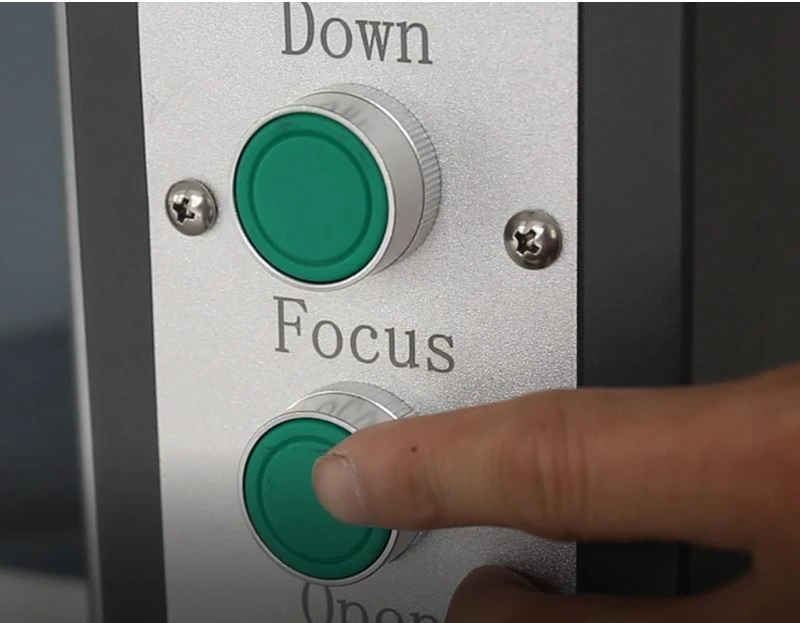

4. Autofocus system -easy for finding foucs ,better for worker working

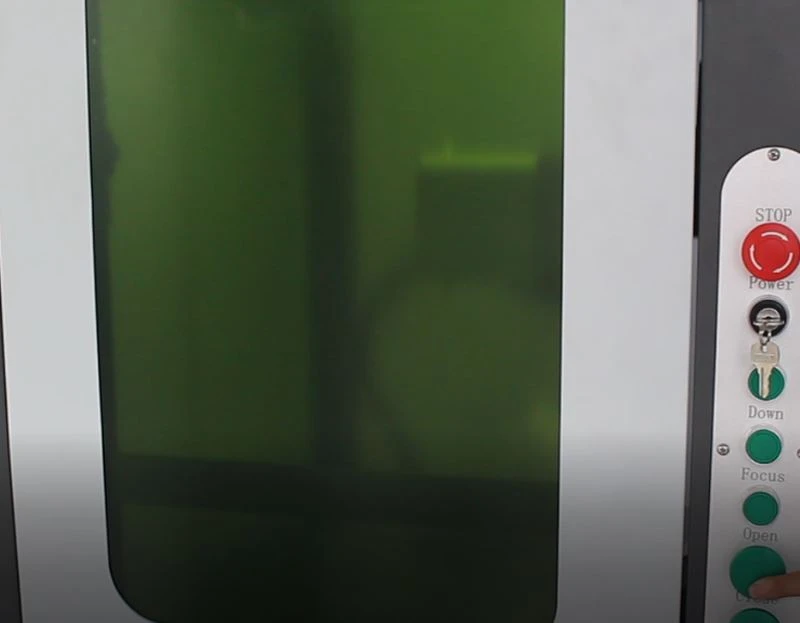

5. Auto-door system ,All-round protection of personnel safety, simple operation

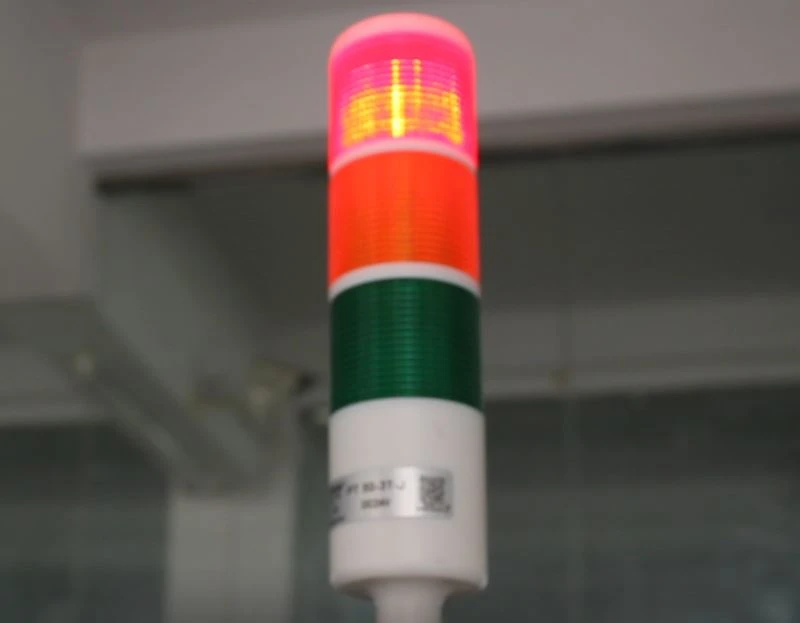

6. 3 colors light ,Checking equipment usage status, work timeliness and maintain worker safety at any time

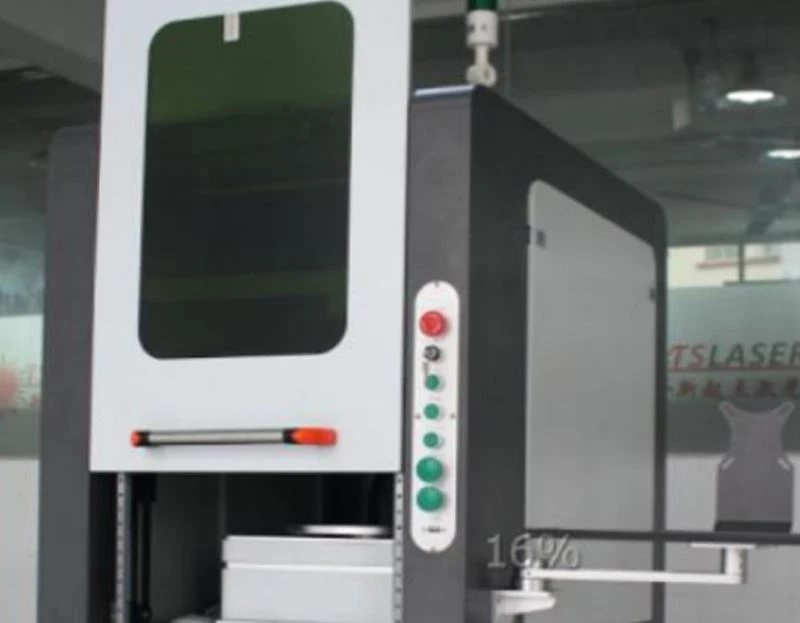

7. Class 1 laser radiation glass ,protect the laser output and human's safety

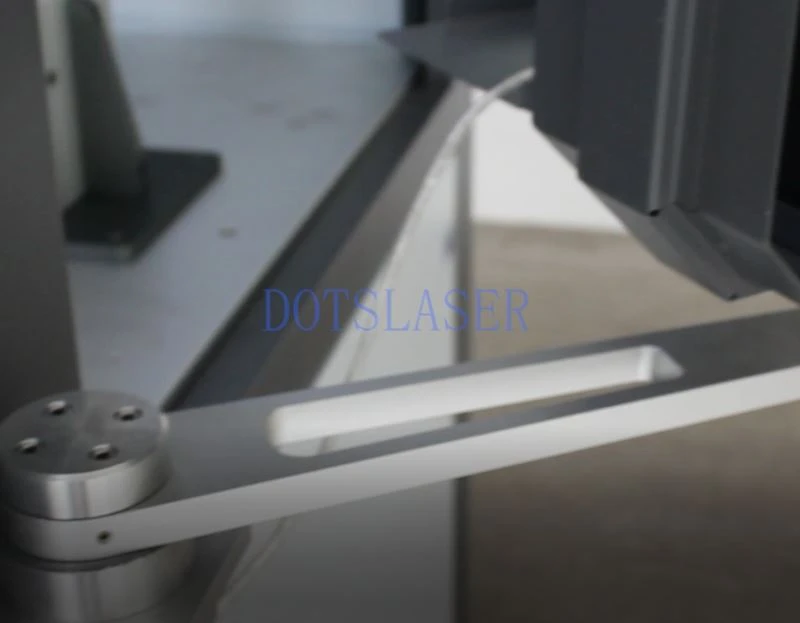

8. Multi-function display handle ,Save space, convenient for workers to operate and use

Parameter

Model	DS-LM20-3D/DS-LM30-3D/DS-LM50-3D/DS-LM60-3D/DS-LM100-3D
Laser power	20W/30W/50W/60W/100W
Pulse repetition frequency	30kHz-1000kHz
Beam quality(㎡)	<1.6
Depth of engraving(depend on material)	<5mm
Power consumption	≤1200W
Operating voltage	Single phase AC 220V/110V 50/60HZ 5A
Laser wavelength	1064nm
Working area	1
Repetition precision	±0.003mm
Max engraving speed	≤10000mm/s
Minimum line width	0.01mm
Marking method	Stationary Marking , Flying Marking , Rotary Marking
Character size	0.5-110mm
Cooling system	Air Cooling
Direction of installing equipment	Any
Cable of Length	3m (5m optional)
Working temperature range	5-38℃
Working humidity	20%-80%
Net weight of equipment	146kg
Dimension of main body(L×W×H)main bod	85mm×115mm×185mm

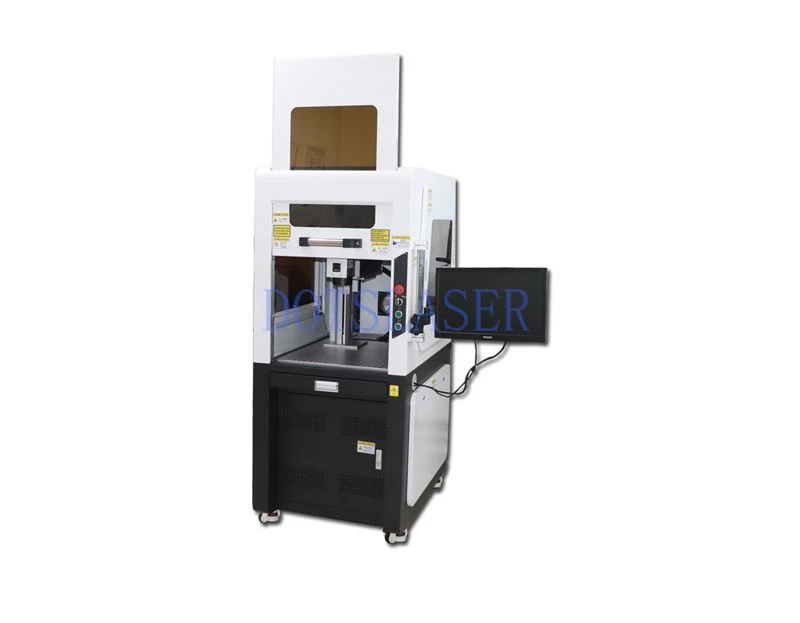

Laser marking machine

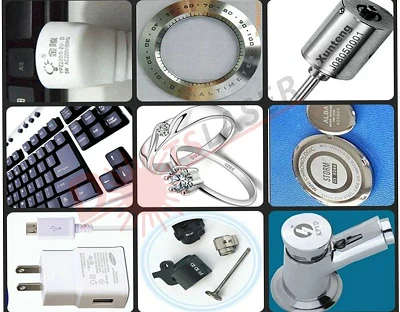

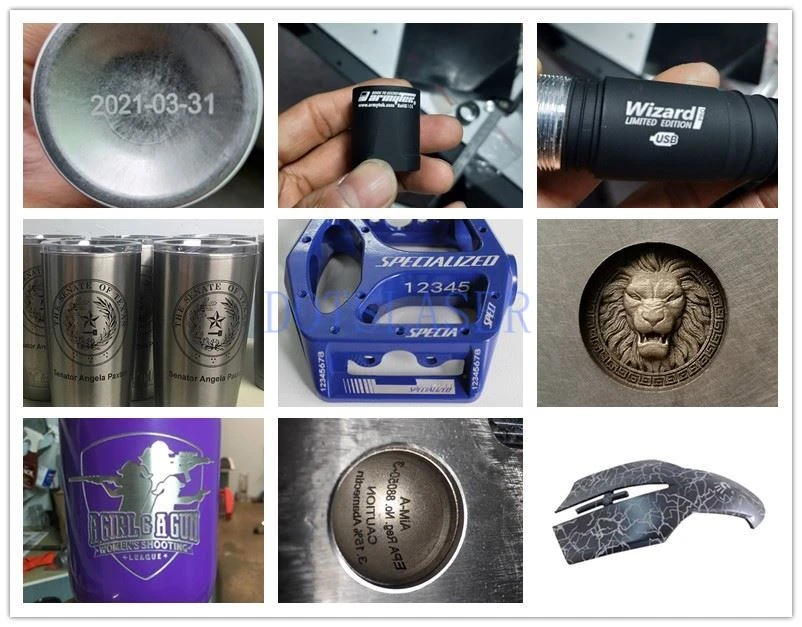

Marking samples display:

Wooden case package

FAQ

Q1: I know nothing about this equipment, which type of laser equipment should I take?

A: We will help you choose the suitable equipment and make the solution for you, you can show us what material will you marking / engraving and the depth of marking/ engraving.

Q2: When I got this equipment, but I don't know how to use it. What should I do?

A: We are pleased to offer you comprehensive training options for your equipment. To facilitate your learning experience, we will provide you with an easy-to-follow operation video and manual. Additionally, our knowledgeable engineer will personally guide you through the training process online.

Q3: What's consumables of laser marking equipment?

A: It does not have consumable. It's very economical and cost effective.

Q4: What's package, will it protect the products?

A: We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the equipment is covered by foam, to protect the equipment from shaking. For the inside layer, the equipment is covered by waterproof plastic film.
