6060 Fiber Laser Marking Machine

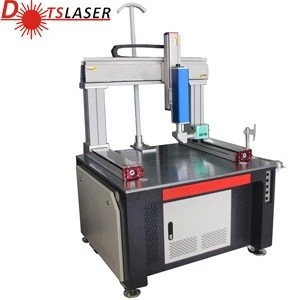

6060 fiber laser machine

6060 Fiber Laser Marking Machine

6060 Fiber Laser Marking Machine is very useful for large metal sheet engraving, multiple product carvings, customized designs, deep engraving, and it can mark on metal, steel, aluminum, copper, silver, HDPE, PVC, PE, ceramic and other kinds of materials.

Send Inquiry

Product Introduction

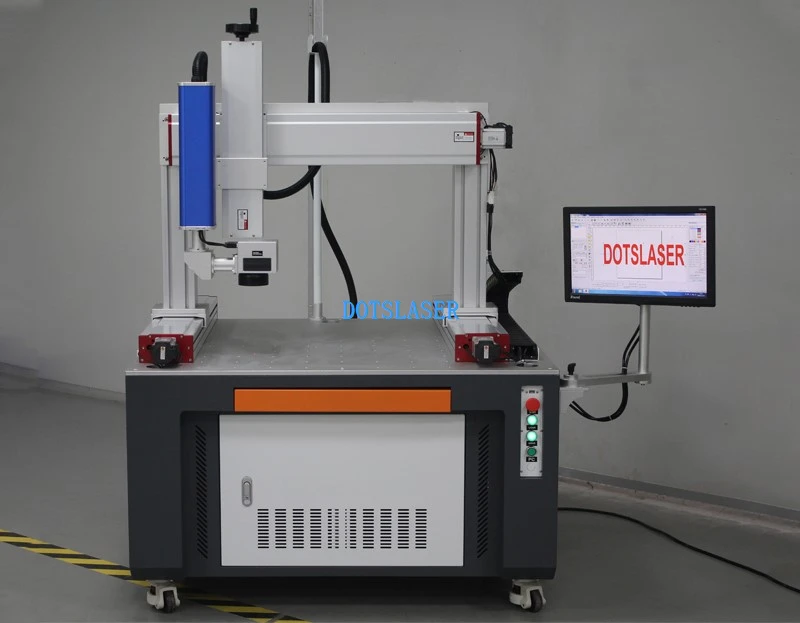

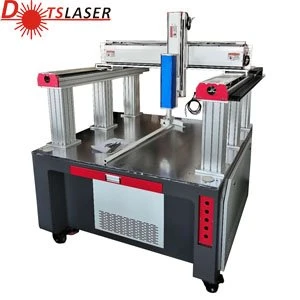

6060 Fiber Laser Marking Machine

Products Description

6060 Fiber equipment is especially designed for a large continuous marking area. We have developed this large-size seamless marking or engraving system with an advanced aluminum alloy machine tool, allowing the scan head to move smoothly and stably. It has many advantages in marking efficiency and precision.

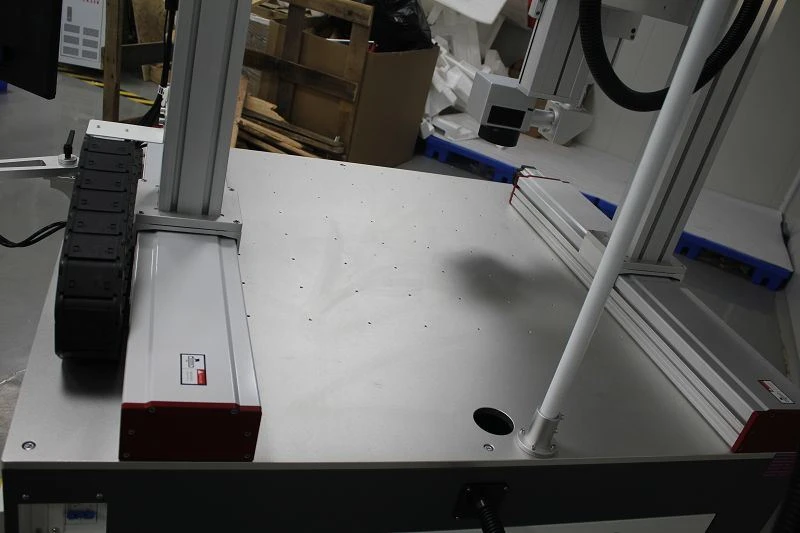

The 6060 Fiber equipment is very useful for large metal sheet engraving, multiple product engraving, customized designs, deep engraving, and it can mark on metal, steel, aluminum, copper, silver, HDPE, PVC, PE, ceramic, and other kinds of materials. Logos, serial numbers, codes, characters, QR codes, etc., can all be marked with high accuracy. It uses a full metal sheet for the table, which makes the working area stable and large as needed.

Machine features

1. Larger Marking Area: The common working area of laser marking machine is 110x110mm~300x300mm, while 6060 can reach 600x600mm or larger. It is suitable for marking large objects, name plate, product logo and so on.

2. Better Marking Result: adopting top quality laser source, the laser beam is fine and thin to ensure better marking result. Together with the stable slide,6060 Fiber Laser Marking Machine is especailly good for large size seamless splicing image marking.

3. Deep Engraving: The engraving deepth of the laser part marking machines can be up to 0.5mm (depending on the material), which fullfills the most deep marking demands.

4. Higher Accuracy: 6060 Fiber Laser Marking Machine can reach up to 0.001mm precision.

5. 10 Years Long lifetime: the maximum life span can be 100,000 hours, so 6060 Fiber Laser Marking Machine can be used for 8-10 years.

6. No consumables: it needs no consumable parts except power supply.

7. No need to adjust the laser path.

8. Free of Maintenance.

9. Low Power Consumption: low cost, only 0.5kw/hour.

10. Easy for installation: We will supply the installation training video for our dear customers to install 6060 Fiber Laser Marking Machine.

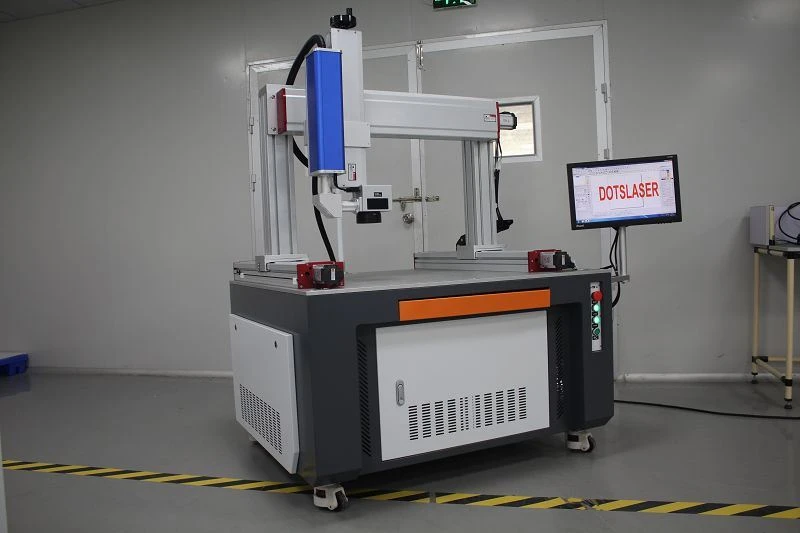

fiber laser printing machine

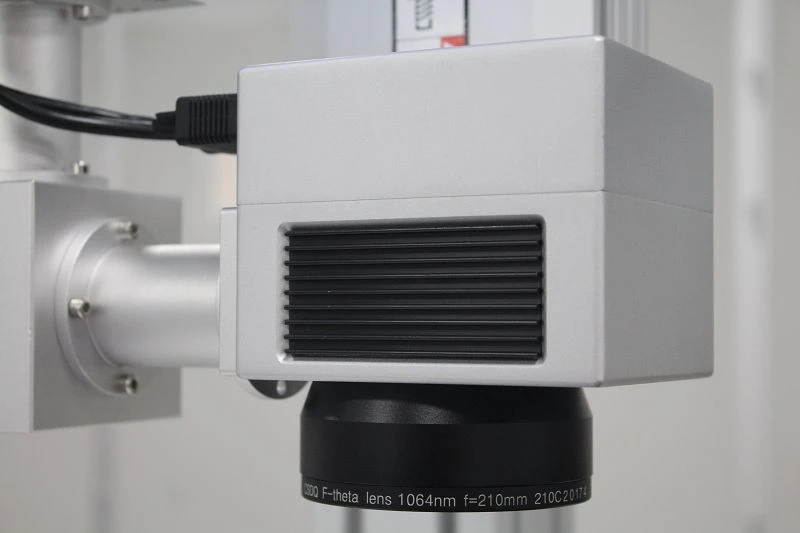

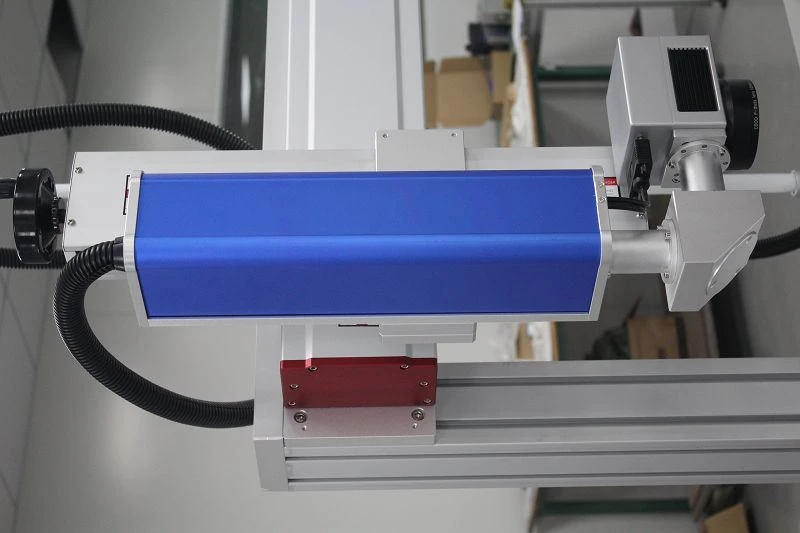

Digital Scan

The 6060 fiber marker has an attached digital scan head which can support long-term use, suitable for small area plate deep engraving. It uses a servo motor system for control, providing higher precision for long-lasting and large area work. Additionally, it applies double gantry drive to ensure smooth work, high precision, a large processing area, and stability.

Applicable materials:

※ Common metals and alloys: steel, stainless steel, iron, copper, brass, aluminum, magnesium, zinc and other metals.

※ Rare metals and alloys:gold, silver, titanium

※ Metal oxide, special surface treatment (phosphating, aluminum anodizing, electroplating surface)

※ Common non-metals: plastic(ABS, PVC, PE, PET, etc), hard board.

Applicable industries:

※Hardware products, tool accessories, precision equipment, glasses and watches, jewelry, auto parts, plastic buttons, building materials, food, medicine, electronic components, integrated circuits (IC), electrical appliances, mobile phone communications, PVC pipes, sanitary ware, etc.

Parameters

Model	DS-LM20	DS-LM30	DS-LM50	DS-LM80
Laser power output	20W	30W	50W	80W
Laser wavelength	1064±10 nm
Motor	Step motors or servo motors
Marking area	600x600mm
Pulse frequency	20~80KHZ/1~600KHZ/1~2000KHZ/1~4000
Max marking speed	9000mm/s
Repeat accuracy	±0.001mm
Min.line width	0.01mm
Min.character size	0.2mm
Cooling	Air cooled
Working temp	10~35 ℃
Humidity range	< 70% No condensation
Power supply	AC220V±10%,50Hz or AC110V±10%,60Hz

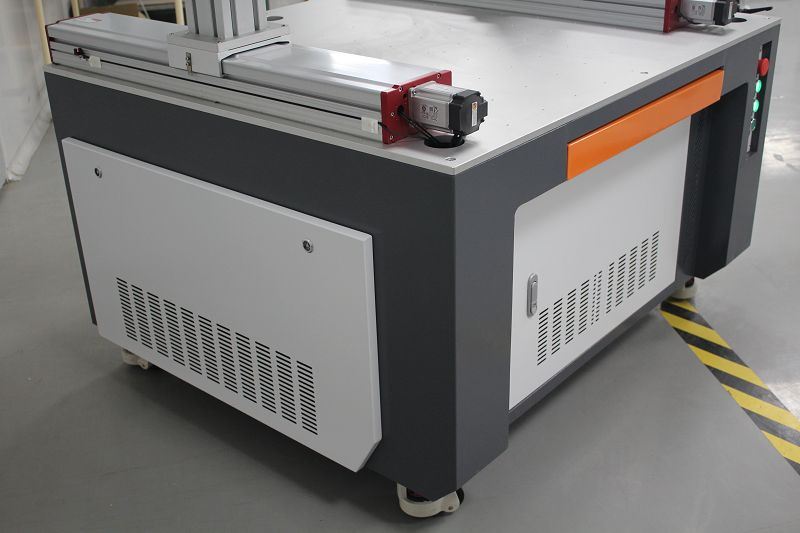

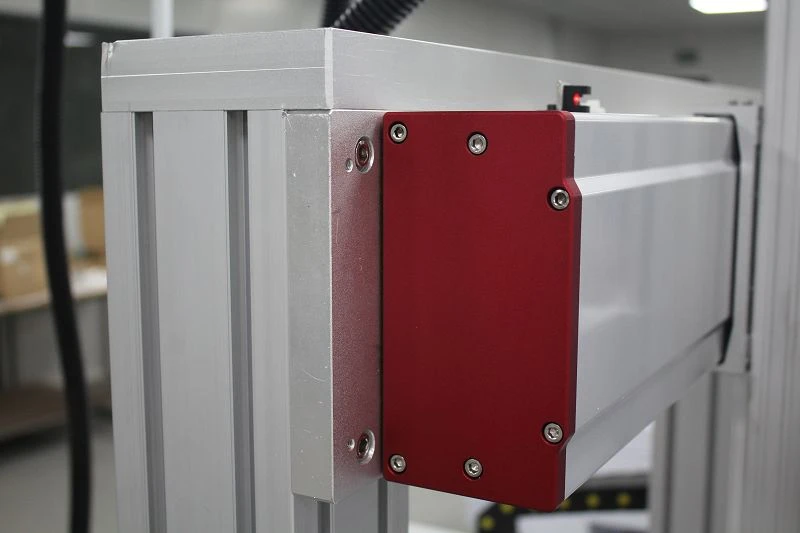

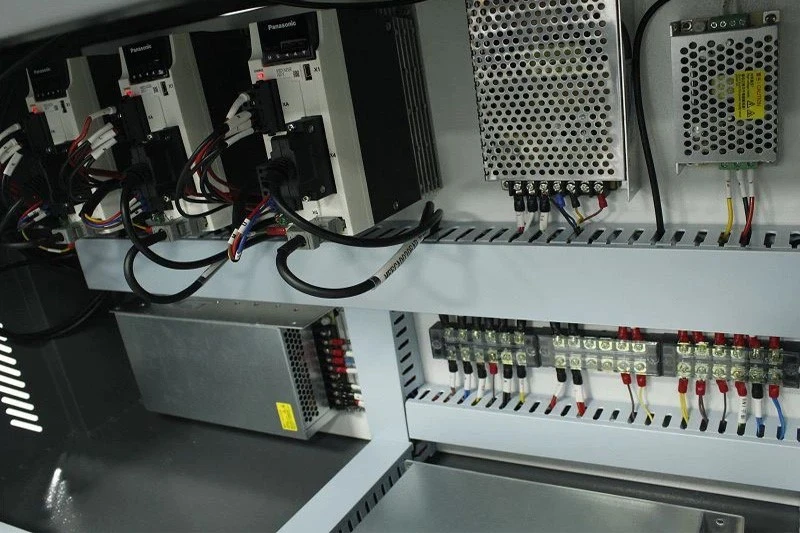

Detailed show

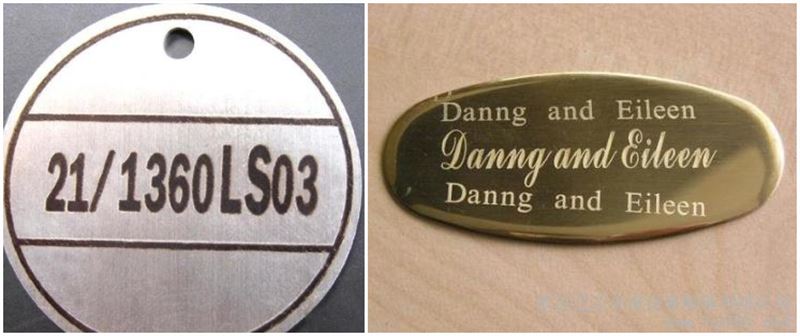

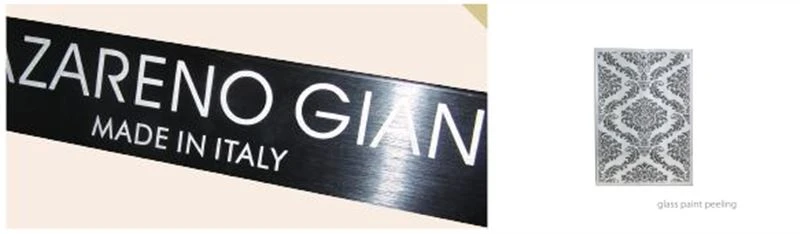

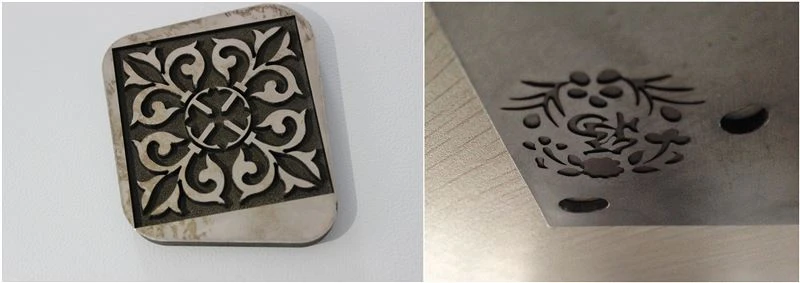

Samples show

fiber marking laser

20w fiber laser marking machine

50 watt jpt fiber laser engraver

FAQ

Q1: How to choose the suitable power of laser ?

A: We are laser supplier, we will suggest you the solutions, the power of the fiber laser marking machine is: 20 watts, 30 watts, 50 watts, 70 watts, 100 watts, 120 watts, etc. The fiber marker are mainly used in metals, alloys and oxides, ABS, epoxy, etc. Electronic components, hardware, gold and silver jewelry, glasses, clocks, power switches, etc. , general materials can be beautifully printed with 20 watts. Some materials that require marking depth need to be tested with 30 watts for proofing first, and some materials Only 20 watts of power can be used to produce satisfactory results, and 30 watts of power cannot be used. Some materials can only use 30 watts of power to achieve the desired effect, and 20 watts can not achieve the desired effect. The actual situation still needs proofing for judgment.

Q2: How is the shipping method?

A: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your office as per your requirement.

Q3: What's power needs of 6060 fiber laser machine ?

A: The laser power is based on the laser source, which you use, such as 60W the whole power consumption will be 1200W, if use higher power laser source then the power consumption will more than 1200W.

Q4: How to arrange the shipment ?

A: You can arrange the shipment by your self, by sea or by air. Or We also have the cooperative freight forwarding company, which can help you arrange the shipping.
