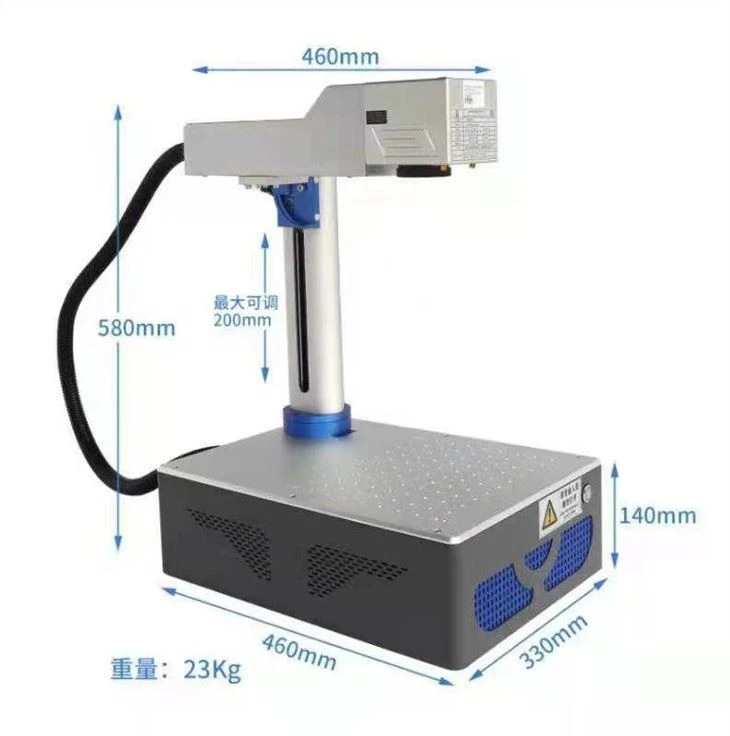

Desktop Fiber Laser Marking Machine
Desktop Fiber Laser Marking Machine
Products Description
The Desktop Fiber Laser Marking Machine has extremely high luminous intensity, and the laser has high coherence, high intensity, and high directivity at the same time. After the laser is generated by the laser, it is transmitted by the reflector and irradiated on the processed article through the focusing mirror. The processed article (surface) is subjected to strong thermal energy and the temperature increases sharply, so that the point rapidly melts or vaporizes due to the high temperature. It is matched with the laser head. Run the track to achieve the purpose of processing.
The label made by Desktop Fiber Laser Marking Machine has a long-lasting effect and will not fade away due to touch, acid and reducing gas, heat and cold, etc.
The markings and changes marked are not easy to imitate, and are very safe to a certain extent. At the same time, there is no corrosion to the work surface, no material wear, no poison, no pollution. It can engrave fine objects with patterns, and the minimum line width can reach 0.01mm.
The mark is clear, durable and beautiful. Laser marking can meet the large amount of data required for small characters on plastic parts. The laser beam moves at a high speed (up to 5 to 7 m/s) under computer control, and the marking process can be completed in a few seconds.
Features
Desktop Fiber Laser Marking Machine can handle metals, dark materials, silicon wafers and other materials. Compared with traditional mechanical engraving, chemical etching, screen printing, ink printing, etc., laser marking has low cost, high flexibility, and can control a computer system. The laser label has strong permanence on the generated surface.
Parameters
|
Model |
DS-LM20 |
DS-LM30 |
DS-LM50 |
DS-LM80 |
|
Laser power output |
20W |
30W |
50W |
80W |
|
Engraving depth |
≤0.2mm(depends on material) |
≤0.3mm(depends on material) |
≤0.5mm(depends on material) |
≤0.8mm(depends on material) |
|
Laser wavelength |
1064±10 nm |
|||
|
Marking area |
100x100mm(standard)/175x175mm/200x200mm |
|||
|
Pulse frequency |
20~80KHZ/1~600KHZ/1~2000KHZ/1~4000 |
|||
|
Max marking speed |
8000mm/s |
|||
|
Repeat accuracy |
±0.001mm |
|||
|
Min.line width |
0.01mm |
|||
|
Min.character size |
0.2mm |
|||
|
Cooling |
Air cooled |
|||
|
Working temp |
10~35 ℃ |
|||
|
Humidity range |
< 70% No condensation |
|||
|
Power supply |
AC220V±10%, 50Hz or AC110V±10%, 60Hz |
|||
Samples
Package
DOTSLASER promises high-quality after-sales service
1.After-sales training
The company can provide free technical training at our site. Our technicians will conduct technical training for the buyer's operators until the operators can basically use the equipment normally. The main training contents are as follows:
a. Software training;
b. Training on operating procedures for switching machines;
c. The meaning of software operation interface and software control parameters, and the training of parameter selection range;
d. Basic cleaning and maintenance of the machine;
e. Handling of common hardware failures;
f. Problems that should be paid attention to during operation;
g. In addition, it also provides users with relevant technical support for the products it produces
2. Equipment maintenance
The company promises:
a. The equipment is guaranteed for one year free of charge and maintained for life.
b. Free technical consultation, software upgrade and other services.
c. Provide regular service every two months to check the operation of the machine.
d. Customer service response time is within 24 hours.
e. Extensive software and hardware support is still provided after the warranty expires.
