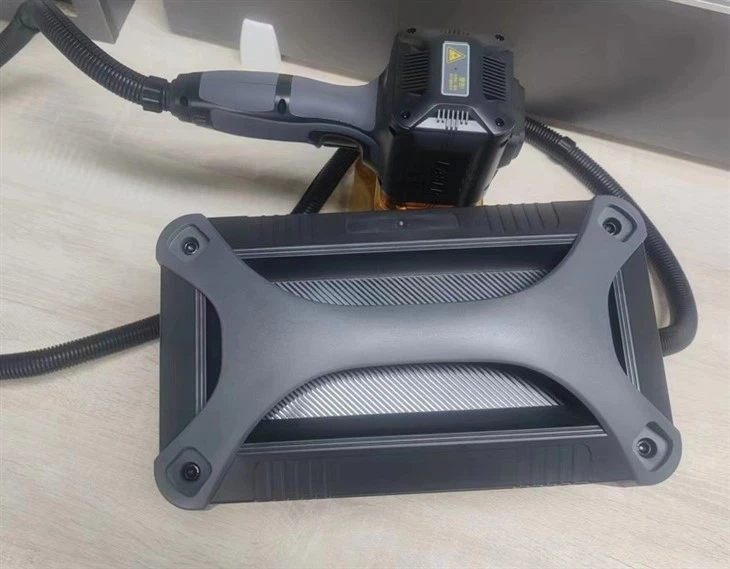

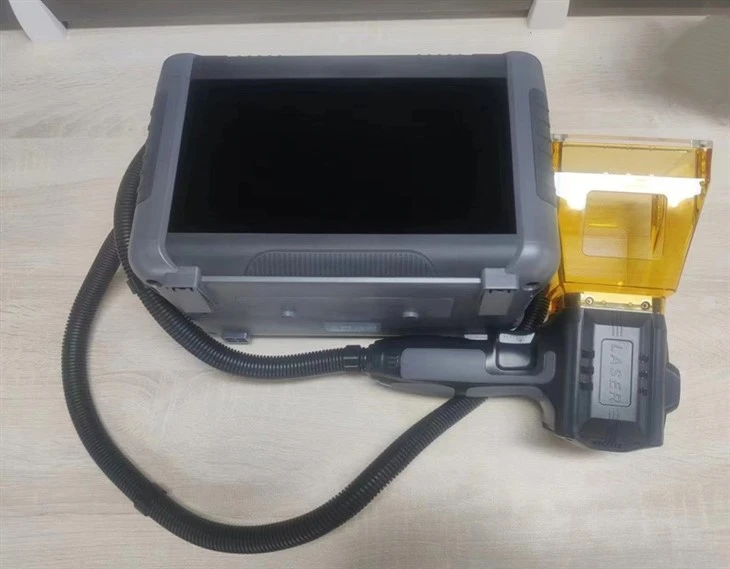

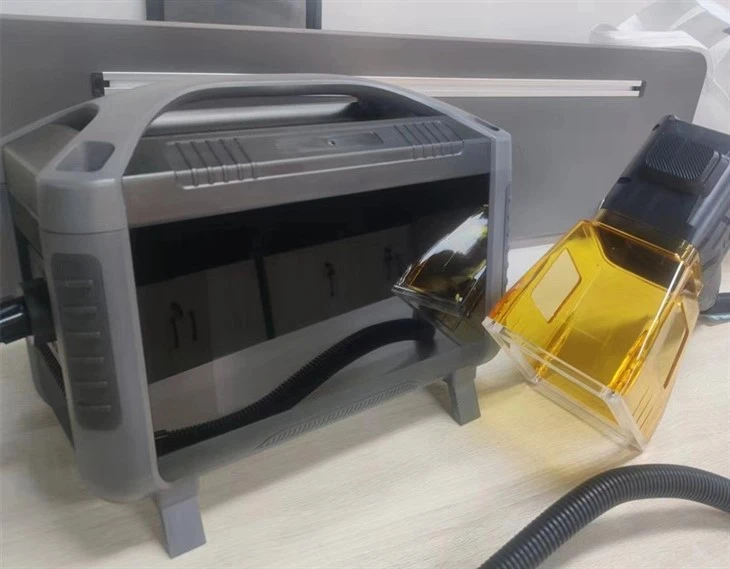

Mobile Laser Marking Machine
mobile laser marking machine
Products Description
Mobile laser marking machine is a cutting-edge and innovative technology used for marking various materials. It is a portable device that is easy to carry around and can be used for marking on diverse surfaces such as metals, plastics, ceramics, and wood. This machine uses a powerful laser beam to etch permanent markings on the surface of the materials.

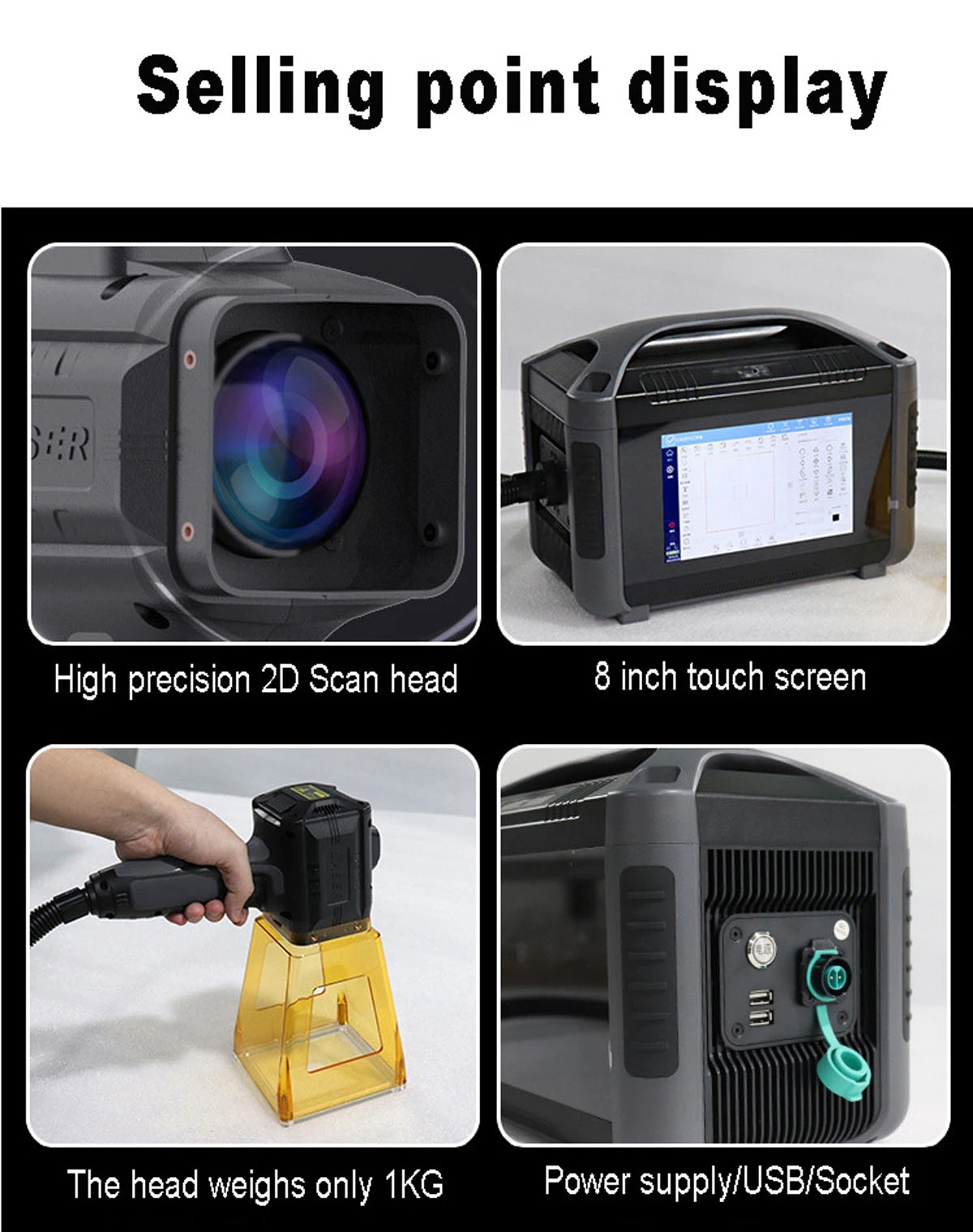

Nine reasons to choose us

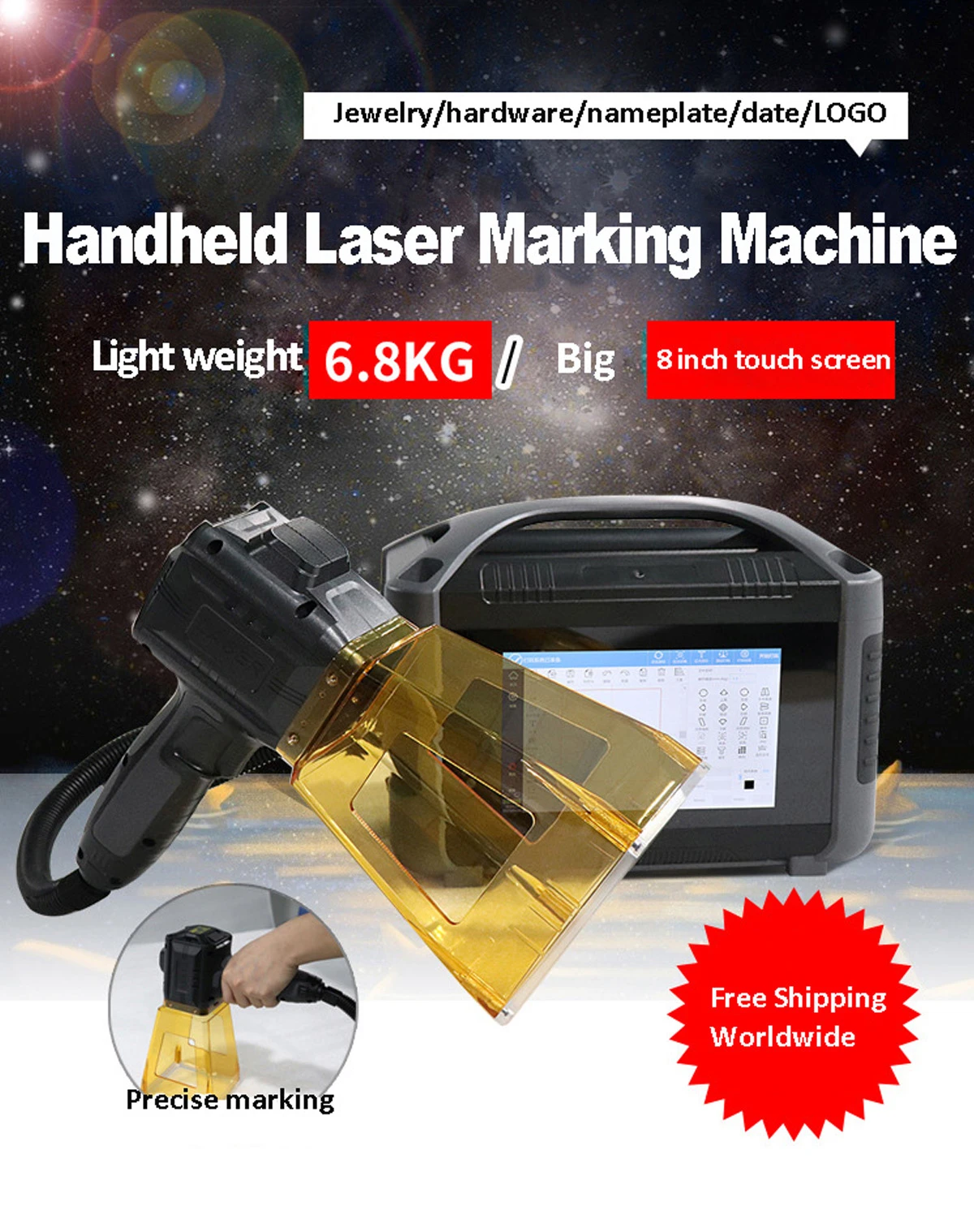

1.Total weight
High-strength ABS shell total 6.8kg
2.Oprtating system
The lastest linux system stable performance and fast respond
3.Processor
High performance 8-core processor
4.Touch screen
8 Inch Touch screen more convenient operation
5.Accurate and stable
Infrared Positioning auto focus
6.One click marking
Easy To Operate,esay to use

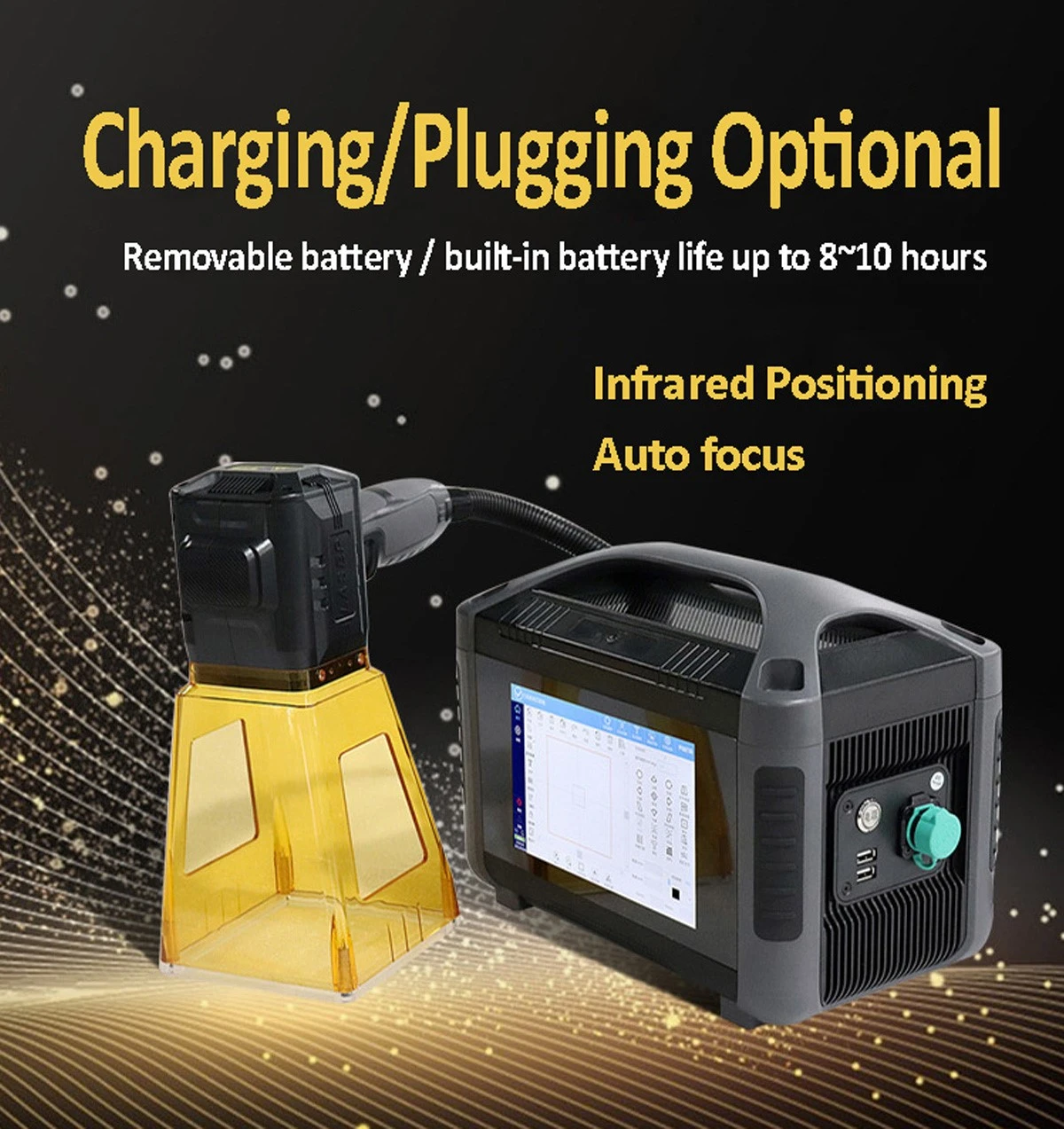

7.power supply
Charging/plugging optional/removable battery
8.Read USB flash
Support USB flash to read files
When selecting a mobile laser marking machine, consider factors such as the type of laser (CO₂, fiber, etc.), marking speed, precision, working area size, compatibility with your desired materials, ease of use, software compatibility, and the overall quality and reputation of the manufacturer.
Parameters introduction:
| product name | Handheld laser marking machine | Master control | Integrated motherboard, 8-inch capacitor full-fit screen |
| Laser power | 20W/30W | Min. line windth | 0.03mm |
| Working area | 70x70mm,100x100mm | Marking efficiency | 800 characters (related to materials and pinting content) |
| Wavelength | 1064nm | Marking lines | Anyline within the effective marking range |
| Marking speed | ≤7000mm/s | Character | Chinese and English,numbers, and other standard fonts |
| Targeting | Red light positioning.foousing | Voltage | 110V/220VAC,Lithium batery(216wh) |
| Focal lens | 130mm | Barcode | CODE39,CODE128,CODE126,QR |

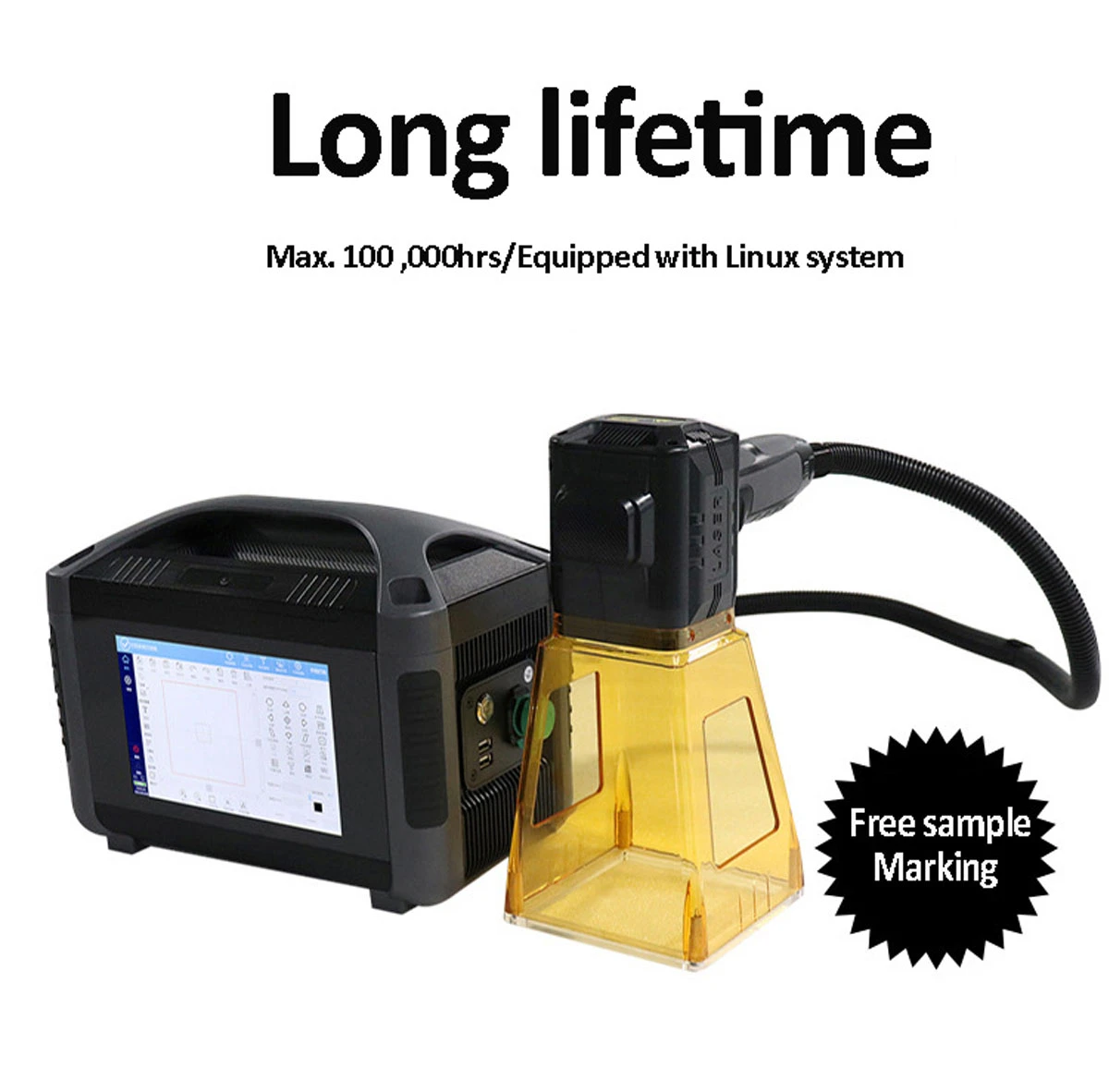

| Galvonometer | High-precision 2D scanning head | Lifttime of source | 100,000 hours |
| Operating system | Linux system | Waranty | 1 year |
| Power consumption | 145-250W | Applicable materials | Main metal matenals and some non-metal materlals |
| Repeatability | 0.01mm | Dimension | 310x180x230mm |
| Packing size | 525x423x310mm | Packing weight | 9.5Kg |
| File fomat | Text, pattem, date, barcode, graphics, BMP,PU,PCX,DXF,jgp,gif,tga,png,tif,al, dst,plt, etc. | ||

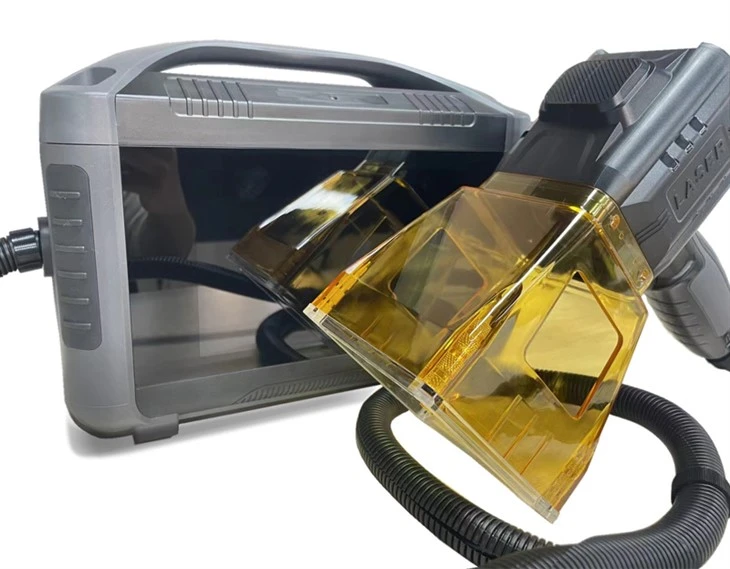

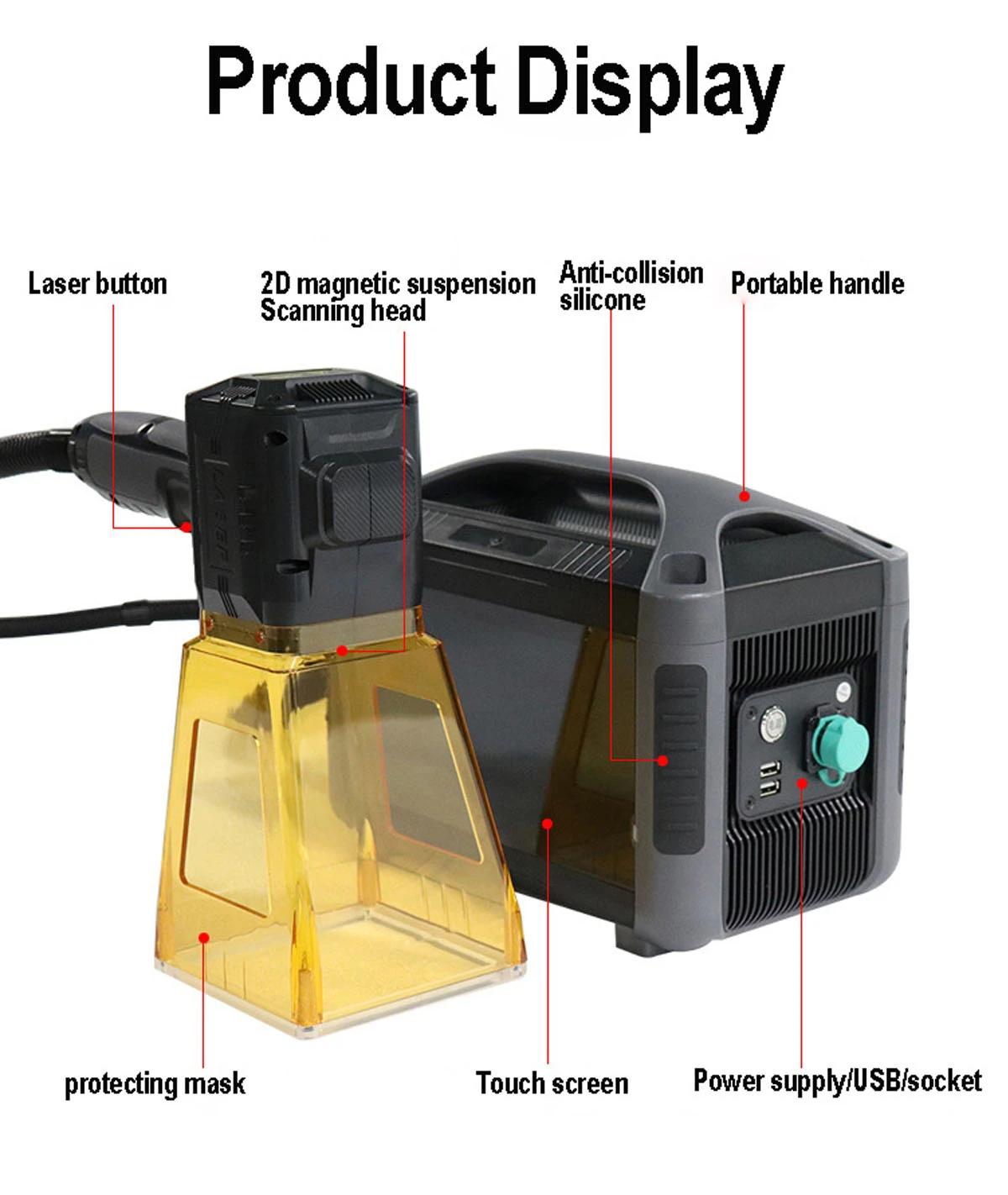

Products Details
|
Application fields: Wide range of applications Mainly used in: marking on plastic, ectronics, metal, ceramics, tobacco and othermaterials required text, pattern, bar code and other graphics, simple and convenientoperation, fast marking speed, clear and other advantages making the productionefficiency of enterprises more efficient efficient.
Applicable lndustries: Widely used in integrated circuit chips, computer accessories industrial bearings, clocksand watches, eectronic and communication products, aerospace devices, various autoparts, home appliances, hardwaretools, molds, wires and cables food packaging, jewelrytobacco and military graphics and Tex marking, and high-volume production line operations. |

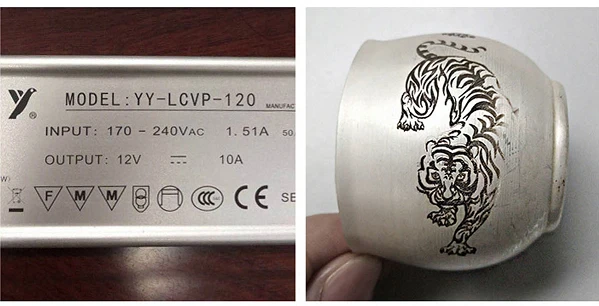

Samples:

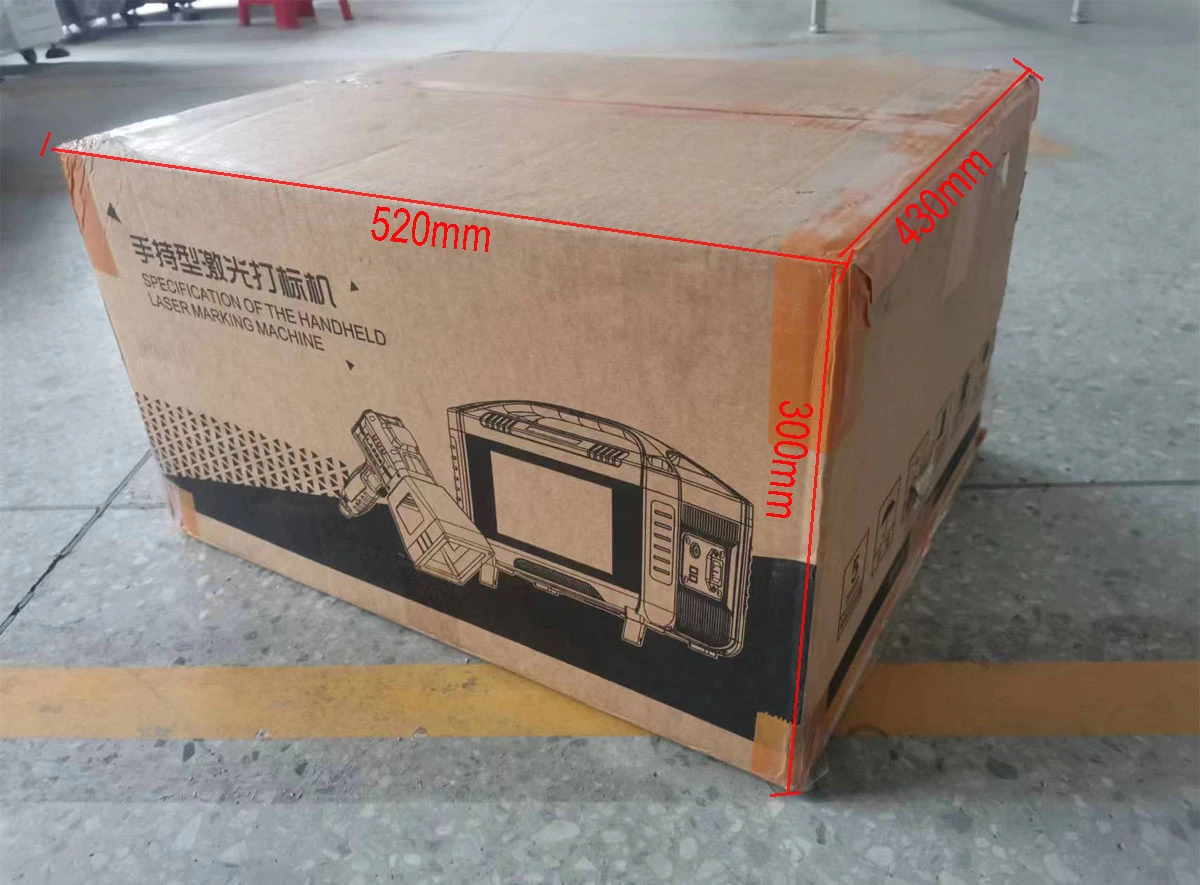

Packaging
Unpacking Caution:
Every marking machine has been rigorously tested at the factory, only qualified product for shipment. When you receive the freight, please check as follows. If you have any questions, please contact the agent or staff at DOTSLASER.
● Whether there is damage or deformation during transport.
● Confirm that all of the items on the packing list are correct.
● Confirm that the model of the product matches the nameplate(Operating voltage and KVA number).
● Make sure that all clamps are tight and that there are no foreign objects in the device.
● Confirm the operation buttons, switches are normal.
