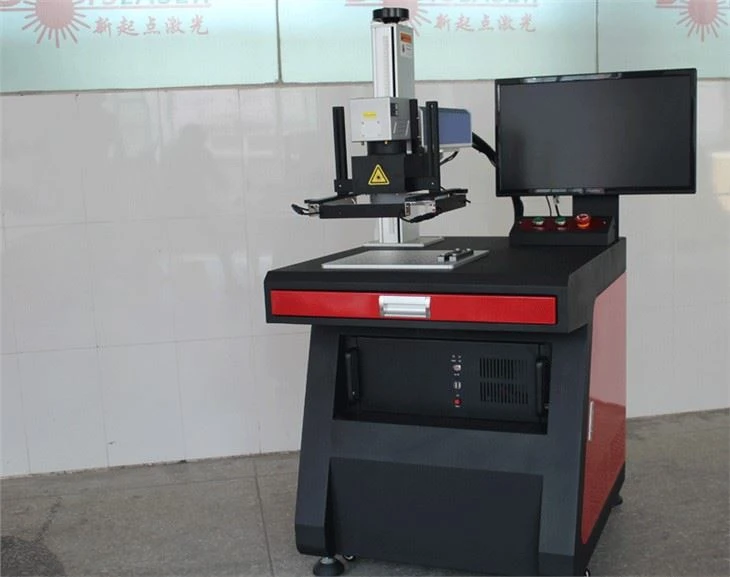

Laser For Automatic Parts
Laser Machine for Automatic Parts
Products Description
This cutting-edge machine seamlessly integrates into your manufacturing process, allowing for precise and efficient processing of various materials to create intricate components. Perfect for industries like automotive, aerospace, and electronics, this machine delivers unmatched performance and precision.
Key Features
Wide applicable materials
Our machine utilizes cutting-edge laser technology to ensure consistent accuracy and precision. Enable to process various materials, including metals, plastics, and composites, it delivers clean and intricate cuts tailored to your specific needs.
User-Friendly Control System
The machine allows operators to input settings, monitor progress.The control system can also be easily integrated with your existing production line software, ensuring seamless operation and effective communication between machines.
Flexible Customization
The machine offers flexible customization options, allowing you to tailor its capabilities and settings according to your specific requirements and production goals.
Safety Features
Designed to adhere to the highest safety standards, our laser machine includes features like an auto-shutoff mechanism, protective enclosures, and proper ventilation systems. These safeguards ensure a safe work environment and minimize the risk of accidents.
Durable and Robust Construction
Built with high-quality materials and components, the Laser Machine for Automatic Parts offers long-lasting reliability, ensuring consistent performance and reduced maintenance requirements.
High-Speed Automation
The Laser Machine for Automatic Parts is designed to optimize your production line by integrating seamlessly with other machinery. The machine's automated capabilities enable rapid component processing, significantly reducing production time and increasing overall productivity.
Applications
| The Laser Machine for Automatic Parts is ideal for a variety of applications, including but not limited to: |
| Automotive parts manufacturing |
| Aerospace components production |
| Electronics and PCB assembly |
| Precision engineering and custom parts creation |
As the leader in laser machine and metal forming services, DOTSLASER Company is proud to partner with automotive industries worldwide. The use of laser production engraving in the automotive industry has been a revolutionary way to achieve extraordinary efficiency and extreme precision. Early uses of laser engraving to craft thousands of parts with high degrees of precision was a huge step forward for the industry.
Parameters
|
Model |
DS-LM20 |
DS-LM30 |
DS-LM50 |
DS-LM80 |
|
Laser power output |
20W |
30W |
50W |
80W |
|
Engraving depth |
≤0.2mm(depends on material) |
≤0.3mm(depends on material) |
≤0.5mm(depends on material) |
≤0.8mm(depends on material) |
|
laser wavelength |
1064±10 nm |
|||
|
Marking area |
100x100mm(standard)/175x175mm/200x200mm/300x300mm |
|||
|
Pulse frequency |
20~80KHZ/1~600KHZ/1~2000KHZ/1~4000 |
|||
|
Max marking speed |
9000mm/s |
|||
|
Repeat accuracy |
±0.001mm |
|||
|
Min.line width |
0.01mm |
|||
|
Min.character size |
0.2mm |
|||
|
Cooling |
Air cooled |
|||
|
Working temperature |
10~35 ℃ |
|||
|
Humidity range |
< 70% No condensation |
|||
|
Power supply |
AC220V±10%,50Hz or AC110V±10%,60Hz |
|||
Every automotive company understands the importance of safety. However, some professionals may not realise just how much of a role automotive laser marking plays in ensuring this safety. Laser marking machines help maintain part traceability in the automotive industry, improving quality, efficiency and customer satisfaction.
Laser marking machines enable automotive manufacturers to print unique markings such as vehicle identification numbers (VINs), security codes and two-dimensional (2D) matrix codes on automotive parts. Laser marking machines for automotive parts engrave these personalised sequences on the parts at different stages of production with optimum precision and accuracy, ensuring that each code is visible and easy to read. Companies use these codes to obtain valuable tracking and traceability data such as batch numbers and production dates.

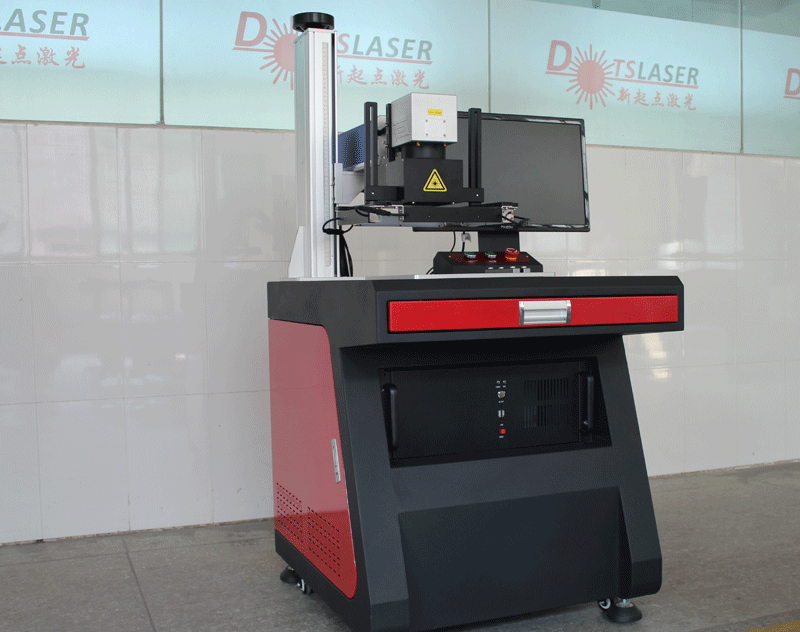

Laser Machine uses for Automatic Parts
Automotive Parts Laser Marking Applications
Automotive laser engraving machines print a variety of identification codes that display valuable traceable information. The unique types of identification codes produced by laser marking machines on automotive parts include.

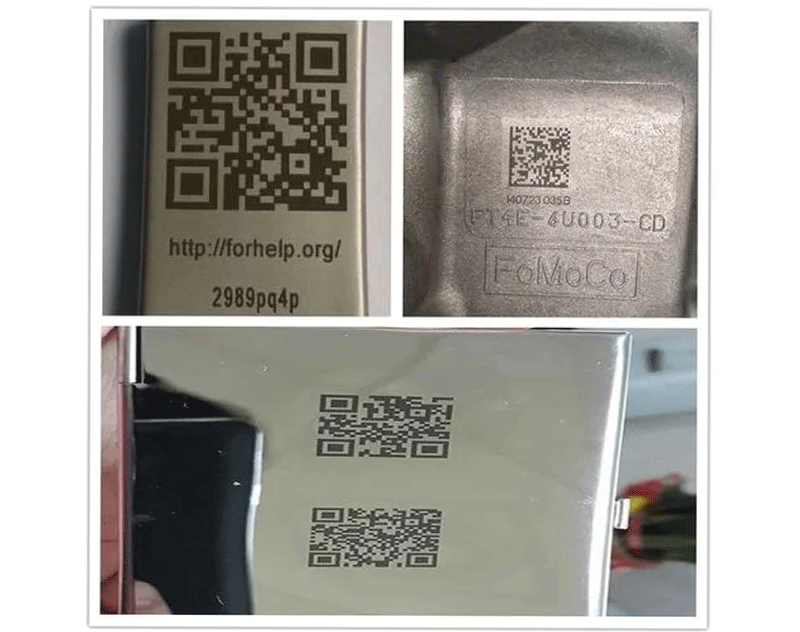

Data Matrix Codes
Data matrix codes are squares or rectangles formed by a pattern of black and white markings. The number of rows and columns in a data matrix code indicates how much information is stored within it.
Vehicle identification code. The Vehicle Identification Number is a 17-character code that acts as a unique fingerprint for the vehicle, showing its characteristics, manufacturer and specifications.

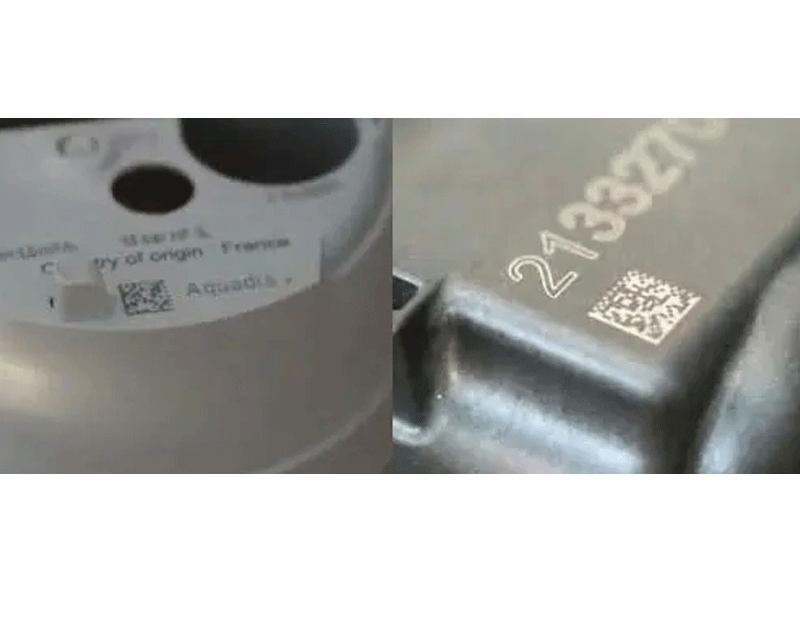

Bar code
A bar code serves as a powerful tool for companies to effortlessly monitor car parts as they move across the supply chain. By containing a sequence of numbers and characters, these visually striking black and white bars provide automation and accuracy in tracking inventory.

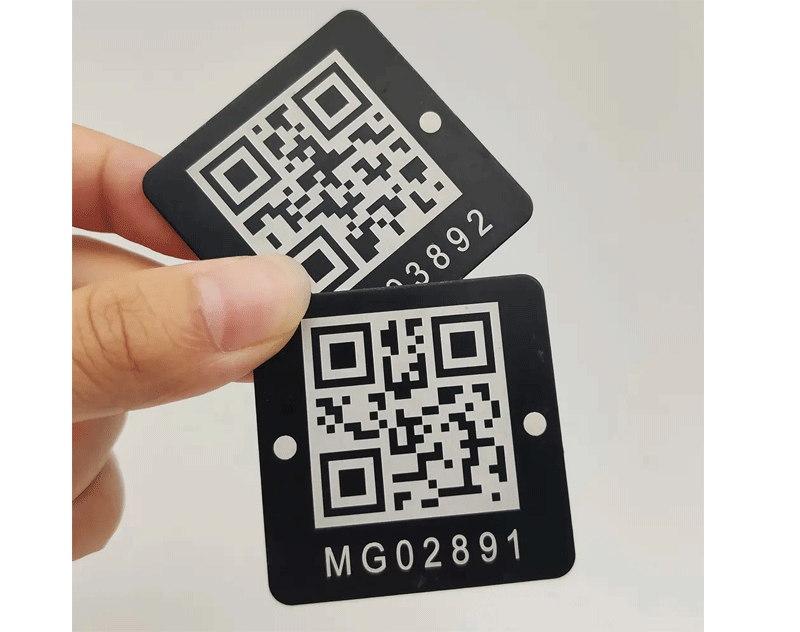

Serial number
An engine serial number (ESN) is a combination of letters and numbers found on the engine block or plate of a vehicle. These codes indicate the type of engine and when and where it was manufactured.
Shipping and Package
Daily maintenance
● After finishing work, make sure the floor is clean. Then clean the machine including the surface of the machine, the case of the optical system, the surface of the monitor, the work table, and so on.
● Please turn off each part and main power supply when they are clean.
● Check the lens regularly for dust. When it's clean, use the cotton wool with greater than 95% medical grade alcohol to wipe clockwise from the center of the lens. When you need to move the machine to avoid bumps. Check the connection cable according to the cable list.
Unpacking caution
Every marking machine has been rigorously tested at the factory, only qualified product for shipment. When you receive the freight, please check as follows. If you have any questions, please contact the agent or staff at DOTSLASER.
● Whether there is damage or deformation during transport.
● Confirm that all of the items on the packing list are correct.
● Confirm that the model of the product matches the nameplate(Operating voltage and KVA number).
● Make sure that all clamps are tight and that there are no foreign objects in the device.
● Confirm the operation buttons, switches are normal.
