Desktop Metal Engraving Machine is made of high-quality raw materials as a whole, with compact structure, excellent quality and stable performance, which can meet most of the needs of customers. Our product has good beam quality and can achieve finer marking.

Send Inquiry

Product Introduction

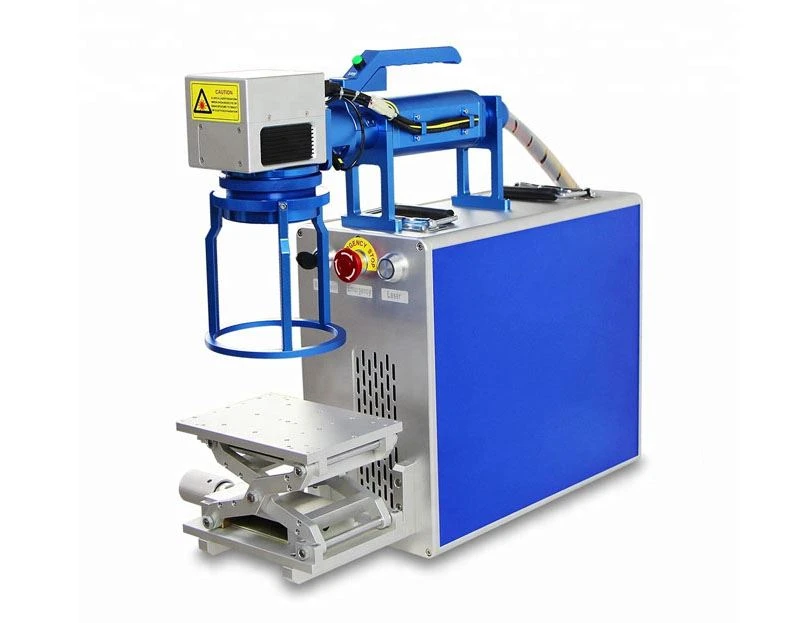

Desktop Metal Engraving Machine

Products Description

Our Desktop Metal Engraving Machine is crafted from top-quality materials, boasting a sleek design and outstanding performance that caters to the diverse needs of our customers. With superior beam quality, it allows for refined marking precision. Its compact size, dependable fiber laser system, low energy consumption, and absence of high voltage make it an ideal choice for metal engraving. Trust in our product to deliver exceptional results and elevate your work to the next level.

How is the metal sheet for the desktop metal engraving machine produced?

It has two methods: sheet metal processing and mold processing.

Sheet metal processing refers to the process of sheet metal processing through punching, laser cutting, plate shears, bending machines, rivet machines and other equipment. It is suitable for small batch production; Mold processing generally includes blanking dies and forming dies, which are mainly used for mass production, the cost is low.

Work Principle

One important aspect leading to this phenomenon is the vibrancy of particles. Occasionally, particles may be in a state of high vitality, but eventually transition to a more grounded state. It is in this state change that any additional energy is released in the form of beautiful photons.

When electrons in an atom absorb energy and shift to higher energy levels, they emit photons when returning to lower levels. This emission results in the formation of a laser beam, which showcases remarkable optical consistency. As a result, lasers are renowned for their exceptional monochromaticity, focused beam quality, and brightness, surpassing that of conventional light sources.

Parameters

Model	DS-LM20/DS-LM30
Laser power	20W/30W
Pulse Repetition Frequency	1-200kHz
Beam quality(㎡	<1.6
Depth of engraving(depend on material)	<5mm
Power consumption	≤800W
Operating voltage	Single phase AC 220V/110V 50/60HZ 5A
Laser wavelength	1064nm
Working area	100×100mm,180×180mm
Repetition precision	±0.003mm
Max engraving speed	≤8000mm/s
Minimum line width	0.01mm
Marking method	Stationary Marking , disc rotary, Rotary Marking
Character size	0.5-110mm
Cooling System	Air Cooling
Direction of Installing equipment	Any
Cable of Length	3m (5m optional)
Working Temperature Range	5-38℃
Working Humidity	20%-80%
Net Weight of machine	55kg
Dimension of Main Body(L×W×H)	74mm×55mm×75mm

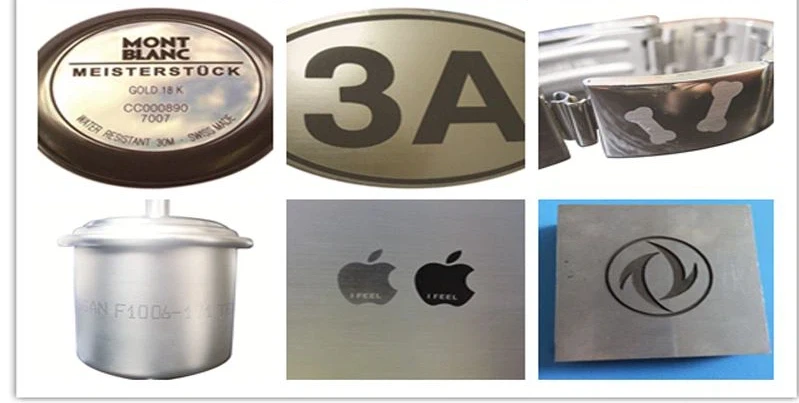

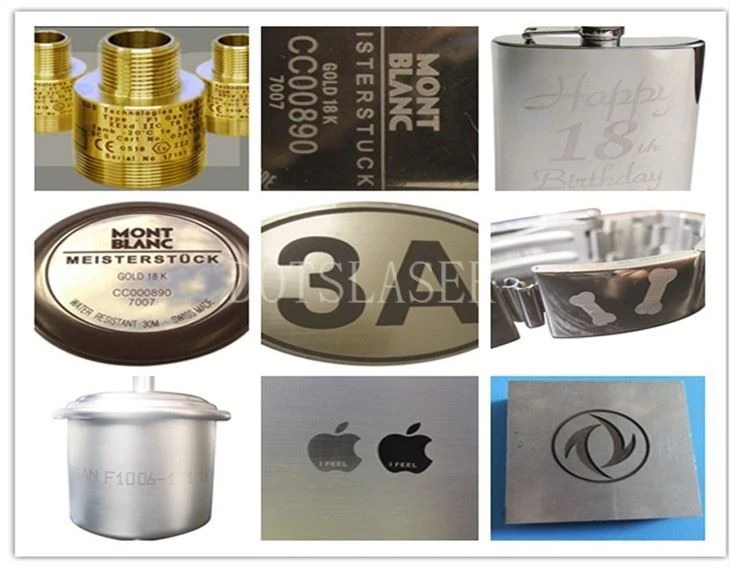

Samples show

product-642-324

Shipping

FAQ

Q1: I know nothing about this machine, which type of laser machine should I take?

A: We will help you choose the suitable machine and make the solution for you ; you can show us what material will you marking / engraving and the depth of MARKING/ ENGRAVING.

Q2: When I got this machine, but I don't know how to use it. What should I do?

A: We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.

Q3: What's consumables of laser marking machine?

A: It does not have consumable. It's very economical and cost effective.

Q4: What's package, will it protect the products?

A: We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.
