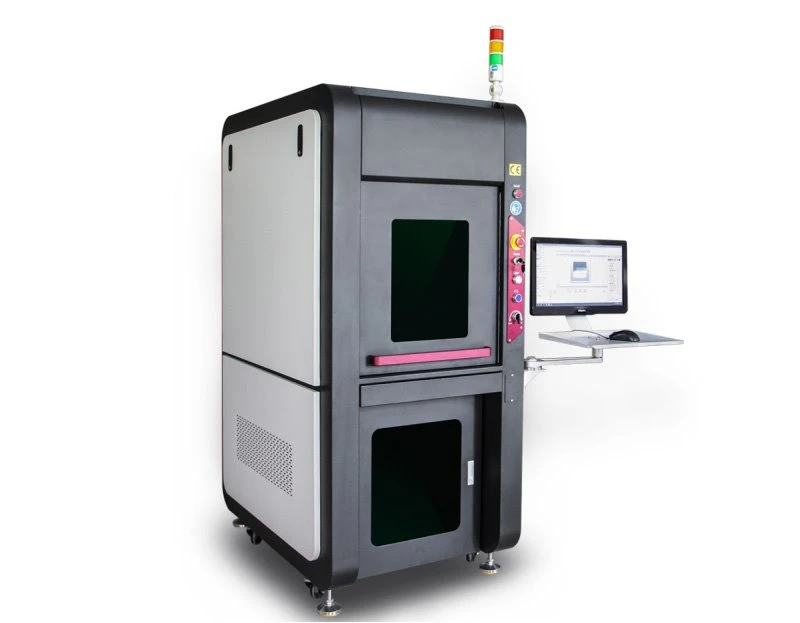

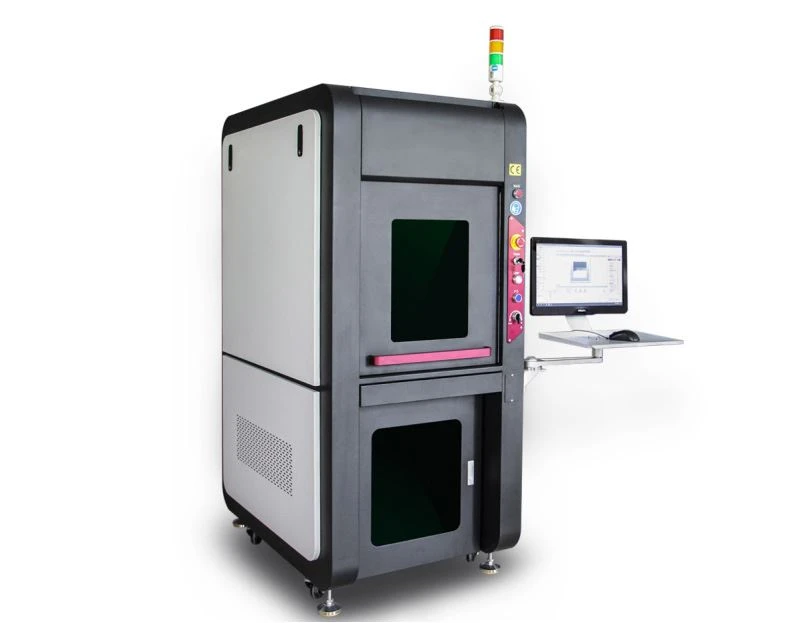

3D UV Laser Marking Machine
3D UV marker
Products Description
3D UV marker is developed by using a 355nm ultraviolet laser. This equipment uses a third-order intracavity frequency doubling technology. Compared with infrared lasers, the 355 ultraviolet light has a very small focus spot. It greatly reduces the mechanical deformation of the material and has little processing heat impact, because it is mainly used for ultra-fine marking and engraving, and is especially suitable for marking, micro-holes, and high-speed division of glass materials for food and medical packaging materials. Wafers are used for complex pattern cutting and other applications.
why choose us
why choose our products
Features
Due to the extremely small focusing spot and the small processing heat-affected zone, the 3D UV marker can perform ultra-fine marking and marking of special materials. It is the first choice for customers who have higher requirements for marking effects.
UV equipment owns excellent beam quality and samll focused spot. Wider application range, small heat-affected zone with no heat effects and material scorching problem occuring.The marking speed is fast and the efficiency is high.The whole equipment has the advantages of stable performance, small size and low power consumption.
Technical parameter
|
Model |
DS-UV3 |
DS-UV5 |
DS-UV10 |
|
Laser power output |
>3W |
>5W |
>10W |
|
laser wavelength |
355nm |
||
|
Optional method |
3D/ |
||
|
Marking area |
100x100mm/150x150mm |
||
|
Pulse energy |
＞200µJ |
||
|
Repetition rate |
20~150KHz |
||
|
Max marking speed |
10,000mm/s |
||
|
Beam quality |
＜1.2 ㎡ |
||
|
Min.line width |
0.01mm |
||
|
Repeat accuracy |
±0.003mm |
||
|
Cooling |
Air/Water cooled |
||
|
Working temp |
15~35 ℃ |
||
| Marking Head Brand | Customized | ||
| Core Components | Engine, laser source | ||
| After-sales Service Provided | Online support | ||
| Feature | 3D | ||
|
Gross weight |
190KG |
||
|
Size of equipment |
1000x735x1630mm |
||
|
Power supply |
AC220V±10%,50Hz or AC110V±10%,60Hz |
||
Machine application:
(1) Electronic components: battery chargers, electric wire, computer accessories, mobile phone accessories (mobile phone screen, LCD screen) and communication products.
(2) Automobile and motorcycle spare parts, auto glass, instrument appliance, optical device, aerospace, military industry products, hardware equipmentry, tools, measuring tools, cutting tools, sanitary ware.
(3) Pharmaceutical, food, beverage and cosmetics industry.
(4) Suitable industries: Glass, crystal products, arts and crafts of surface and internal thin film etching, ceramic cutting or engraving, clocks and watches and glasses.

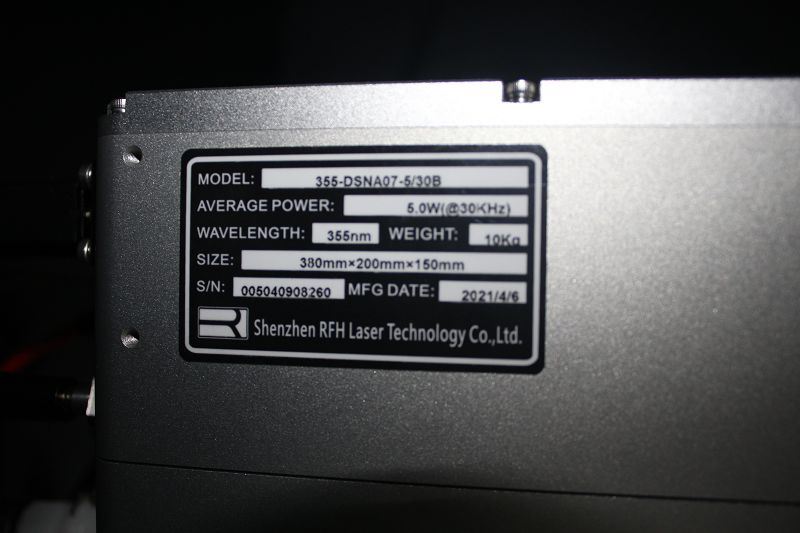

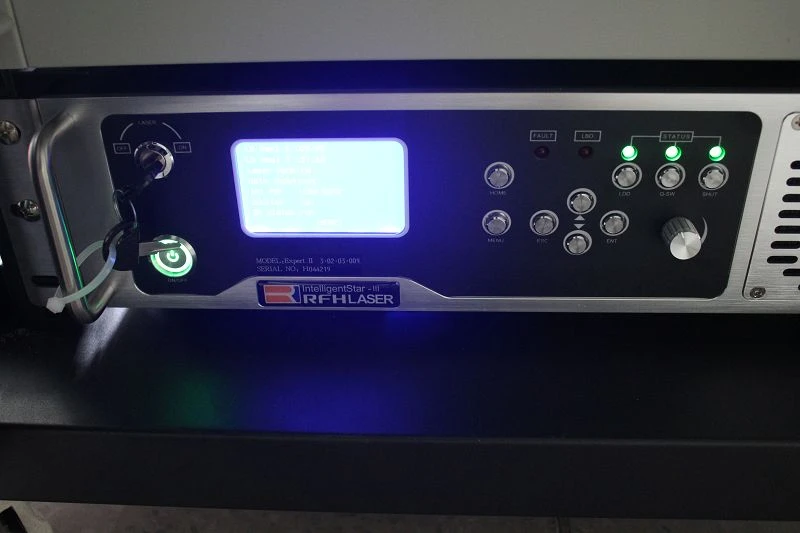

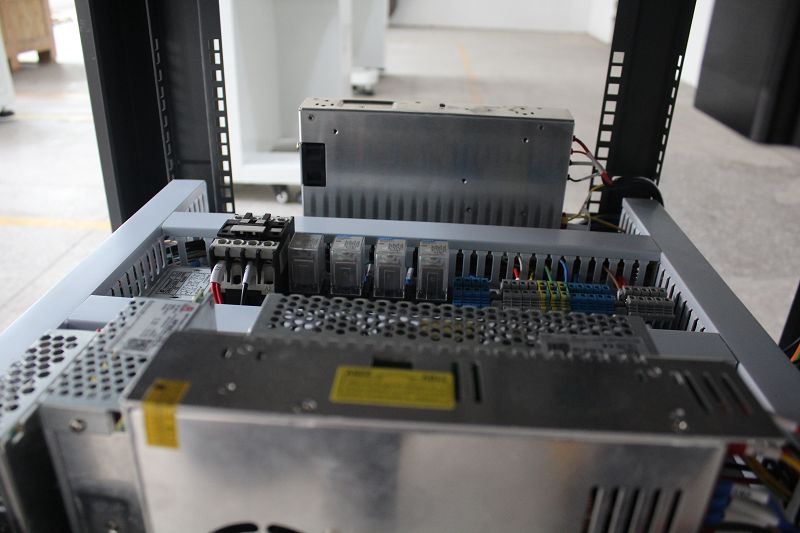

Product Details:

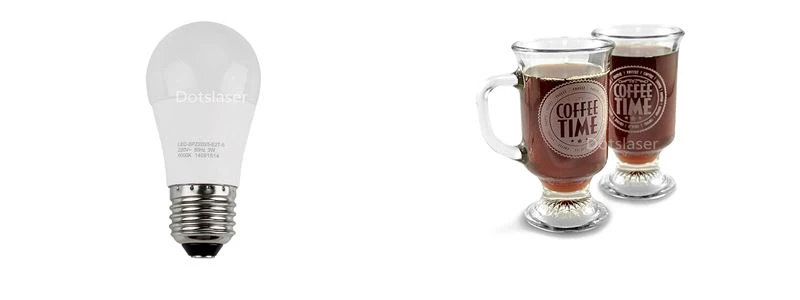

Samples

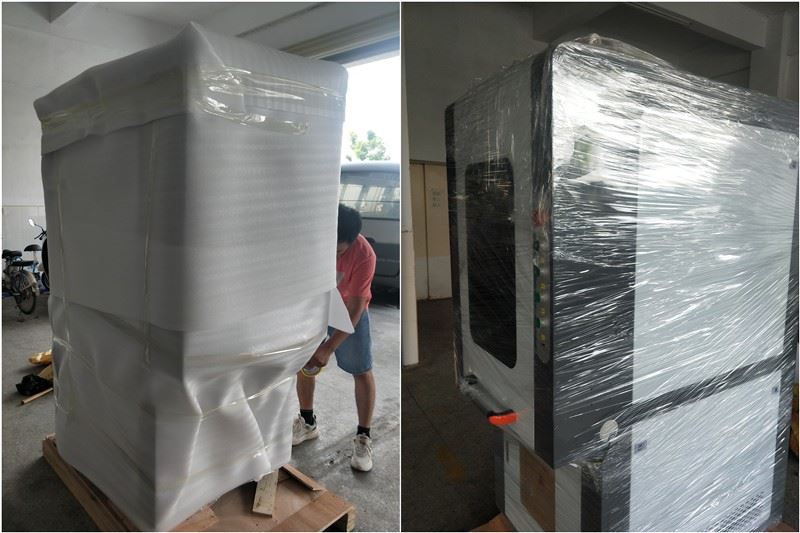

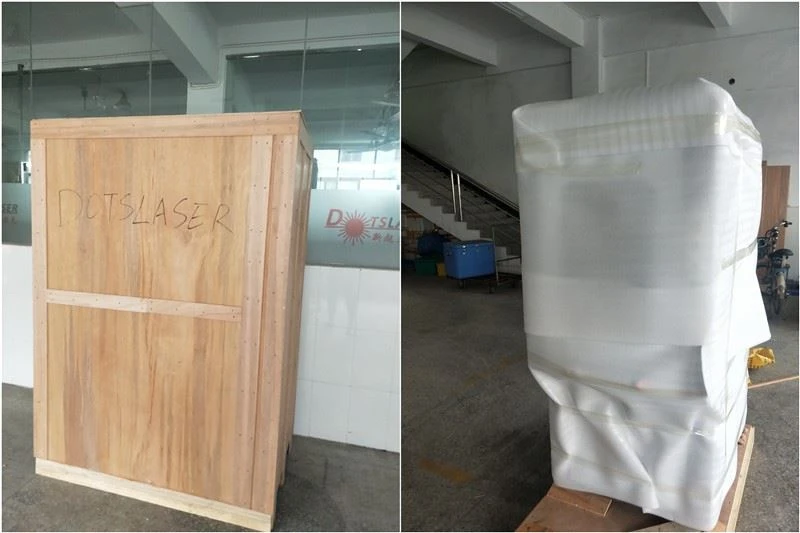

Shipping and packing
After-sales services
Powerful software(optional):
1.Self-Developed MacMark 3D is compatible with MES system . Support the secondary development and can be customized for special needs.
2.Support EZCAD3 and WIN7/8/10 System.
Our professional service：
One-to-one service, quickly response, provide operation videos, English manuals, process parameters and other technical information. Two-year warranty.
Express services(optional):
Shipping by DHL/TNT/FEDEX about 7 to 15 days. You can contact us to negotiate shipping details.
