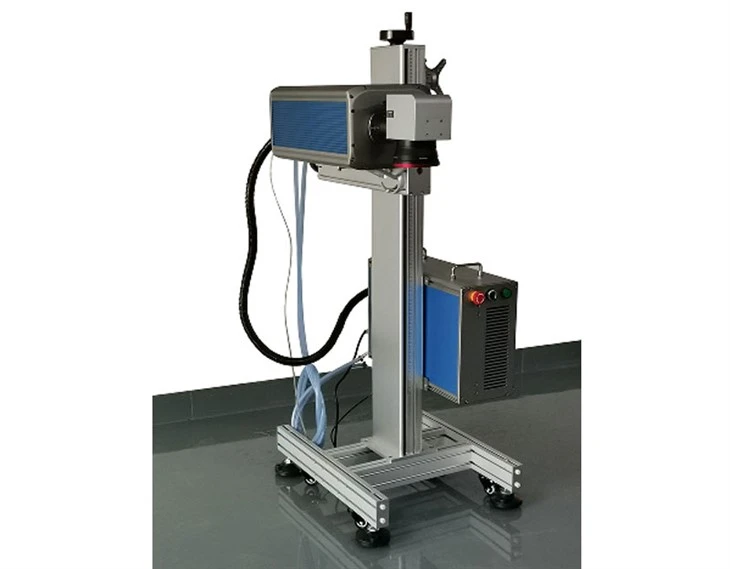

On The Fly UV Laser Marking Machine
On The Fly UV Laser Marker
Products Description
The unique processing method of the On The Fly UV Marker sets it apart from other laser marking equipment. While CO2 and fiber Markers rely on traditional laser marking methods, the On The Fly UV Marker utilizes innovative chemical processing techniques, primarily through photochemical reactions. Another positive way to express this would be: While the laser physical processing method focuses on surface treatment of products and materials, the laser chemical processing method offers the ability to penetrate deep into the material for more intricate processing.
The On The Fly UV Marker is perfect for precision marking on the sleek surfaces of packaging bottles used in the cosmetics, pharmaceuticals, and electronics industries. This advanced technology is ideal for catering to the high-end market's demand for ultra-fine processing and intricate marking on polymer materials.
The results of the processed items are outstanding, with precise markings and thorough cleaning. The use of UV laser marking is superior to inkjet printing, as it does not produce any pollution during operation. This technology utilizes flexible PCB boards for various processes such as marking, dicing, and micro-hole processing on silicon wafers. It is worth noting that a significant portion, 80%, of data cables and adapter markings in the market are done using UV laser marking.
Technical parameter
|
Model |
DS-UV3 |
DS-UV5 |
DS-UV10 |
|
Laser power output |
>3W |
>5W |
>10W |
|
Laser wavelength |
355nm |
||
|
Optional method |
3D/2D |
||
|
Marking area |
100x100mm/150x150mm |
||
|
Pulse energy |
＞200µJ |
||
|
Repetition rate |
20~150KHz |
||
|
Max marking speed |
10,000mm/s |
||
|
Beam quality |
＜1.2 ㎡ |
||
|
Min.line width |
0.01mm |
||
|
Repeat accuracy |
±0.003mm |
||
|
Cooling |
Air/Water cooled |
||
|
Working temp |
15~35 ℃ |
||
|
Gross weight |
190KG |
||
|
Size of machine |
1000x735x1630mm |
||
|
Power supply |
AC220V±10%,50Hz or AC110V±10%,60Hz |
||
| Graphic Format Supported | AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP | ||
| Cooling Mode | Air Cooling | ||
| Key Selling Points | Easy to Operate | ||
| Control Software | Ezcad/MarkingMate | ||
| Key Selling Points | High Productivity | ||
| Warranty | 1 year | ||
| Software | JCZ EZCAD Software | ||
|
Application: On the fly UV Marker can mark cosmetics, mobile phones, medicines, food packaging, metal, glass, plastics, polymer materials, construction materials, special materials ABS, flexible PCB boards, plastic buttons, silicon wafer microvias, and electronics Original parts, communication equipment, LCD liquid crystal glass and many other products. |
Daily maintenance：
● After finishing work, make sure the floor is clean. Then clean the machine including the surface
of the machine, the case of the optical system, the surface of the monitor, the work table, and so on.
● Please turn off each part and main power supply when they are clean.
● Check the lens regularly for dust. When it's clean, use the cotton wool with greater than 95%
medical grade alcohol to wipe clockwise from the center of the lens. When you need to move the machine to avoid bumps. Check the connection cable according to
the cable list.
Precautions：
● Strictly according to the switch sequence for turning the machine on and off.
● Be well grounded to prevent damage to the components from interference or static
electricity.
● Forbidden to open the cavity to mobilize the bracket. Cannot cause optical or light path shift.
● No internet for the computer. When copying files, first in Antivirus for External Storage
Device

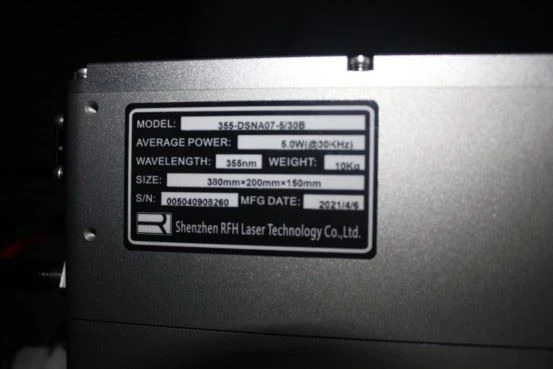

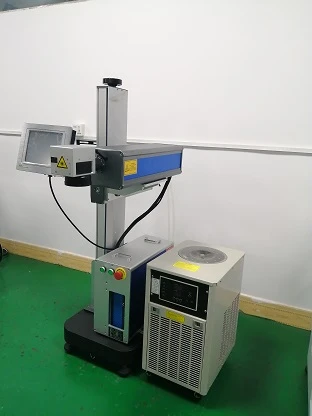

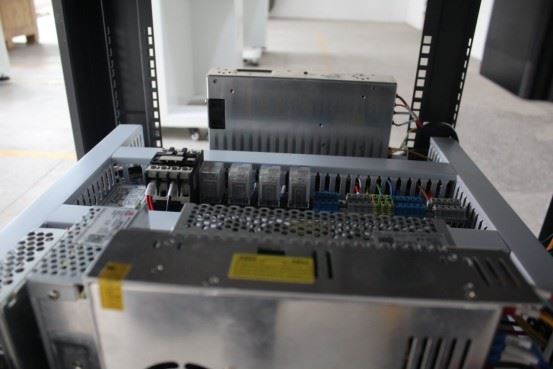

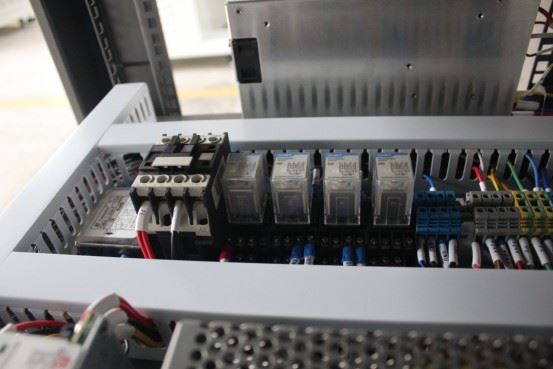

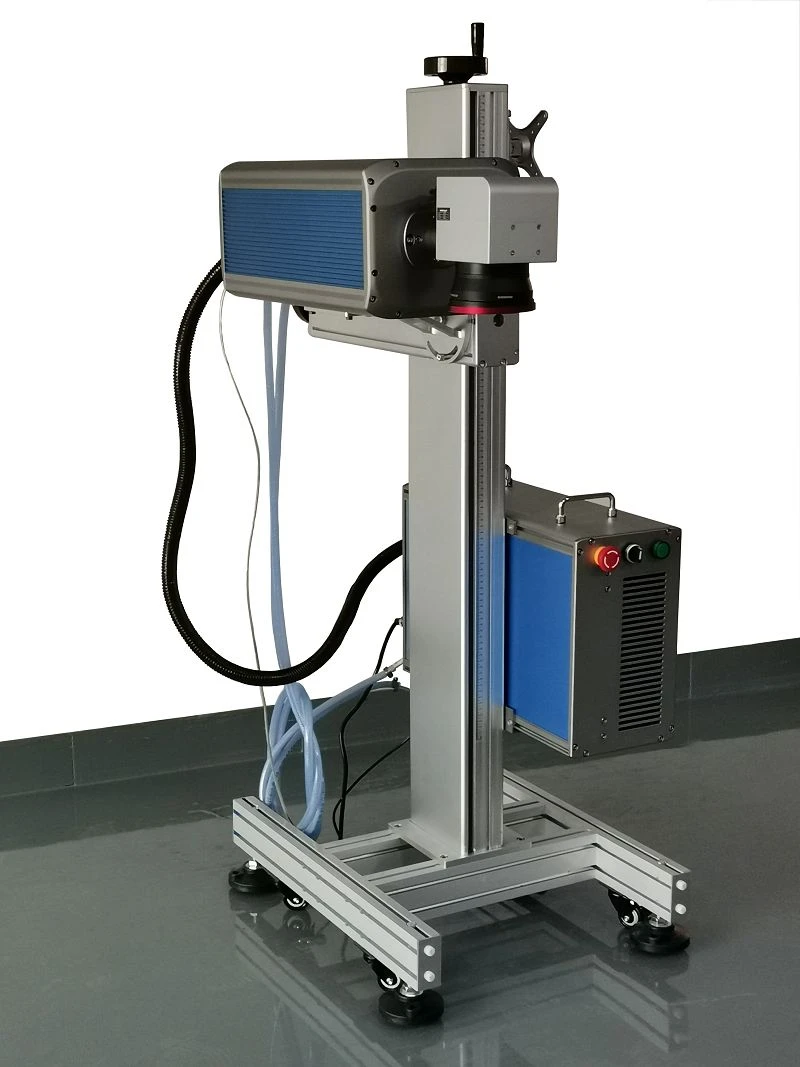

Machine Details

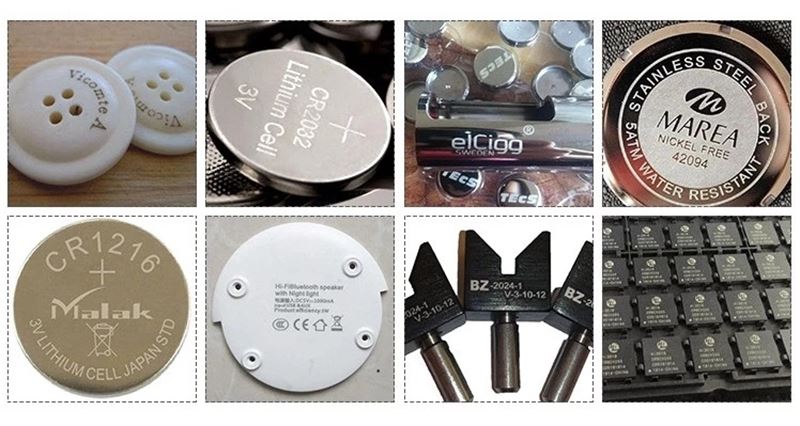

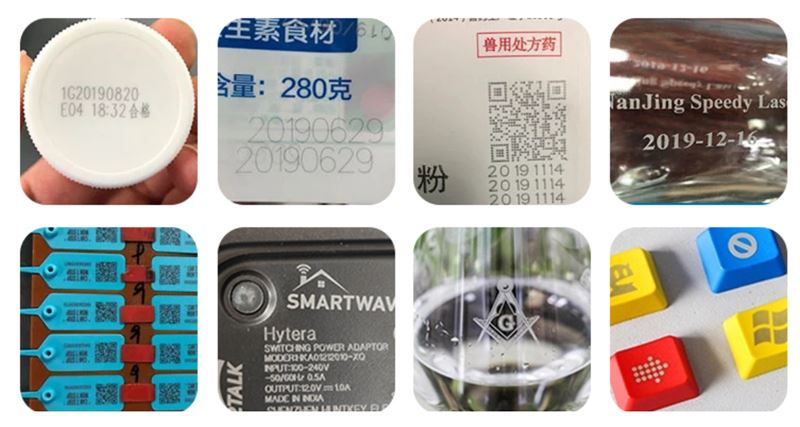

Samples

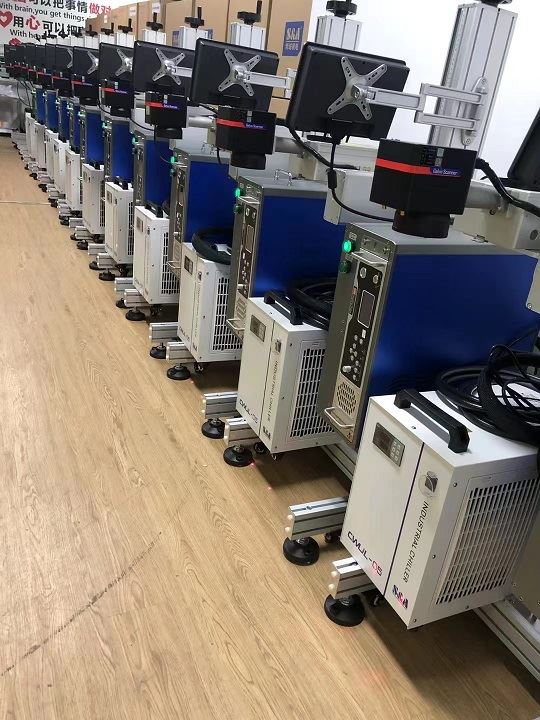

Shipping and Package
Unpacking Caution：
Every marking machine has been rigorously tested at the factory, only qualified product for shipment. When you receive the freight, please check as follows. If you have any questions, please contact the agent or staff at DOTSLASER.
● Whether there is damage or deformation during transport.
● Confirm that all of the items on the packing list are correct.
● Confirm that the model of the product matches the nameplate(Operating voltage and KVA number).
● Make sure that all clamps are tight and that there are no foreign objects in the device.
● Confirm the operation buttons, switches are normal.
