Enclosed UV Laser Marking Machine

Name: China Customized Enclosed UV Laser Marking Machine Manufacturers, Suppliers and Factory - Dotslaser
Brand: DOTSLASER
SKU: 152547886

The structure of the enclosed UV laser marking machine is composed of ultraviolet laser, galvanometer, lens, industrial computer, control card, workbench casing, electric control device, power supply, red light, pedal, combined operation mirror and other original parts.

Send Inquiry

Product Introduction

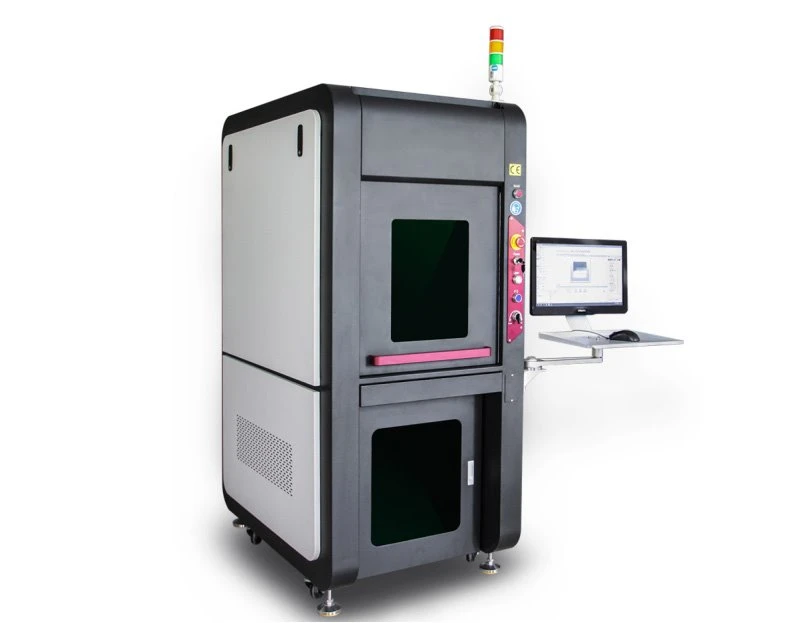

Enclosed UV Laser Marking Machine

Products Description

The structure of the Enclosed UV Laser Marking Machine is composed of ultraviolet laser, galvanometer, lens, industrial computer, control card, workbench shell, electric control device, power supply, red light, pedal, combined operating mirror and other original parts. Its galvanometer and lens are different from other coatings in thickness and material, so they cannot be synchronized. The galvanometer and lens of the UV marking machine are also more expensive. The main price difference is between UV lasers and fiber lasers.

product advantages

High precision and accuracy

Any detailed and intricate designs can easily implemented onto various materials. This is particularly useful for product labeling, fine art engraving, and medical device marking.

Versatile marking function

Including metals, plastics, glass, ceramics, and more. This makes them suitable for a range of industries, from aerospace and automotive to electronics and jewelry.

Inkjet printing and mechanical engraving

They offer a non-contact marking method, which reduces the risk of damage to the material, and produce markings that are durable, permanent, and resistant to fading.

Easy to operate

CostCosteffective machine and less maintainence They also offer fast processing times and high production rates, helping to increase productivity and streamline workflows.

Working Principle

Enclosed UV Laser Marking Machine is worked by high-energy ultraviolet photons. Ultraviolet photons can directly destroy the molecular bonds on the surface of many non-metallic materials and make the molecules separate from the object. This method does not generate high heat. The ultraviolet laser has a very small focus spot. The processing has almost no thermal effect, so it is called cold processing, so it is suitable for ultra-fine marking and engraving of special materials.

Technical parameter

Model	DS-UV3	DS-UV5	DS-UV10
Laser power output	>3W	>5W	>10W
laser wavelength	355nm
Optional method	3D/2D
Marking area	100x100mm/150x150mm/180mmx180mm
Pulse energy	＞200µJ
Repetition rate	20~150KHz
Max marking speed	10,000mm/s
Beam quality	＜1.2 ㎡
Min.line width	0.01mm
Repeat accuracy	±0.003mm
Cooling	Air/Water cooled
Working temp	15~35 ℃
Gross weight	190KG
Size of machine	1000x735x1630mm
Power supply	AC220V±10%,50Hz or AC110V±10%,60Hz

Applicable industries

1. Glass craft: Glass marking can be applied to the packaging of glass bottles in various industries such as wine bottles, seasoning bottles, beverage bottles, etc. It can also be used in the manufacture of glass craft gifts, crystal marking, etc.

2. Laser cutting: UV laser equipment can be used in many fields in the production of flexible boards, including FPC profile cutting, contour cutting, drilling, cover film opening, soft and hard board uncovering and trimming, mobile phone cases Cutting, PCB shape cutting, etc.

3. Plastic marking: The application range includes most general plastics and some engineering plastics, and it can also be used for plastic alloys such as PC/ABS and other materials. The laser marking is clear and bright, and can be marked as lack and white handwriting.

4. Ceramic carving: The application range includes tableware ceramics, vase ceramics, building supplies, ceramic sanitary Engraving and cutting are not easy to damage the device, and the process is precise, which reduces the waste of resources.

Production details

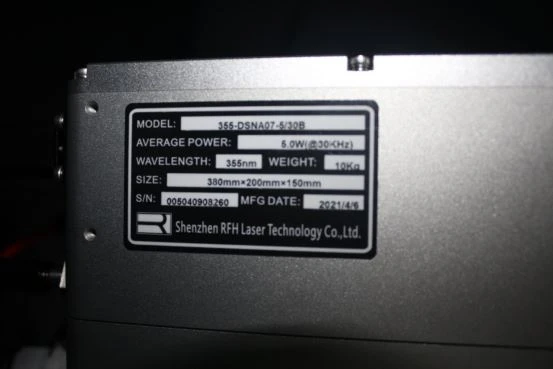

On the fly UV laser marking machine is equipped with big brand lasers, long working hours and good product performance, stable UV laser source.

We use the most stable accessories, produced in accordance with EU standards

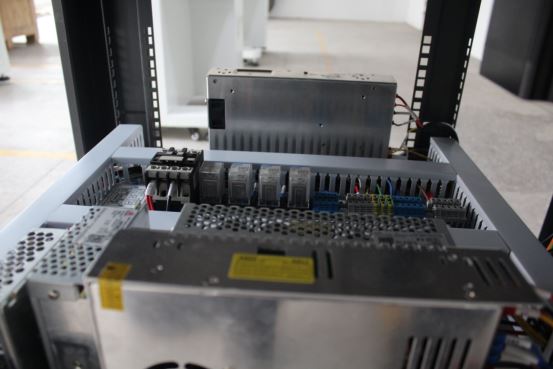

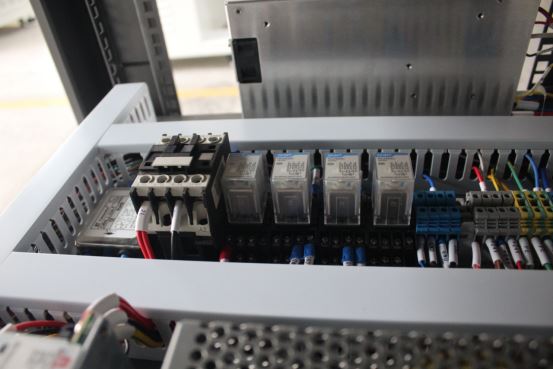

High-quality and stable accessories, stable output current, stable voltage, suitable for use in various harsh environments

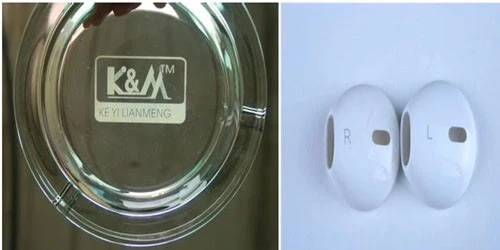

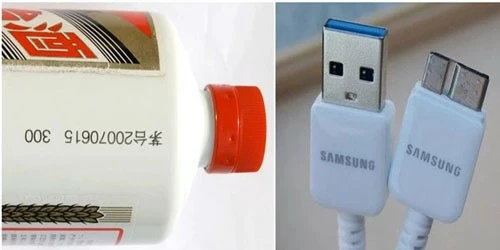

Samples

Shipping and Package

Terms and conditions:

1. VCD training,Easy installation

2. lead time:7-10 working day

3. sea shipping and car shipping

4. TT/western union/ paypal/Ali trade assurance payment

5. 24 hours respond

6. 1 year guarantee

FAQ

Q1: How does the package?

A: Dotslaser provides 3 layers package. For the outside, we adopt wood craft case. In the middle.the machine is covered by foam, to protect the machine from shaking. For the insidelaver, the machine is covered by thickening plastic bag for waterproof.

Q2: Will the package damaged during transportation?

A: Our package is considerate all the damage factors and make it to be safe, and ourshipping agent have full experienced in safe transportation. We have exported to 100 countries worldwide. So please don't worry, you will receive the parcel in good condition.

Q3: How to install and run the machine?

A:Our worker will install all the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine 95% customers can learn by themselves.

Q4: How can i do if the machine goes wrong?

A: lf confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we
can to solve it for you.
