Products Description
A stainless steel laser welding machine is a piece of equipment specifically designed to weld stainless steel materials using laser technology. These machines are used in a variety of industries, such as automotive, aerospace, medical, and manufacturing, where stainless steel components are common.
Advantages
We are looking for a cooperative partner to expand our business
Precision
Laser welding allows for highly precise and clean welds, with accurate control over the heat affected zone. This is beneficial for delicate or intricate stainless steel components
Minimal distortion
Minimal heat input and the localized nature of the laser beam ensures that the surrounding material is not warped or deformed during the welding process.
High welding speed
Laser welding is significantly faster than other welding methods, allowing for increased throughput and efficiency.
Non-contact process
Laser welding machine does not require physical contact between the welding tool and the material, the risk of contamination is reduced. This is especially important for medical or food-grade stainless steel applications.
Automation
Laser welding machines can be easily integrated into automated systems, further increasing efficiency and repeatability.
Key Features
Power
The power of the laser will determine the thickness of material you can effectively weld.Customize your requirements based on material thickness and industry standards.
Speed
Ensure that the machine can fulfill your processing speed requirements without sacrificing weld quality
Beam Quality
A high-quality laser beam will provide cleaner, better-quality welds.
Compatibility
Some machines are tailored for specific material types or industry applications, so ensure the chosen machine is compatible with your unique stainless steel requirements.
Budget
Factor in the initial cost of the machine, ongoing maintenance, and consumables to ensure the investment is feasible for your operation.
Supplier reputation
Choose a reputable supplier with excellent customer support to ensure reliable service, maintenance, and troubleshooting assistance when needed
Superiority
(1) The required amount of heat input can be reduced to the minimum, the metallographic change range of the heat-affected zone is small, and the deformation caused by heat conduction is also the lowest.
(2) The welding process parameters of 32mm plate thickness single pass welding have been verified and qualified, which can reduce the time required for thick plate welding and even save the use of filler metal.
(3) There is no need to use electrodes, and there is no concern about electrode contamination or damage. And because it is not a contact welding process, the wear and deformation of the equipment can be minimized.
(4) The laser beam is easy to focus, align and be guided by optical instruments. It can be placed at an appropriate distance from the workpiece, and Other welding rules are subject to the above-mentioned space limitations.
(5) The workpiece can be placed in a closed space (after vacuuming or the internal gas environment is under control).
(6) The laser beam can be focused on a small area, and small and closely spaced parts can be welded.
(7) There is a wide range of weldable materials, and various heterogeneous materials can also be joined to each other.
(8) It is easy to automate high-speed welding, and it can also be controlled by digital or computer.
(9) When welding thin materials or thin-diameter wires, it will not be as easy to be troubled as arc welding.
(10) It is not affected by the magnetic field (arc welding and electron beam welding are easy), and can accurately align the weldment.
(11) Two metals with different physical properties (such as different resistances) can be welded
(12) No vacuum or X-ray protection is required.
(13) If perforated welding is used, the depth-to-width ratio of the weld bead can reach 10:1
(14) The device can be switched to transmit the laser beam to multiple workstations.
Technical parameters
|
Fiber interface
|
QBH
|
|
Laser wavelength
|
1070±20nm
|
|
Laser power
|
≤3000W
|
|
Intelligent protection function
|
Yes
|
|
Collimated focal length
|
50mm
|
|
Focus focal length
|
150mm
|
|
Spot adjustable range
|
0-5mm
|
|
Effective clear aperture
|
16mm
|
|
Welding head weight
|
0.71kg
|
|
Wire feeder model
|
FWS-01A
|
|
Wire weight
|
max 25kg
|
|
Wire core diameter
|
MAX Ø3.0mm
|
|
Maximum wire feed speed
|
80mm/s
|
|
Motor type
|
Servo Motor
|
|
Reduction ratio
|
1：5
|
|
Gross weight
|
16.2KG
|
|
Working voltage
|
220V(option)
|
|
Dimensions
|
800*700*1200mm(L*W*H)
|
Laser welding of stainless steel allows heat input to the minimum required, which results in a smaller change in the heat-affected zone and minimal distortion due to heat conduction. There is no need to use electrodes, and there is no need to worry about electrode contamination or damage. Laser beams are easily focused, aligned and guided by optics. It can be placed at a suitable distance from the workpiece and can be guided between tools or obstacles around the workpiece.
Samples show

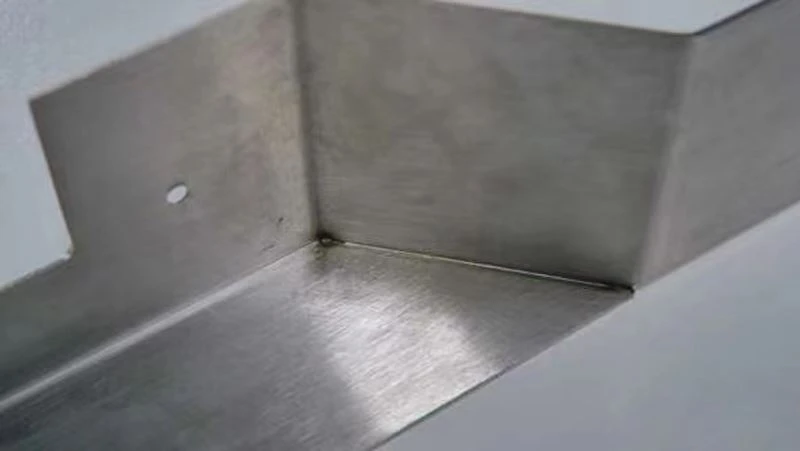

stainless steel inner angle laser welding

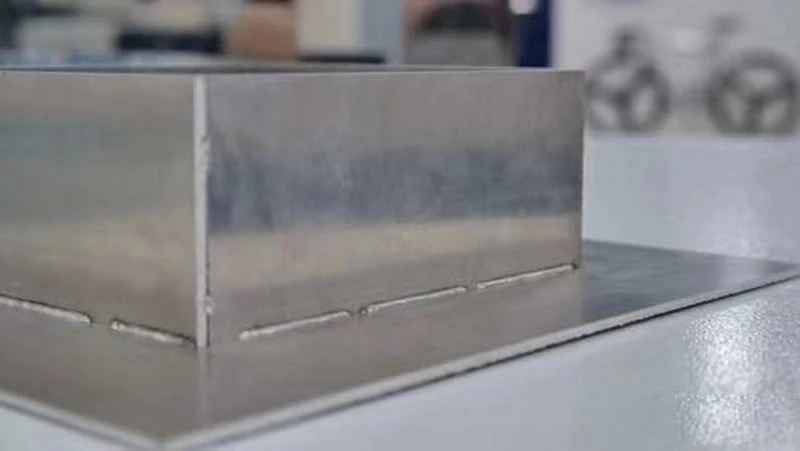

Stainless steel outer angle laser welding

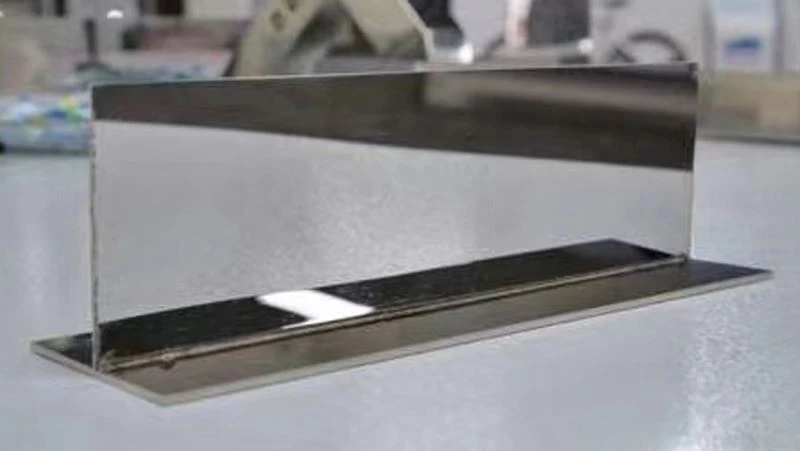

No welding burrs and deformation

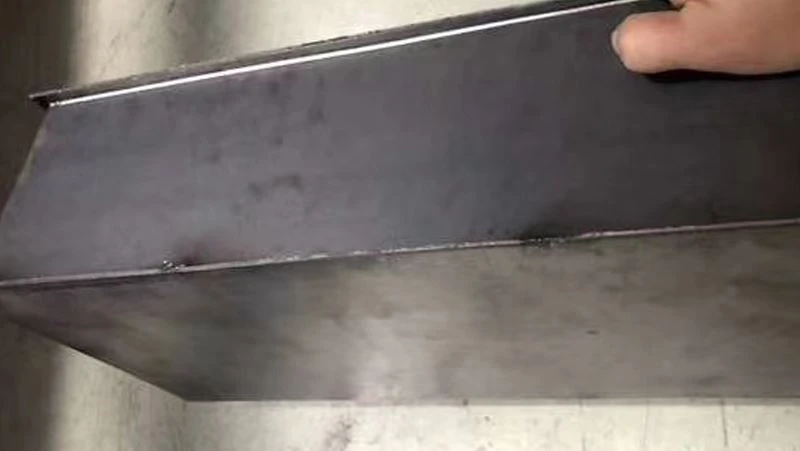

Strong welding
FAQ
Q1: What products your company mainly produce?
Q2: Your company is manufacturer or trading company?
Q3: What information should I provide when I need a quote?
Q4: Can the specifications of the required equipment be customized?
Q5: If I urgently need these laser equipment, how long will it be available?
Shipment and Packaging
Unpacking Caution:
Every marking machine has been rigorously tested at the factory, only qualified product for shipment. When you receive the freight, please check as follows. If you have any questions, please contact the agent or staff at DOTSLASER.
● Whether there is damage or deformation during transport.
● Confirm that all of the items on the packing list are correct.
● Confirm that the model of the product matches the nameplate(Operating voltage and KVA number).
● Make sure that all clamps are tight and that there are no foreign objects in the device.
● Confirm the operation buttons, switches are normal.
