Laser Welding For Coppers
Laser Welding For Coppers
Products Description

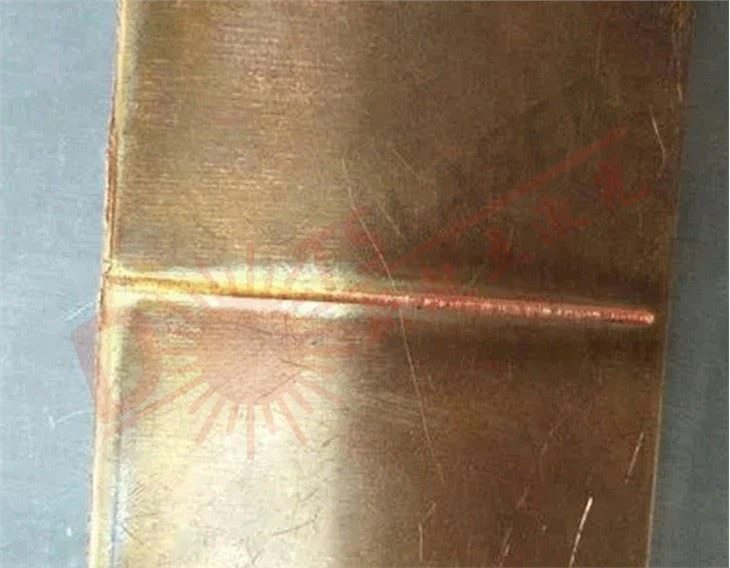

Laser welding for coppers is a technology that uses a high-powered laser beam to join two or more copper materials together. It is a precise and efficient method that offers many benefits, including minimal distortion, high welding speed, and the ability to weld complex shapes and sizes.
Introduction of Laser Welding For Coppers
Copper belongs to highly reflective materials, in the copper products related to the processing industry, the copper parts for welding operations, our welding machine can ensure the solidity of the weld,and ensure that the appearance of the weld smooth and flat will not affect the aesthetics.
Copper can be divided into oxygen-free copper and pure copper containing a small amount of oxygen. Pure copper has good electrical conductivity and is commonly used as a conductive material.Oxygen-free copper is often used for welding structures due to its good solderability.
The main cause of penetration cracking in the near seam zone of copper and copper alloys when copper and copper alloys are overlaid on steel surfaces is the combined effect of penetration of liquid copper into the steel and tensile stresses.
Copper is a very good conductive material, can use in many applications,such as motors, switches, printed circuit boards, capacitors, electric power, cables, communication devices, telecommunication base stations, etc. Copper has very good thermal conductivity,widely used in heat exchangers, refrigeration equipment, home appliances, pipes, etc.
copper has many applications in the battery industry, especially in recent years, battery packaging, power battery cells gradually adopted laser welding technology. Copper is most widely used in the electrical and electronic industry, the largest amount, accounting for more than half of the total consumption
Features and advantages
1.Fast welding speed, 2~10 times faster than traditional welding
2.Easy operating, training and maintenance
3.Welding seam smooth and beautiful, no need polishing, save your time
4.No deformation or welding scar, firm welding of the workpiece
5.Laser welding has less consumables and long service life
6.Safer, more environmentally friendly
7.It can weld cylindrical, square, triangular, spherical and other irregular objects perfectly.It can weld any point, straight line, circle, elliptical machine square and other arbitrary trajectories
8.High production efficiency,fast welding speed and automatic mass production
9.Multi-axis with auto focus and rotation function,it is smart to weld products of any shape in 3D space
10.CNC automatic control to make sure welding area uniformly
11.The X, Y, Z, and D axis of the workpiece to be welded are step-driven to meet the needs of large travel
12.CCD image monitoring ensures the stability of welding quality
13.The laser head is not in contact with the workpiece, and there is no problem of wear of processing tools
14.The workpiece is not stressed and is not easy to be polluted
15.It can process the moving workpiece or the material sealed in the glass shell
16.Rate laser's continuous output power can reach 1kW to 10KW, the laser is suitable for both precision microfabrication and large material processing
17.The laser beam is easy to control, and it is easy to combine with precision machinery, precision measurement technology and electronic computer to realize high automation of processing.And achieve high processing accuracy
18. Robots can be used for laser processing in harsh environments or places that are difficult for operators to access
- Parameters
|
Model |
DS-LW1000 |
DS-LW1500 |
DS-LW2000 |
DS-LW3000 |
|
Laser power output |
1000W |
1500W |
2000W |
3000W |
|
Laser wavelength |
1070±5nm |
|||
|
Laser type |
Fiber |
|||
|
Marking area |
400mmx600mmx300mm |
|||
|
Pulse frequency |
1~2KHZ |
|||
|
Beam quality |
1.1mm |
|||
|
Adjust power range |
5-95% |
|||
|
Output fiber length |
5/10/15m (Optional) |
|||
|
Weight |
200KG |
|||
|
Cooling |
Air cooled |
|||
|
Working temp |
10~35 ℃ |
|||
|
Humidity range |
< 70% No condensation |
|||
|
Power supply |
AC220V±10%,50Hz or AC110V±10%,60Hz |
|||
Main configurations show
Shipment and Package
Why choose us?
- Our Laser Welding Machines are manufactured using the latest technology and the highest quality materials.
- After years of careful operation, the Laser Welding For Coppers currently distributed by our company is favored by users at home and abroad, and has also obtained good economic and social benefits.
- Our Laser Welding Machines are designed to improve productivity and efficiency in the workplace, ultimately leading to increased profits.
- Our company has a complete set of international quality management system, we are willing to continuously improve our own technology, quality management level, and strive to continue to provide excellent quality products and perfect service for new and old customers around the world.
- We offer training and after-sales support to our customers to ensure they get the most out of our Laser Welding Machines.
- The clear strategic goal points out the direction for the development of the enterprise, and is the prerequisite and foundation for improving the operation and management of the enterprise.
- Our Laser Welding Machines have undergone rigorous testing to ensure they meet international quality and safety standards.
- We always adhere to the concept of 'quality is the foundation of the enterprise, integrity is the foundation of life'.
- We are a reliable and trusted supplier of Laser Welding Machines to businesses and customers worldwide.
- We care about your needs, we pay attention to the quality of products, your satisfaction is our pursuit, quality and integrity is our goal.
