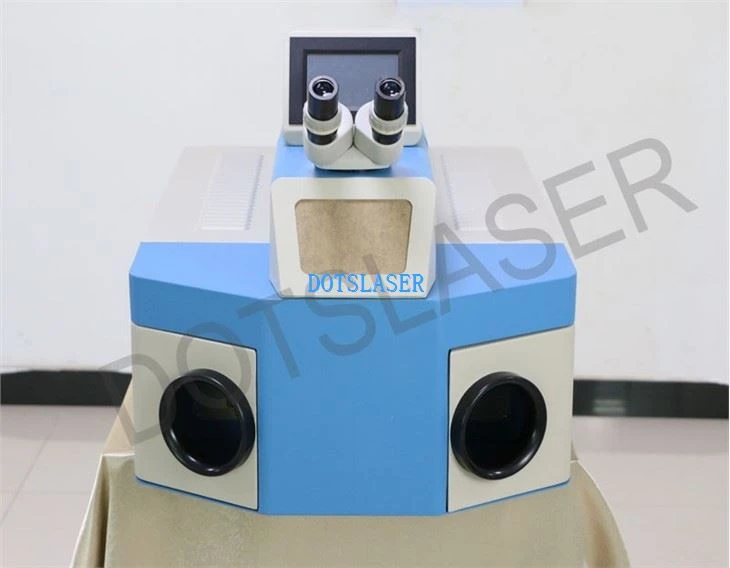

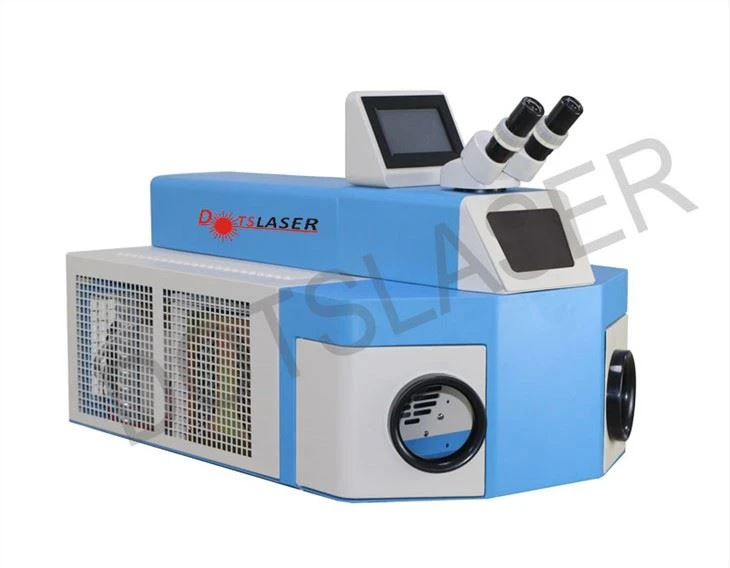

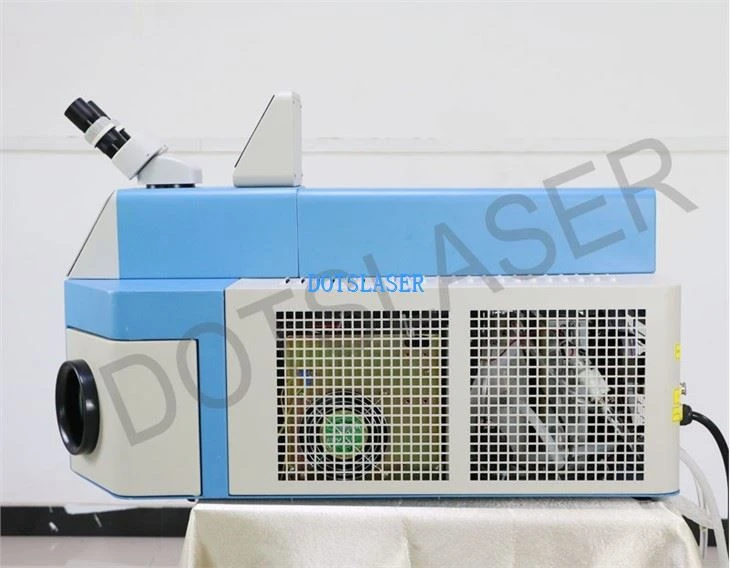

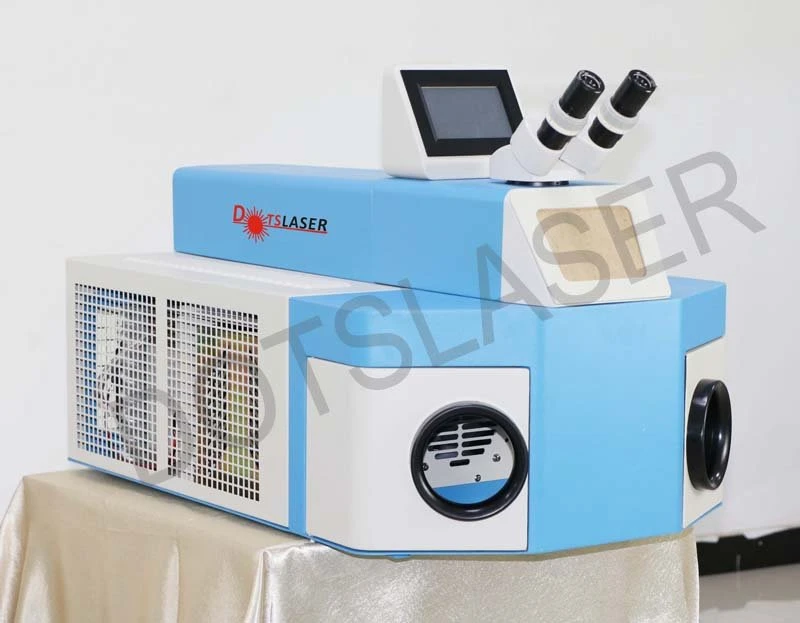

Table Type Jewelry Laser Welder

Table Type Jewelry Laser Welder

The Table Type Jewelry Laser Welder is an innovation in the field of jewelry-making. It owns higher precise to weld for various types of metals, including gold, silver, and platinum. Our products provide jewelers with a fast and efficient way of repairing or modifying jewelry pieces. The laser technology used in this welder ensures that the jewelry pieces are not affected by excessive heat or pressure that is common in traditional welding methods.

Product strengths

 Specialized in precision welding

Table Type Jewelry Laser Welder of jewelry, watches, and other small metalwork. Our machine is designed to deliver exceptional precision, efficiency, and reliability, ensuring that your jewelry-making process is streamline and productive

 Best for small and intricate welding applications

Table Type Jewelry Laser Welder is perfect for the repair of watches, fine jewelry, and other precision metalwork. The machine's advanced features also make it ideal for welding delicate and fragile pieces without causing damage or deformation.

 Higher precision and lower heat input

Its advanced features and intuitive controls make it easy to use, even for novice operators. The machine is equipped with a powerful laser beam that provides a high level of precision, speed, and control

 Unique and safe

Wide range of adjustable power and pulse settings, operators can customize their welding process to meet their specific needs. High-frequency vibration mode, the Table Type Jewelry Laser Welder ensures that the metalwork remains stable and secure during the welding process, even for small and intricate parts.

Features and advantages



 1. Imported ceramic concentrator cavity, high reflectivity, strong energy, high temperature resistance, corrosion resistance, long service life.



 2. Ergonomic design.The products are fine, beautiful, and stable in performance, suitable for long-term continuous work.



 3. Large internal space,which is convenient for the placement of laser spot welding tools and fixtures; a welding dust recovery box is installed, which is convenient for cleaning and gold welding slag recovery.



 4. High magnification beam expander system to obtain finer spots and meet the needs of fine laser spot welding.

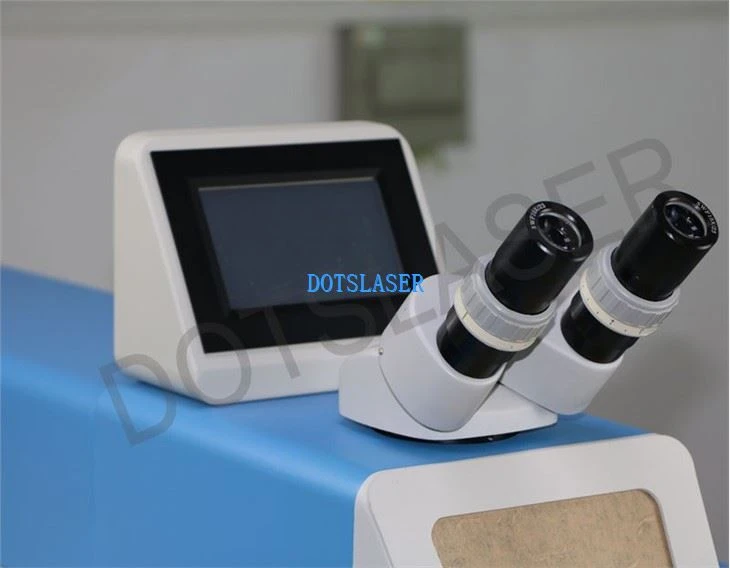

 5. LED ring shadowless lamp, observe the workpiece without shadow, with high-definition stereo parallel light path microscope, the laser welding position can be observed more clearly.



Applicable materials



• Gold, Silver, Platinum, Copper, Brass, Stainless steel, Alloy, steel, Carbon, Aluminum



Applicable industries

• Rings
• Earrings
• Bracelets
• Necklaces
• Tie clips
• Cuffs



Parameters of table type jewelry laser welder



Model	DS-LW150
Max laser power	150W
Wavelength	1064nm
Laser frequency	1-20Hz
Pulse width	0.1-10Ms
Spot adjustment range	0.2-2mm
Positioning	Microscope and red light (optional camera system)
Cooling type	Air cooling
Power consumption	5KW
Power supply	380V±5V 50Hz/60A /220V±5V 50Hz/40A
Dimension	94*61*70cm
Weight	95kg

know About Laser welding

 Laser welding is a new and leading technology to process various material. Jewelry laser welding is mainly used for welding thin-walled materials and precision parts.

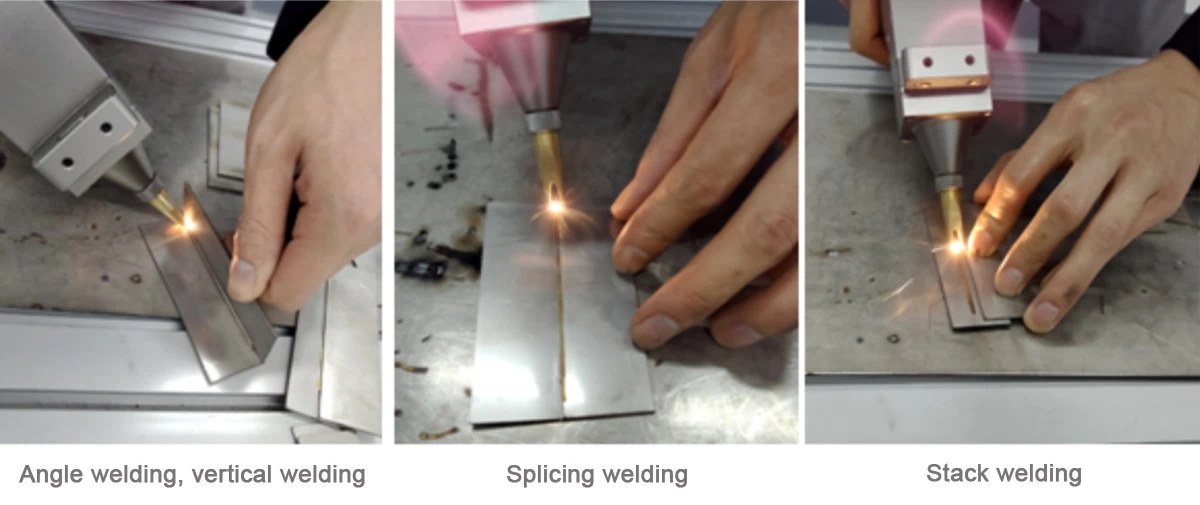

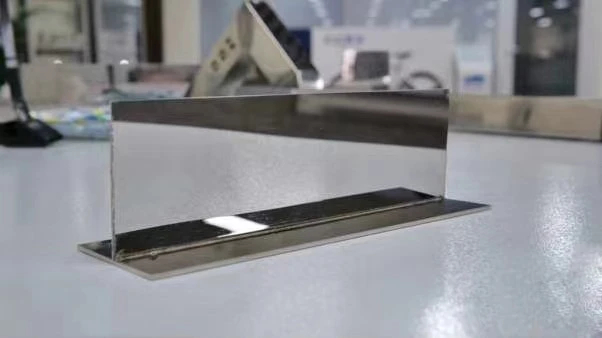

 The electricity energy become heat energy and fire onto the surface of the workpieces, lead to the surface of workpiece melted, by setting suitable paramters, such as adjust pulse width, frequency,power. It can process workpieces with various welding method, such as spot welding, stitch welding, sealing welding,butt welding. so as to get a perfect welding result---beautiful and smooth welding seam, because it has very low heat affected field. and very small deformation of workpieces.



Working environment requirements

1) Temperature: 5℃~35℃;

2) Humidity requirements: 40%~80%, no condensation;

3) Power grid fluctuation: < 5%, in areas where the power supply grid voltage fluctuates more than 5%, automatic voltage stabilization and current stabilization devices should be installed.;

4) Foundation amplitude: <50um, vibration acceleration: <0.05g. Avoid large presses and other machine tools nearby;

5) Air pressure requirements：86kpa~106kpa;

6) There should be no strong electromagnetic signal interference near the equipment installation, and there should be no radio transmitting stations (or relay stations) around.;

7) The working space of the equipment should be smoke-free and dust-free, and avoid placing it in a dusty environment such as metal polishing and grinding.;

8) In some environments, electrostatic shielding measures such as installing anti-static floors and grounding equipment shells should be taken;

9) When the ambient temperature drops below 0°C, the circulating cooling water in the equipment will freeze, and the equipment may be damaged; when the equipment is out of use, the internal circulating cooling water must be drained, and the inside of the equipment should be free of ice during use.;

10) When the temperature changes rapidly, condensation will form on the end face of the YAG crystal and the optical lens, resulting in smudges and fog spots. Be sure to prevent sudden changes in ambient temperature. If unavoidable, use the device only after ensuring that there is no condensation.
