Mould Fiber Laser Welding Machine
Mould Fiber Laser Welding Machine
Products Description
Mould fiber laser welding machine is a revolutionary product in the field of welding technology. It utilizes advanced laser technology to provide high-quality and precision welding for various moulds.Mould Fiber Laser welding machine is the current advanced welding equipment. It is a special welding laser equipment specially designed for the mold industry. It is used to repair precision molds and repair errors caused by product manufacturin.With its compact structure and user-friendly interface, it is a versatile tool for welding different materials like stainless steel, aluminum, and brass.
Advantages of Mould Fiber Laser welding machine
| 1. After the laser passes through the optical fiber, the spot becomes more uniform and stable, which improves the quality of the weld. After the laser beam is focused, a small ,The light spot has high power density and can be accurately positioned. It is specially optimized for mold repair, with stronger pertinence and better effect. |
| 2. Adopt advanced automatic shading system eliminates the stimulation of the laser on the eyes of the staff while working. |
| 3. CCD camera system with microscope and moving X axis for high position welding . |

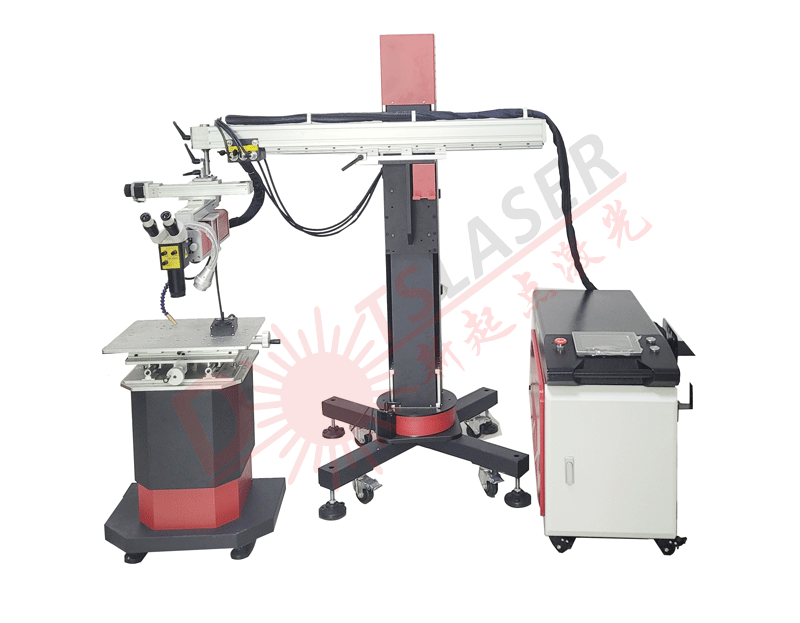

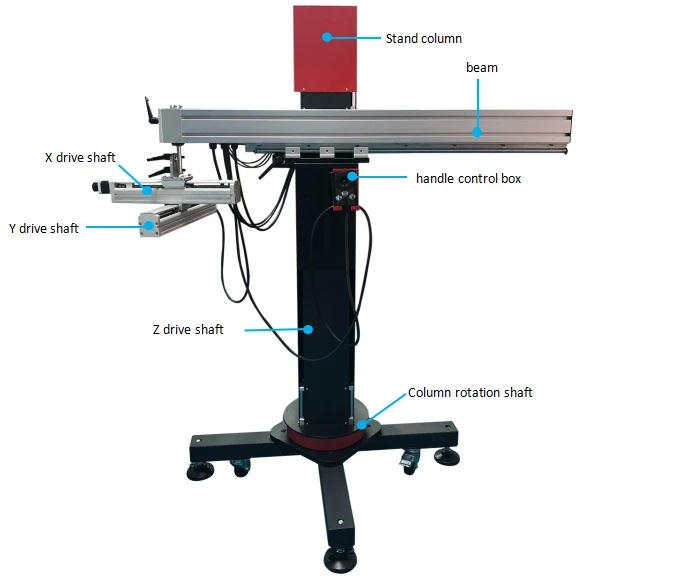

| 4. The three-dimensional boom can help you solve the problem of large mold repair without moving the mold, and the joystick controls the translation stage (200mm×300mm Automatic translation stage) movement. It is easy to realize laser repair of large molds and super large molds with sharp tools, long life and high precision; |
|
5. High precision marking, swift, engraving depth controllable. |
| 6. The worktable can be motorized or manually. |
| 7. The spot size has been specifically adjusted independently. |
Applications
|
Mould Fiber Laser welding machine is used in various 3C electronic digital products, mobile phones, toys, automobiles, motorcycles and other mold manufacturing and molding industries. |
| The use of laser welding wire to repair the mold can reuse the used mold again, which greatly saves the production cost of the mold and improves the work efficiency. |
| Mould Fiber Laser welding machinetechnology can also be applied to modify and make up the production design or size of the mold, shorten the production cycle and time of mold product development. |
It is suitable for repairing and welding of precision mechanical devices, welding of various metal structural parts and gold and silver jewelry.
Parameters
|
NO. |
Name |
Mould Laser Welding Machine |
|
1 |
Machine model |
DS-1500 |
|
2 |
Laser power |
1500W |
|
3 |
Laser wavelength |
1080±10nm |
|
4 |
Pulse width |
1-100ms |
|
5 |
Laser frequency |
1-1000Hz |
|
6 |
Spot size adjustable range |
0.3-2mm |
|
7 |
Cooling system |
Water cooling |
|
8 |
Worktable travel |
200x300mm |
|
9 |
Rated power consumption |
7KW |
|
10 |
Laser model |
CW |
|
11 |
Power range |
0-100% |
|
12 |
Observation system |
Microscope (rotatable 360 degree) or display |
|
13 |
Protective gas |
Argon |
|
14 |
Fiber cable length |
8m |
|
15 |
Power supply |
Standard three-phase 220v ± 5% /50Hz/20A; |
| 16 | Cooling method | Water cooling (dual temperature and dual control) |
| 17 | Rated power | 5.6 KW |
| 18 | Welding depth | ≤3.0 mm(depends on material) |
| 19 | Fiber Core Diameter | 50 μm |
| 20 | Power supply | Power supply |

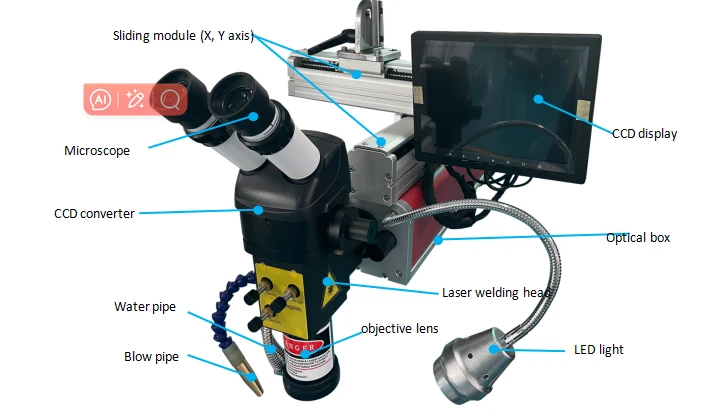

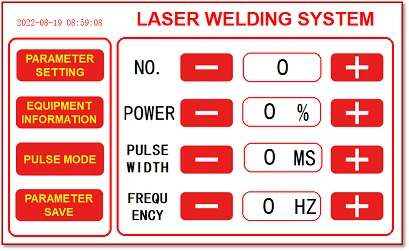

product key technologies
Microscope: high-definition observation window, high-precision welding products.
Objective lens: laser focusing.
Laser welding head: laser conversion component, adjust the position of laser light.
Blow pipe: protective gas output port.
Sliding module: drive the laser head to move forward, backward, left and right (electric).
LED light：Light source for microscope.
Optical box：Placing fiber optic cables and other power cables.
Water pipe：Objective cold water circulation system.
CCD converter：Conversion of CCD screen display.
CCD display：Welding display window.
The mould fiber laser welding machine is built with an advanced laser generator that is highly efficient and energy-saving. It consumes less energy while providing consistent and stable welding results. It also has a low maintenance cost compared to traditional welding machines, saving you time and money in the long run.
Warranty and After-Sale
a. Warranty
One year for laser source,one year for other accessories,such as galvo head,lens,control board,power supply,consumable parts are not in warranty,such as keyboard and mouse.
DOTSLASER promises to maintain products which are produced and sent according to a formal contract,and guarantees every repaired machine will function good if used properly.
DOTSLASER has the rights to repair or replace a product in warranty period if it has a material or technical problem. We will charge for the maintenance under normal circumstances. It will be free if the machine has special problems.
b. Warranty Scope
DOTSLASER will not provide free warranty service in following cases:product or parts are damaged because of modification ,dismantlement ,improvement without permission ;product or parts are damaged because of emergency or negligence;product or parts are damaged because of lack of preservation ……customers have the responsibility to learn the directions on the user guide and operate the machine properly. Damages resulted in abnormal operation will not get warranty services. Accessories are not in warranty.
Customers should make a written request in 30 days as soon as they found a problem which is in the warranty range , no third party should be involved in the maintain process and products or part that are not produced by DOTSLASER should also not be included.
c. Technical Support and Product Maintenance
Contact with Dotslaser's engineer whatever problems occur when using,and make a troubleshooting under engineer's direction.
All products waiting for repair or replacement should be placed in cases DOTSLASER provides,otherwise DOTSLASER will charge for the damage it may cause.
When customers receive DOTSLASER`s products, please check if the product is damaged and whether accessories is complete or not.
DOTSLASER keeps on developing new products, information and parameters in this file may change. All technical parameters are subject to the contract.
Warranty and after-sale clauses above are for reference only ,and are subject to the formal contrast.
