Pipe Laser Welding Machine
pipe laser welding machine
Products Description

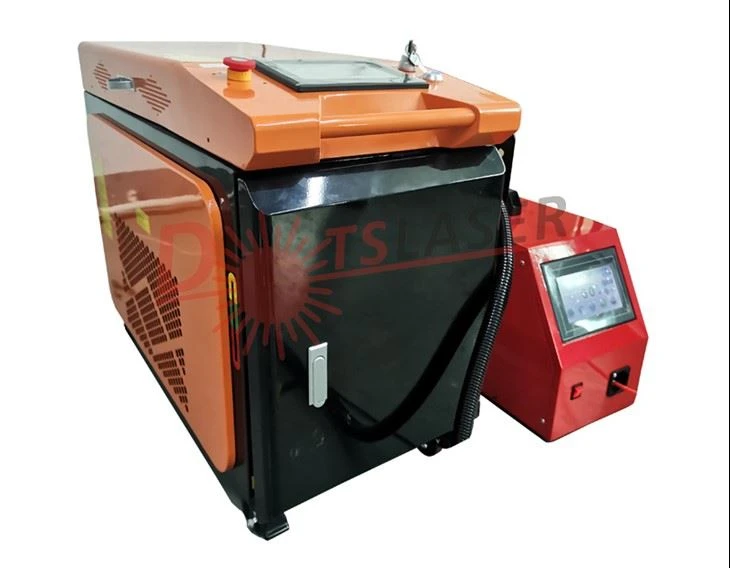

Pipe laser welding machine is an advanced technology in the field of welding. It is a process that uses a high-intensity laser beam to form a strong and precise weld between two pipes. This machine has gained popularity over the years due to its accuracy, efficiency, and versatility.
Video
Hand-held welding machine features
The welding head of the handheld pipe laser welding machine replaces the traditional fixed optical path, which is more flexible and convenient, realizes long-distance laser welding, and overcomes the limitation of the travel space of the workbench;
The hand-held welding head is light and flexible, easy to operate, and can meet the welding requirements of various angles and positions.
It can weld the workpiece to the required position, which is sensitive and convenient. It can complete outdoor welding, suitable for all kinds of messy welding and spot welding equipment.
The hand-held welding head is equipped with 5m imported optical fiber, which is flexible and convenient for outdoor welding.
The workpiece can be welded at any angle, the dual optical paths can be switched intelligently, and the energy is evenly distributed in time.
The handheld laser welding machine adopts infrared positioning to verify and check the position of the welding head during welding. The welding position is more accurate, and the welding seam is more beautiful.
Our advantage
precise and accurate
The laser beam provides a highly focused heat source that melts only the targeted area, resulting in a strong and consistent weld.
efficient
The laser beam can quickly heat and cool the metal, resulting in a fast welding process.
easy to operate
The machine is designed to be user-friendly and comes with easy-to-follow instructions.
Low maintenance cost
No finishing welding station is required, low material, low energy consumption, low equipment deployment and maintenance costs
Main parameters and configurations
| Model | DS-LW1000/DS-LW1500/DS-LW2000/DS-LW3000 |
| Laser Power | 1000W/1500W/2000W/3000W |
| Wavelength | 1080nm |
| Welding penetration | 0.5~5mm |
| Spot size | 0.2~1.8mm |
| Welding material | carbon steel, stainless steel,galvanized sheet,aluminum,copper,brass,aluminum alloy,iron.. |
| Laser source | MAX/Raycus/JPT/IPG |
| Optical fiber cable | 10meter |
| Total powe | 5KW |
| Power supply | 220V/380V, 50/60HZ |
Why Choose Us?
Professional
The operation of the handheld laser welding machine is very simple and flexible, does not require professional training, and does not require high requirements for operators. Ordinary workers are fine. One machine can save two welders a year, this advantage is favored by many small and medium users.
It can complete the welding requirements that traditional welding machines cannot complete. The workpiece is not deformed, the weld seam is beautiful and firm, and the weldable depth is large. The laser power is sufficient to penetrate 0.4 to 5.5mm of material.
The working efficiency is 5-10 times that of ordinary argon arc welding. Welding and cutting can be switched freely, and wire feeding and non-wire feeding can be switched freely. The welding process and post-weld treatment do not require consumables, greatly improving productivity. Laser life is 100,000 hours
All-season hotel restaurant project
view more
All-season hotel restaurant project
view moreAll-season hotel restaurant projectview moreAll-eason hotel restaurant project
view mor
Which industry is the handheld welding machine suitable for?
Our free service hotline:+86-15920503408
The hand-held laser welding machine is suitable for all light industrial processing. It is suitable for common metal sheets, such as copper, iron, aluminum, stainless steel, etc. Doors, windows, cabinets, and kitchen utensils need to be welded quickly and reliably, which can effectively reduce labor costs. and processing procedures, saving time and cost.
How thick can the hand-held pipe laser welding machine weld?
Hand-held laser welding machine is a kind of local heating material in a small area by high-energy laser pulse, the energy of laser radiation is transmitted to the inside of the material through heat, so that the material is melted to form a specific molten pool
The thickness of different welding machines with different power is inconsistent.
The penetration depth of the handheld laser welding machine is 0.4mm-5.5mm
It is widely used in light industry. This thickness generally needs to be welded by argon arc welding. The effect of laser welding is not worse than that of argon arc welding. An excellent laser welding machine can weld 1-2 meters within one minute. Under the welding effect, laser welding is obviously more advantageous, because the wages of professional welders alone are already a very high labor cost.
1000 watts can reach single-sided penetration 2.5mm
1500 watts can reach 3.5mm penetration on one side
2000 watts can accept single side penetration 4.5mm
3000 watts can accept single side penetration 5.5mm
