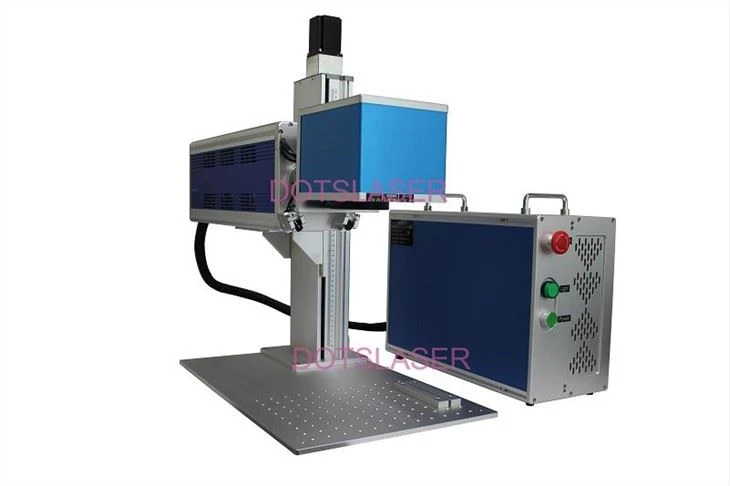

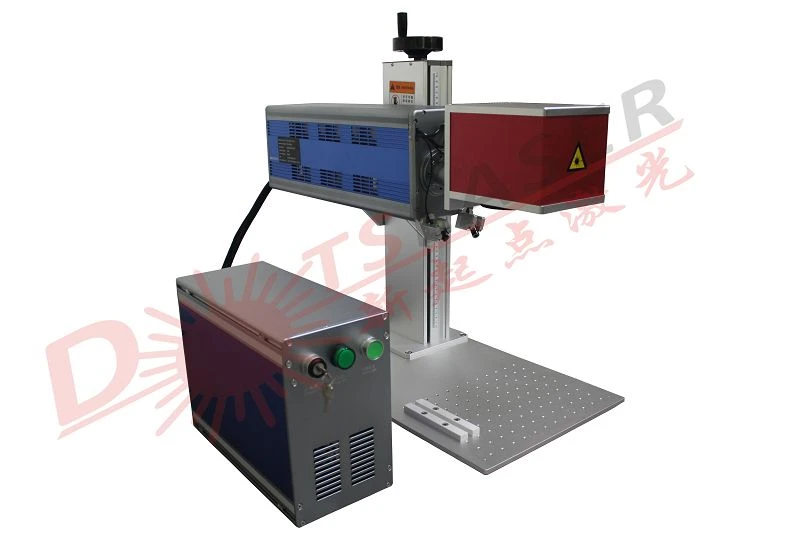

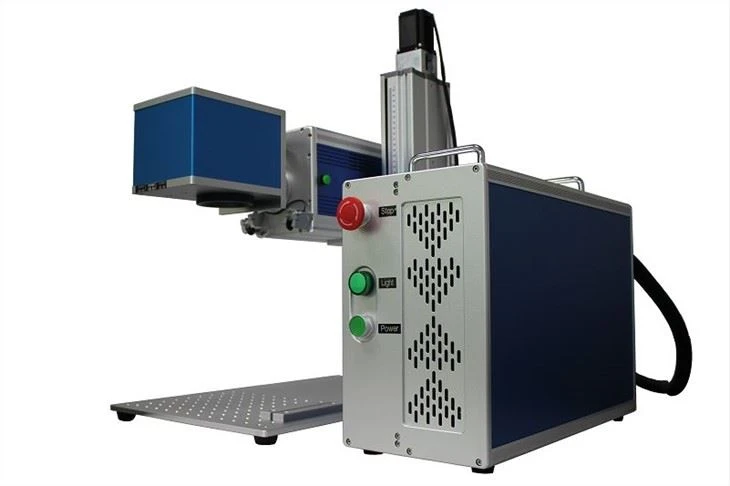

2D CO₂ Laser Marking Machine
2D CO₂ Laser Marking Machine
Products Description
2D CO₂ laser marking machine is a type of laser engraver that uses a carbon dioxide (CO₂) laser as its source for marking and engraving various materials. CO₂ lasers are widely used due to their versatility and ability to process a wide range of materials like wood, acrylic, glass, paper, leather, rubber, fabric, and some plastics.
A 2D CO₂ laser marking machine works by directing focused light onto the material's surface, which results in a precise, high-contrast marking. This technique can be used for both functional marking (e.g., barcodes, QR codes, serialization) and aesthetic purposes (e.g., logos, artistic designs).
Key features of 2D CO₂ laser marking machines
High precision
CO₂ lasers allow for intricate, detailed marking on various materials with high accuracy and repeatability, ensuring consistent results.
Speed
The laser marking process is quick, allowing for efficient processing and increased productivity.
Material versatility
CO₂ lasers can work with a wide range of materials, making them suitable for many applications and industries.
Software compatibility
Laser marking machines typically come with software that is compatible with various design formats, enabling users to create designs and control the marking parameters.
|
Applicable materials: Non-metallic materials, leather, artificial leather, wood, bamboo, clothing accessories, cardboard, rubber.
Applicable industries: 2D CO₂ Laser Marking Machine is used in Craft gifts, furniture, leather clothing, advertising signs, model making, food packaging, electronic components, medical packaging, printing plate making, shell nameplates, etc. |
Parameters
|
Model |
DS-LMC30 |
DS-LMC60 |
|
Laser power output |
>30W |
>60W |
|
laser wavelength |
10640±10 nm |
|
|
Marking area |
100x100mm(standard)/175x175mm/200x200mm/300x300mm |
|
|
Pulse frequency |
1~100KHZ |
|
|
Max marking speed |
8000mm/s |
|
|
Repeat accuracy |
±0.001mm |
|
|
Min.line width |
0.1mm |
|
|
Min.character size |
0.2mm |
|
|
Cooling |
Air |
|
|
Working temp |
5~35 ℃ |
|
|
Humidity range |
< 70% No condensation |
|
|
Gross weight |
65KG |
|
|
Power supply |
AC220V±10%, 50Hz or AC110V±10%,60Hz |
|
| Control Software | EZCAD | |
| Machinery Test Report | Provided | |
| Warranty | 1 year | |
| Video outgoing-inspection | Provided | |
| Core Components | Laser source | |
We are always at your service when you need
When selecting a 2D CO₂ laser marking machine, consider features such as laser power, marking area size, system integration, ease of use, and software compatibility. Higher laser power allows for faster marking and cutting, while a larger marking area offers more flexibility for working with various material sizes.
2D CO₂ Laser Marking Machine outputs laser beam to make permanent marks on the surface of various materials. The effect of marking is to expose deep material through the evaporation of surface material, thereby engraving exquisite patterns, trademarks, dates, LOGO or text. At present, CO₂ laser marking machines are mainly used in some occasions that require finer and higher precision. It can meet most of the application requirements in terms of performance and positioning accuracy, and ensure the long-term stability of the system.
What is the difference between 2D and 3D laser?
2D laser scanners are well-suited for measuring the length and width of objects, making them perfect for surface inspection, but 3D lasers provide more detailed information about the object's geometrical properties. Accuracy and resolution.
Samples
Shipping and Package
FAQ
Q1: I know nothing about 2D CO₂ laser marking machine?
A: We are laser supplier, We will help you choose the suitable machine and make the solution for you ; you can show us what material will you marking / engraving and the depth of MARKING/ ENGRAVING.
Q2: When i got the 2D CO₂ laser marking machine, i do not know how to use it, could you help me ?
A: We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
Q3: What's consumables of 2D CO₂ laser marking machine?
A: It does not have consumable. It's very economical and cost effective.
Q4: How many days for production?
A: Commonly, the lead time is within 5 working days after receiving the payment.
