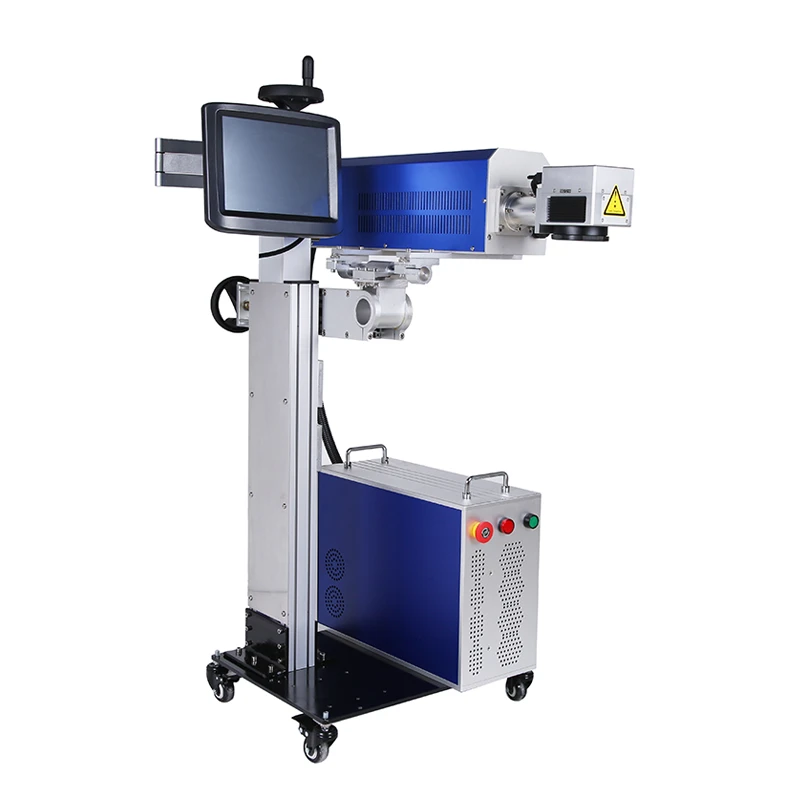

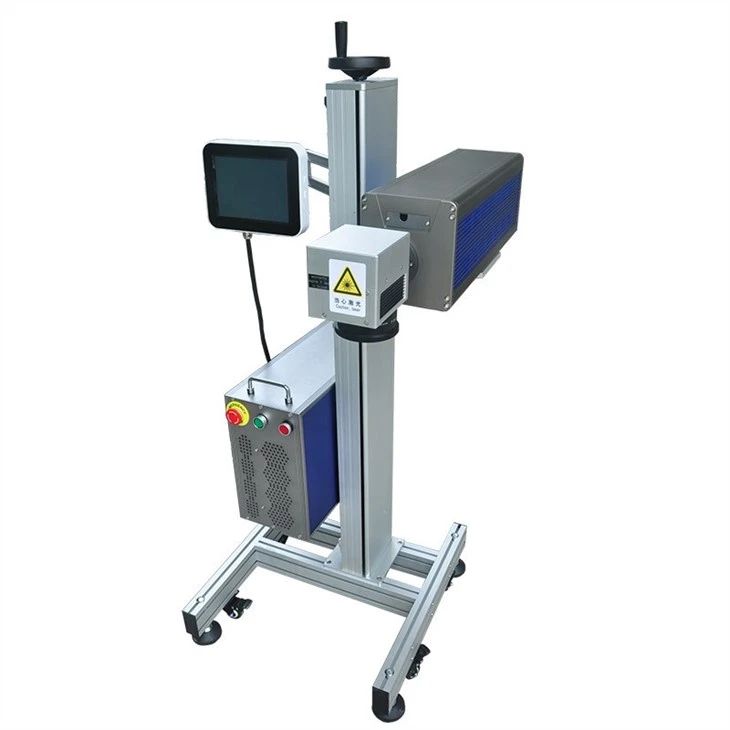

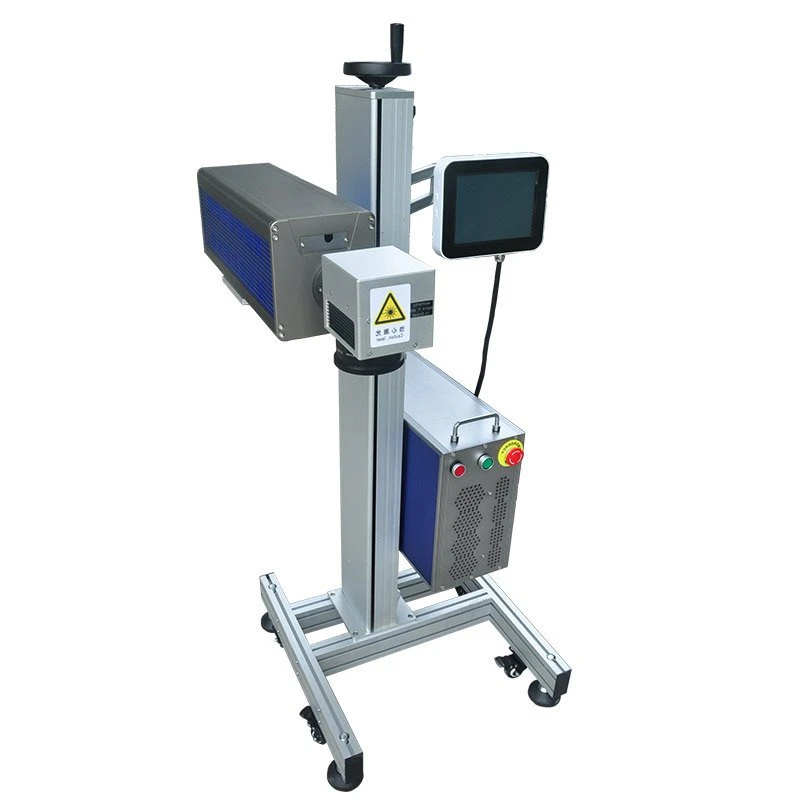

On The Fly CO₂ Laser Marking Machine
On The Fly CO₂ Laser Marker
Products Description
The cutting-edge on the fly CO₂ laser marking machine possesses advanced encoding capabilities, encompassing a wide range of characters such as numbers, special characters, letters, Chinese characters, and even logos. This versatile tool can generate continuous and multiple total array codes, which can be easily customized as needed. Additionally, it comes equipped with a specialized encoder for real-time speed feedback. Various optical fiber sensors are also included for precise detection in different applications. This technology is ideal for laser marking, engraving, and cutting, making it a valuable asset for various industries.
Fly CO₂ engraver Features
On The Fly CO₂ engraver is non-contact processing, which can engrave exquisite marks on any regular or irregular surface. Paper, plastic, ceramics, glass, leather and other materials of different types or different hardness can all be marked with pictures and texts, which has a wide range of applications.
The marking speed is fast, because it is a one-time marking, less consumables, and low operating cost. It can be integrated with other equipment on the production line to improve the automation of the production line. The marks it handles are clear, permanent, indelible, beautiful, and effective in anti-counterfeiting. With reliable quality, it has long service life and no pollution.
Configuration
|
Model |
DS-LMC30 |
DS-LMC60 |
|
Laser power output |
>30W |
>60W |
|
Laser wavelength |
9.3μm/10.6μm |
|
|
Marking area |
100x100mm(standard) |
|
|
Pulse frequency |
1~100KHZ |
|
|
Max marking speed |
12,000mm/s |
|
|
Font format |
Dot,single line,True type |
|
|
Code format |
Most 1D & 2D codes available |
|
|
Supported interface |
USB, TCP/IP, RS219 for encoder and sensor |
|
|
Repeat accuracy |
±0.001mm |
|
|
Min.line width |
0.1mm |
|
|
Min.character size |
0.2mm |
|
|
Cooling |
Air cooled |
|
|
Working temp |
5~35 ℃ |
|
|
Gross weight |
90KG |
|
|
Power supply |
AC220V±10%, 50Hz or AC110V±10%,60Hz |
|
|
Application: On The Fly CO₂ Laser Marking Machine is used on various non-metallic materials and product surfaces, such as glass, ceramics, plastics, synthetic materials, wood, rubber, leather, and paper products. It can process a variety of items, including capacitor printed circuit boards, integrated circuits, electrical plug-in cards, various instruments, laser markings on control panels, marking buttons, cosmetic packaging, food packaging, tobacco and alcohol, stationery, handicrafts, etc. |

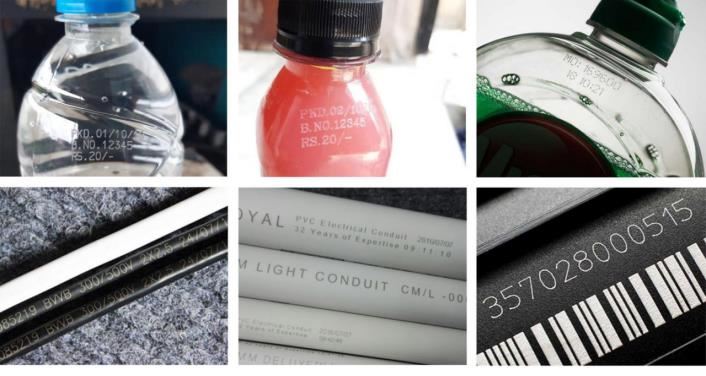

Samples
Package

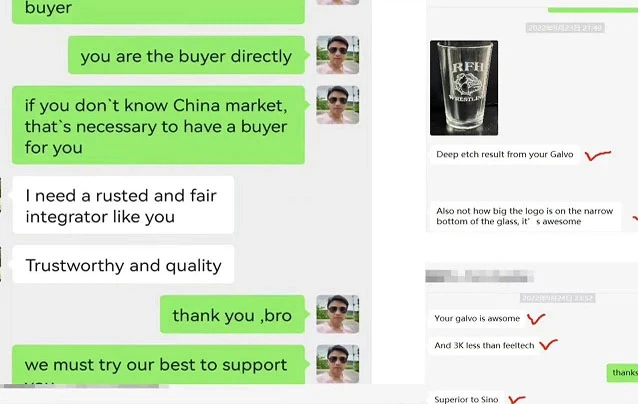

Customer's feedback
FAQ
1.How to match the speed with the laser?
A: The normal fly speed is above 80m-100m, 10 single-line characters.
2.If we have our own line, can laser match?
A: Yes, it can, we have the encoder and the sensor which can read the line speed and gear rate for line.
3.How the laser fly working?
A: The laser system is controlled by touch screen, and you just type in the logo, data or serial number and match the fly speed then it will work good.
