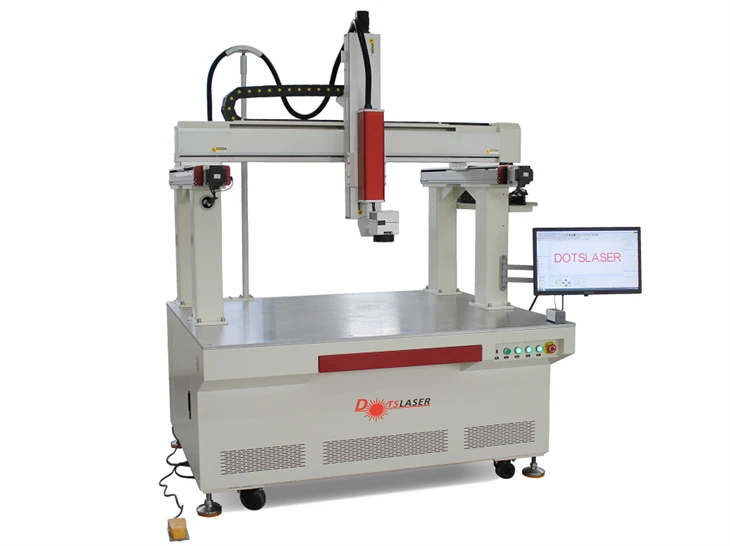

4 Axis Automatic Fiber Laser Marker
Four Axis Automatic Fiber Laser Marker
Products Description
Four Axis Automatic Fiber Laser Marker is a significant development in the field of laser marking technology. This advanced machine is very suitable for marking on large format materials with high precision and efficiency. With its superior performance and versatility, businesses can now easily imprint customized logos, brand names, and product information on a variety of surfaces.
Products Features
| 1. Four-axis automatic fiber laser marking machine is one of the leading products widely used in the market with advanced functions, large format and high cost performance produced by DOTSLASER. | ||||
| 2.The use of four-axis linkage control system, the platform servo X, Y axis and galvanometer X, Y axis collaborative control on working, large platform can mark more objectives. | ||||
| 3. Four-axis linkage control system can realize the large-format map file while walking, and the axial movement and the vibration mirror processing can be carried out at the same time, which can not only achieve accurate position control and speed control, but also ensure the stability and accuracy in the marking process; | ||||
| 4. Intelligent linkage control, intelligent uniform speed marking, more comprehensive CAM software, so that the machine through simple debugging can achieve the height of complex graphics marking. | ||||
| 5.Marking speed: high-speed galvanometer scanning can reach maximum 7000mm/s marking,it's suitable for industrial mass production. |
Application
Widely used in paint surface removal, coating layer removal, frosted surface marking, graphic line marking, intelligent mirror, glass technology, decorative painting technology, elevator pattern, advertising industry, large format pattern and other fields

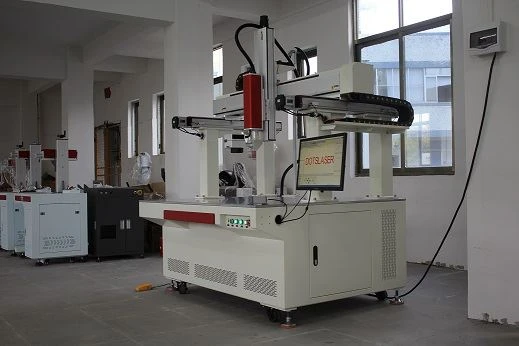

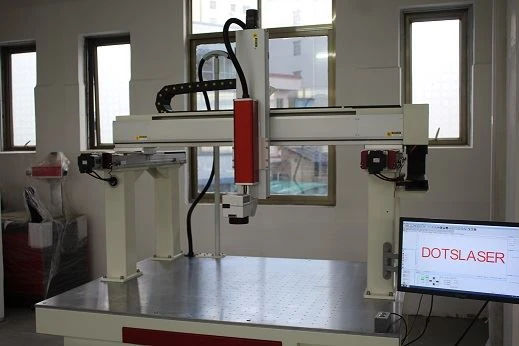

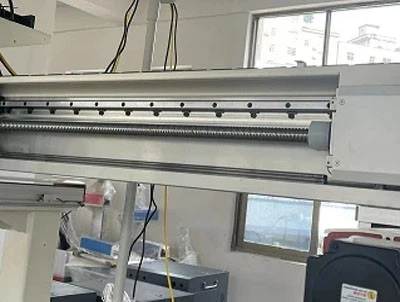

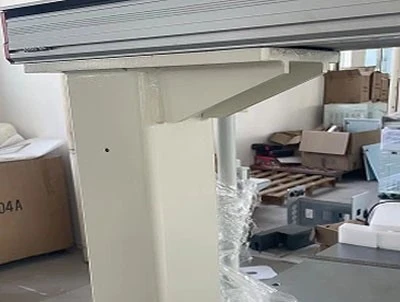

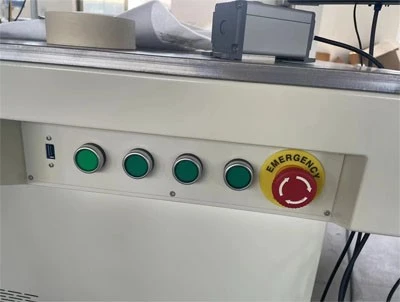

Key parts
Main Components
Main Parameters
Operate Environment |
|
|---|---|
| Model | DS-LM100 |
| Voltage | 220V,50/60Hz |
| Power Comsumption | 1500W |
Option Parameter |
|
|
Output Power |
100W (optional) |
| Galvometer | Dotslaser |
| Marking Area | 700mm * 900mm |
| Line Width | 0.01mm-0.1mm |
| Minimum Character | 0.15mm |
| Power Adjustment Range (%) | 0-100 (adjustable) |
| Marking Speed | 0-9000mm /s |
| Optical Cable | 3m |
| Wavelength | 1064nm |
| Systems Software | DOTS |
| Cooling mode | Air Cooling |
|
electrical machinery |

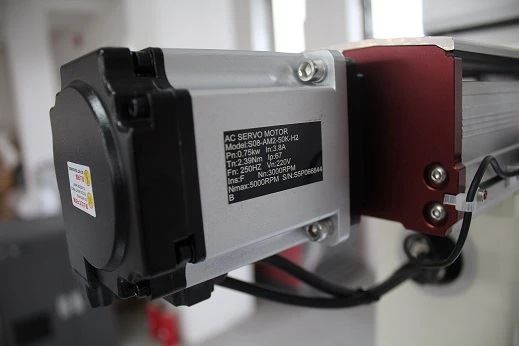

Servo Motor |
| Optical quality | m2≤2 |
Machine Parameter |
|
| Package Size | 1270mm * 1170mm * 1200mm |
| Applicable Industries | Manufacturing Plant, Machinery Repair Shops, Printing Shops, Energy & Mining, Food & Beverage Shops, Advertising Company |
| Graphic Format Supported | AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP |
| Warranty | 1 year |

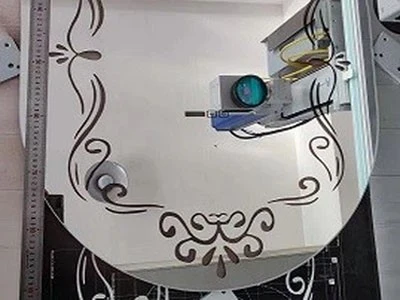

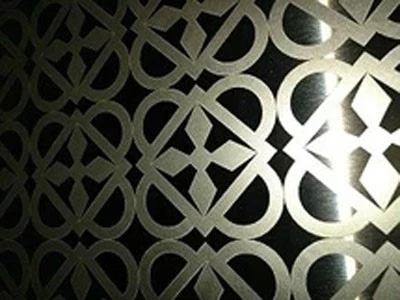

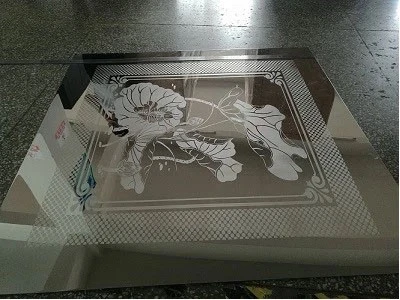

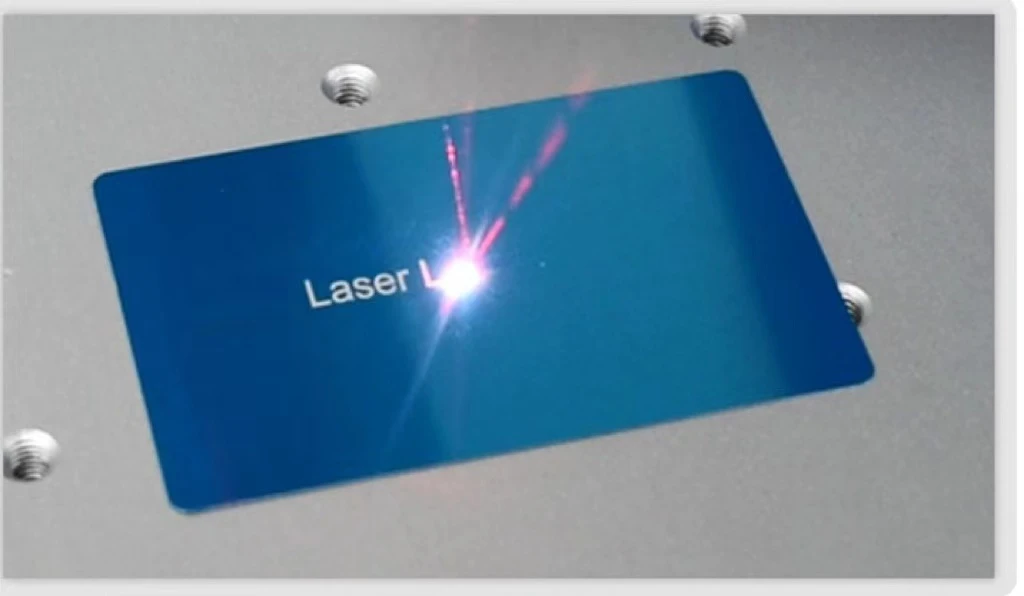

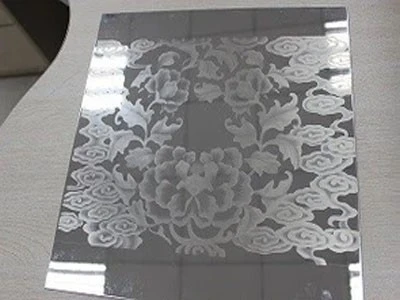

Samples

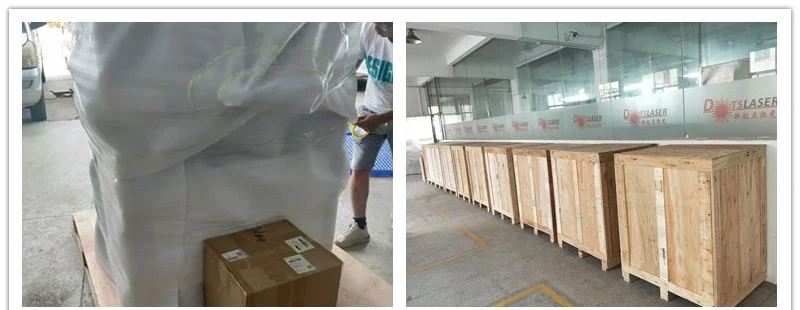

Shipping And Package

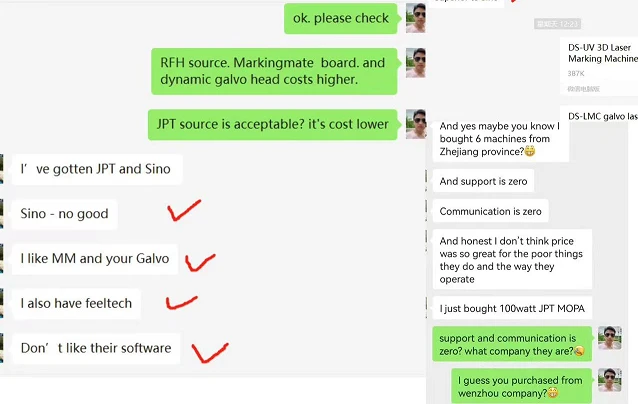

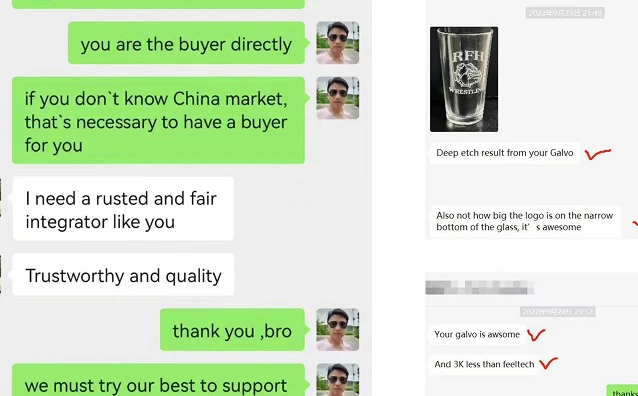

Customer's Feedback
Daily maintenance
● After finishing work, make sure the floor is clean. Then clean the machine including the surface of the machine, the case of the optical system, the surface of the monitor, the work table, and so on.
● Please turn off each part and main power supply when they are clean.
● Check the lens regularly for dust. When it's clean, use the cotton wool with greater than 95% medical grade alcohol to wipe clockwise from the center of the lens. When you need to move the machine to avoid bumps. Check the connection cable according to the cable list.
Unpacking Caution
Every marking machine has been rigorously tested at the factory, only qualified product for shipment. When you receive the freight, please check as follows. If you have any questions, please contact the agent or staff at DOTSLASER.
● Whether there is damage or deformation during transport.
● Confirm that all of the items on the packing list are correct.
● Confirm that the model of the product matches the nameplate(Operating voltage and KVA number).
● Make sure that all clamps are tight and that there are no foreign objects in the device.
● Confirm the operation buttons, switches are normal.
