Auto Focus Fiber Laser Marking Machines
2. good beam quality
3. Easy to operate
4. Wide application
5. Long lifetime

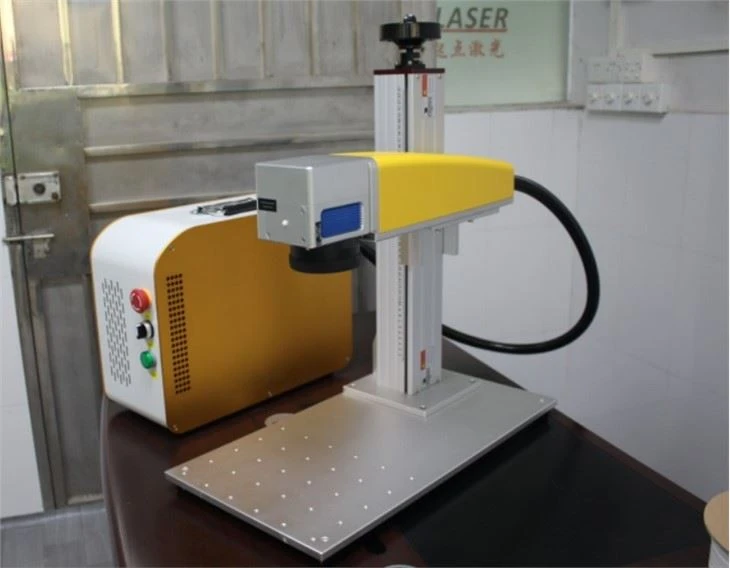

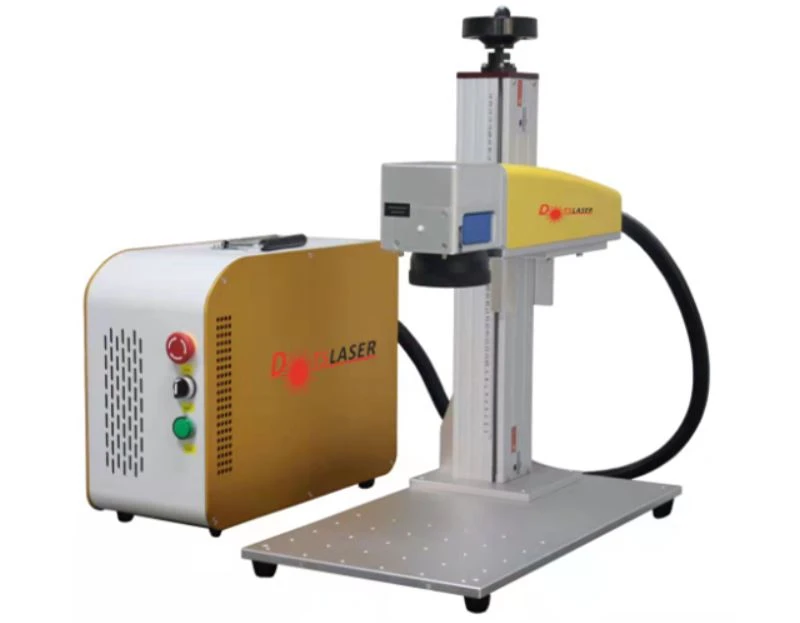

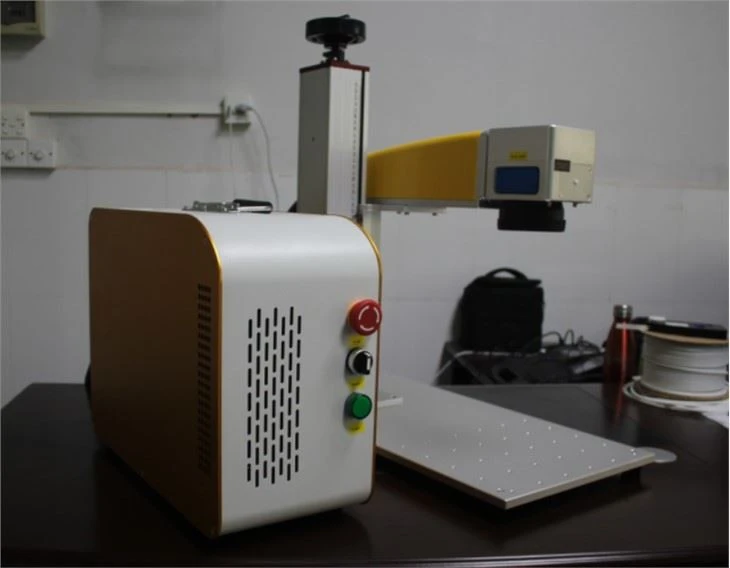

Auto Focus Fiber Laser Marking Machine
Products Description
Auto Focus Fiber Laser Marking Machines uses fiber laser to output laser, and then realizes marking function through high-speed scanning galvanometer system. The optical fiber laser marking machine has high electro-optical conversion efficiency, adopts air-cooled cooling method, the whole machine is small and exquisite, the output beam quality is good, and the reliability is high. It can engrave metal materials and some non-metal materials, and is mainly used in fields that require high depth, smoothness, and fineness.
Performance and characteristics
Excellent marking quality of light source: Compared with traditional solid-state laser marking, the volume is smaller and the focal spot diameter is less than 20um. The divergence angle is only 1/4 of that of diode-pumped lasers, which is especially suitable for precision marking.
Low cost of use: the electro-optical conversion efficiency is as high as 30%, and the power consumption of the whole machine is 600W. It is a 1/10 and 1 /3 laser marking machine of lamp pumped laser marking, which saves huge consumption.
Maintenance-free and long-life: The secondary pipeline is used as the pump source, and the fully enclosed optical path design, the average trouble-free working time exceeds 30,000 hours.
Fast processing speed: The processing speed is 5-10 times that of the traditional laser marking machine.
Lightweight and small space: the utilization rate is small, and it is convenient to adjust the working position on the production site.
Auto focus : This is a new advanced technology that makes the operation easier and saves working time.
Auto focus fiber laser engraving machine is widely used for graphic and text marking in various industries, including integrated circuit chips molds microelectronics computer components, industrial bearings watches electronic and communication products aerospace components various automotive parts household appliances hardware tools molds wires and cables food packaging jewelry medical equipment tobacco and military applications. It is suitable for high-volume production line operations.
Parameter
| Model | DS-LM20/DS-LM30/DS-LM50/DS-LM60/DS-LM80/DS-LM100 |
| Power | 20W/30W/50W/60W/80W/100W |
| Repetition rate | 1~100Khz;1~600Khz;1~2000Khz;1~4000Khz |
| Working area | 70x70mm~300x300mm |
| Engraving depth | ≤1mm |
| Marking speed | ≤12,000mm |
| Line width | 0.01mm |
| Min.character | 0.4mm |
| Repeat accuracy | 0.002mm |
| Power supply | 220±5%VAC/50Hz/5A |
| Rated power | 600W-1500W |
| Machine size | 450x220x380mm, 620x95x150mm |
Product Details
MAX PHOTONICS Laser
MAXPHOTONICS' laser systems include the Sound-to-Light Q-switched pulse fiber laser, which is based on a Q-switched master oscillator and high-power fiber amplifier (MOPA) configuration. It offers various power models ranging from 5W to 70W, with a peak power of up to 7kW.
1064nm digital galvanometer
The optical scanning system has the characteristics of fast speed, low drift, high positional accuracy and reliable and stable operation, and its comprehensive performance has reached the leading level in China, which is mainly applicable to high-speed and online flight marking of fiber, YAG and other lasers.
Lens
The diameter of focused spot is proportional to the focal length. This means that when the scanning area of the Optical Field Lens reaches a certain level, the obtained spot diameter is very large, that is to say, the laser power density drops very quickly (the power density is inversely proportional to the 2nd power of the spot diameter), which is conducive to processing. While general focusing lenses deliver a focused spot to only one point, they deliver a focused spot to many points on a scan field or work piece.
Control software Ezcad
Multi-language support: Built-in Chinese, English, Korean, Japanese, French, German, can be translated by yourself according to the language package, easy localization

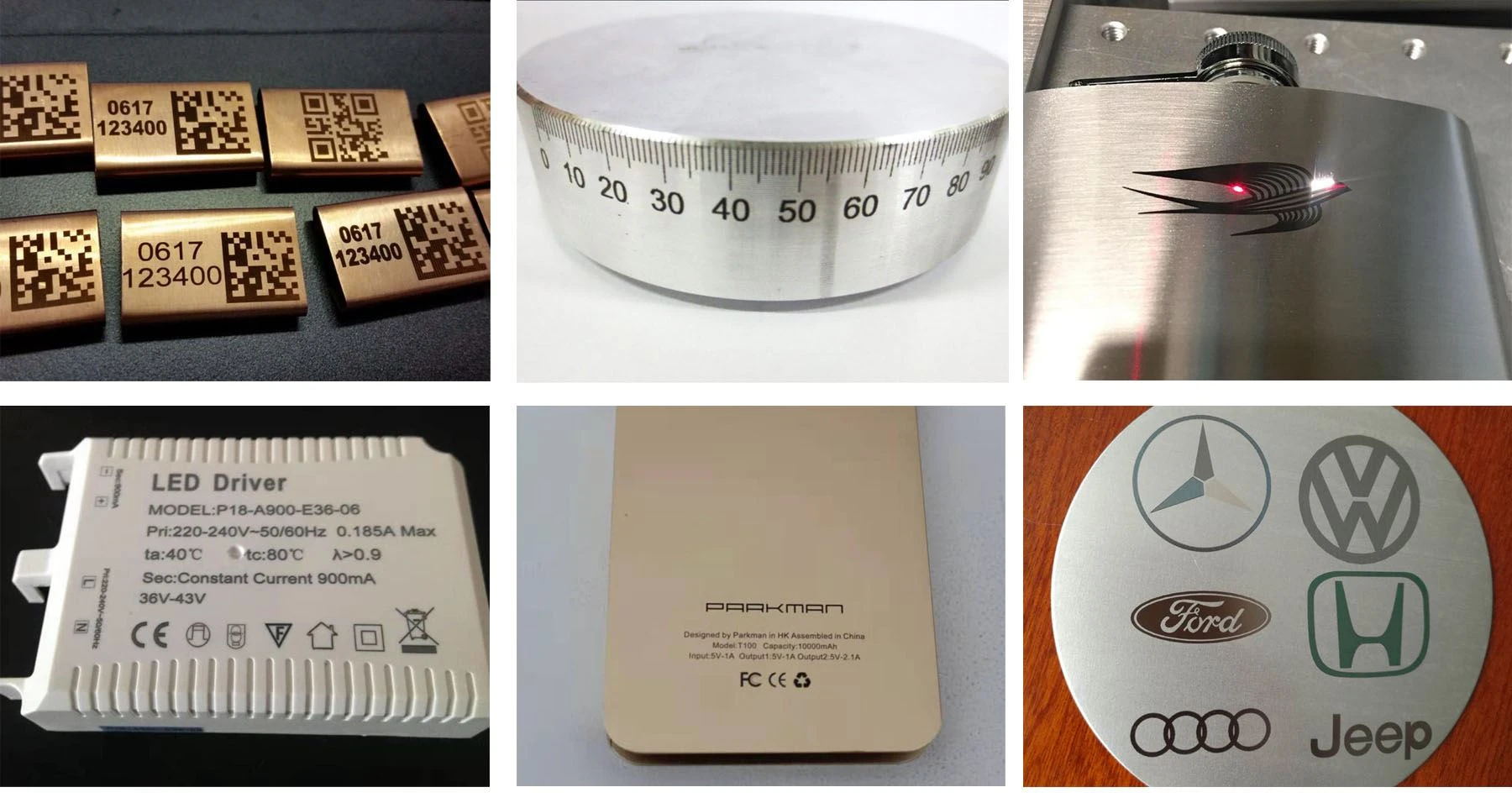

Samples
Shipping & Package
