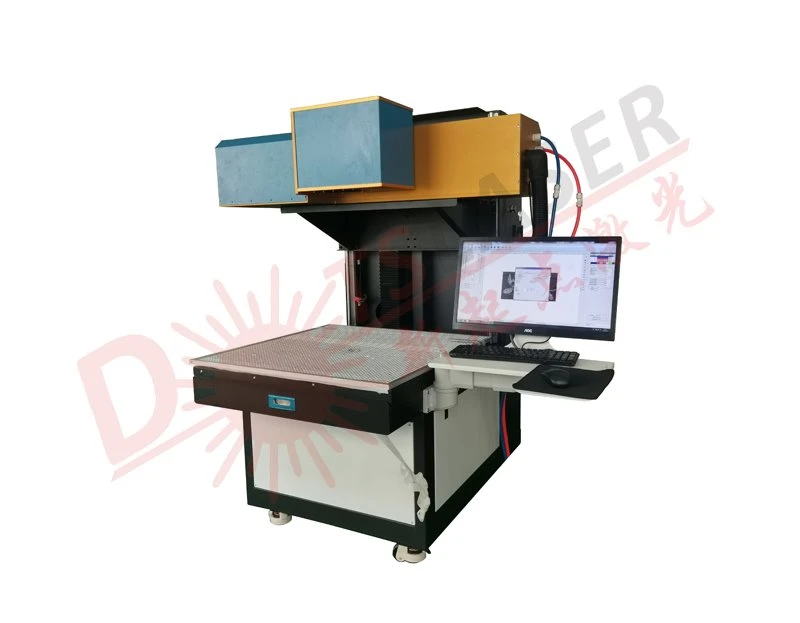

CO₂ Laser Engraving Machines
CO₂ Laser Engraving Machines
Products Description
CO₂ laser engraving machines are cutting-edge machines used in the world of laser engraving. These machines use a high-powered CO₂ laser beam to engrave or cut through materials such as wood, acrylic, leather, paper, and more. The machines are incredibly versatile and can be used to create intricate designs or simple logos, depending on the user's needs.
Features and advantages
|
Marking speed is faster. Maximum can be 8000mm/s |
| Easy to learn and use. |
| Very stable, almost no any need to change the components after long term working. |
| High precision, engraving depth controllable. |
| Beam quality is fine, high photoelectric conversion efficiency. |
| Long lifetime: the expectant life time can be 20,000~30,000 hours. |
| All-in-one design,saving space and easy to move around. |
| No consumable parts needed. |
| Support different file formats: PLT, DXF, BMP, JPG, and so on. |
|
OEM customization can be accepted. |
Applicable materials
| leather | fabric | wood | textile |
| reflective/lettering film | bamboo | various stone | jeans/denim |
| paper,board | glass | acrylic sheet | ceramics |
Applicable industries
| garments | jeans/denim | acrylic | toy |
| electronics | advertising | shoes,bags | gifts |
| packaging | medicine | food | automobile |
Parameters
|
NO. |
Name |
DS-LMC series Galvo laser system |
|
1 |
Machine model |
DS-LMC150/DS-LMC250/DS-LMC350 |
|
2 |
Max laser power |
150W/250W/350W |
|
3 |
laser wavelength |
10.6μm |
|
4 |
Beam quality |
＜1.2㎡ |
|
5 |
Duty cycle limit |
≤60% |
|
6 |
Min.line width |
0.17mm(depend on the material) |
|
7 |
Min.character size |
0.4mm |
|
8 |
Max marking speed |
≤8,000mm/s |
|
9 |
Working area |
400x400mm/500x500mm/600x600mm/800x800mm |
|
10 |
Cooling |
Water cooled |
|
11 |
Working environment temperature range |
5~35 ℃ |
|
12 |
Humidity range of working environment |
< 70% No condensation |
|
13 |
Power supply |
220V,50/60Hz |
|
14 |
Power consumption |
＜6KW |

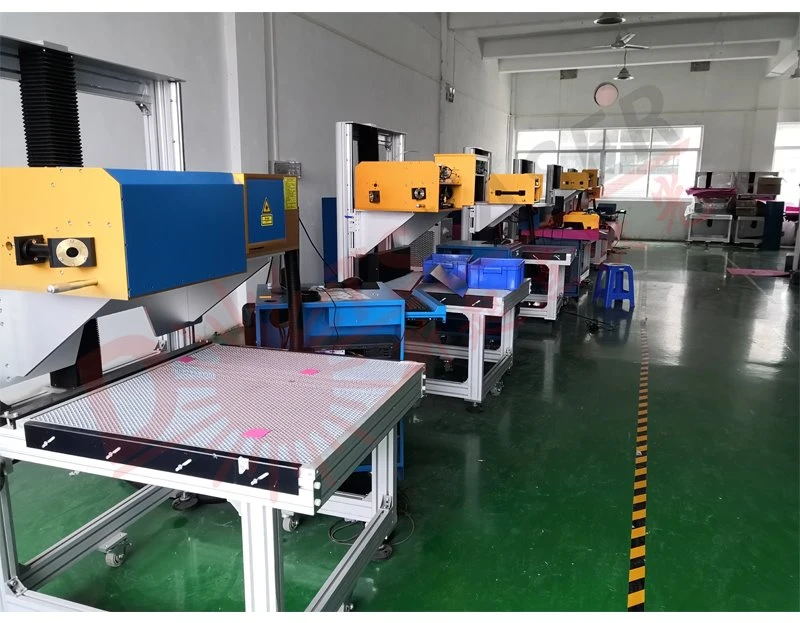

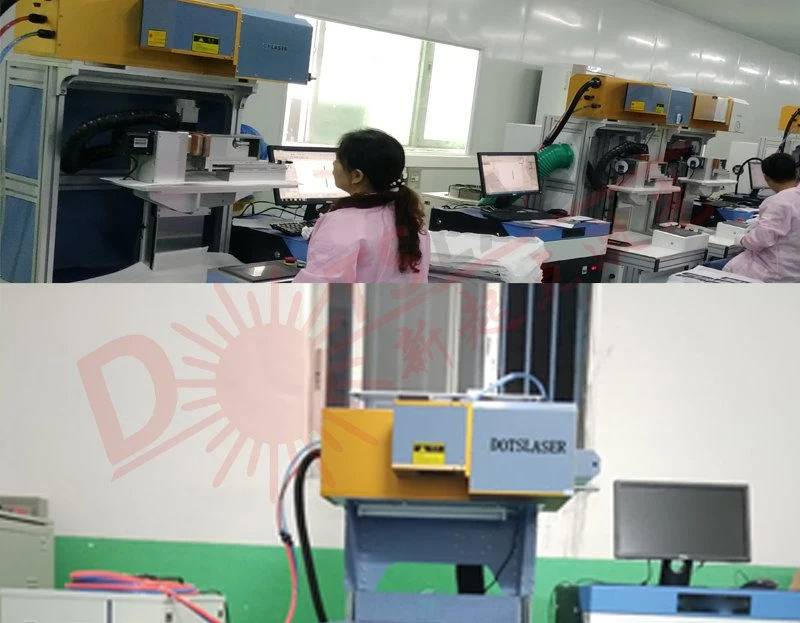

CO₂ laser engraving machines customer side show

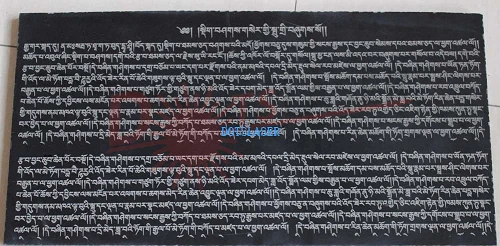

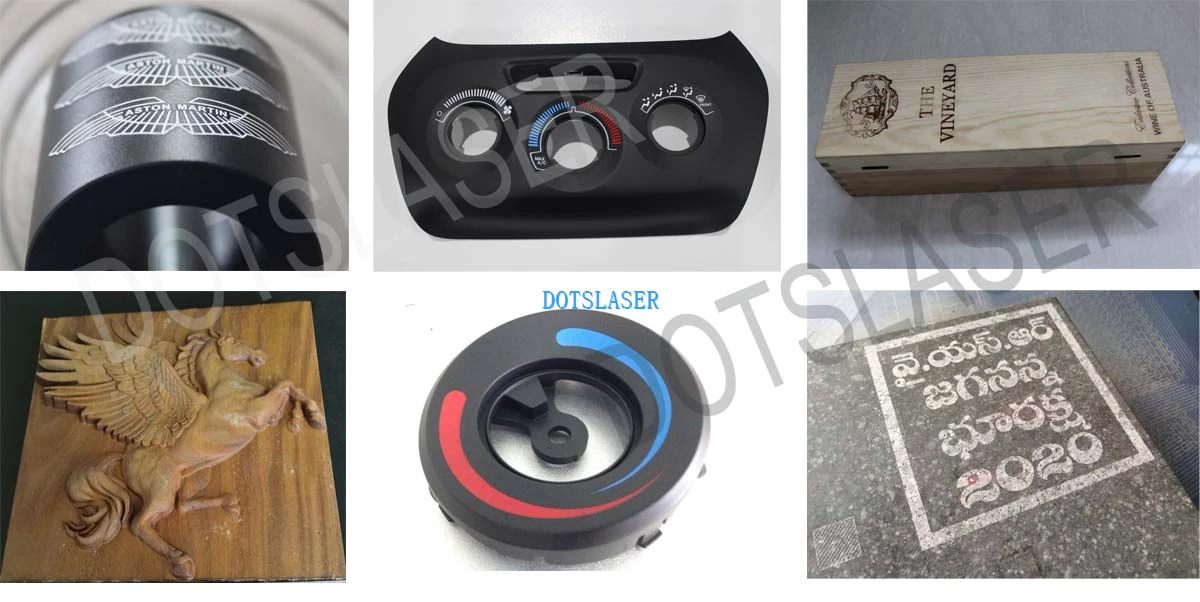

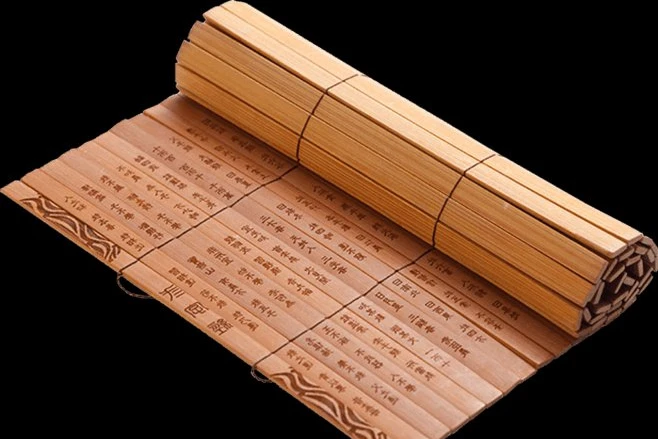

Samples show
How to use a CO₂ laser engraving machines?
1: When you got a CO₂ laser engraving machines you have to install the wires for main power ,check everything is good ;
2: Add the Purified water for the cooling chiller , which will provide perfect temperature control
3: Select the working area ,start the PC and make the working area match with the galvo dynamic ,mean time you have to adjust the mircroruler to get the correct z axis data ;
4: Make the focus for right working area , if make focus wrong then the marking beam will be big and can not do good cutting ,especially for the corner side;
5: Select the software and import the vector file , PLT DXF ,set the right parameter for the current material ,speed , power , frequency ;
6: Make the location and make the red preview and do your laser engraving or cutting;
Shipping and Package
1. Quality assurance and after-sales service
The warranty period of the equipment shall be 12 months since the equipment be used by the customers, the installation and debugging is completed and the equipment is accepted by the demander. Dotslaser attaches great importance to the after-sales service work of the product, once the product is delivered to the user, the company immediately established the user after-sales service file, and regularly track the user's product use status, solve and answer all the problems of the user, received the user's notification information about the equipment failure, the company's workers can make a rapid response within 2 hours. If the telephone guidance is difficult to troubleshoot, our company's technical staff can arrive at the customer site within 24 hours to provide support.
2. Installation and debugging
Before machine installation, our factory will offer you a basic structure installation file,the good need 2 weeks delivery to you there , the engineers of Dotslaser will arrive at your site and inspect the machine again. Comfirm all the conditions meet the installation and commissioning requirements of the equipment, the equipment will transport in time. The installation and commissioning time of the equipment is about five working days, the first three days are connected to the use of the system, and the system is operational after the service project. The engineer will train qualified operators on basic maintenance procedures and general operating characteristics of the equipment in the next two days
3. Service support
If there has any problem with any part of the system during the warranty period, Dotslaser well-trained service engineers will provide cellphone call or begin on-site service,if the machine has any problem during the warranty period,please contact us directly !
