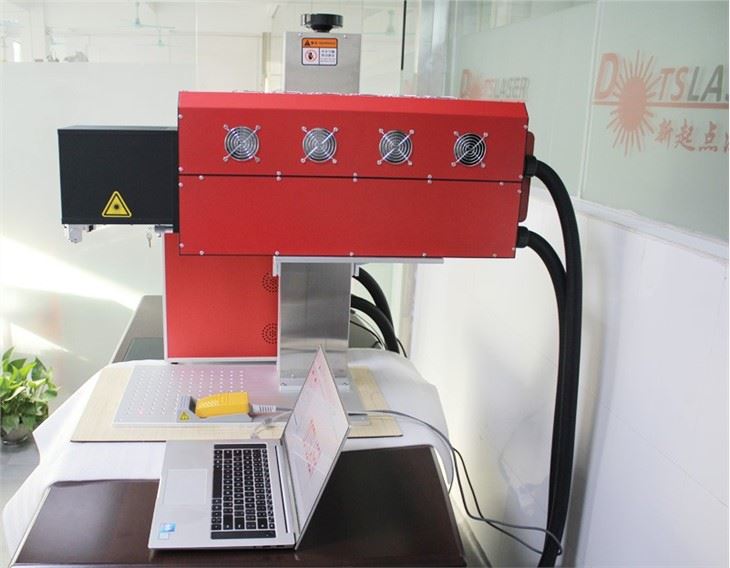

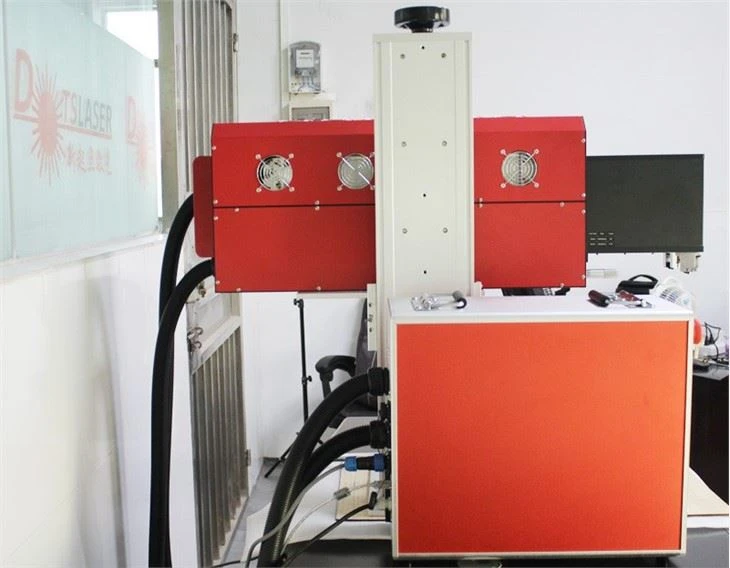

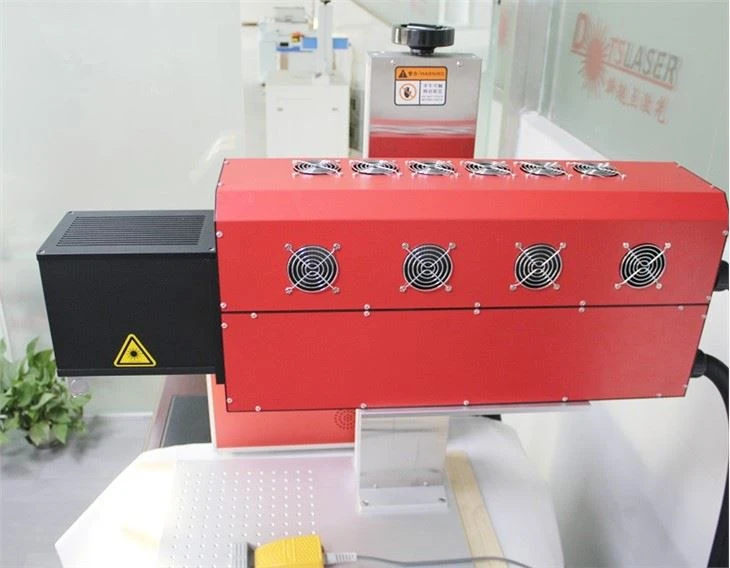

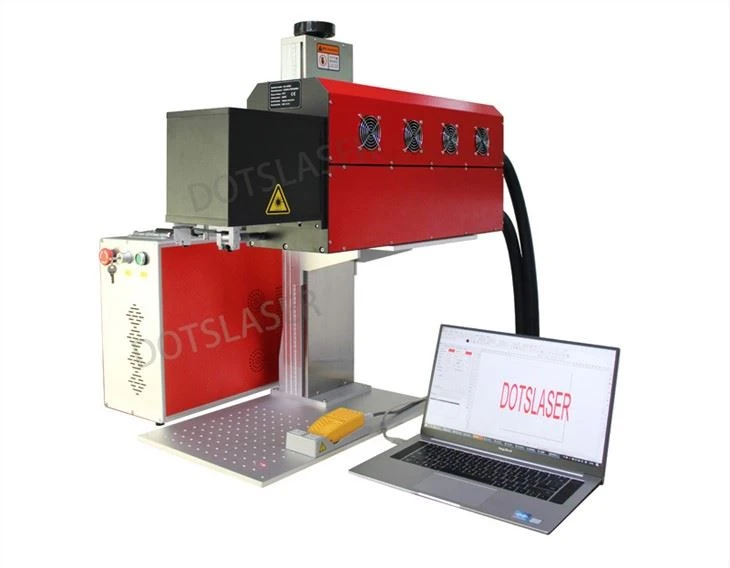

Galvo Laser

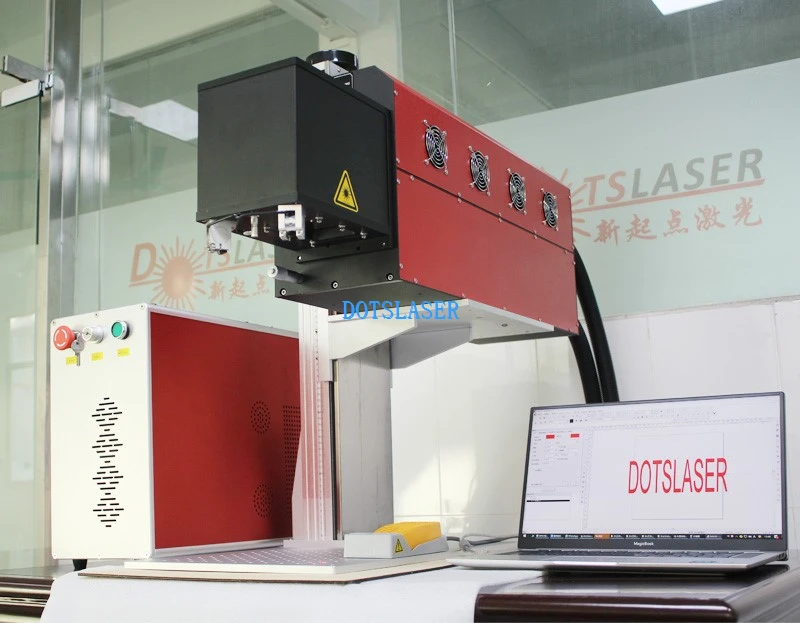

Galvo Laser Machine
Products Description

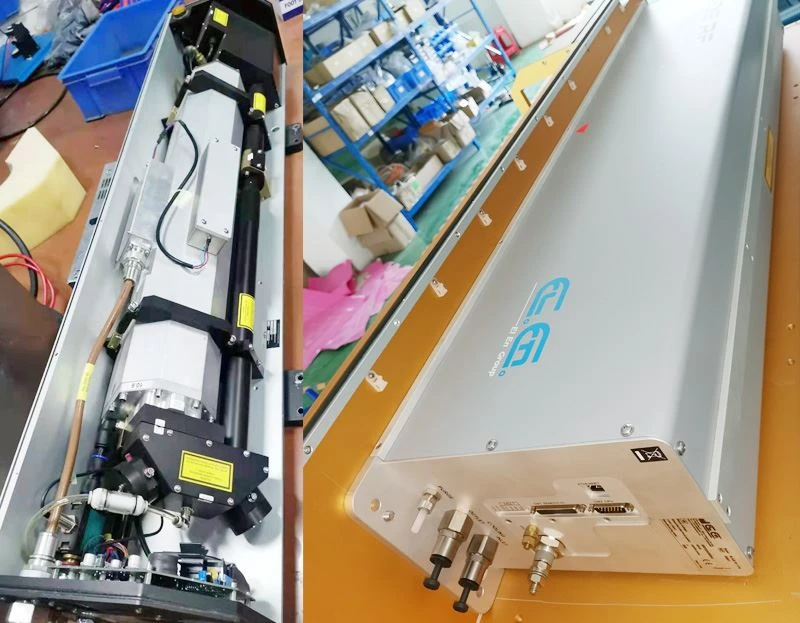

Galvo laser 3-axis dynamic carbon dioxide CO2 series is a gas laser machine. Its wavelength is 10.6um, which belongs to the mid-infrared frequency band. The CO2 laser machine has larger power and higher electro-optical conversion efficiency. It uses CO2 gas as the working substance. CO2 gas and other auxiliary gases charged into the discharge tube, when a high voltage is applied to the electrode, a glow discharge is generated in the discharge tube, so that the gas molecules emit laser light. After amplifying the released laser energy, a laser beam is formed. Automatic marking is realized by changing the optical path of the laser beam through the computer-controlled galvanometer.
Advantages and highlights of Galvo laser machines.
A high-speed galvo dynamic focus system provides excellent marking results with a minimum spot diameter of 0.22mm.
High precision machining to fulfill the requirements of repetitive manufacturing.
Ideal for embossing items with varying contours, including circular, tapered, concave, convex, and irregular shapes.
Fulfill the requirements of large-scale industrialized production, whether online or offline.
Compact size and feather-light, reducing shipping expenses and minimizing storage space.
Affordable and powerful, this high-quality galvo laser from our company offers exceptional value. Plus, our small galvo laser is incredibly cost-effective.
No need for replacement parts, simply power on and you're good to go.
Simple to use, requiring minimal time to grasp. A day or even just half a day is sufficient to master it.
Exceptionally long lasting, with a lifespan of approximately 20,000 hours, exceptionally reliable and virtually worry-free about any potential malfunctions.
Technicial parameters
|
Model |
DS-LMC30 |
DS-LMC60 |
|
Laser power output |
>30W |
>60W |
|
Laser wavelength |
10640±10 nm |
|
|

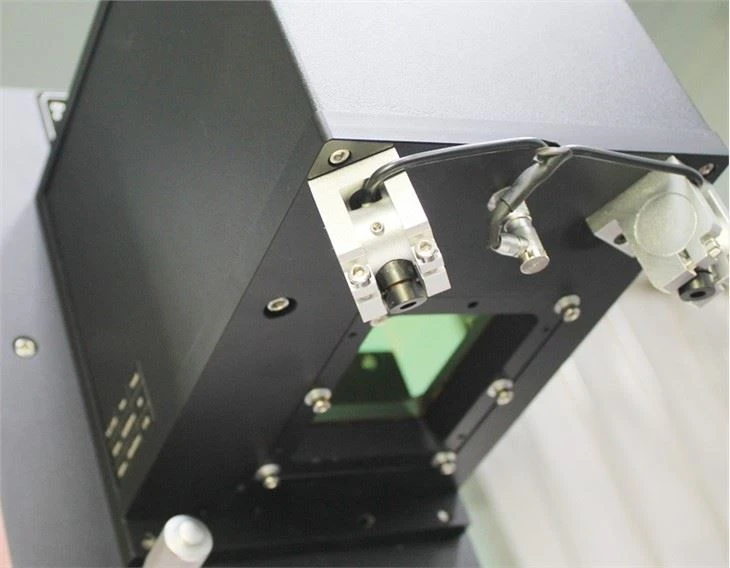

Aperture of galvo head |
30mm |
|
|
Marking area |
300x300mm/400x400mm |
|
|
Z axis focus |
±20mm |
|
|
Pulse frequency |
1~100KHZ |
|
|
Max marking speed |
8000mm/s |
|
|
Repeat accuracy |
±0.001mm |
|
|
Min.line width |
0.22mm |
|
|
Min.character size |
0.35mm |
|
|
Cooling |
Air cooled |
|
|
Working temp |
5~35 ℃ |
|
|
Humidity range |
< 70% No condensation |
|
|
Gross weight |
65KG |
|
|
Power supply |
AC220V±10%,50Hz or AC110V±10%,60Hz |
|
|
Applicable materials and industries. The versatile Galvo laser 3D dynamic marking machine is capable of marking a wide range of non-metallic materials as well as some metal products including bamboo, wood, acrylic, leather, glass, ceramic, and rubber. This cutting-edge technology is extensively utilized in various industries such as pharmaceutical, food and beverage packaging, plastics, textiles, leather, woodworking, crafts, electronics, communication, watchmaking, eyewear, printing, and more.
It is perfect for a wide range of applications such as marking, engraving, hollowing, and cutting on different non-metallic materials and items. This machine can easily create characters, symbols, graphics, images, barcodes, serial numbers, and more with precision and efficiency. |
Galvo laser dynamic CO2 marking machine principle
Using infrared light band, 10.64μm gas laser, the carbon dioxide gas is charged into the high-voltage discharge tube to generate glow discharge, so that the gas molecules release laser light, and after the laser energy is amplified, a laser beam for material processing is formed. The surface of the processed body is vaporized to achieve the purpose of engraving.
A galvanometer (Galvo) laser machine is a type of laser system used for cutting, engraving, marking, or welding materials, with the laser beam's movement controlled by high-speed galvanometer scanners. The term "Galvo" refers to the galvanometer scanners that rapidly steer the laser beam, allowing for fast and precise laser processing.
Galvo laser machines are advantageous for their high processing speeds, accuracy, and efficiency. They are commonly used in industries like electronics, automotive, aerospace, medical, and more.
Samples show
Shipping and Package
