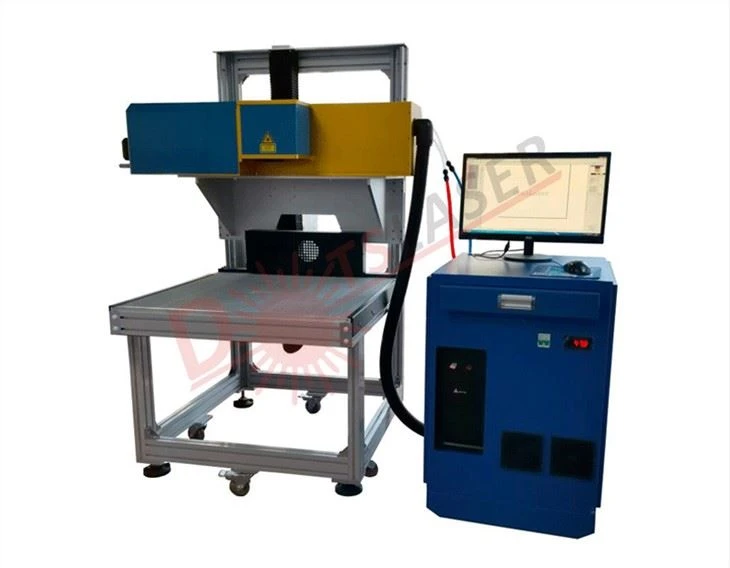

Leather Engraving Machine
Products Description
Our advantage
Flexible

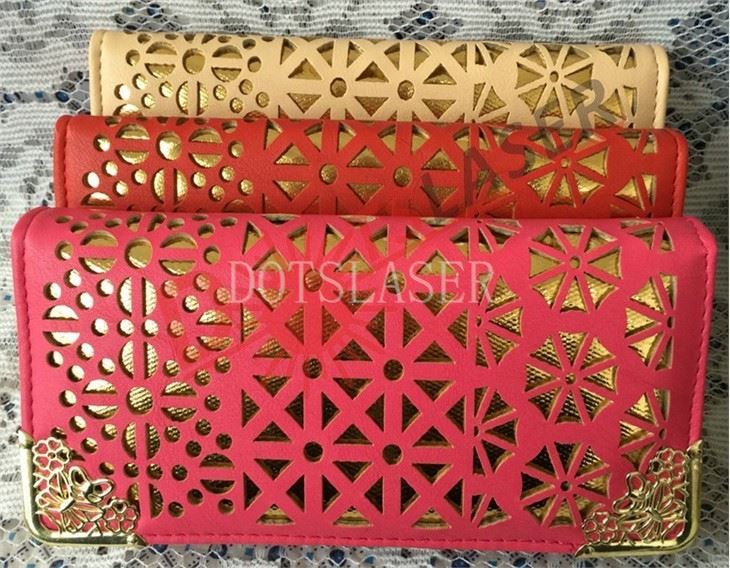

It can quickly engrave and hollow out various patterns on various leather fabrics, and it is flexible in operation without any deformation of the leather surface to reflect the color and texture of the leather itself.
versatility
It also has many advantages such as high engraving accuracy, hollowed out without burrs, and arbitrary shape selection.
High technology
Any complex graphics can be engraved by laser engraving. It can carry out hollow carving and non-penetrating blind groove carving, so as to carve out various magical patterns with different shades, different textures, layering and transitional color effects.
Cost-effective
The machine can save on production costs because it reduces the time and labor required to produce leather products, which translates to lower costs.
Laser Leather Engraving Machine is environmentally friendly since it does not produce fumes or harmful emissions.

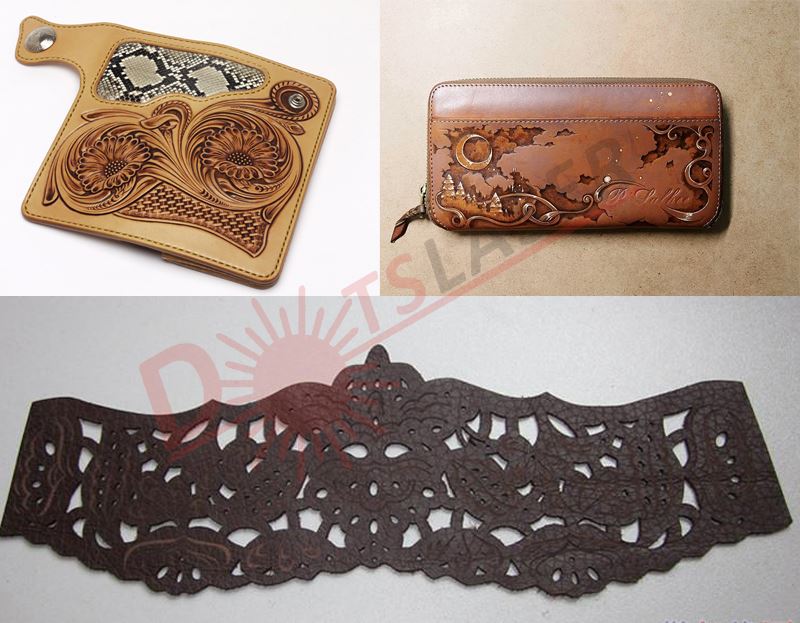

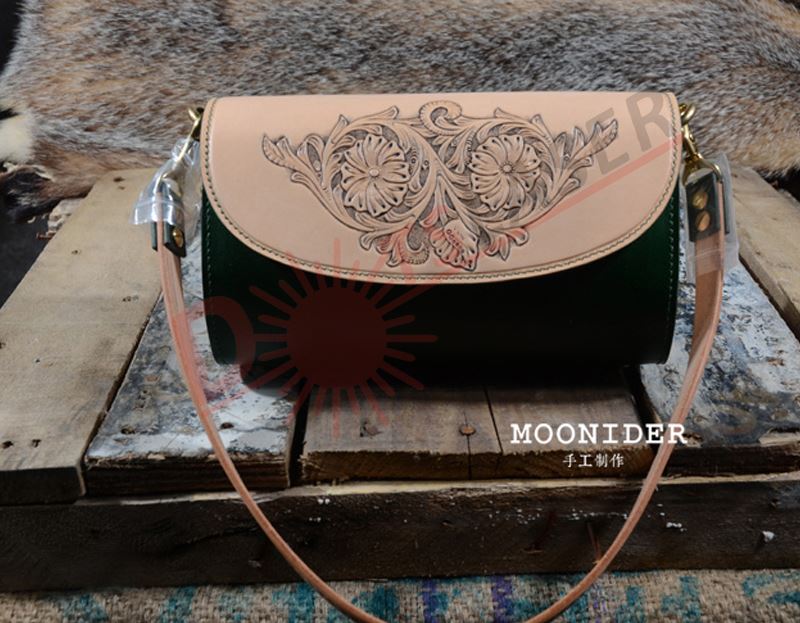

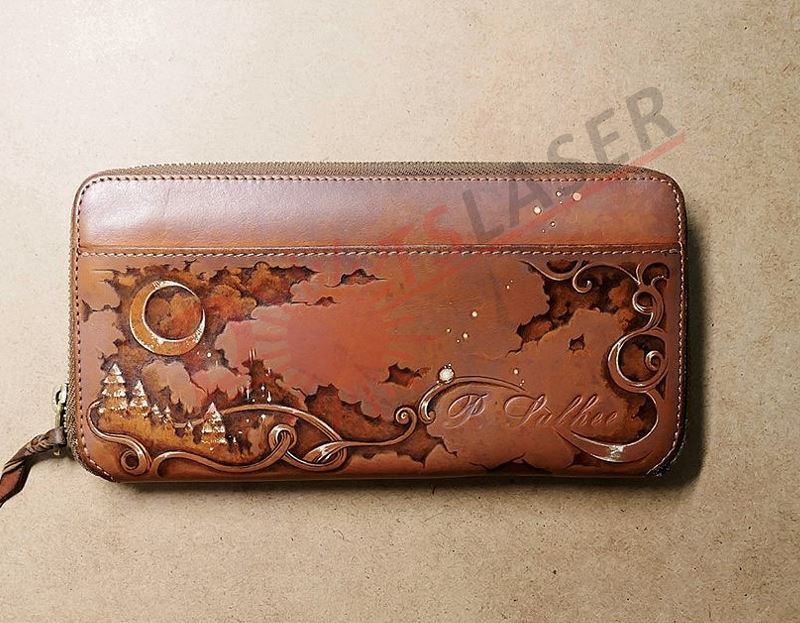

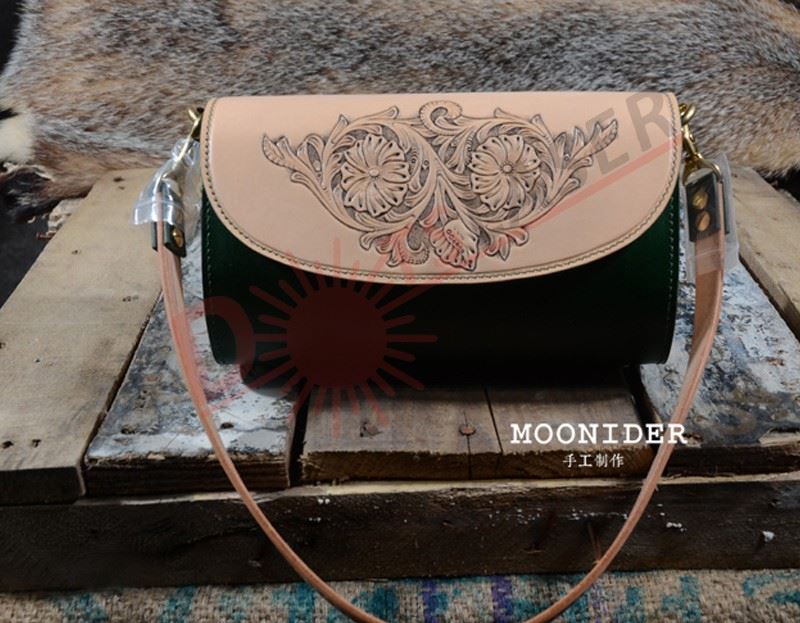

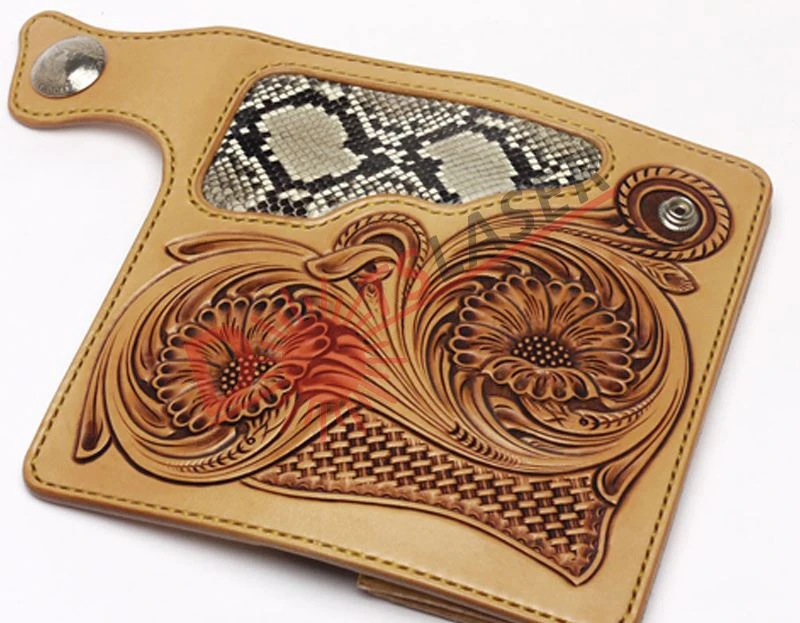

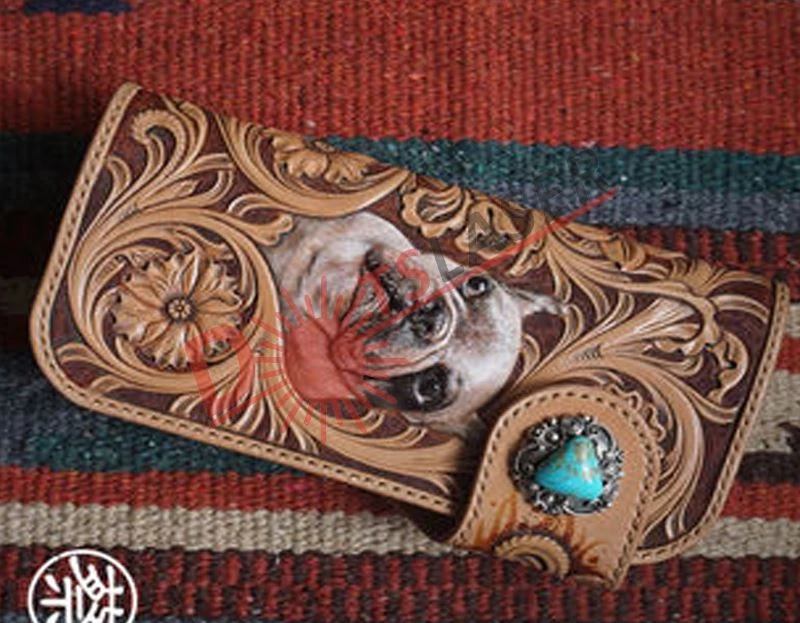

Leather engraving machine is widely used in the production of leather cutting, engraving, shoe materials, and luggage. It saves a lot of manpower, time and cost for these production processes.What's more, it is suitable for the needs of processing manufacturers such as shoe uppers, shoe materials, leather goods, handbags, bags, and leather clothing.
Parameters
|
Model |
DS-LMC150 |
DS-LMC250 |
DS-LMC350 |
|
Laser power output |
150W |
250W |
350W |
|
laser wavelength |
10.6μm |
||
|
Marking area |
400x400mm,500x500mm,600x600mm,800x800mm,1.2mx1.2m(optional) |
||
|
Pulse frequency |
1~130KHZ |
||
|
Max marking speed |
10,000mm/s |
||
|
Control method |
xyz 3axis dynamic focus |
||
|
Min.line width |
0.2mm |
||
|
Cooling |
Water cooled |
||
|
Working temp |
10~30 ℃ |
||
|
Gross weight |
390KG |
||
|
Size of machine |
1200x800x1580mm |
||
|
Power supply |
AC220V±10%/20A,50Hz or AC110V±10%,60Hz |
||
that's our services

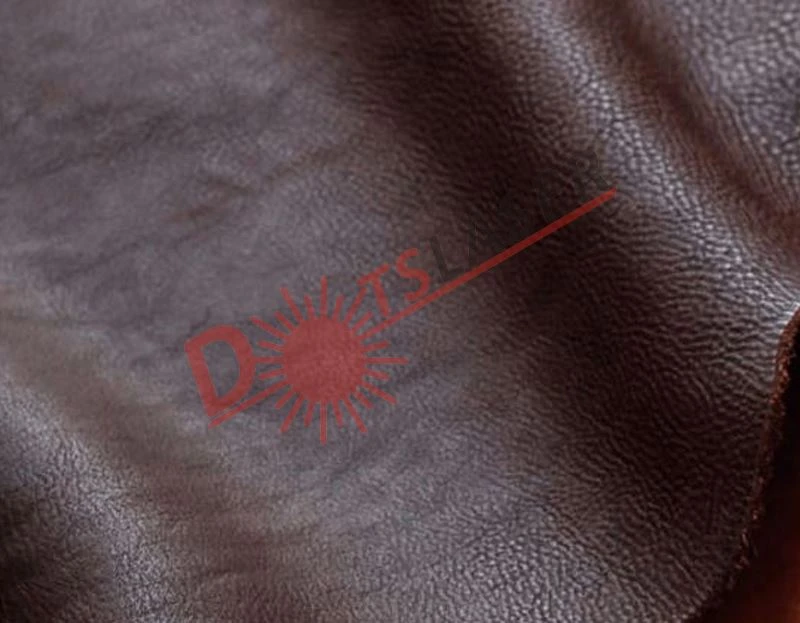

Antique effect
After the middle coat is not transparent, some dark patterns and antique colors are always applied, and then the cover and finish are used. Leather shoes made of antique effect leather can be used for repeated modification, do not damage the pattern, wipe and maintain normally.
Rubbing effect
It can also be called wiping leather. The bottom surface is painted with a light color, and the surface is sprayed into a darker color. After wiping off or rubbing with a cloth wheel according to special needs, a beautiful two-color effect can be produced, and then the cover and decorative surface can be made. It can also be called fancy leather. The maintenance of this kind of shoes can be made with natural or colorless leather cosmetic cream.

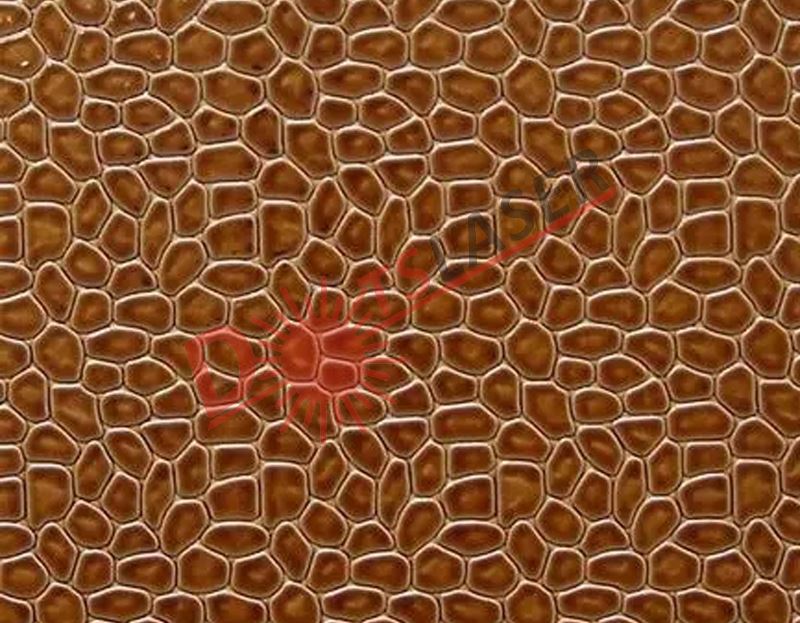

Turtle crack effect
Coat the original film in the leather and use mechanical force to think of the effect of pulling the original film out of the crack and then modify it. The leather shoes made with the tortoise crack effect leather can be repeatedly modified without breaking the texture. The maintenance can be done in the original shoe color or colorless leather.
Stone effect
The embossed leather is polished with fine sand to remove the coating layer of the raised part to reveal the base color and then painted with a bright touch agent. The original shoe color or colorless leather cosmetic cream can be used for maintenance.
Metal effect
Metal powder is added to the effect layer, which can make the finished leather emit a golden luster under the irradiation of light. The leather shoes made of metal effect leather are called metal effect leather shoes, which can be repeatedly modified and normal care and maintenance.
