Wedding Card Cutting Machine
Wedding Card Cutting Machine
Products Description
The Wedding Card Cutting Machine is a specialized appliance designed to cater to the needs of small and large-scale wedding card manufacturing businesses. It is a versatile machine that can trim and cut high-quality wedding cards, invitations and other personalized stationeries. It is equipped with cutting-edge technology that makes it fast, efficient, and precise. With its help, you can reduce your production time, increase work speed and cut production costs, all while delivering top-quality products to your customers.
|
Machine Features 1. Imported Co2 laser is used, with good beam quality and strong power. |
||||
| 2. Fully enclosed optical path design, no need to adjust, ready to use. | ||||
|
3. It can achieve 800mm*800mm single-format marking, which is widely used in marking, engraving, punching, cutting and other processes of non-metallic materials such as leather. |
||||
|

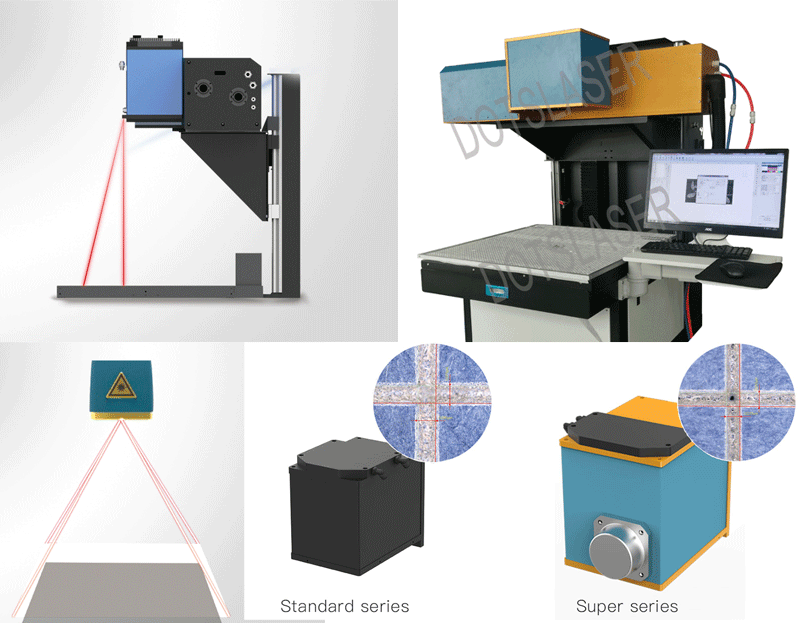

4. Dynamic system: The dynamic beam expander automatically controls the focal point by software for high performance |
||||
| 5. High speed: Fast import galvo head adopt high engraving cutting speed | ||||
| 6. Stable running: Adopting the top world Coherent lasers, stable performance,life more than 10,000 hours; | ||||
|
7. Adjustable working area: Adopt with 3D dynamic system ,working area adjustable. |
||||
|
8. Design: Humanized design of the whole machine, easy to flexible manufacturing requirements. |
||||
| 9. Options:Rotary attachment for processing cylindrical objects | ||||
Applicable material
leather
cloth
wood
bamboo
paper
organic materials
Parameter
| Wedding Card Cutting Machine | |||
| Model | DS-LMC150 | DS-LMC250 | DS-LMC350 |
| Wavelength | 10.6um | ||
| Laser power | 150W | 250W | 350W |
| Working area | Max. 800x800mm | ||
| Marking line speed | 7000mm/s | ||
| Repetition positioning accuracy | ±0.01mm | ||
| Cooling method | Water cooling | ||
| Power supply | AC220V 50HZ/AC380V,50HZA | ||
| Ave. power consumption | ≤5KW | ≦7KW | ≦7KW |
Introduction of wedding card cutting.
Wedding card cutting machines are specially designed machines that can cut various materials with precision. These machines are perfect for creating intricate designs and patterns on wedding invitations, as they can cut cardstock, glitter paper, and even vellum. The machines come with pre-designed templates, or you can customize your designs to fit your unique wedding theme and style. Not only do wedding card cutting machines save time for those who are creating their wedding invitations, but they also help reduce the cost of outsourcing to a professional card maker.
Wedding card cutting is a beautiful tradition that is commonly practiced during weddings. It is a ceremonial act that signifies the official union of the two individuals being married. In many cultures, the cutting of the wedding card is considered to be one of the most important rituals of the wedding ceremony.
A wedding card is a representative of love and commitment between two people who have chosen to spend the rest of their lives together. It is a celebration of their union and a way to share their joy with family and friends. Wedding card includes a personal message from the sender, expressing their love and support for the newlyweds as they embark on this new journey together.
|
a. Warranty DOTSLASER promises to maintain products which are produced and sent according to a formal contract,and guarantees every repaired machine will function good if used properly. DOTSLASER has the rights to repair or replace a product in warranty period if it has a material or technical problem. We will charge for the maintenance under normal circumstances. It will be free if the machine has special problems.
b. Warranty Scope DOTSLASER will not provide warranty service in following cases:product or parts (including fiber) are damaged because of modification, dismantlement ,improvement without permission ;product or parts (including fiber) are damaged because of emergency or negligence;product or parts (including fiber) are damaged because of lack of preservation customers have the responsibility to learn the directions on the user guide and operate the machine properly. Damages resulted in abnormal operation will not get warranty services. Accessories are not in warranty. Customers should make a written request in 30 days as soon as they found a problem which is in the warranty range , no third party should be involved in the maintain process and products or part that are not produced by DOTSLASER should also not be included. |
after-sales service
Technical Support and Product Maintenance
Contact with DOTSLASER's engineer whatever problems occur when using , and make a troubleshooting under engineer's direction.
All products waiting for repair or replacement should be placed in cases DOTSLASER provides , otherwise DOTSLASER will charge for the damage it may cause.
When customers receive DOTSLASER`s products ,please check if the product is damaged and whether accessories is complete or not.
DOTSLASER keeps on developing new products , information and parameters in this file may change. All technical parameters are subject to the contract. Warranty and after-sale clauses above are for reference only , and are subject to the formal contrast.

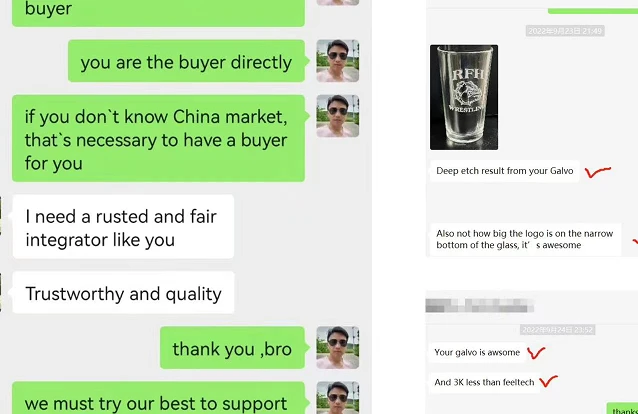

Customer's feedback
