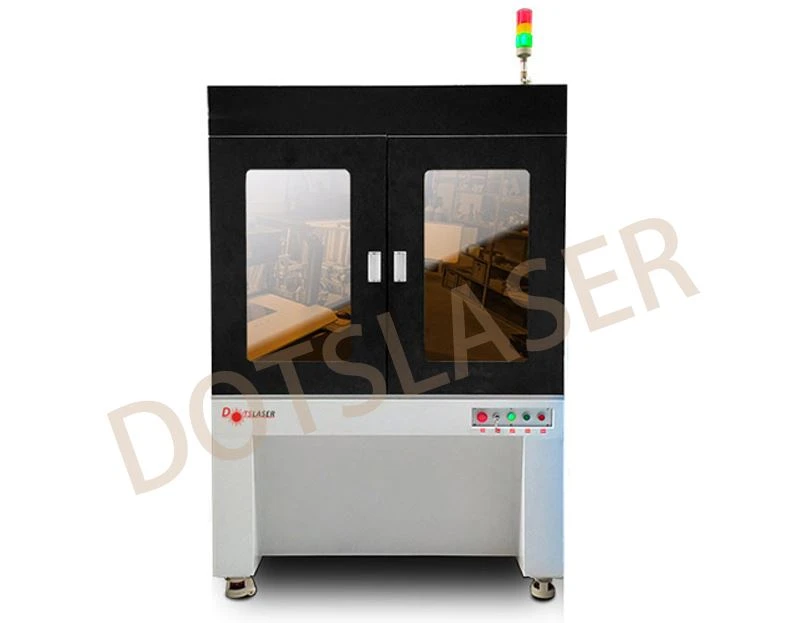

250W 3D CO₂ Galvo Laser
250W 3D CO2 galvo laser Video
Products Description
The 250W 3D CO2 Galvo Laser is a powerful and flexible system designed for engraving, marking, and cutting non-metal materials. Its high-power output, combined with the precise control offered by galvanometer-based scanning technology, makes it an ideal choice for various industries, such as packaging, textile, signage, woodworking, and more.
Machine features:
a. It has smaller focusing spot and higher energy density which are suitable for finer cutting, punching and engraving.
b. The Fully closed free-maintenance laser optical system is ready to use after installation without adjustment.
c. High precision and high speed marking/cutting performance ensure smooth sharp cutting edge. The processing result is more average, without too high or too low energy injected in partial area.
d. The system is designed with external double-circulation industrial cooling water system, which is convenient for users to choose according to the place of use and conducive to the protection of work environment. The whole machine runs more stable and has lower power consumption.
e. Strict multi-protection control design is applicable to a wide range of ambient temperatures ensuring the continuous reliable work of the laser marking system.
Applications
| Packaging Industry: Creating custom labels, cutting templates, and engraving intricate designs on various packaging materials, such as paper, cardboard, and plastic. |
| Textile and Garment Industry: Cutting patterns, engraving designs, and personalizing fabrics, leather, and other related materials for clothing, footwear, and accessories. |
| Signage and Advertising Industry: Cutting, engraving, and marking on acrylic, wood, and other materials used for promotional and signage products. |
| Furniture and Woodworking Industry: Producing precise and intricate engravings or cuts on wooden furniture pieces, panels, decorations, and more. |
| Gift and Promotional Items: Personalizing and customizing various non-metal items, such as glassware, ceramics, leather goods, and wooden items, providing unique and long-lasting gifts or promotional products. |
| The 250W 3D CO2 Galvo Laser combines high power, advanced galvanometer scanning technology, and 3D engraving capabilities, can be used in many applications. By investing in this versatile and powerful laser system, you can increase productivity, enhance the quality of your products, and cater to a diverse range of non-metal engraving and cutting requirements. |
Parameters
|
NO. |
Name |
DS-LMC series Galvo laser system |
|
1 |
Machine model |
DS-LMC150/DS-LMC250/DS-LMC350 |
|
2 |
Max laser power |
150W/250W/350W |
|
3 |
laser wavelength |
10.6μm |
|
4 |
Beam quality |
＜1.2㎡ |
|
5 |
Duty cycle limit |
≤60% |
|
6 |
Min.line width |
0.17mm(depend on the material) |
|
7 |
Min.character size |
0.4mm |
|
8 |
Max marking speed |
≤8,000mm/s |
|
9 |
Working area |
400x400mm/500x500mm/600x600mm/800x800mm |
|
10 |
Cooling |
Water cooled |
|
11 |
Working environment temperature range |
5~35 ℃ |
|
12 |
Humidity range of working environment |
< 70% No condensation |
|
13 |
Power supply |
220V,50/60Hz |
|
14 |
Power consumption |
＜6KW |
With high laser power from 100W to 350W, even more power, it can be applied to engraving and cutting various non-metallic products;
Support PLT, DXF, BMP, JPGE, etc. Powerful graphics drawing and editing functions, which can directly mark color pictures, and can also mark color pictures after grayscale conversion.
Stable performance, high photoelectric conversion rate, low power consumption and laser operating life up to 20000-30000 hours;
Clear marking, high engraving and cutting efficiency, and fine spot,minimum line width can be 0.25mm(depends on material).

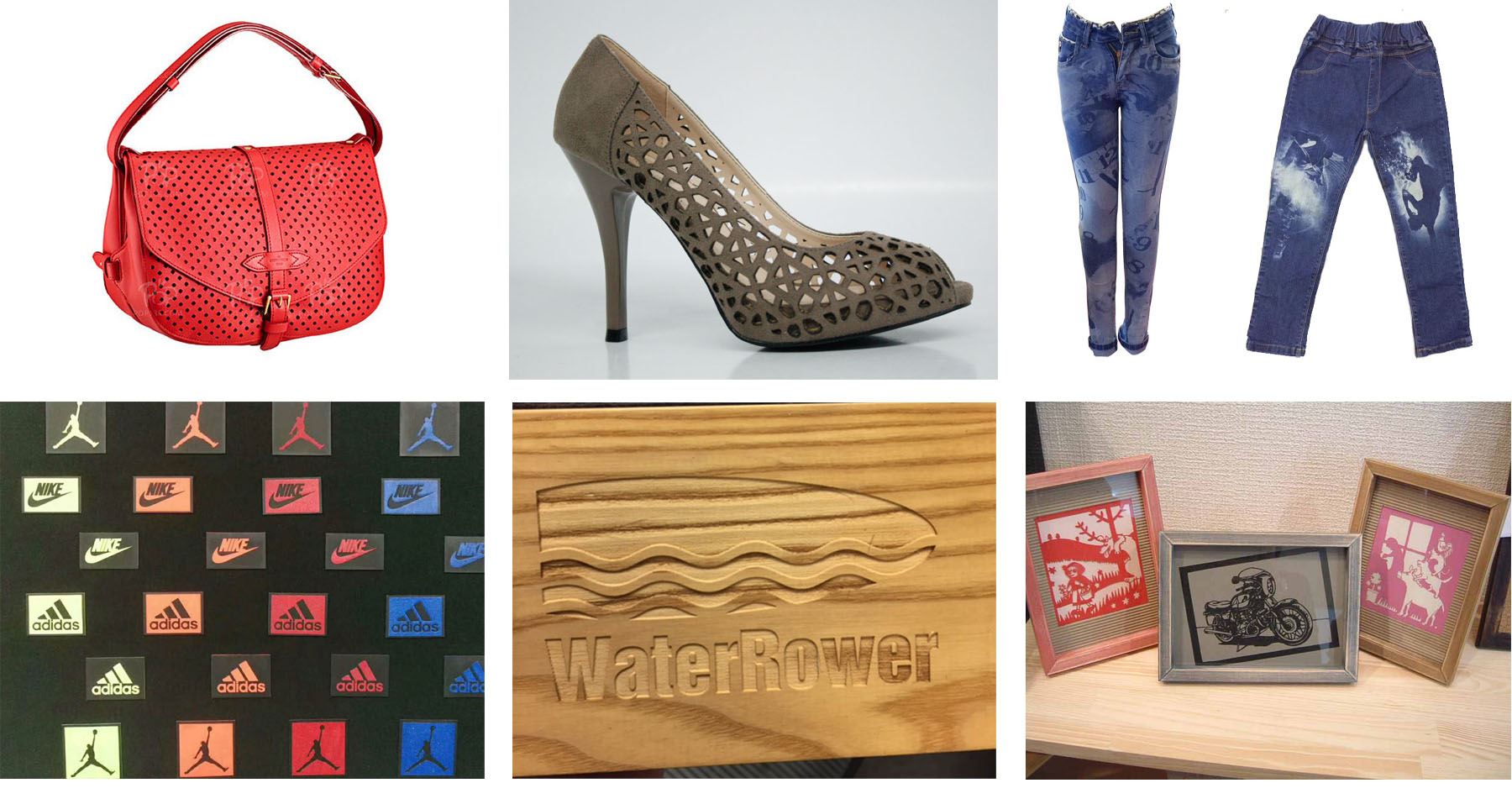

Samples show
Working Principle of 250W 3D co2 Galvo Laser
CO2 laser marking machine is a carbon dioxide laser marking machine, which is a laser galvanometer marking machine using CO2 gas as the working medium. The CO2 laser uses CO2 gas as the medium. CO2 and other auxiliary gases are charged into the discharge tube and high voltage is applied to the electrode. A glow discharge is generated in the discharge tube, so that the gas emits a laser with a wavelength of 10.64um. After mirror scanning and Z axis mirror focusing, under the control of computer and laser marking control card, images, characters, numbers and lines can be marked on the workpiece according to the user's requirements.
"Thermal processing" , laser beam with high energy density (it is a concentrated energy flow) is irradiated on the surface of the material to be processed, the material surface absorbs the laser energy, and a thermal excitation process occurs in the irradiated area, so that the material surface (or coating) temperature rise, resulting in metamorphosis, melting, ablation, evaporation and other phenomena.
After-sales service
The service tenet of DOTSLASER is: "satisfy users and help users succeed". We have a software to make detailed records of our door-to-door personnel, user contact personnel, fault occurrences, and resolution processes for every door-to-door service.
Technical service commitment:
Technical support: After you purchase the machine, we will provide you with free technical personnel training and 24-hour technical consultation.
Pre-sale service: According to customer's requirements, our company can provide various laser sample marking tests.
In-sale service: Customers can come to learn for free, and we can train 1-2 equipment users and maintenance personnel for customers. If our technicians are required to provide door-to-door service, the customer only needs to bear the cost of round-trip air tickets, room and board.
After-sales service: After the customer purchases the machine, the customer will be provided with a one-year warranty and a lifetime maintenance service.
Service time: We will arrange technicians to guide maintenance immediately after receiving your fault feedback.
Our company regularly visits users, records and processes user feedback in a timely manner, improves our service quality and technical level at any time, and provides users with more comprehensive and thoughtful products and services.
Shipping and Package
