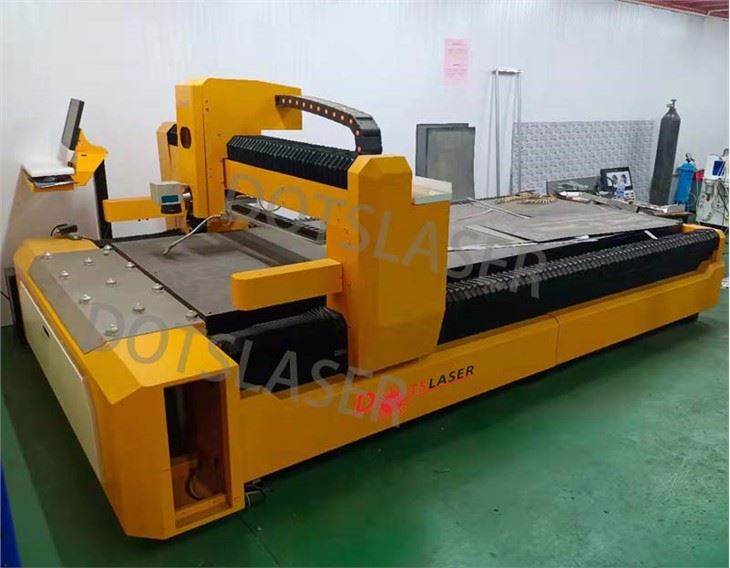

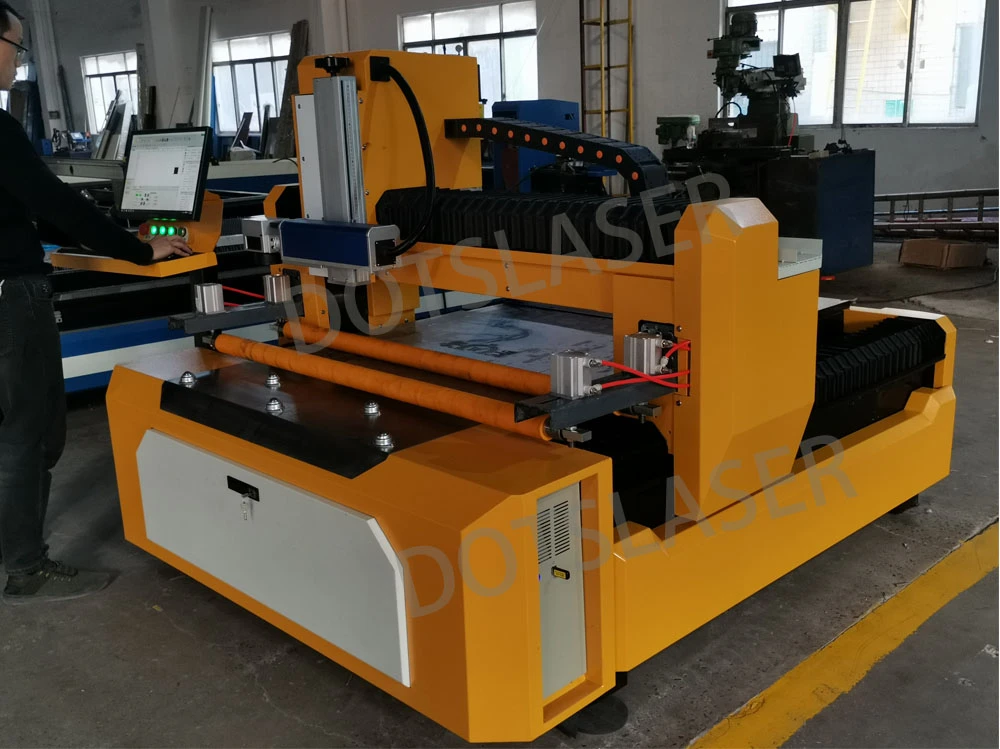

Large Stainless Steel Laser Engraver
Large Stainless Steel Laser Engraver
Products Description
A Large Stainless Steel Laser Engraver is a machine designed for engraving stainless steel objects of a larger scale or size. These engravers use laser technology to etch, mark, or engrave various designs, logos, or information onto stainless steel surfaces. These machines are suitable for various applications in industries such as manufacturing, automotive, medical, aerospace, and more.
Large stainless steel Laser Engraver is assembled with special developed and researched control program, which can control XY axis and galvo head moves smoothly and precisely,while laser beam spray onto objects as the patterns you designed. Its working area is optional, general area including 600x600mm,1000x1000mm,1300x1300mm,1300x2500mm,more different area can be customized.
Key Features of Large Stainless Steel Laser Engravers
Precision
Laser engravers offer precise control and high-resolution results, enabling intricate, detailed, and accurate engraving.
Versatility
These machines can engrave a wide range of designs, from text and numbers to patterns, logos, and complex images.
Speed
Laser engraving is typically faster than manual or traditional machining methods, minimizing cycle times and increasing productivity.
No Contacts
Laser engraving is a non-contact process, meaning it won't damage or deform the stainless steel material during the marking process, providing clean and consistent results.
Low Maintenance
Laser engravers generally have a long life, and since they don't use consumable materials like ink or chemicals, they require less maintenance than other engraving methods.
Flexibility
Large stainless steel laser engravers can handle and accommodate various sizes, dimensions, and shapes of stainless steel objects, making them suitable for a multitude of applications
Extremely fine spot size compared with other method, it can be 0.01mm, good for engraving small patterns and with high precision.
Strong power with short focus distance, which is suitable for deep engraving, the power option is 60W,80W,100W even more, the focus distance from galvo head to platform normally less than 300mm, so the laser beam fired onto objects` surface is strong and powerful, solves the pain of most large area engraver just can do very shallow marking work.
Low cost, the power consumption of whole system is less than 1.5KW, except power consumption, almost no other cost. no need consumable parts.
Seemless engraving on large working area, our special developed control program can keep the XY axis with a continuous movement, so the laser marking is continuous on the working area.
The system is very stable and you can run it 24h/7d.
Technical parameters
| NO. | Name | Wide area fiber laser marking machine | |
| 1 | Machine model | DS-LM1010-50 | DS-LM1010-80 |
| 2 | laser power | 50W | 80W |
| 3 | laser wavelength | 1064 nm | 1064 nm |
| 4 | Max single pulse energy | 1.25mj | 2mj |
| 5 | Frequency range | 1-600Khz | 1-4000Khz |
| 6 | Pulse width | 200ns | 2-500ns |
| 7 | Laser level | Class 4 | Class 4 |
| 8 | Repeat accuracy | ±0.003mm | ±0.003mm |
| 9 | Min.line width | 0.03mm | 0.03mm |
| 10 | Min.character size | 0.35mm | 0.35mm |
| 11 | Max marking speed | 8,000mm/s | 8,000mm/s |
| 12 | Working area | 1000x1000mm(standard), more wide area is optional | |
| 13 | Cooling | Air cooled | |
| 14 | Working environment temperature range | 5~35 ℃ | |
| 15 | Humidity range of working environment | < 70% No condensation | |
| 16 | working voltage | 220V,50/60Hz | |
Applications of Large Stainless Steel Laser Engravers
| Manufacturing | Engraving custom designs, logos, or part numbers onto stainless steel components for identification and tracking purposes. |
| Automotive Industry | Marking vehicle identification numbers (VINs), serial numbers, or manufacturing date information on large stainless steel parts and assemblies. |
| Medical Industry | Engraving surgical instruments, medical implants, and devices with identification numbers or markings for traceability and sterility control. |
| Aerospace Industry | Marking components, such as airplane engine parts, avionics systems, or structural components, with critical information for regulatory compliance and tracking. |
| Signage and Architectural Design |
Laser engraving large stainless steel panels or sheets with custom designs, logos, or text, which can be used in signage, decoration, or architectural purposes. Elevator panel laser etching patterns. |
| Removing the coating of hairdresser`s mirror, bathroom mirror,kitchen mirror,wall mirror, etc. | |
| Sheet metal with coating or metal decorative plate marking various patterns. | |
| Outdoor advertising board engraving. | |
| Large siz metallic commemorative plaque engraving | |
| A Large Stainless Steel Laser Engraver can be a valuable asset for businesses and industries that require efficient and accurate engraving on large stainless steel objects. These machines provide high-quality results while ensuring minimum damage or deformations to the materials, making them ideal for a variety of applications. | |

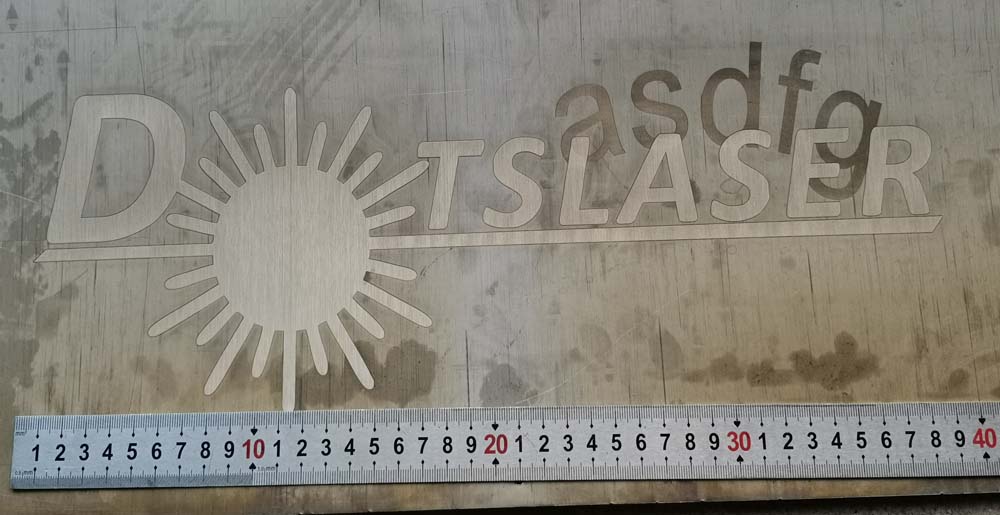

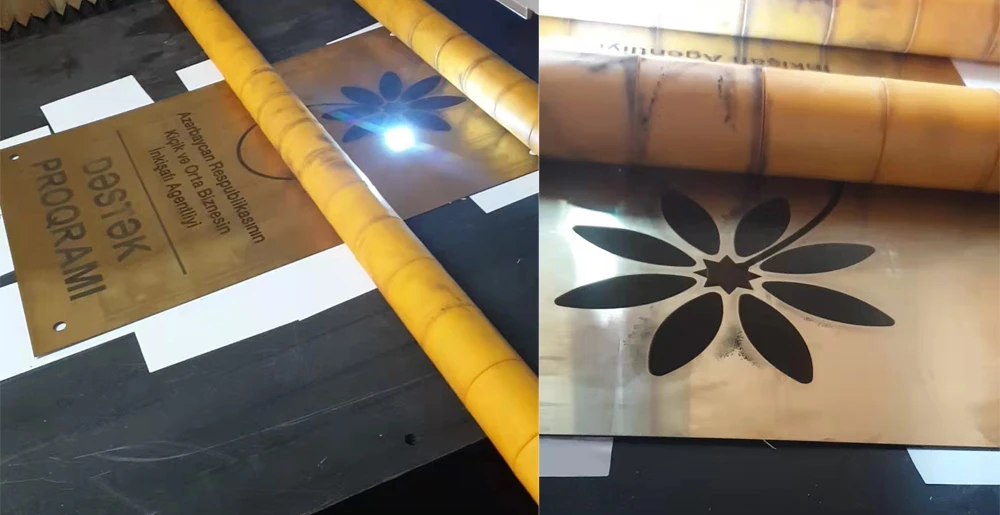

Samples show
Shipping and package
