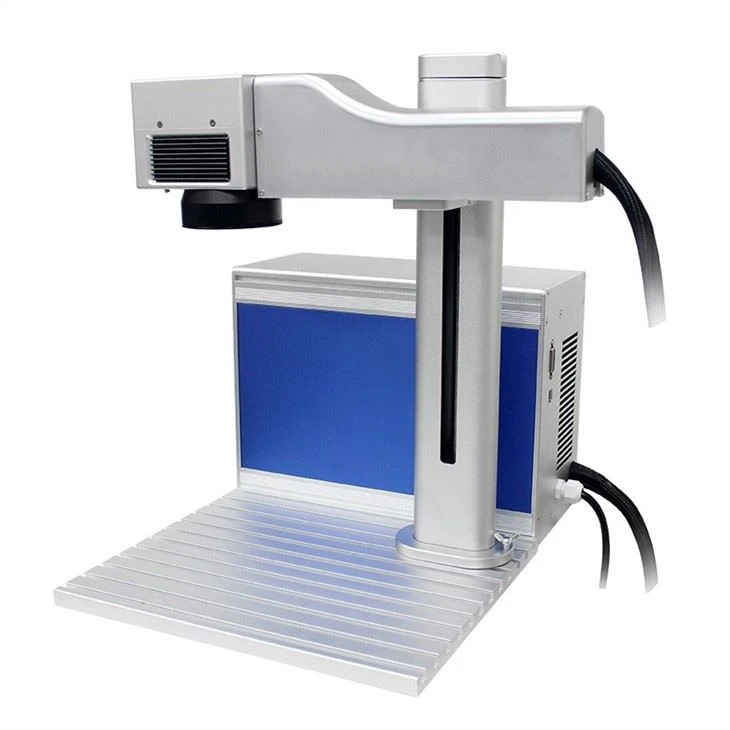

Laser Engraver For Metal
Laser Engraver For Metal
Products Description
The Laser Engraver For Metal can improve the efficiency of engraving, make the surface of the engraved place smooth and round, quickly reduce the temperature of the engraved material, and reduce the deformation and internal stress of the engraved object. The long-life fiber laser source makes the laser almost maintenance-free. The software is EZCAD, which is very convenient to use. Customers only need to connect to the USB to work.
The open working platform facilitates the placement of processing materials, and can work with assembly lines to meet the processing of large-format materials.
Large-size honeycomb platform, blade platform and partial lifting platform make this laser machine not only suitable for large-scale on-site processing industries.
Laser Engraver For Metal is equipped with functions such as auto focus, red light positioning, etc., which makes this machine perfect and maximizes its functions.
Applications:
Laser engraving machines for metal applications can meet many different requirements, such as nameplate engraving, metal tool logo engraving, digital engraving, date engraving on metal parts, bottles, etc.
Parameters
|
NO. |
Name |
Laser engraver machine for metal |
|
1 |
Machine model |
DS-LM20 |
|
2 |
Laser power |
20W |
|
3 |
Laser wavelength |
1064 nm |
|
4 |
Laser level |
Class 4 |
|
5 |
Repeat accuracy |
±0.001mm |
|
6 |
Min.line width |
0.01mm |
|
7 |
Min.character size |
0.15mm |
|
8 |
Max marking speed |
5000mm/s |
|
9 |
Working area |
100x100mm(standard)/150x150mm |
|
10 |
Cooling |
Air cooled |
|
11 |
Working environment temperature range |
5~35 ℃ |
|
12 |
Humidity range of working environment |
< 70% No condensation |
|
13 |
working voltage |
220V,50/60Hz |
Why we need a laser engraver for metal ?
1. The laser is a maintenance-free part and has a longer service life.
2. The marking result cannot be removed compared with ink printing.
3. The laser saves costs, only electricity is needed, and the power of the whole machine is less than 800 watts.
4. It is very easy to use.You can master the machine soon if you follow the video training or Dotslaser engineer's instruction.
What is best for engraving metal?
The answer is fiber laser engravers, CO2 lasers and diodes struggle to mark metal as metal is such a reflecting surface. But, newer 1064nm infrared lasers on diode engravers can mark metals quite effectively, and CO2 lasers can also engrave metals under the right conditions.

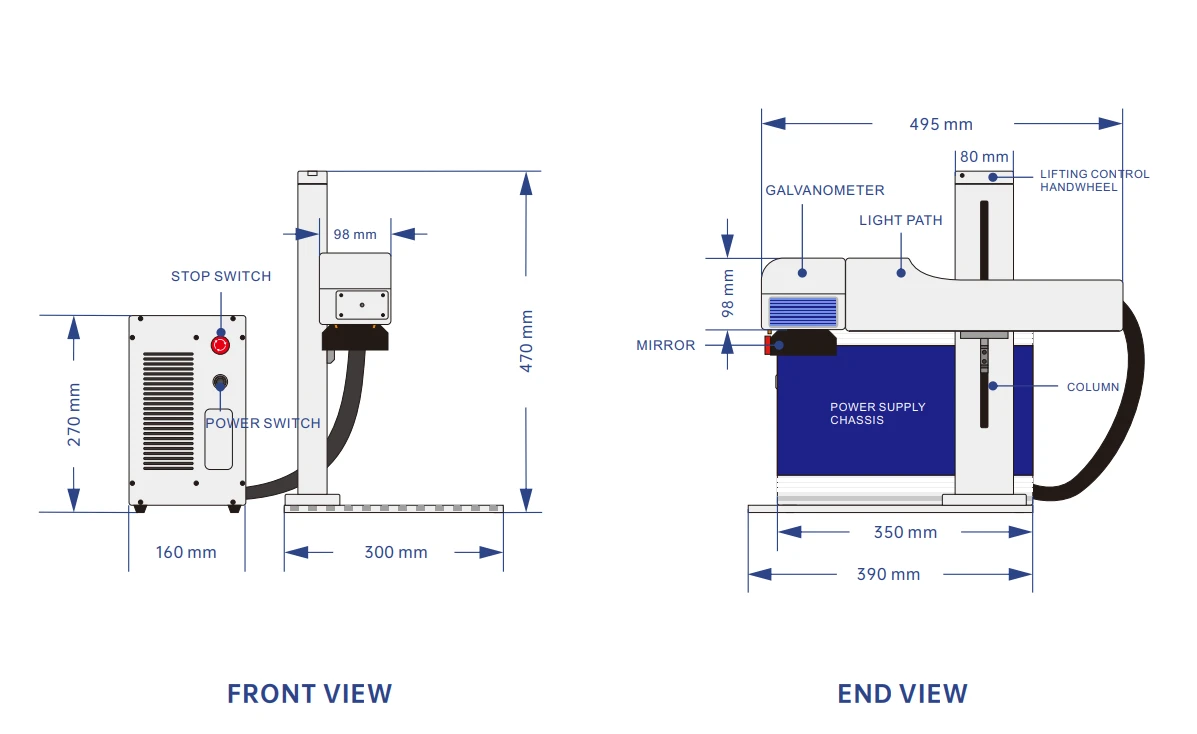

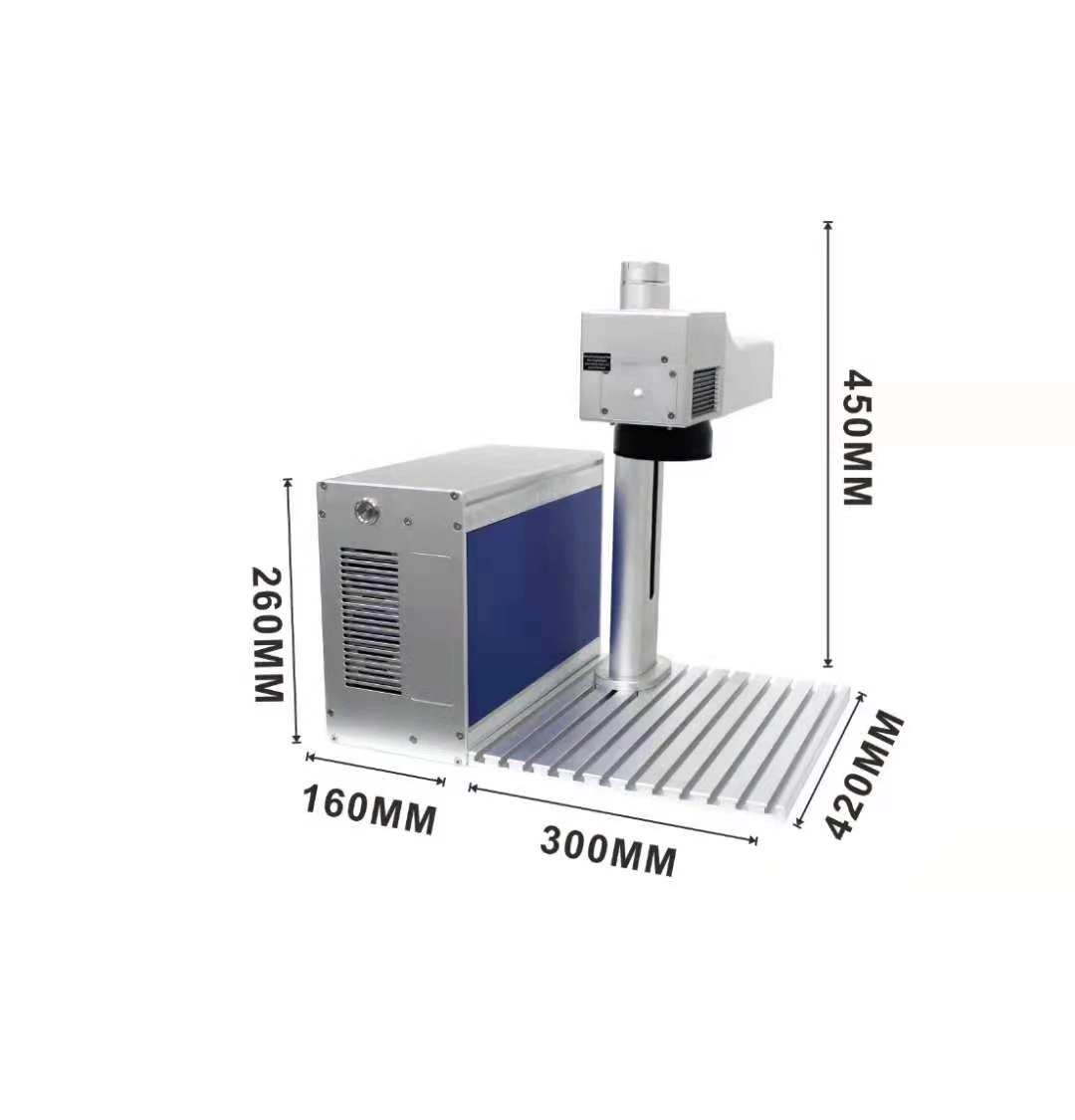

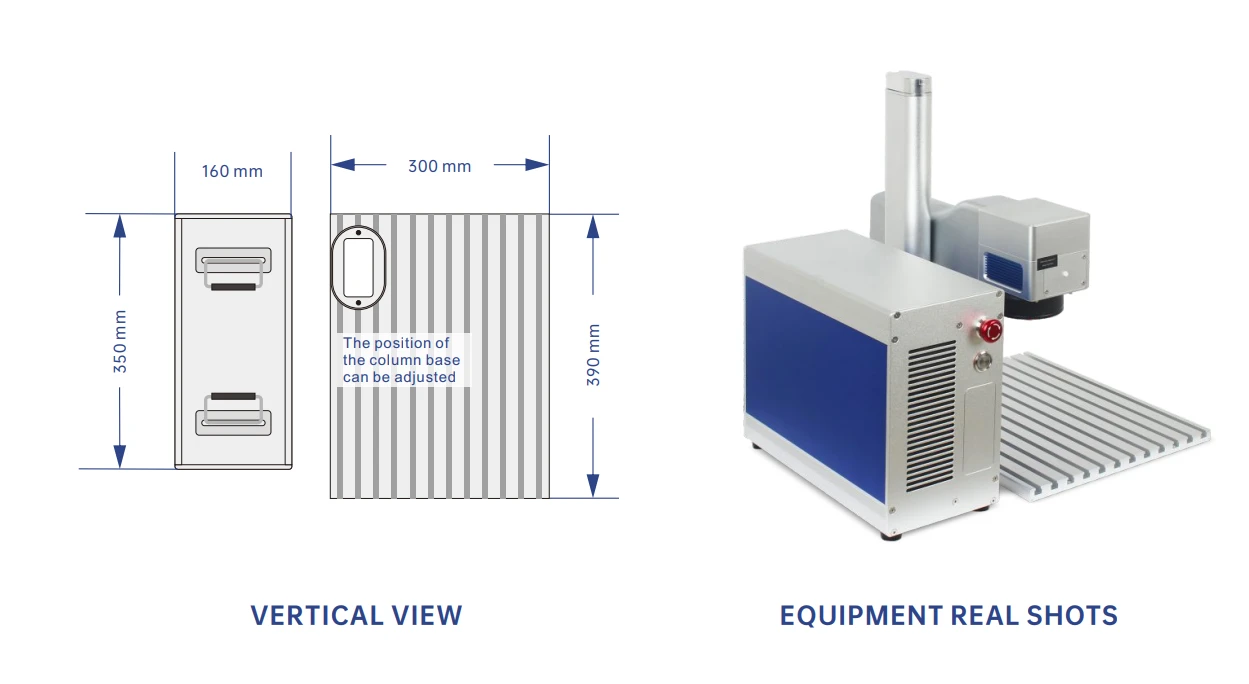

Product size
Products characteristis

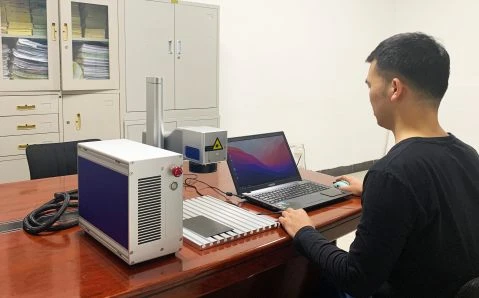

Flexible, Diversified Applications
Desktop optical fiber marking equipment, a special product specially developed for the needs of simple, compact, flexible and convenient equipment
Simple And Firm Structure, One Year Warranty
The whole machine has simple structure, compact and firm, stable performance and guaranteed. We promise the whole machine to be guaranteed for one year
The Whole Weight Is About 20kg, Light And Portable
The whole machine weighs only 20kg, it's simple and small and
easy to carry.
Column Beam Path Can Be Flexibly Disassembled
The beam path and the column can be flexibly disassembled, the
marking position can be arranged as you want, the storage is more
convenient; the disassembly and assembly are simple, it only need to
loosen the screws to disassemble and assemble
Product details
Advanced Fiber Laser Source
Using high-quality light source, the spot quality is good, the optical power density is uniform, the output optical power is stable,it has the characteristics of no light leakage, anti-high reflection, etc., which meets the mainstream market application requirements .

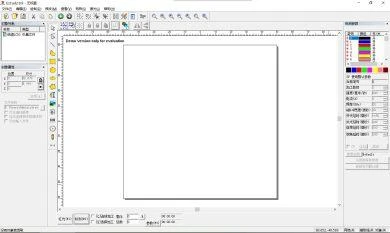

Powerful Marking Software
The control system is powerful, it can optimize a variety of data according to
different processes and support multi-language one-key switching, it meets
the application process requirements of most industries in the market .

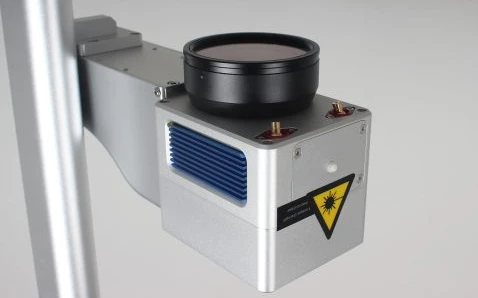

Double Red Light Metal Galvanometer
Metal body structure, built-in dual red light marking instructions, with the advantages of adjustment-free, maintenance-free, and high stability, it can be upgraded with high-speed digital scanning galvanometer.
Wide Application, Good Marking Effect
Suitable for various metal materials such as iron, copper, aluminum,
gold, silver, and some plastic materials, with clear markings and good
marking effects.

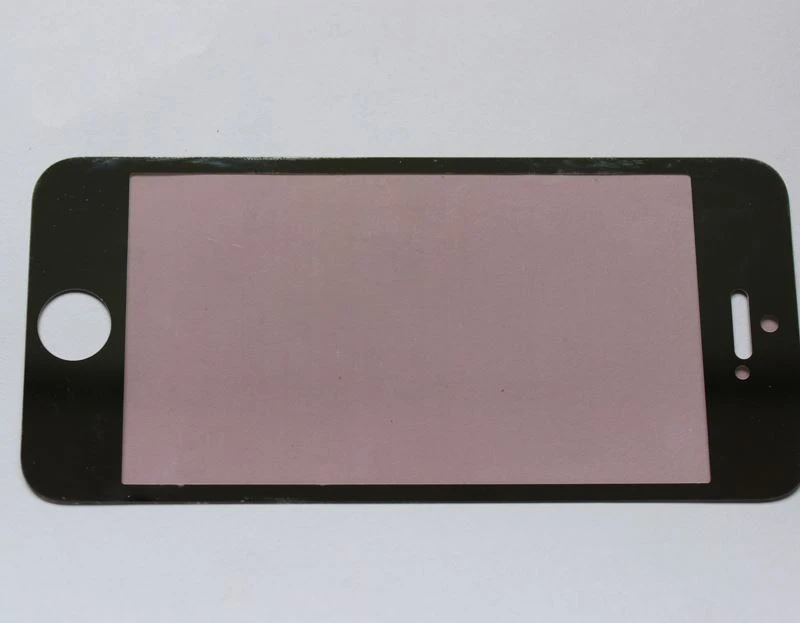

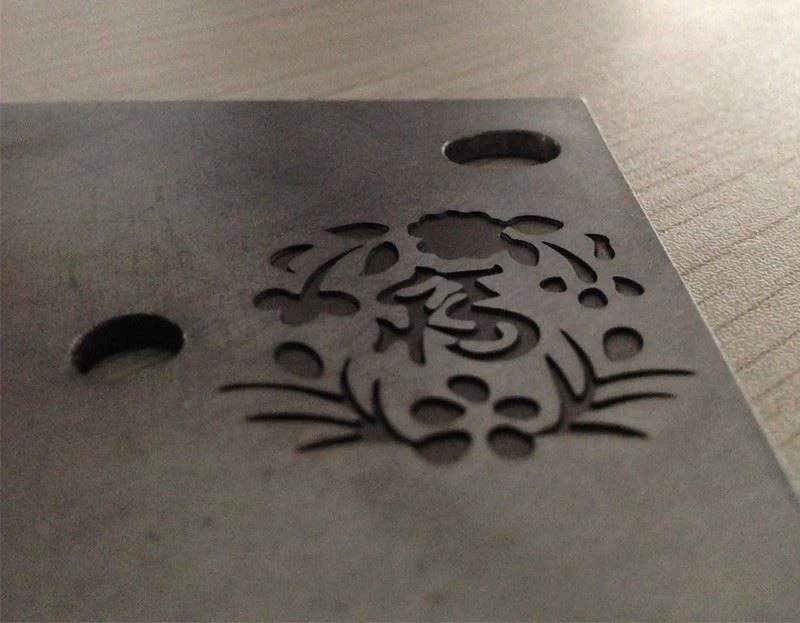

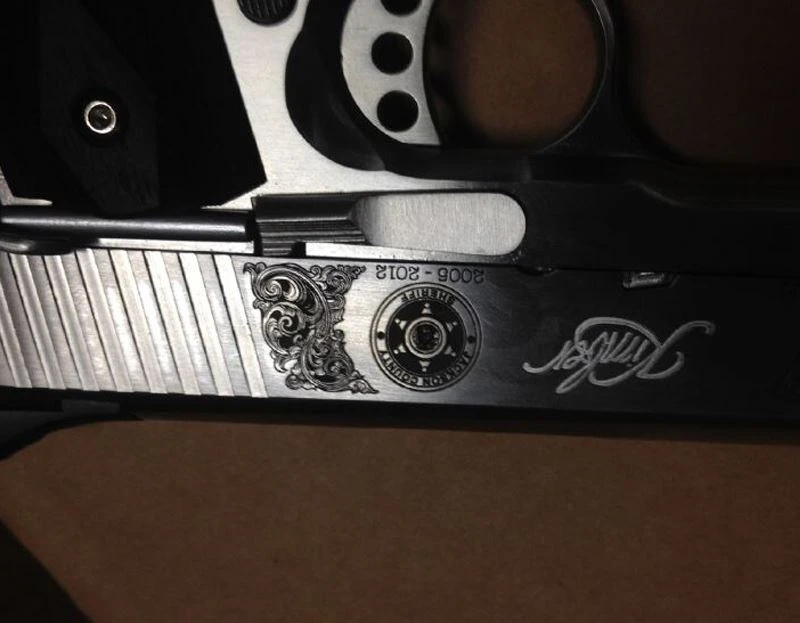

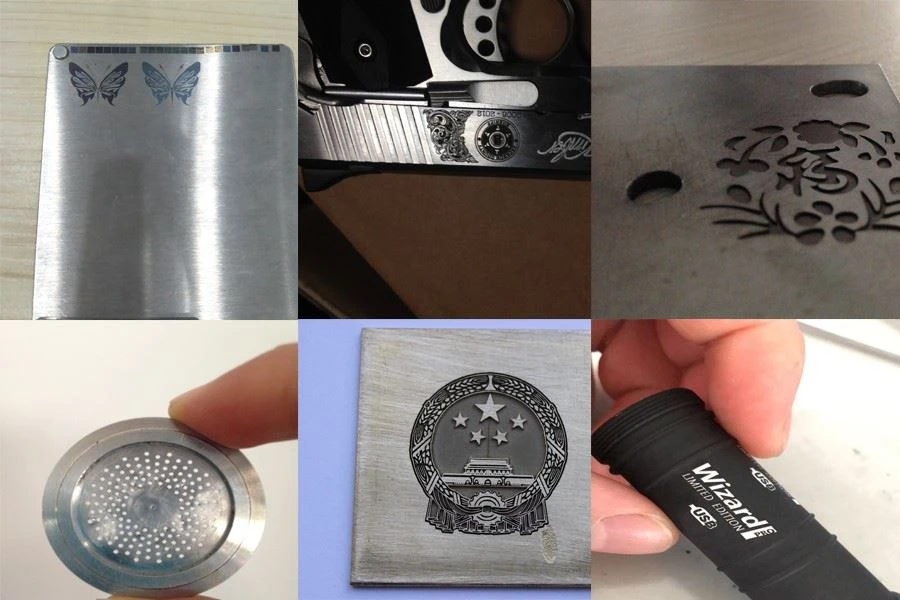

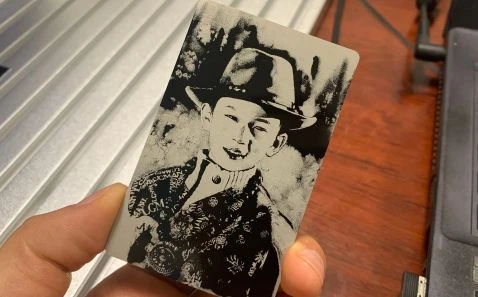

Sample show

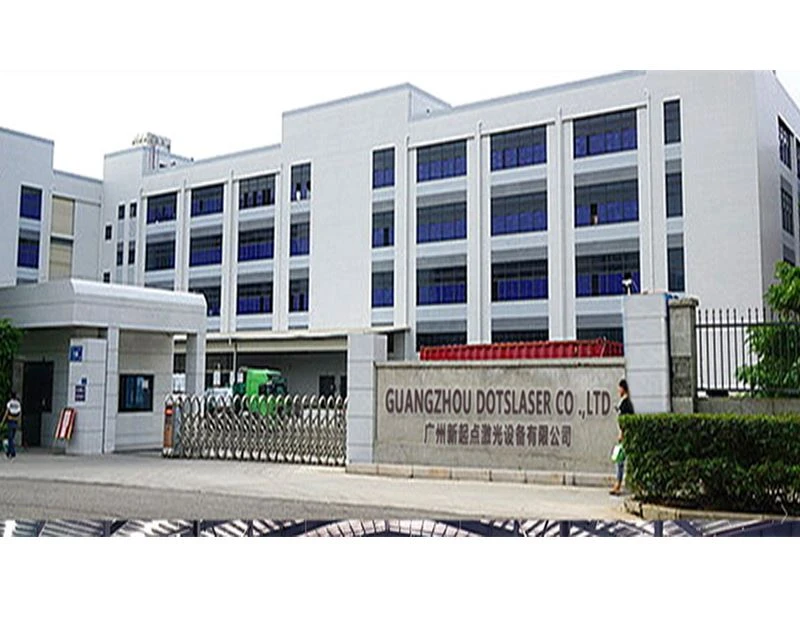

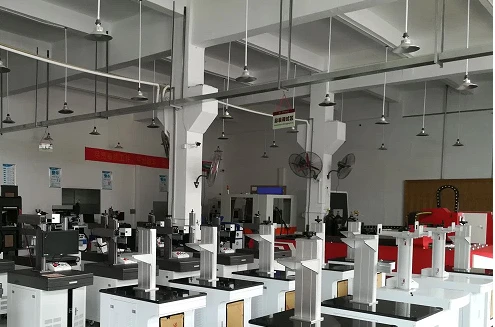

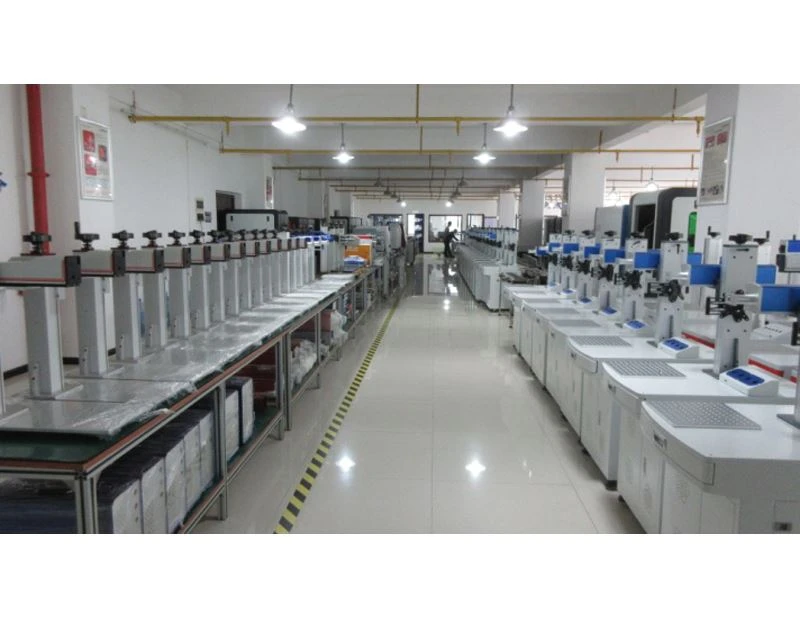

Workshop & Factory

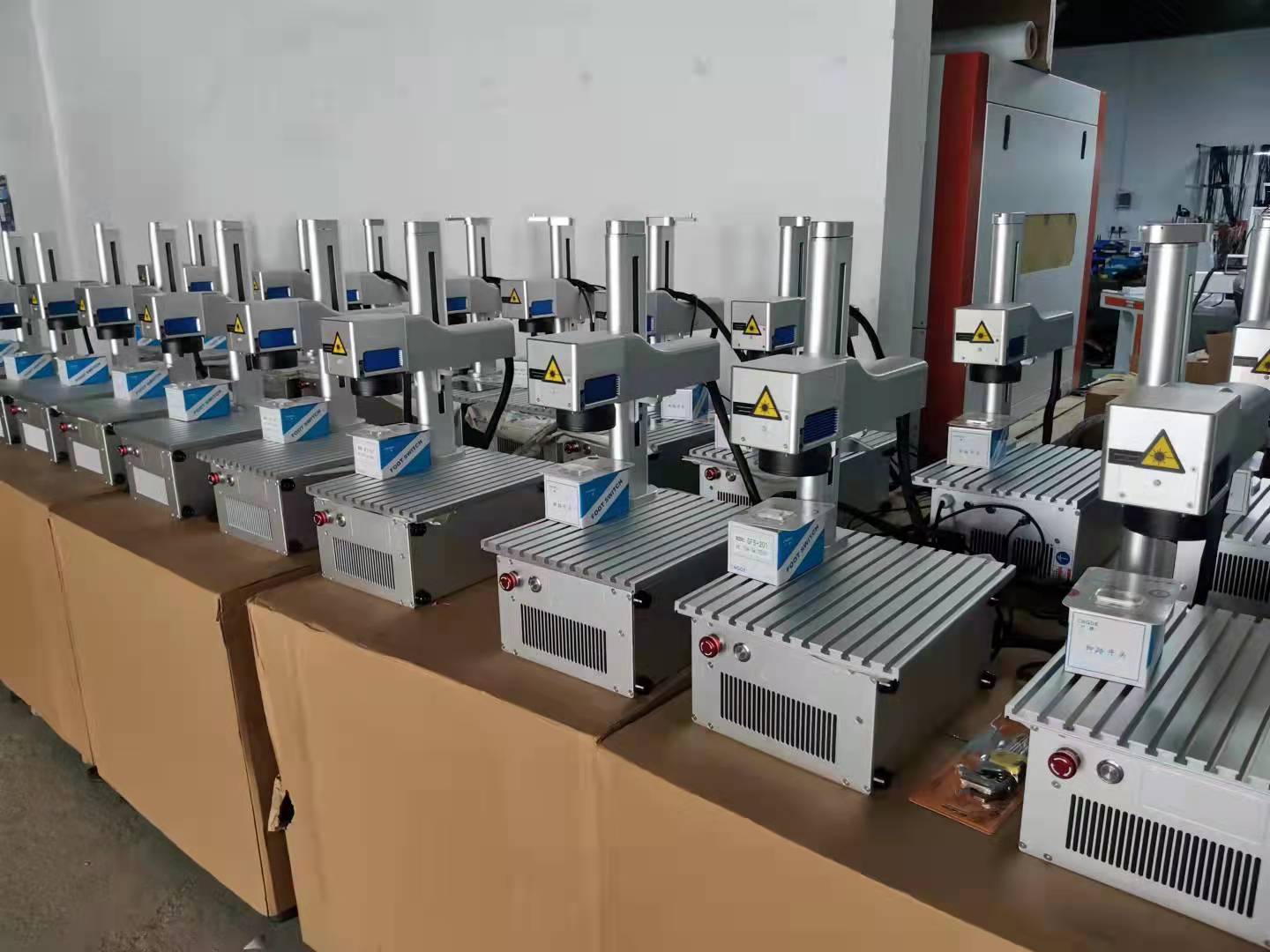

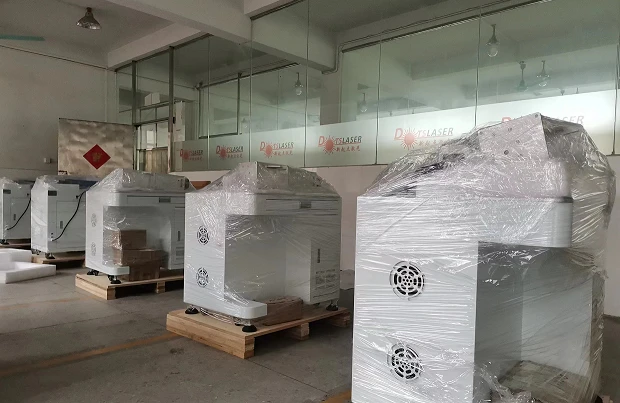

Shipment and package
