Steel Laser Engraving Machine
Steel Laser Engraving Machine
Products Description

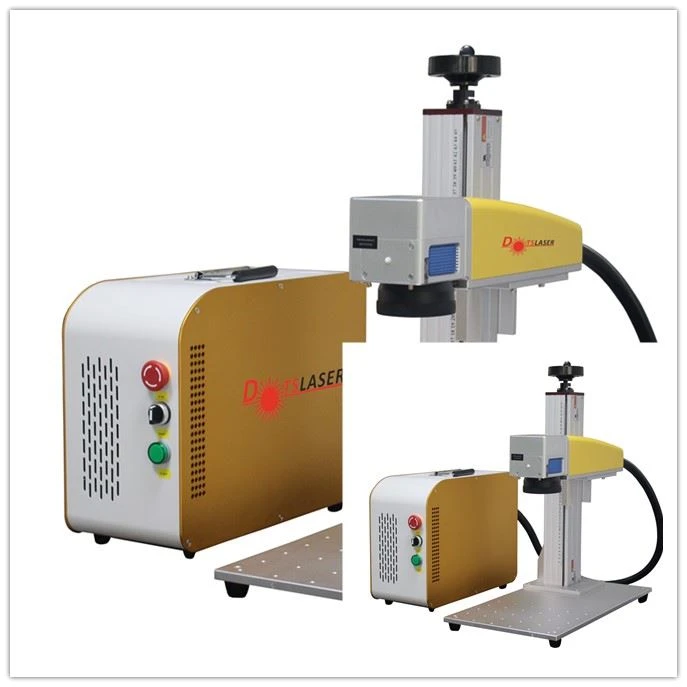

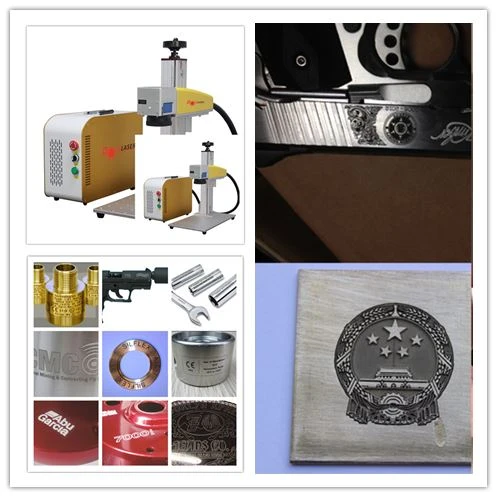

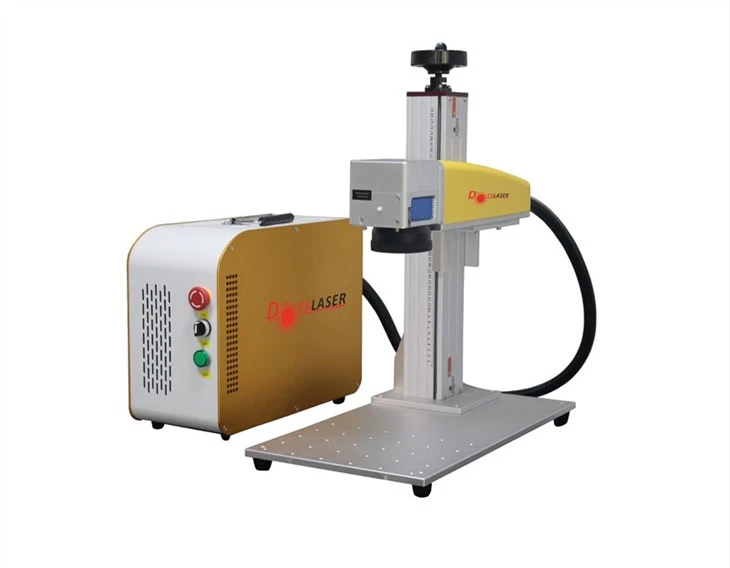

Steel Laser Engraving Machine such equipment generally uses imported semiconductor pump source and German high-speed marking vibrating lens. It has high photoelectric conversion efficiency, good beam quality, and high laser power. The entire system is designed and manufactured with new technologies, new processes, new materials, and new working principles. It is especially suitable for deep marking and high-precision cutting of precious metals and non-ferrous metals. It can also be equipped with a rotating device to precisely process the ring material.
Steel Laser Engraving Machine galvanometer scanning consists of two parts: optical scanner and servo control.
The laser is its core component, with high photoelectric conversion rate, good beam quality, maintenance-free operation, long service life, and fine marking. The compact size makes it suitable for various environments. It has good light transmittance, high clarity and guaranteed accuracy. The working platform has compact structure, light weight, simple interface, flexible and adjustable processing direction, and easy control.
How Long Does Engraved Metal Last?
Engraved metal is extremely durable, with the longevity of the engraving typically lasting for decades or even centuries. The durability depends on factors such as the type of metal, the depth of the engraving, the environment in which it is used, and how it is maintained. Metals like stainless steel and titanium are especially resistant to corrosion and wear, making them ideal for both indoor and outdoor applications.
Parameters
|
Model |
DS-LM20/DS-LM30/DS-LM60/DS-LM80 |
|
Laser power |
20W/30W/60W/80W |
|
Pulse Repetition Frequency |
1-1000kHz |
|
Beam quality(㎡ |
<1.6 |
|
Depth of engraving(depend on material) |
<5mm |
|
Power consumption |
≤1200W |
|
Operating voltage |
Single phase AC 220V/110V 50/60HZ 5A |
|
Laser wavelength |
1064nm |
|
Working area |
100×100mm,150×150mm |
|
Repetition precision |
±0.003mm |
|
Max engraving speed |
≤8000mm/s |
|
Minimum line width |
0.01mm |
|
Marking method |
Stationary Marking , disc rotary, Rotary Marking |
|
Character size |
0.5-110mm |
|
Cooling System |
Air Cooling |
|
Direction of Installing equipment |
Any |
|
Cable of Length |
3m (5m optional) |
|
Working Temperature Range |
5-38℃ |
|
Working Humidity |
20%-80% |
|
Net Weight of machine |
66kg |
|
Dimension of Main Body(L×W×H) |
1100mm×85mm×45mm |
Differences Between 304 & 316 Stainless Steel
304 stainless steel has good processing performance, high toughness, high density, no bubbles in polishing, acid and alkali resistance, etc. 304 stainless steel is widely used in industrial and home decoration industries and food and medical industries. The kitchen utensils, pots, pans and cups we use in our daily life are basically.
316 stainless steel has better corrosion resistance, atmospheric corrosion resistance and high temperature strength. 316 stainless steel is used in seawater equipment and chemistry, dyes, papermaking, oxalic acid, fertilizers and other production equipment, photography, food industry, coastal facilities, ropes, CD rods, bolts, nuts .
The traditional marking method is ink jet coding. The text information marked by ink jet coding is easy to fade and fall off, allowing some criminals to take advantage of it. This not only brings harm to customers, but also causes serious losses to tableware manufacturers. Therefore, a permanent marking device is needed for marking, so that criminals have no chance of committing crimes.
Laser marking machines are undoubtedly the most suitable choice. The laser marking machine uses a laser beam to make permanent marks on the surface of various materials. The beam is of good quality, small in size, and fast. The marked text information is exquisite and permanent, pollution-free, and will not fade or fall off.
Color Laser Marking...

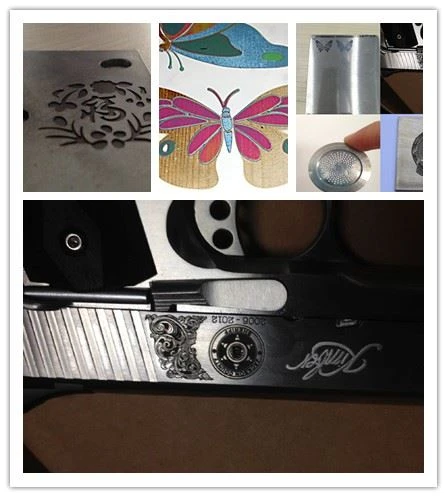

The laser marking machine can perform marking on stainless steel, plastic, wood and other materials. Generally, the color of laser marking is black, white, gray and other single colors; in addition, the laser marking machine can perform laser on stainless steel, titanium, aluminum and other materials. Color marking processing.
Compared with the traditional ink deposition technology and color powder film technology, the color marking function of the laser marking machine has great advantages. It has color durability and indelibility, and is simple and convenient to operate. It can mark any pattern, shape, text, etc., and is environmentally friendly and pollutionfree. The application of laser color marking technology on stainless steel can not only increase the added value of stainless steel products, but also enhance the international competitiveness of stainless steel products.
