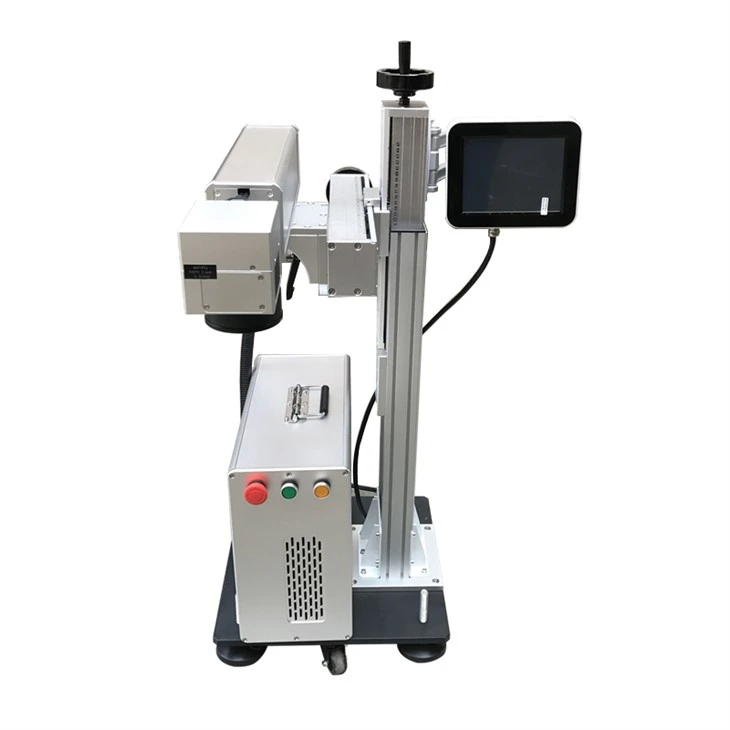

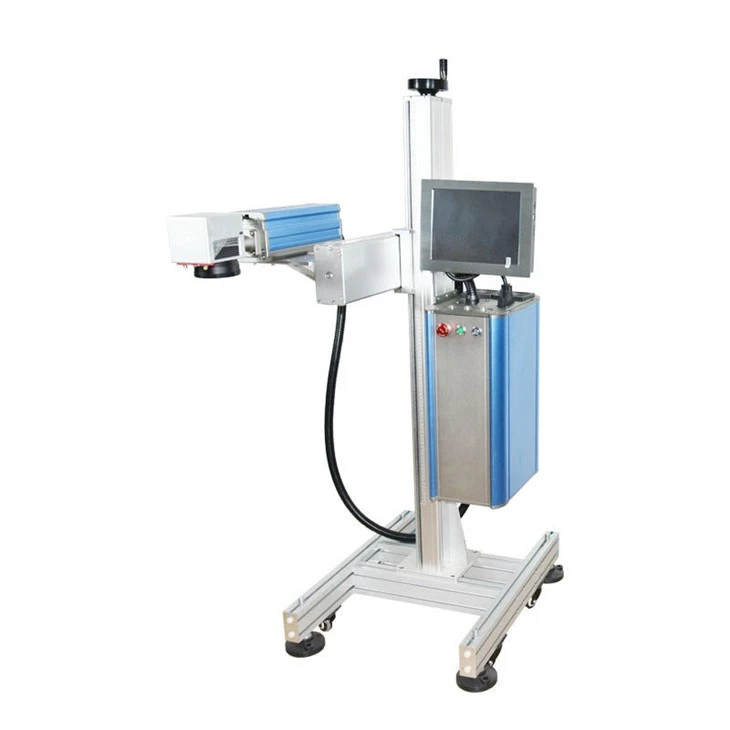

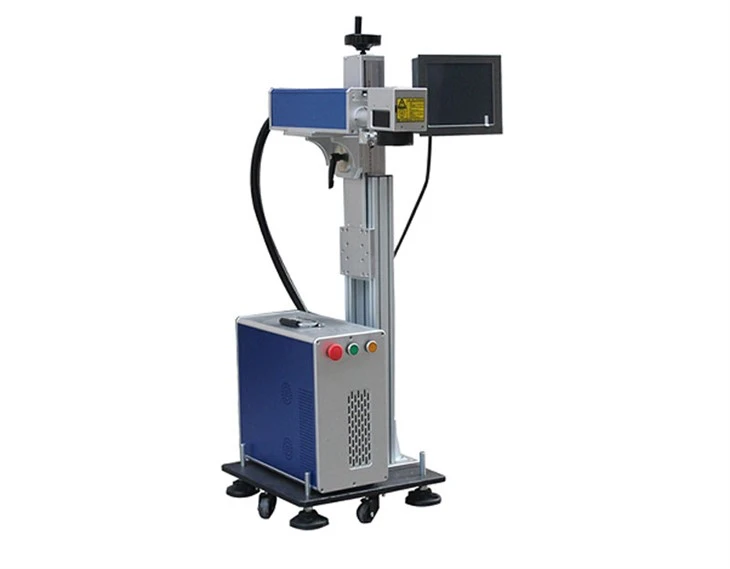

Fiber Flying Laser Marking Machine
Fiber flying laser marking machine
Products Description
Dotslaser fiber laser machine is a high-speed continuous marking machine designed to improve productivity, it mainly used in production date, anti-counterfeiting, medical and food packaging industries. This model supports functions such as automatic encoding, serial number, batch number, date, barcode, two-dimensional code, automatic number skipping, etc., to meet the needs of customers in different industries.
machine features
Legible marking
Fiber laser machine adopts MAX industrial-grade high performance laser source which are with stable performance, fast processing efficiency and marking speed on
Versatile
Fiber flying laser machine is suitable for online marking of most metal materials and some non-metallic materials with surface treatment, such as metal products, PVC, HDPE, aluminum film, rubber and plastics. It is widely used in the production of personal care products, food and beverage packaging, wine, electronic components,etc,.
Parameter
| Laser wavelength | 1064±5 |
| Output power stability | ＜3% |
| Working life |
About100,000workinghours(non-lifetime) |
| Marking range |
100-300mm(range optional) |
| Engraving depth |
≤1mm(dependingonpowerandtime) |
| Engraving speed |
≤10000mm/s |
| Repeat accuracy |
±0.002 |
| Minimum marking line width |
0.1mm |
| Minimum character height |
0.15mm |
| Cooling way |
Built-in air cooling |
| System power supply |
500W/220V/50Hz(110Vcanbeconnected) |
| Temperture humidity |
0~40°,30%RH85%,airconditionershouldbeinstalledwhenusedoutsidetherange |
| Oil mist condensation |
Not allowed |
| Operating system |
Fly control system |
| File format |
The software supports text,QR code, barcode, serial number, graphics and other marking content |
| Dimensions |
660X510X1460mm |
| Total weight | About 66KG |
Applicable industries：

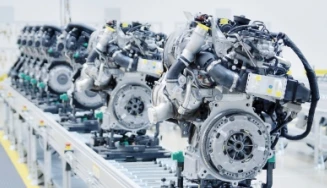

Electrical components and
electronic devices

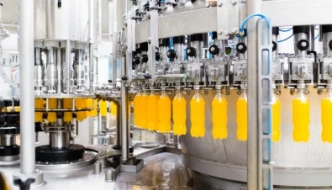

Food and beverages and
fast moving consumer goods

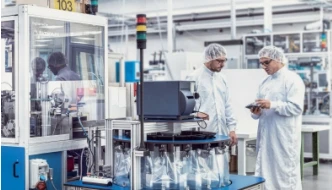

Cosmetics, personal and
home care products
Product details
Marking Speed Up To 200 Meters Per Minute
This is the industry's fastest marking laser coding system, with a marking
speed of up to 200 m/min (single line of 2MM-high numbers and letters),
which can be used in medium-speed or high-speed production lines.
Reliable And Durable Fiber Laser Source
It adopts MAX high-quality fiber laser light source, which is in uniform laser
power density and highly focused laser beam Achieved a better logo contrast
and the working life of the laser can reach 100,000 hours

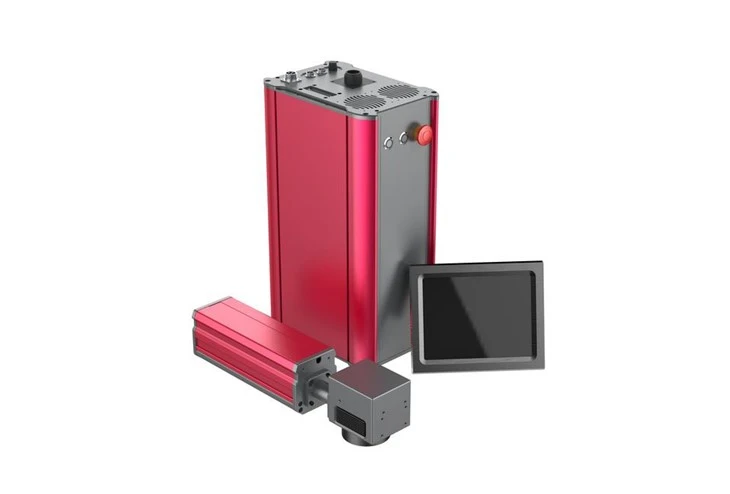

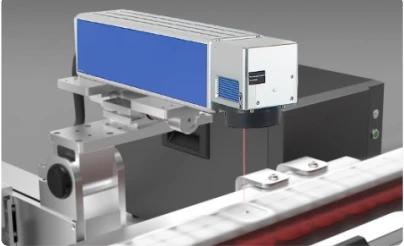

Compact Design And Flexible Configuration
This model uses compact laser printer marking head to achieve simple
integration to reduce installation costs and improve positioning flexibility.

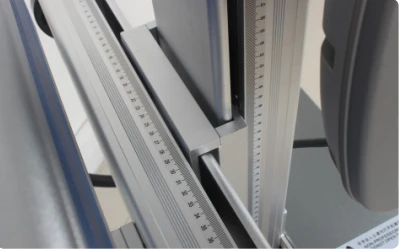

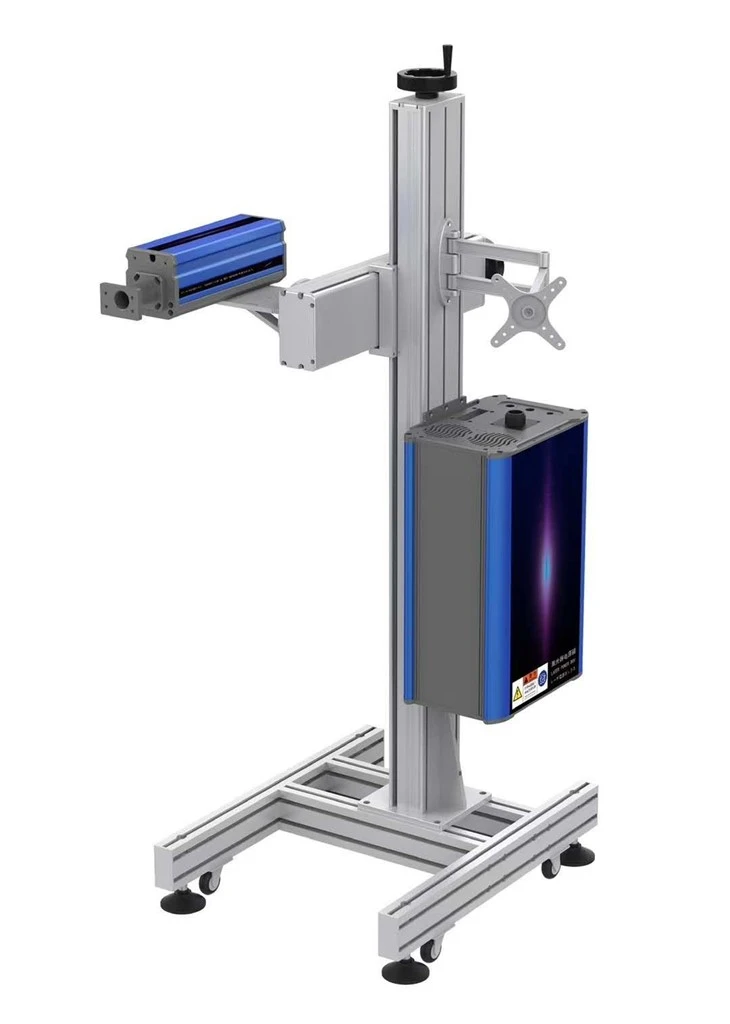

Flexible Installation Way, Convenient Installation Position Adjustment
The flying model is specially designed for high-speed production lines,
which can be flexibly combined with production lines for installation
and use. The frame can be moved up and down and left and right to
adjust, the marking head can also be rotated 360° for marking.
Daily maintenance of Fiber Laser Machines:
Maintaining your fiber laser machine is crucial in extending its lifespan and ensuring it operates at peak efficiency.
1. Regular Cleaning
Cleaning dust on the machine in case damage inner machine, potentially disrupting its functionality. By regularly cleaning the machine's exterior and the focusing lens, you ensure clear, precise markings every time.
2. Routine Inspection
Check the machine regularly for any signs of wear or potential problems. Note the condition of the cables, the alignment of the laser, and the operation of the cooling system. If the machine is water-cooled, check to make sure you change the water for the water cooler. Regular checks are necessary to catch problems early and avoid more serious problems.
3. Optimal Operating Environment
Place your fiber laser machine in an environment with stable temperatures and minimal dust. Extreme conditions can affect the machine's performance and may lead to unnecessary damage.
4. Software Updates
Keep your machine's software up-to-date to ensure you benefit from the latest features and improvements. Regular updates can enhance the machine's performance and user experience.
5. User Training
Ensure anyone operating the machine is properly trained. Understanding how to use the fiber laser machine correctly reduces the risk of accidental damage and improves overall efficiency.

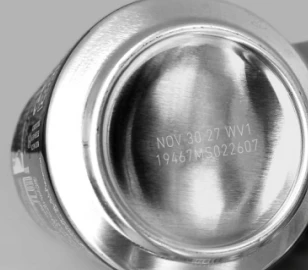

Samples Of UV Laser Marking
Shipping and package
