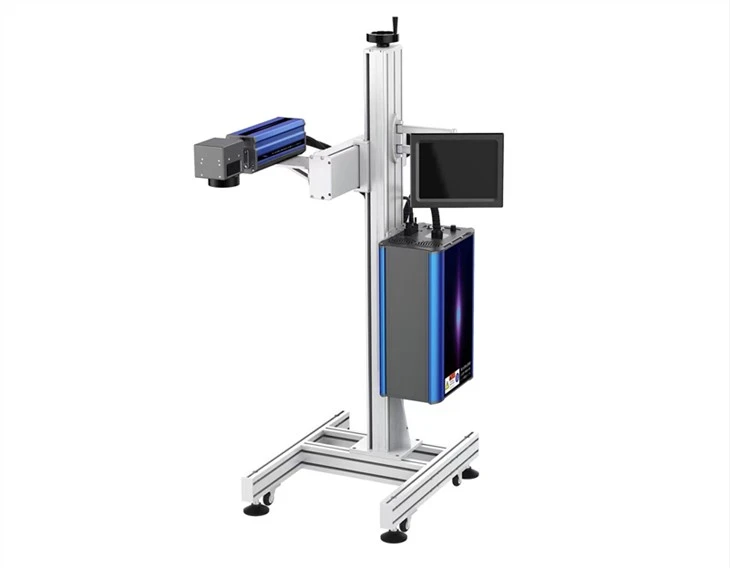

Dynamic Laser Fly Marking Machine
Dynamic Laser Fly Marking Machine
Products Description
Equipped with high-powered laser sources and advanced optical systems, our Dynamic Laser Fly Marking Machine has the ability to produce clear and consistent markings at incredible speeds. Whether you need to mark text, logos, barcodes, or other graphics, our machine is capable of handling even the most complex jobs with ease.
Features and characteristics
1. The dynamic laser fly marking machine adopts a fiber laser source, with an average laser power density and a more stable output laser beam.
2. When the laser source is turned off, there is no laser beam leakage and no interference, among other positive characteristics.
3. Non-contact process reduces the risk of damage and improves overall quality of the final products.
4. The digital high-speed scanning galvanometer of DOTSLASER is equipped with a small size, fast speed, and good stability. Its performance has reached the international advanced level.
5. Using an embedded operating system, its performance surpasses domestic and international levels. It also has a good touch operation interface and a powerful control system.
6. Adopt a special fly marking control system with excellent performance and easy operation. This system ensures the highest level of accuracy and efficiency in fly marking.
Parameters of dynamic laser fly marking machine
| Model | DS-LM20 | DS-LM30 | DS-LM50 | DS-LM80 |
| Laser power | 20W | 30W | 50W | 50W |
| Laser wavelength | 1064nm | |||
| Laser beam quality | <1.3m2 | |||
| Repetivity | 20-200KHz | |||
| Max line marking speed | 9000mm/s | |||
| Marking area | 70*70mm~300*300mm | |||
| Min.line width | 0.03mm | |||
| Min.character | 0.1mm | |||
| Cooling | air cooling | |||
| Power supply | 110~220V, 50/60Hz | |||
| Compare The Pros And Cons |
Laser Fly Marking Machine |
Inkjet printer |
| Excellent performance, working flexible | Can print sequence code, batch number, bar code, QR code, logo and patterns. The number of lines and font size of the message are limited. |
Can print bar codes, batch numbers and simple patterns, etc., print line number.The number of lines and font size of the message are limited. |
| Simple installation, easy to use | Compact, lightweight chassis, smallest and lightest laser printhead can directly installed in the production line, suitable for any production space. | The machine has large ,but still has small, and some models also need external equipment to connect that can use the machine.Such as external air compressors. |
| Lower operating costs, maintenance free | Extremely low operating costs,reject unplanned manufacturing, equipment can be maintained free, no consumables, no operating costs. | The inkjet printer consumes a lot of ink and solvent, large consumables. Replacing sprinkler heads, pumps and other accessories is expensive. |
| Powerful data analysis, anti-counterfeiting | Equipped with embedded flight system with powerful data processing capabilities, which can connect all anti-counterfeiting data systems ,and the mark is clear and permanent. | Using single-chip microcomputer control, data processing capacity is limited, less anti-counterfeiting function, easy to erase and change. |
| Safety and environmental friendly | It does not produce substances harmful to the environment and human body. It has been widely used in food and medicine production. Meet GB7247-87;GB10320-88 standard. | Inks and solvents are highly volatile substances, which will produce more chemical toxic residues and pollute the environment. |
Applicable Industries:
1. Electrical engineering and electrical part and component.
2. Mobile (cover, battery, keyboard, iPhone case), plastic case.
3. Jewellery (ring, pedeant, bracelet), eyeglass, clocks and crafts.
4. Building materials, PVC pipe.
5. Car industry (motor spare parts).
6. Insturment and meters and cutting tool.
7. hardware fitting and accessory.
8. Sanitary appliance.
9. Food and beverage.
10. Medicine package and surgical instruments.
11. Wire marking.

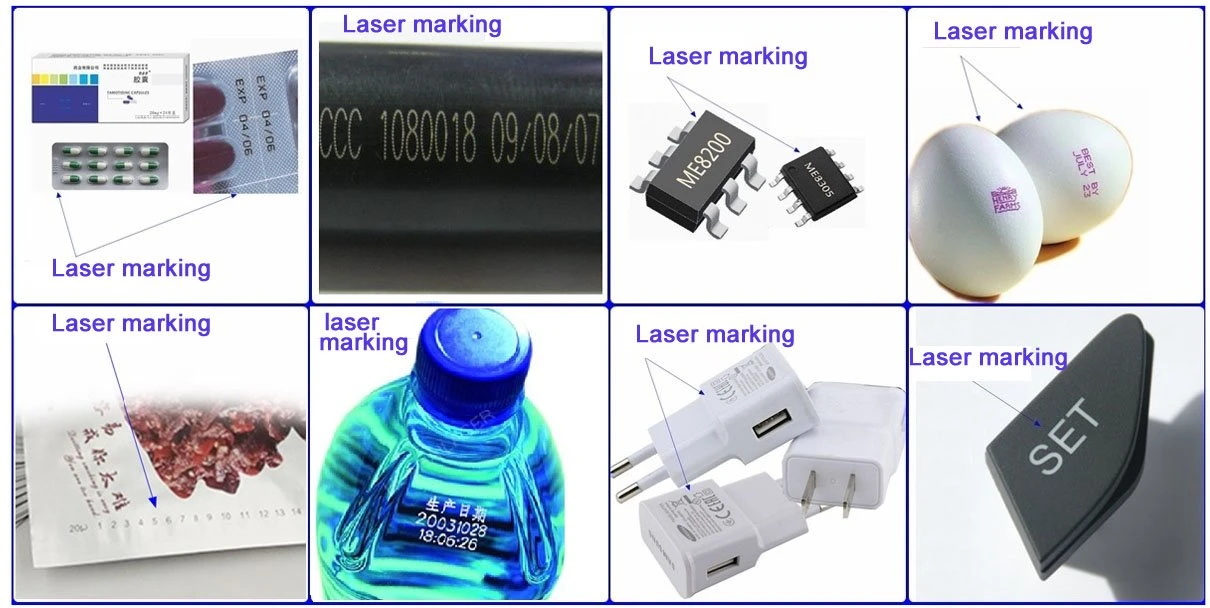

Samples
After Sales Support of DOTSLASER
1. We have a professional international technical team to support partners and users at 24/7. our technicians with a 10 years experience in laser field. and good English spoken. you can call them directly for any question.
2. The warranty of our machine is one year, laser source two years. maintenance is available in all time.
3. Training is free, after-sales instruction is free, just charge if the machines are out of warranty and need to exchange parts, service is free.
4. Man-made failure,natural disasters, force majeure factors, unauthorized changes are not covered by the warranty.

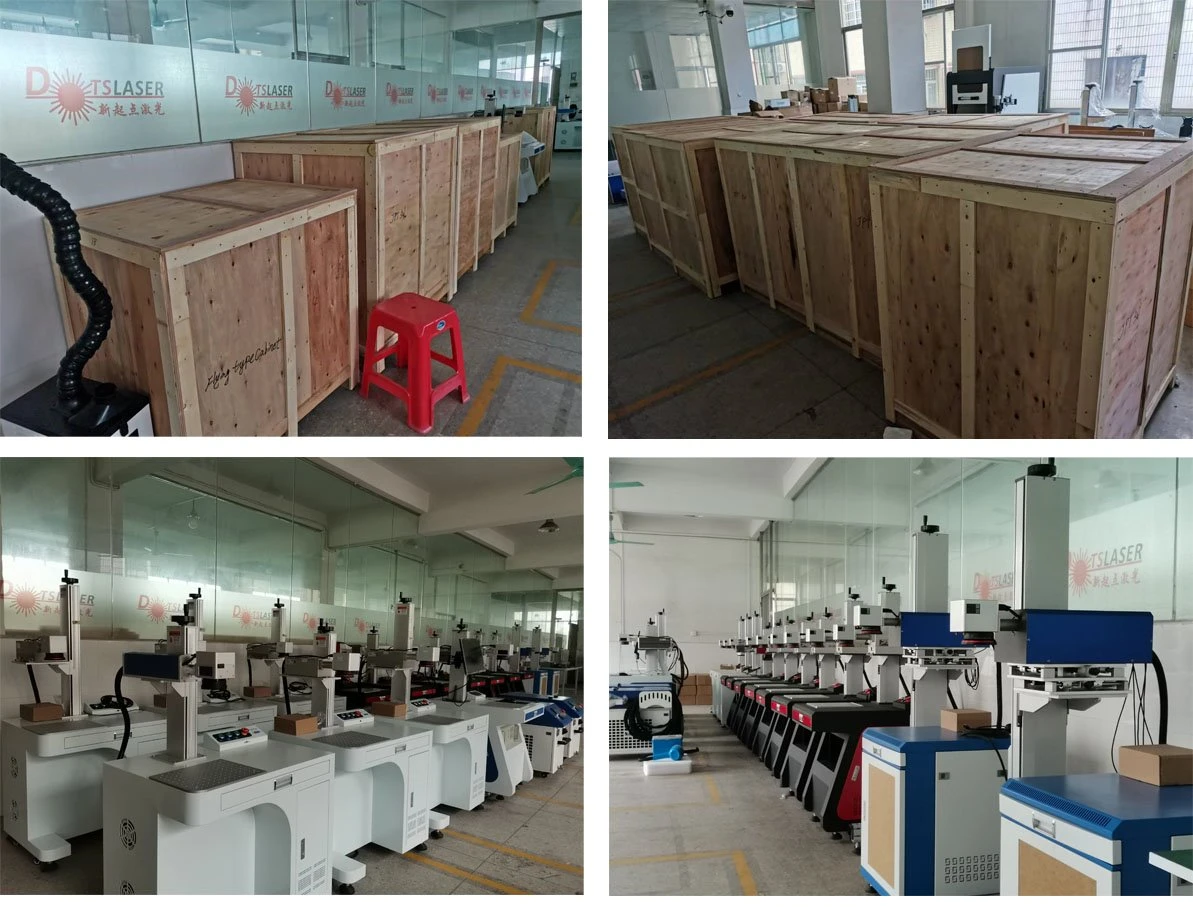

Packaging And Shipment Of Dotslaser
| Quality assurance and after-sales service: After the equipment arrives at the demanding party's use site, after the installation and commissioning is completed and the acceptance of the buyer is qualified, 12 months is the equipment warranty period. We attach great importance to the after sales service of the products. Once the products are delivered to the user for use,the company immediately establishes the customer service files, and regularly tracks the user's product usage, solves and solves all problems of the users, and receives the user's information about the equipment. The failure notificationinformation, the company's customer service team can respond quickly within half an hours. |
