Products Description
We are pleased to offer an affordable yet high-performing Fiber Laser Engraver designed for businesses and hobbyists with budget constraints. Offering excellent engraving results on a variety of materials, this cost-effective solution is perfectly suited for applications such as marking metals, plastics, ceramics, and more.
Key Features
Budget-Friendly
Our affordable Fiber Laser Engraver allows you to enjoy the benefits of high-quality laser engraving technology without breaking the bank.
Compact Design
The compact and space-saving design ensures that the engraver can fit comfortably in small workshops or studios, making it an excellent choice for those with limited space.
Ease of Use
The user-friendly interface and software make it simple to design and execute engraving projects, allowing for quick setup and fast completion times.
Versatile Material Compatibility
The affordable Fiber Laser Engraver is capable of marking and engraving various materials, including metals (e.g., stainless steel, aluminum, copper), plastics, ceramics, and more.
Efficient and Precise
Despite its affordable price, our engraver features high-precision laser technology, ensuring accurate markings and engravings even on intricate designs.
Low Maintenance
With a minimal maintenance design, the affordable Fiber Laser Engraver offers excellent performance and durability, reducing the need for costly repairs or component replacements.
Parameter of cheap fiber laser engraver
| Model series | Intelligent mini laser marking machine | ||
| Model | DS-LM20-E | DS-LM30-E | |
| Laser parameters | Laser source model | MFP-20X/20QS | MFP-30X/30QS |
| Output Power | 18.5/20W | 30W | |
| Beam quality M2 | ≤1.4 | ≤1.4 | |
| Pulse repetition frequency | 27-60 KHz | 30-60 KHz | |
| Laser wavelength | 1064±5 nm | ||
| Output power stability | <3% | ||
| Working life | About 100,000 working hours (non-lifetime) | ||
| Optical properties | Marking range | 100-150mm (range optional) | |
| Engraving depth | ≤1mm (depending on power and time) | ||
| Engraving depth | ≤10000mm/s | ||
| Repeat accuracy | ±0.002 | ||
| Minimum marking line width | 0. 1mm | ||
| Minimum character height | 0. 15mm | ||
| Use environment | Cooling way | Built-in air cooling | |
| System power supply | 500W/220V/50Hz(110V can be connected) | ||
| Temperature humidity | 0-40°,30% RH 85%, air conditioner should be installed when used outside the range | ||
| Oil mist, condensation | Not allowed | ||
| Other parameters | Support system | Windows operating system | |
| Dimensions | 390X210X615 mm | ||
| Packing size | 680X5500X270 mm | ||
| Total Weight | About 20kg | ||
Applications:
Our affordable Fiber Laser Engraver is well-suited for projects in various industries and applications, such as:
- Jewelry and accessory engraving: e.g., rings, necklaces, bracelets, watches
- Tool and equipment marking: e.g., marking part numbers, logos, and identifiers
- Electronic component labeling: e.g., PCBs, connectors, device casings
- Promotional and personalized items: e.g., keychains, pens, awards, tags
- Industrial marking and traceability: e.g., barcodes, QR codes, serial numbers
- Experience the advantages of fiber laser engraving technology while staying within budget with our affordable Fiber Laser Engraver. Please contact us if you have any questions, require additional information, or would like to schedule a demonstration. Enhance your engraving and marking capabilities with our cost-effective and high-quality solution.
The DS-LM-E series cheap fiber laser marking machine is desktop type equipment. This model has a simple structure and a self-developed design, which has high stability and long life. The equipment has the advantages of economical and affordable, cost-effective (standard does not include a computer), the whole machine weighs only 20kg, it's simple and small and easy to move.
The DS-LM-E series use a 1064nm wavelength fiber laser source, which is suitable for engraving various metal materials such as iron,copper,aluminum, gold, silver and some non-metal materials such as PC, ABS , PVC, and PC+ABS. It is widely used in 3C, auto parts, electronic components, integrated circuits (PC), electrical appliances, precision equipment, hardware products, building materials, and other industries.

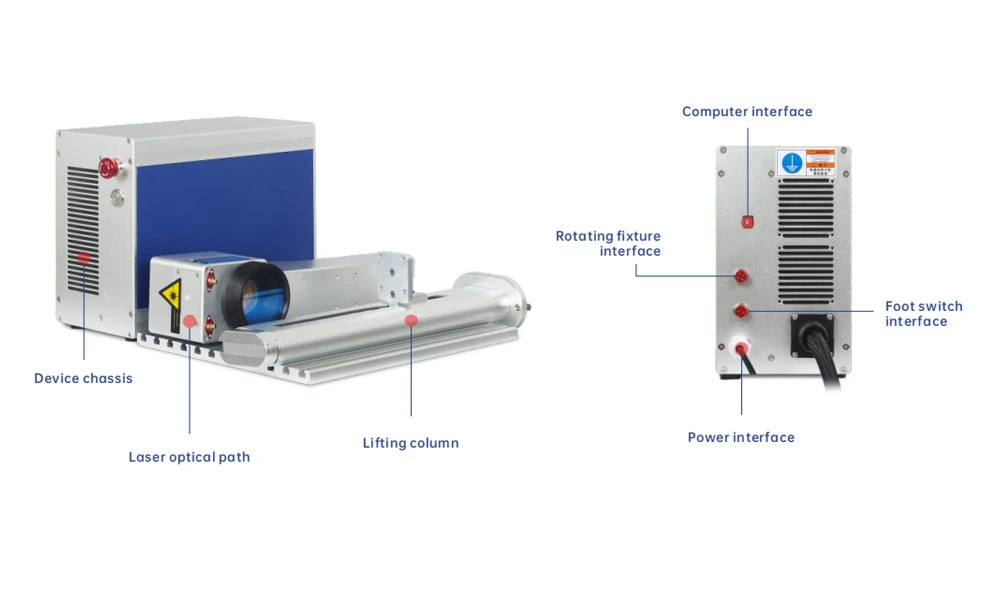

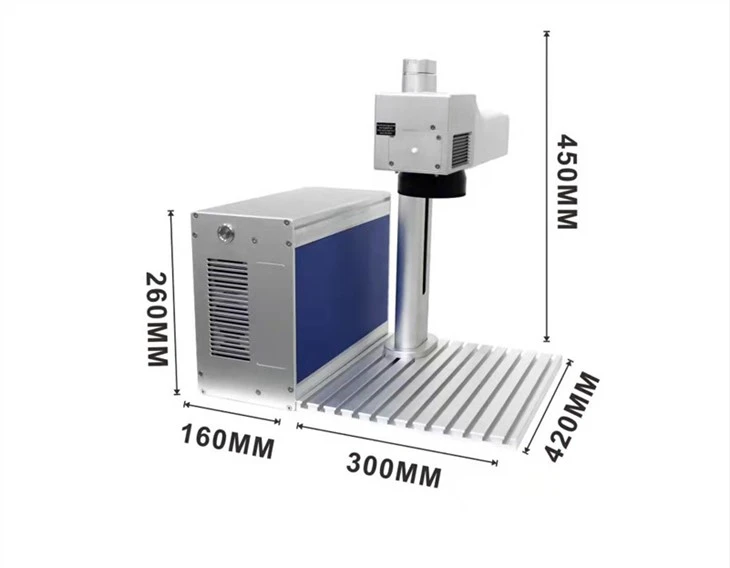

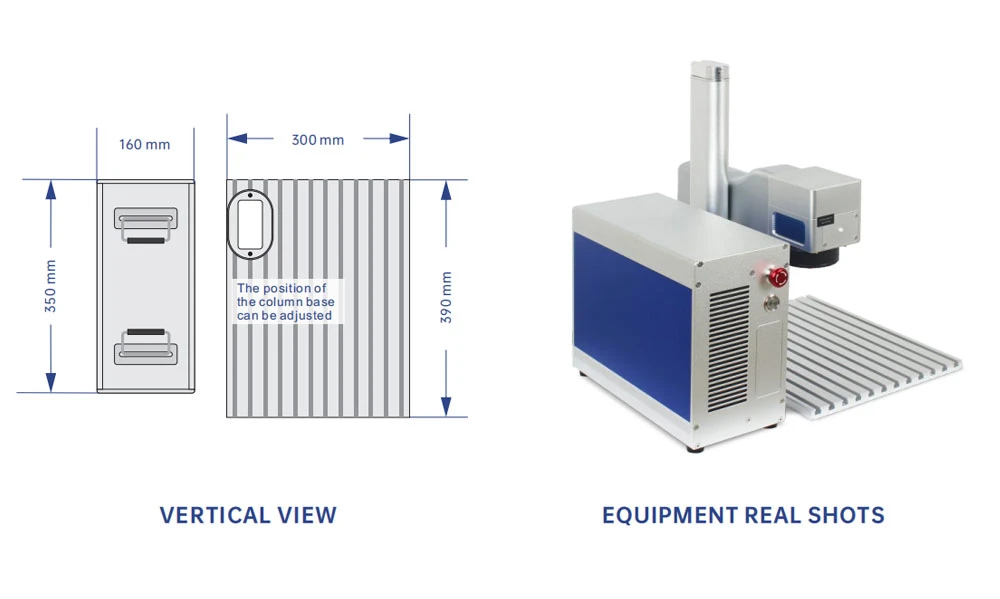

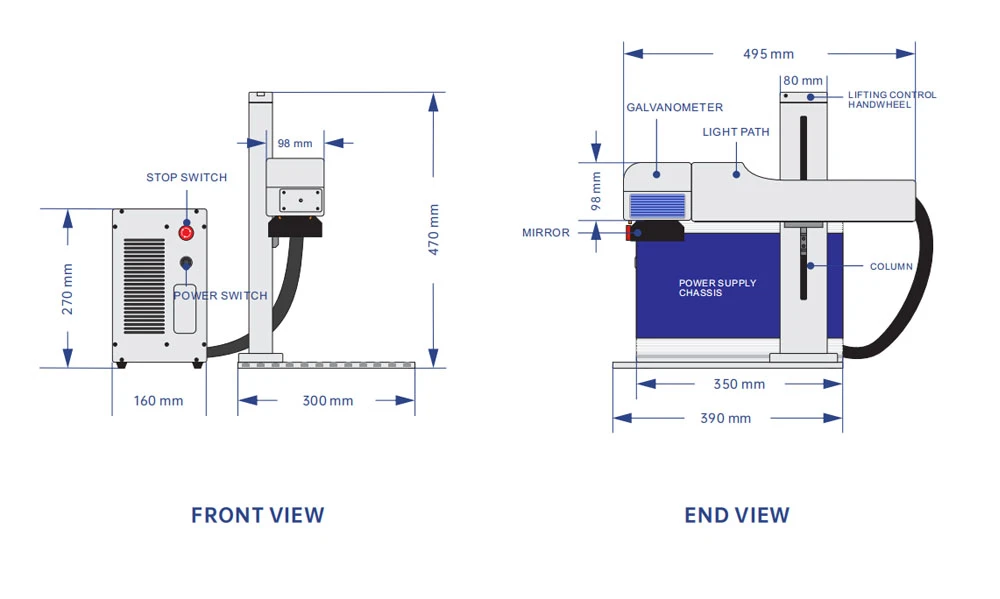

Product size

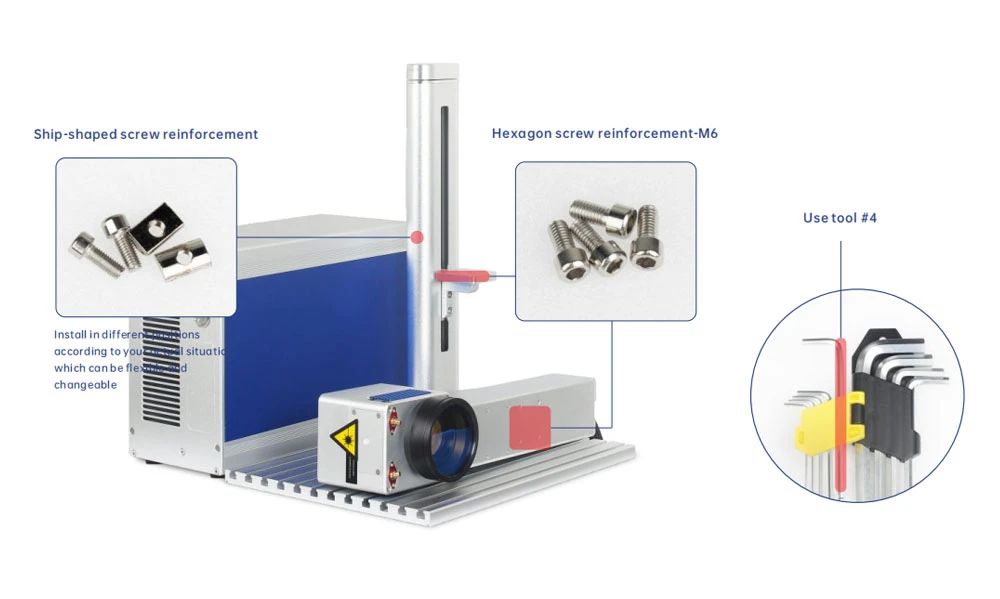

Installation

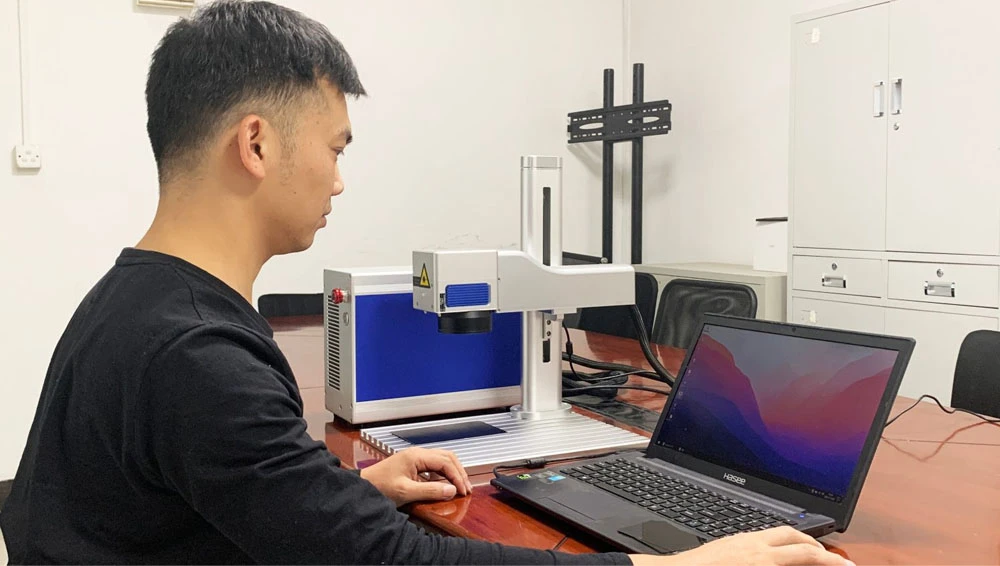

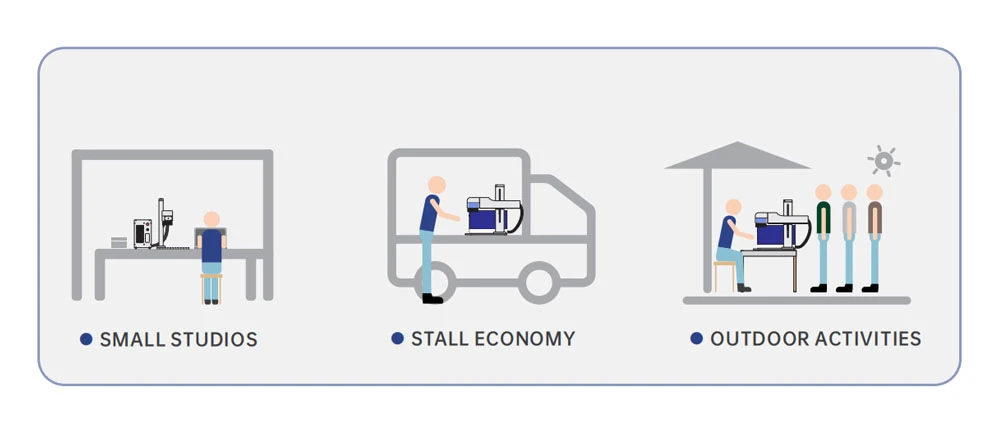

Application

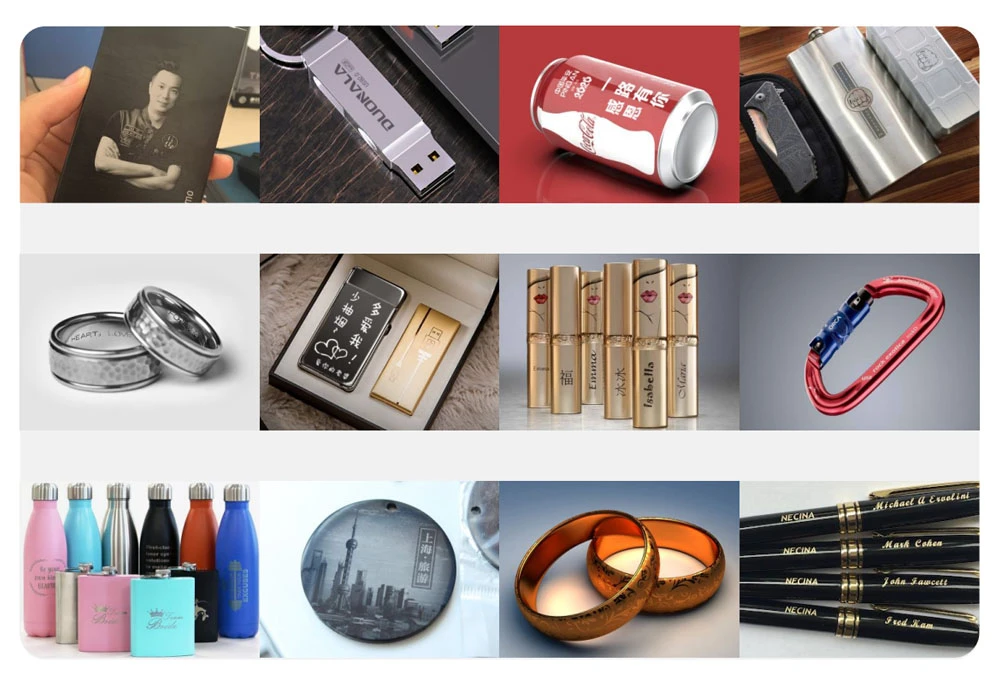

Marking samples

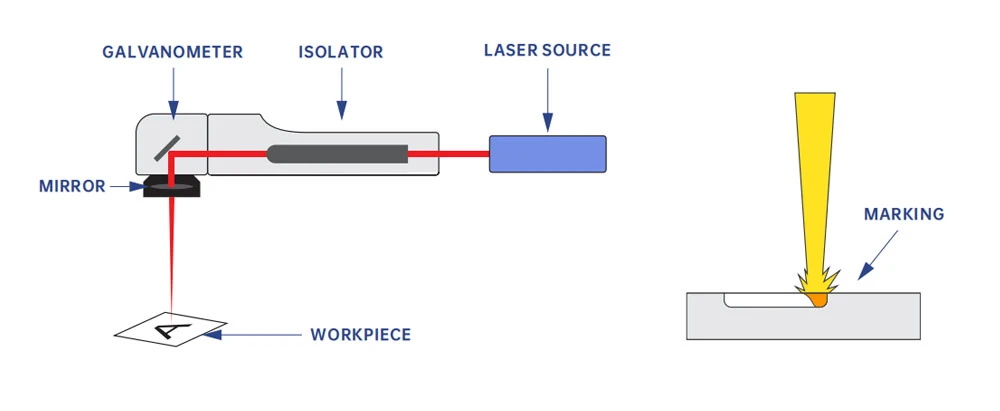

Laser principle
The marking is directly fire on the surface with the help of a strong pulsed laser beam to produce extremely deep, high- contrast markings on the surface, achieving permanent mark with uniform viewing angles, and corrosion resistance.

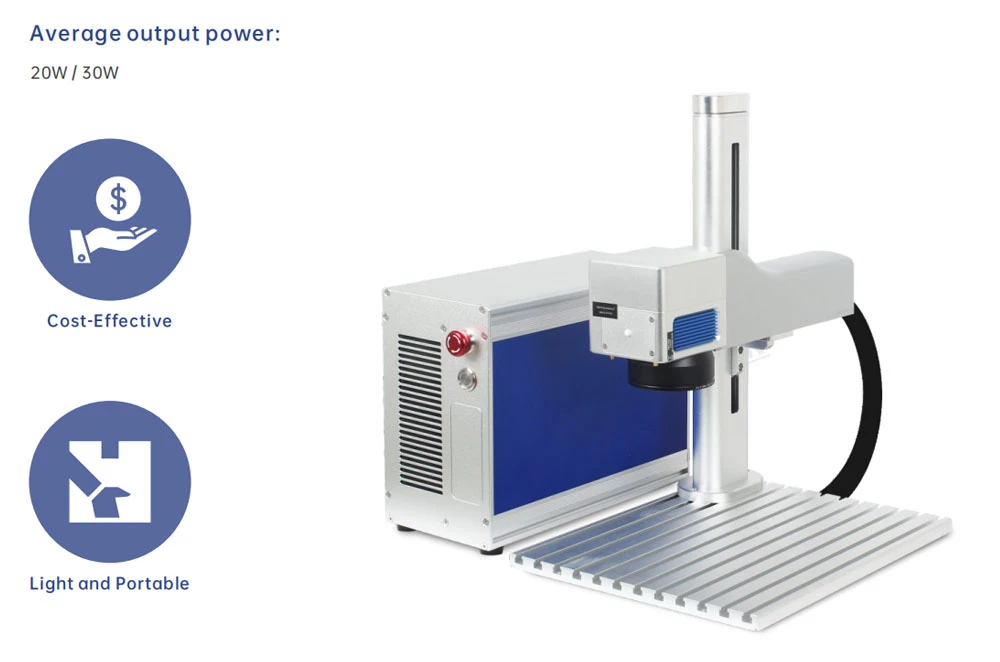

Advantages of competitive fiber laser engraver

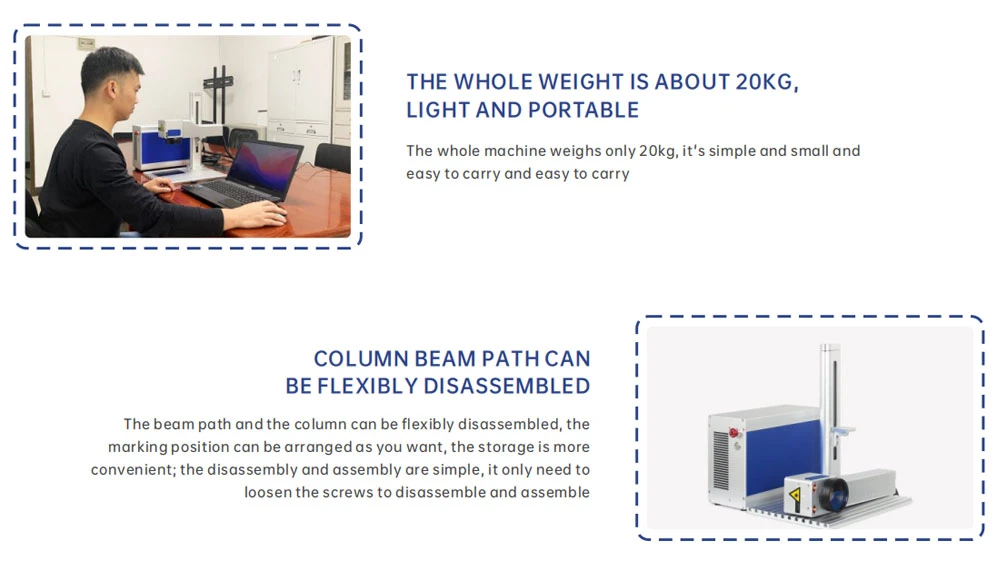

1. portable
Machine weigh is 20KG,it is very convenient to carry
The tower and beam path can be disassembled and packed easily,it's easy to install and transport.
The position of the tower can be adjusted freely on the table, which can be flexible and changeable
2. Cost-effective
Affordable and economical models, firm structure, stable performance, convenient to maintenance.
Desktop operation is available, small area and space occupied.

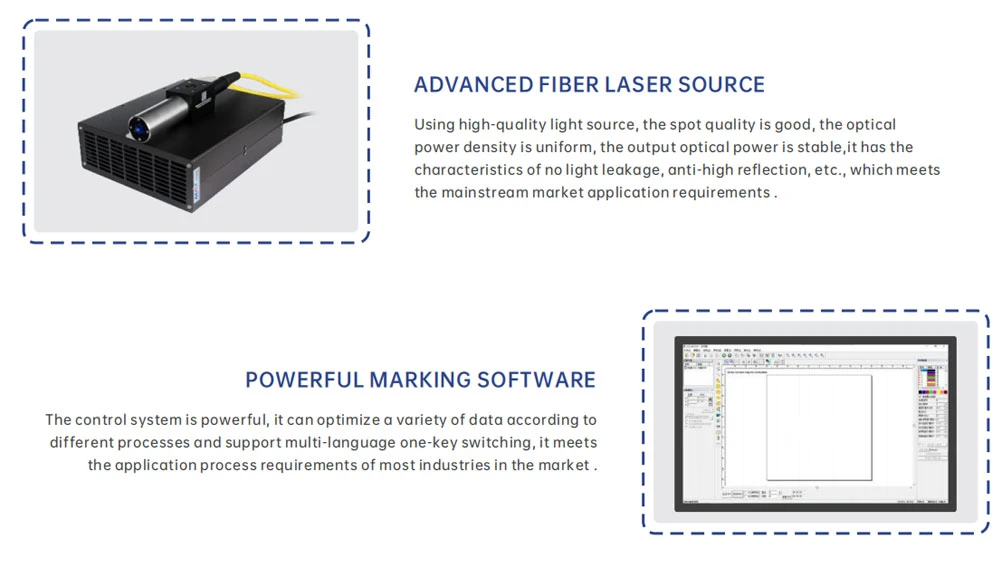

3. High quality laser source
Good output beam quality, high reliability;
No consumables and maintenance-free, working life is about 100,000 hours
Applied to metallic materials and some non-metallic materials.

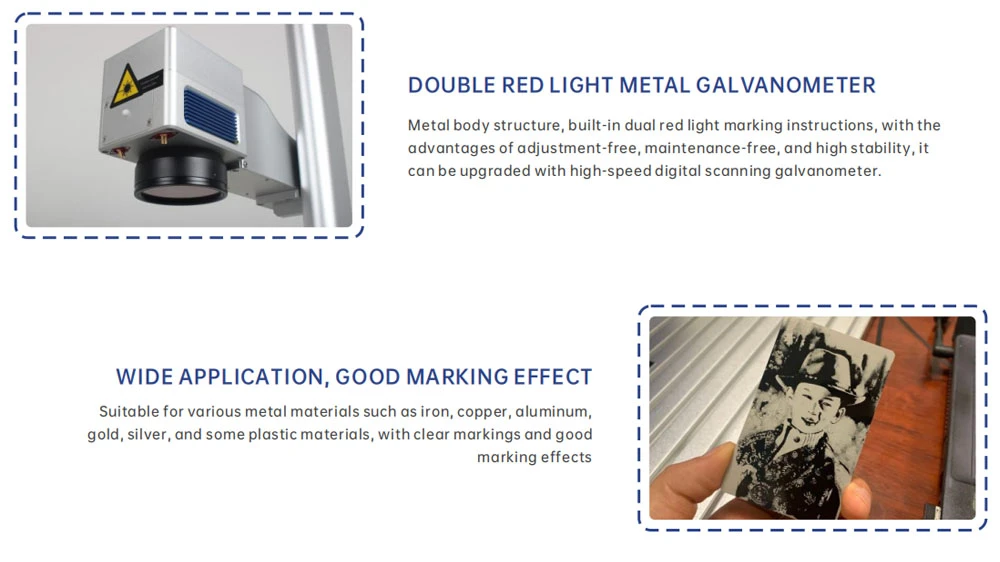

Features and performance of competitive fiber laser engraver
