Large Format Laser Marking

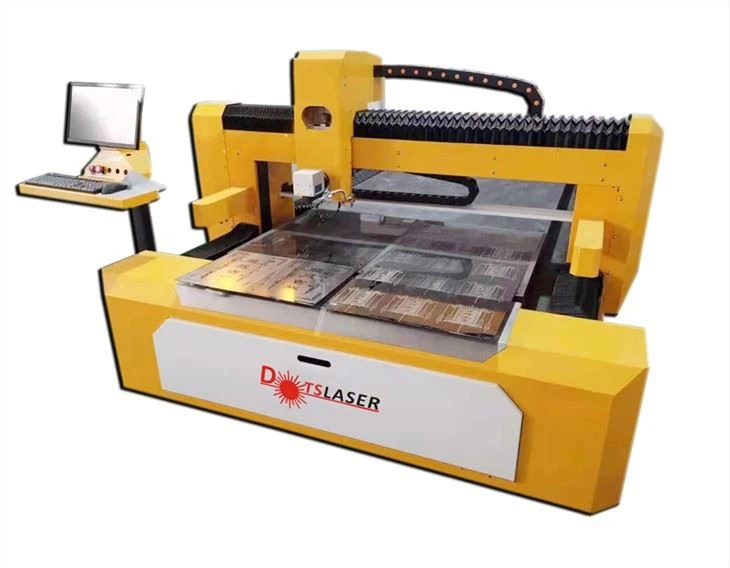

Large Format Marker
Products Description
Large Format Marker is a versatile tool utilized for processing a variety of hardware products, accessories, videos, medical equipment, and more. Our product range features high-performance lasers and galvanometers that guarantee stability and exceptional quality. In comparison to traditional marking methods, our equipment offers non-contact processing, ensuring no mechanical backlog or stress on the materials being processed. Rest assured, our cutting-edge technology will not cause any damage to your valuable products. Additionally, due to the small size of the laser focus, the heat-affected zone is minimized, resulting in precise and refined processing capabilities. This allows for the creation of markings that were previously unattainable using traditional methods.
Basic feature
| Large Format Marker suits for SUPER large size sheet matel marking or engraving ,compared with traditional etching by chemical, it has many advantages. |
| ● No replacement parts necessary, just a simple flick of the switch is all that's needed. |
| ● The processing efficiency has significantly improved, regardless of whether it takes minutes or hours to complete the task. |
| ● No pollution, no harm to people. |
| ● Energy conservation is achieved through the use of cutting-edge technology in etching processes, enabling the same level of work to be accomplished using significantly less electricity than through traditional methods. |
|
● User-friendly and intuitive, this software allows users to easily edit patterns through drawing tools and seamlessly import them into the control program. With the flexibility to create any desired patterns, the possibilities are endless. |
| ● It maintains consistent and uniform results throughout all processing areas, ensuring no variations in color. |
| ● Cut expenses, eliminate the need for excessive labor costs by simply pressing a button. Reduce rental costs by occupying minimal space. Save on electricity costs and save valuable time. |
1. We are a manufacturer, we have more than 10 years of equipment laser experience, and a professional service team.
2. The company's products have a competent foundation and credibility in terms of technology content and specifications. We will continue to provide high-quality products and services with first-class quality, advanced technology, satisfactory service and reasonable prices.
Main Parameters
| Model | DS-LM-1313 | DS-LM-1325 |
| Working area | 1300x1300mm | 1300x2500mm, different size must be customized |
| Laser power | 60W,80W,100W | |
| Laser wavelength | 1064nm | |
| Max single pulse energy | 1.5mj/2mj | |
| Pulse width | 2~350nm, 2~500ns | |
| Frequency range | 1~4000Khz | |
| Repeat accuracy | ±0.003mm | |
| Min. line width | 0.03mm | |
| Min. character size | 0.35mm | |
| Max.speed | 8000mm/s | |

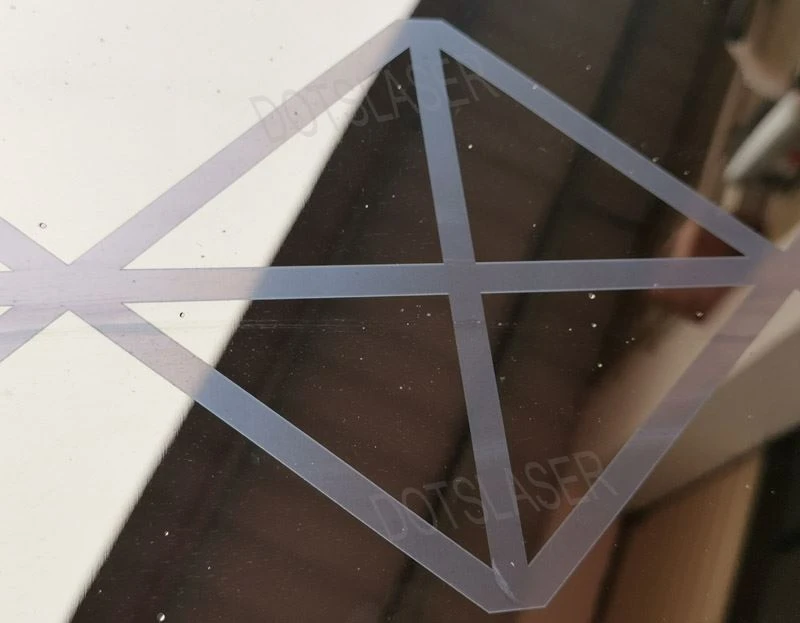

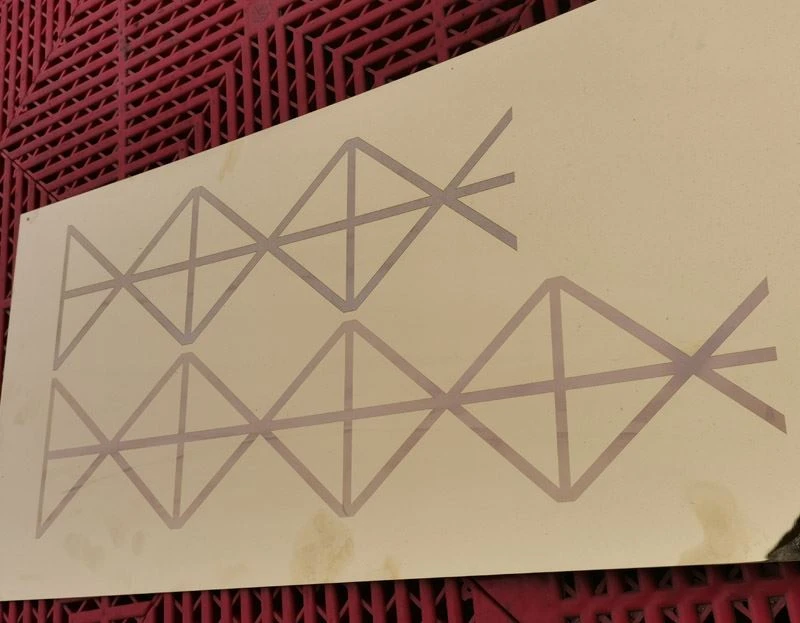

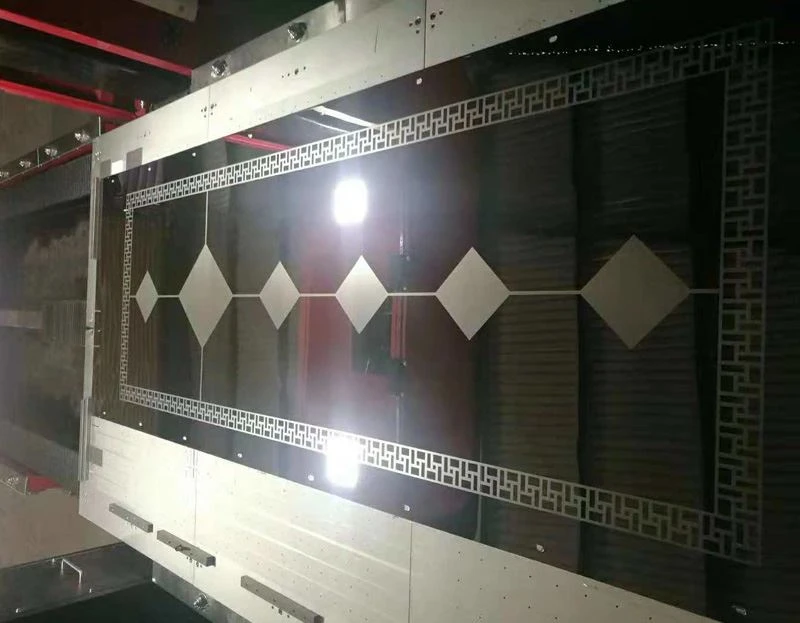

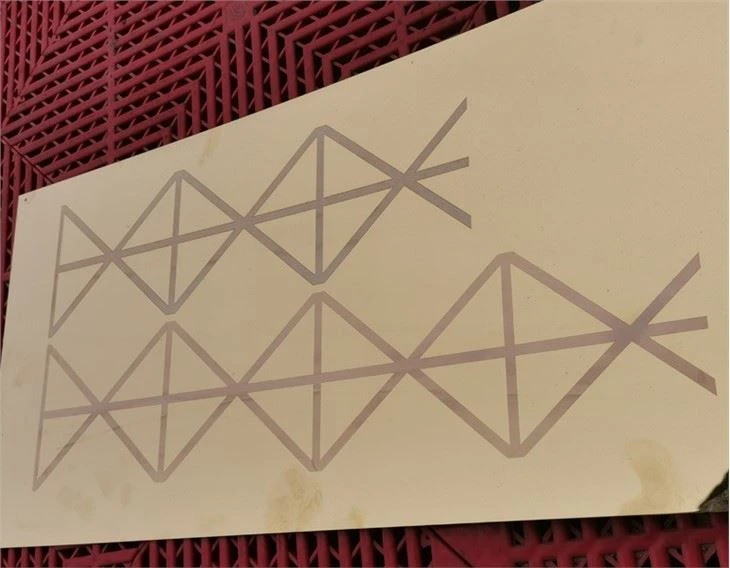

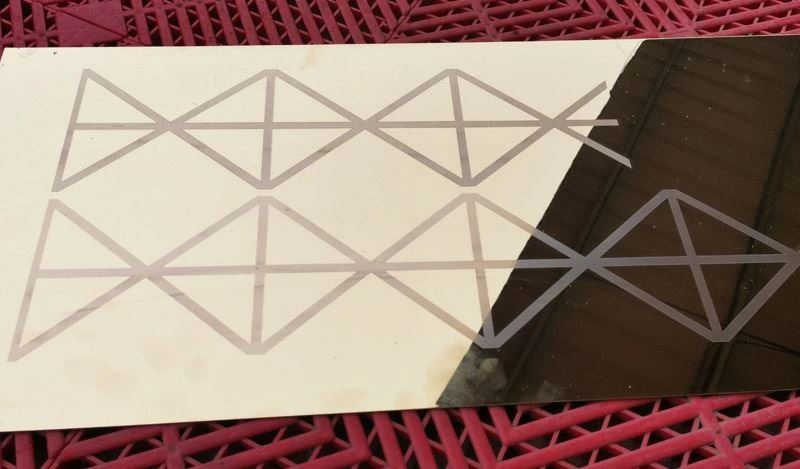

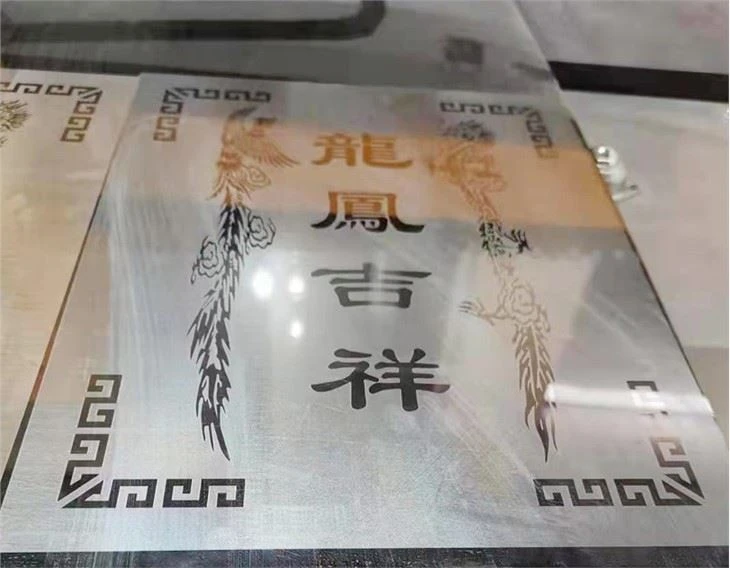

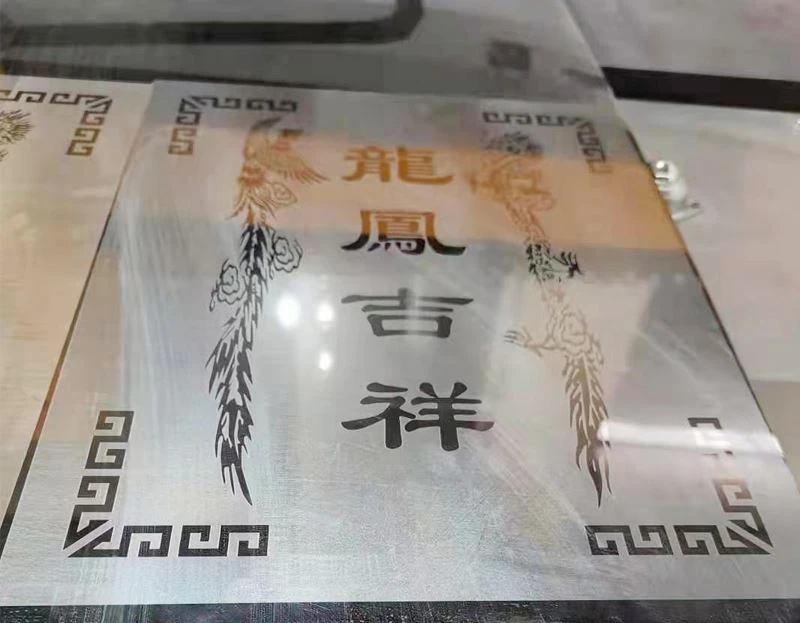

How' s the processing result of marking system? let us see samples below.
Don't hesitate, don't wait and see, the large format laser marking system you are looking for is here. Because we are professional, so we are confident!

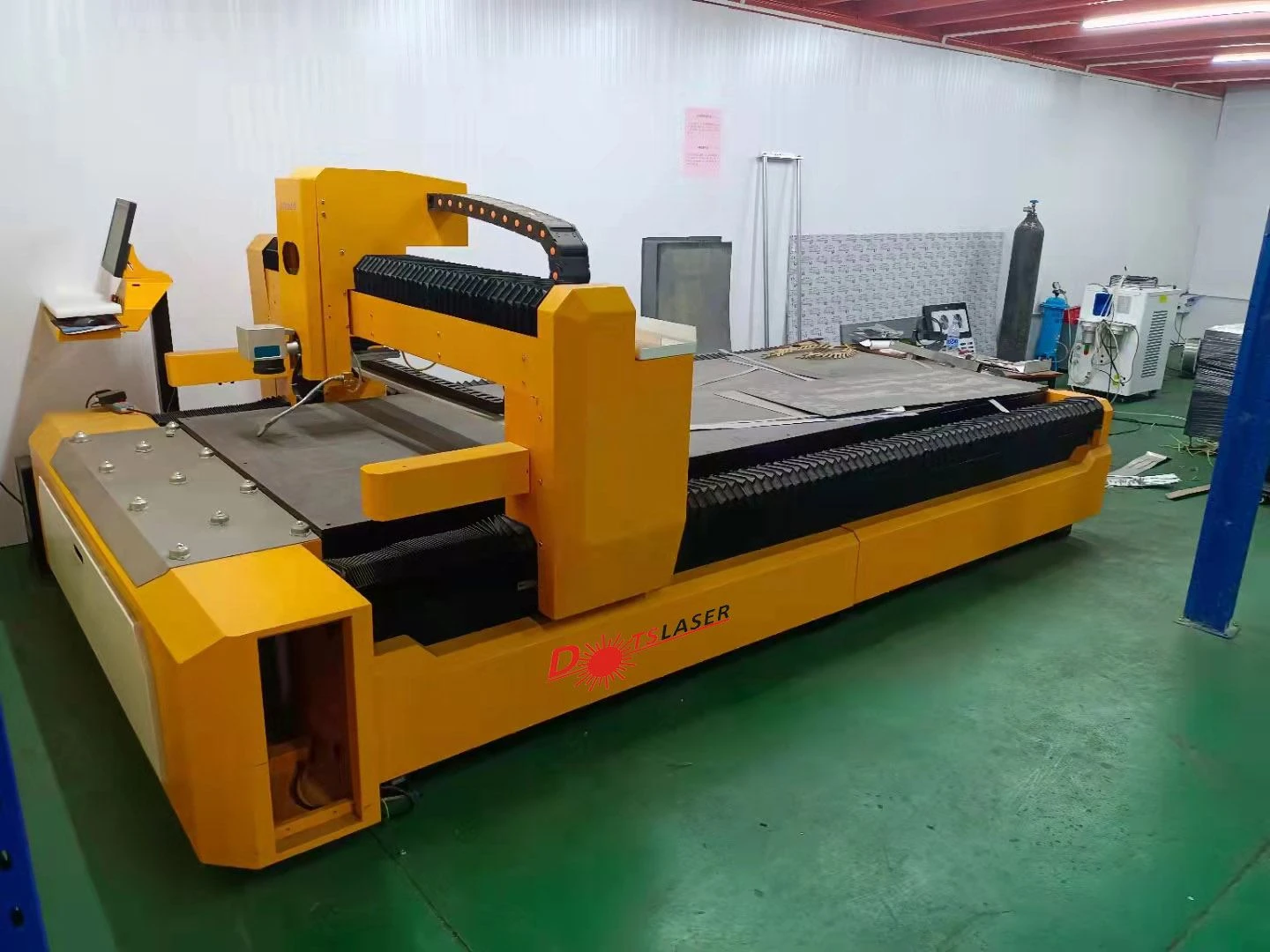

Large-format Marker:
1. This type of giant machines is specifically designed for large-size and mass production.
2. Standard sizes include 1300*1300mm and 1300*2500mm, different size must be customized.
3. This model is specialized for large-format operations, equipped with an XY-axis motion system capable of multi-axis linkage control.
4. We can customize worktable size for you, break the limited of working range in traditional machines and ensuring uniform marking effects.
5. The implementation of a follow-up marking system in control systems enables marking while in motion. This advanced laser marking machine is commonly utilized on various materials including stainless steel and smart mirrors.

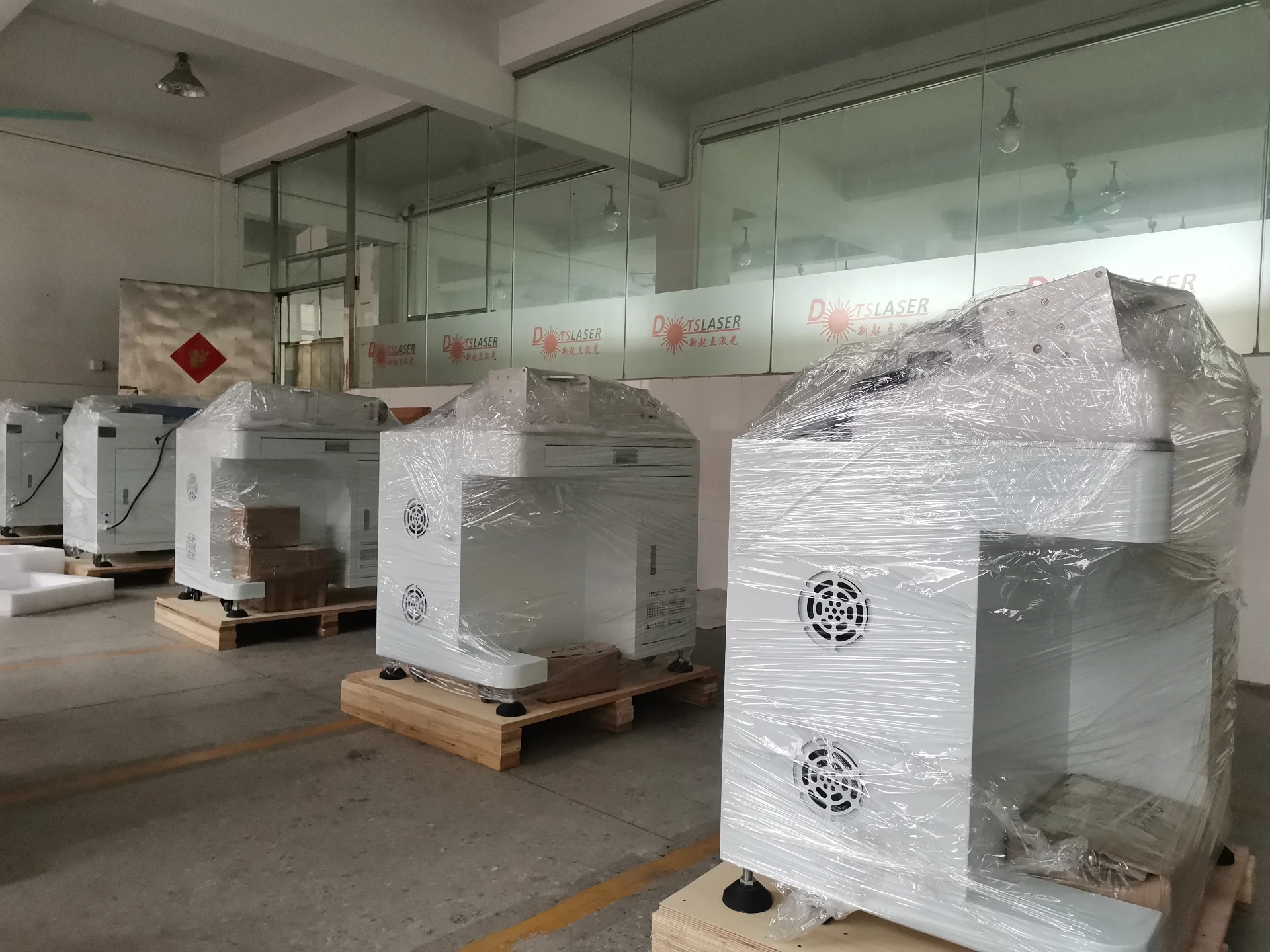

Packing

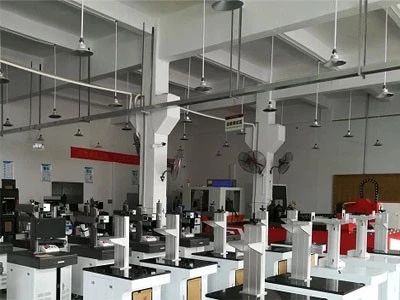

Factory Environment
Certificate
