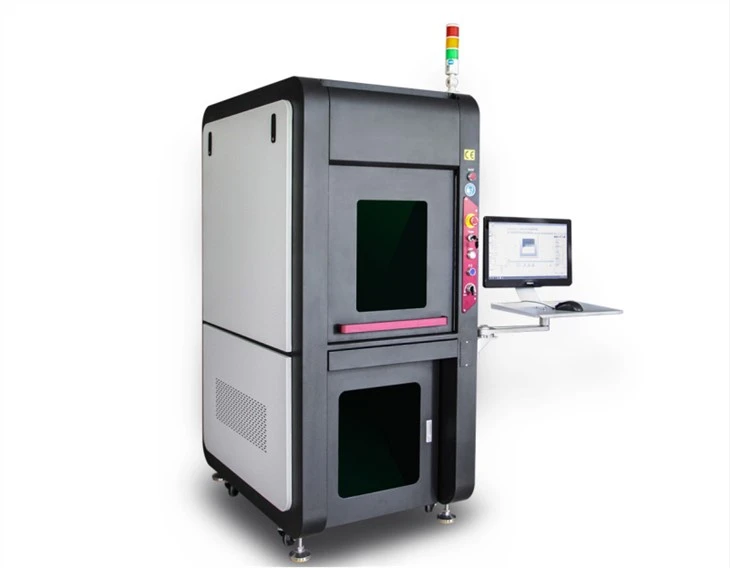

3D Laser Engraving Machine

3D Laser Engraving Machine

The 3D laser engraving machine is equipped with a dynamic z-axis, which can automatically focus on different surfaces, and has a large working area, which is suitable for curved surfaces. 3D dynamic focus laser engraving is a method of laser surface depression processing. Compared with traditional 2D laser marking, 3D engraving greatly reduces the surface flatness requirements of the processed object, and the processing effect is more colorful and better. Creative processing technology came into being. In the field of coding and marking, the traditional two-dimensional laser marking machine has been widely used in flat marking of various products. However, with the development of the industry, the demand for 3D surface processing has also emerged. The traditional 2D laser marking machine can hardly meet such processing demand, so the 3D dynamic focus laser engraving machine came into being.

Parameters

The 3D laser engraving machine is attached with class 1 standard .

What is the laser safety level ?

(1) Class I laser products have no biological hazards. Any beams that may be observed are shielded, and the laser system is interlocked during laser exposure.

(2) The output power of Class II laser products is 1 milliwatt. Will not burn the skin, nor cause a fire. Because eye reflection can prevent some eye damage, this type of laser is not considered a dangerous optical device.

(3) The output power of Class IIIa laser products is 1 mW to 5 mW. Will not burn the skin. Under certain conditions, this type of laser can cause blindness and other damage to the eyes.

(4) The output power of Class IIIb laser products is 5 mW to 500 mW. When the power is relatively high, this laser product will burn the skin. This type of laser product is clearly defined as harmful to the eyes, especially when the power is relatively high, it will cause damage to the eyes.

(5) The output power of Class IV laser products is greater than 500 milliwatts. Such laser products must be able to cause damage to the eyes. Just like burning skin and lighting clothes, lasers can ignite other materials.

Protective measures for 3D laser engraving machines: understand the hazards of lasers, and establish basic concepts and measures for the division of labor between manufacturers, operators, users, and managers for the safe use of lasers.

The safety responsibility of the laser product manufacturer

The manufacturer should provide thoughtful protection steps and facilities to make its products have basic safety. The purchaser must confirm that the purchased product has the safety during acceptance.

 1. Manufacturers with recognized laser levels must determine the beam quality to determine the hazard level of their products.

 2. Provide appropriate signs and guidelines. Manufacturers must provide appropriate data based on beam conditions and levels, including attaching appropriate marks to appropriate locations (such as apertures); and provide safety guidelines and important regulatory data for operation and maintenance.

 3. Prepare basic safety facilities. Laser products should have a sturdy protective casing, safety interlocking device, key switch, emission indicator light, beam attenuator (Attenuator) and manual reset equipment (Manual reset), etc.

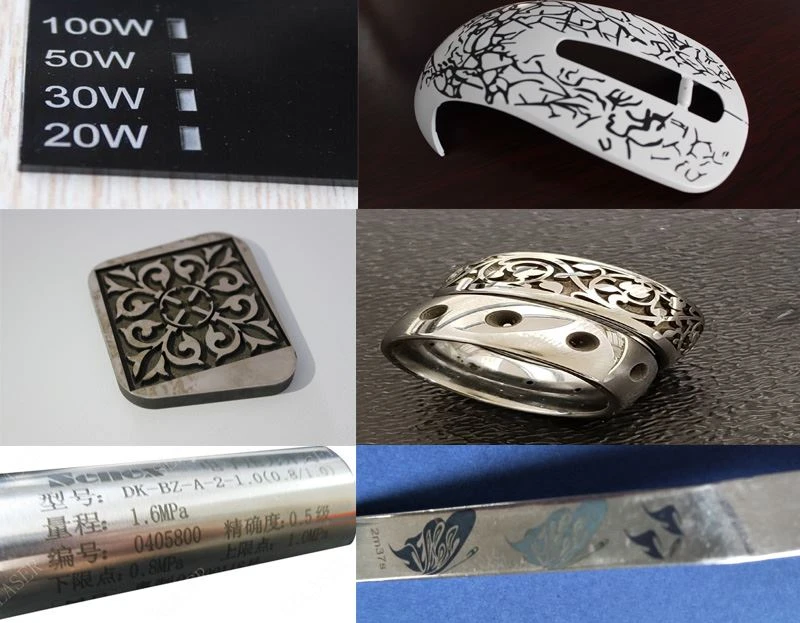

Samples

Packaging
