Lettering film laser cutting machines is used for half cutting TPU,PVC,PU,reflective films, with high efficiency and good result.

Send Inquiry

Product Introduction

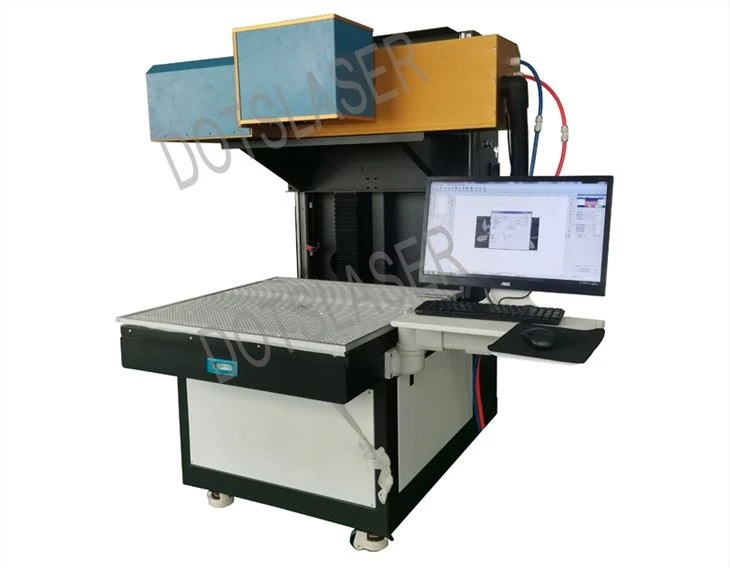

Lettering Film Laser Cutting Machines

Products Description

Lettering Film Laser Cutting Machines, designed to deliver impeccable cutting results on a wide range of materials. These machines are ideal for businesses specializing in signage, graphic production, advertising, and packaging industries. Our cutting machines offer extraordinary precision, efficiency, and reliability, making them the perfect addition to your production process.

Key Features

1. State-of-the-art Laser Technology: Our Lettering Film Laser Cutting Machines feature cutting-edge laser technology, capable of producing high-quality, intricate cuts on various materials such as lettering films, vinyl, paper, and plastics. The powerful laser ensures accurate cuts and clean edges, providing exceptional results every time.

2. Fast and Efficient Performance: Designed to deliver superior cutting speed, our machines significantly reduce production times, allowing you to handle a large volume of projects in a shorter time frame. This translates into increased productivity and improved efficiency.

3. User-friendly Interface: The intuitive touch screen interface ensures seamless operation by allowing operators to easily input settings, monitor progress, and manage the cutting process. This user-friendly system minimizes downtime and maximizes productivity.

4. Customizable Cutting Settings: Our cutting machines come with adjustable cutting power and speed settings, allowing you to achieve optimal results tailored to your specific materials and requirements. This flexibility ensures perfect cutting results for every project.

5.Robust Safety Features: The Lettering Film Laser Cutting Machines are equipped with essential safety features, such as protective enclosures and an automatic shutoff mechanism. These safety measures minimize potential accidents and help create a safe working environment.

6. Durable and Reliable Construction: Constructed using high-quality materials and components, the Lettering Film Laser Cutting Machines are built to offer long-lasting performance and are designed to withstand the demands of a busy production environment.

Applications:

The Lettering Film Laser Cutting Machines are suitable for various applications, including but not limited to:

It is suitable for laser marking and die-cutting in sportswear, casual clothing, children's clothing, special clothing, clothing, footwear, and other industries.

Signage and graphic production

Packaging and label manufacturing

Decals and stencils creation

Customizable promotional materials

Suitable material: PVC lettering film, TPU lettering film, PU matte lettering film, luminous lettering film, laser soft metal lettering film, inkjet printing film, reflective lettering film, flocking lettering film, glitter lettering film, reflective screen printing film, weak solvent printing film , decorative film, leather label, cloth label and other materials.

Parameters

NO.	Name	DS-LMC series Galvo laser system
1	Machine model	DS-LMC150/DS-LMC250/DS-LMC350
2	Max laser power	150W/250W/350W
3	laser wavelength	10.6μm
4	Beam quality	＜1.2㎡
5	Duty cycle limit	≤60%
6	Min.line width	0. 17mm(depend on the material)
7	Min.character size	0.4mm
8	Max marking speed	≤8,000mm/s
9	Working area	400x400mm/500x500mm/600x600mm/800x800mm
10	Cooling	Water cooled
11	Working environment temperature range	5~35 ℃
12	Humidity range of working environment	< 70% No condensation
13	Power supply	220V,50/60Hz
14	Power consumption	＜6KW

Samples show

A good dress can not only let your appearance rub up, but also can show your personality! So the key comes, how to make personalized clothing? here we tell you, choose the right lettering film processing equipment is the key!

Advantages of lettering film cutting machine:

1. Processing speed is faster and more efficient.

SUPER laser engraver uses super large spot 3d dynamical system, processing speed than ordinary laser marker 25% -30% faster. Equipped with powerful marking software, marking speed up to 8000mm/s, with 50 aperture high-speed mirror, more suitable for lettering film mass production.

2.The beam quality is more fine and the processing effect is better.

The high efficient and stable control system of the super lettering film marking machine, together with the super large spot mirror optical lens, can achieve more precise and consistent beam quality in the working range, with a minimum line width of 0.18 mm.

3. More delicate, more beautiful cutting effect.

Compared with ordinary laser marking machine, the cutting line is thinner, so the residual black impurities are less, the cutting effect is more refined, more beautiful.
